Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

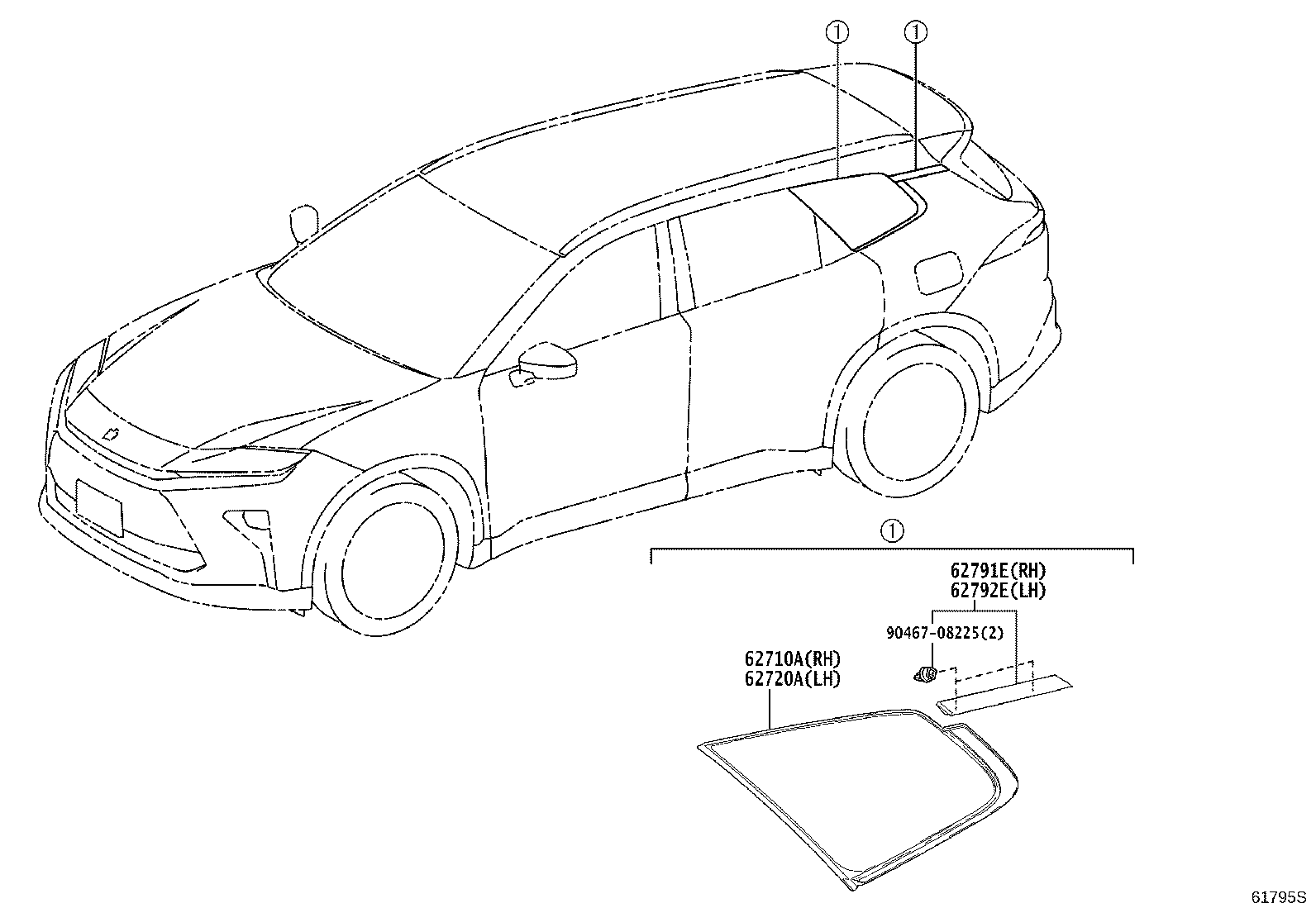

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62710A — Window Assy, Quarter, RH | ||||
| 62710-30150 |
Window Assy, Quarter, RH
2024-05 → —
|
AZSH38 | — | |
| 62710-30150 |
Window Assy, Quarter, RH
2024-09 → —
|
AZSH39 | — | |
| 62710-30180 note |
Window Assy, Quarter, RH
2024-05 → —
|
AZSH38 | — | |
| 62710-30180 note |
Window Assy, Quarter, RH
2024-09 → —
|
AZSH39 | — | |
| 62720A — Window Assy, Quarter, LH | ||||
| 62720-30150 |
Window Assy, Quarter, LH
2024-05 → —
|
AZSH38 | — | |
| 62720-30150 |
Window Assy, Quarter, LH
2024-09 → —
|
AZSH39 | — | |
| 62720-30180 note |
Window Assy, Quarter, LH
2024-05 → —
|
AZSH38 | — | |
| 62720-30180 note |
Window Assy, Quarter, LH
2024-09 → —
|
AZSH39 | — | |
| 62791E — Moulding, Quarter Window, Upper RH | ||||
| 62791-30030 |
Moulding, Quarter Window, Upper RH
2024-05 → —
|
AZSH38 | — | |
| 62791-30030 |
Moulding, Quarter Window, Upper RH
2024-09 → —
|
AZSH39 | — | |
| 62792E — Moulding, Quarter Window, Upper LH | ||||
| 62792-30030 |
Moulding, Quarter Window, Upper LH
2024-05 → —
|
AZSH38 | — | |
| 62792-30030 |
Moulding, Quarter Window, Upper LH
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
