Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

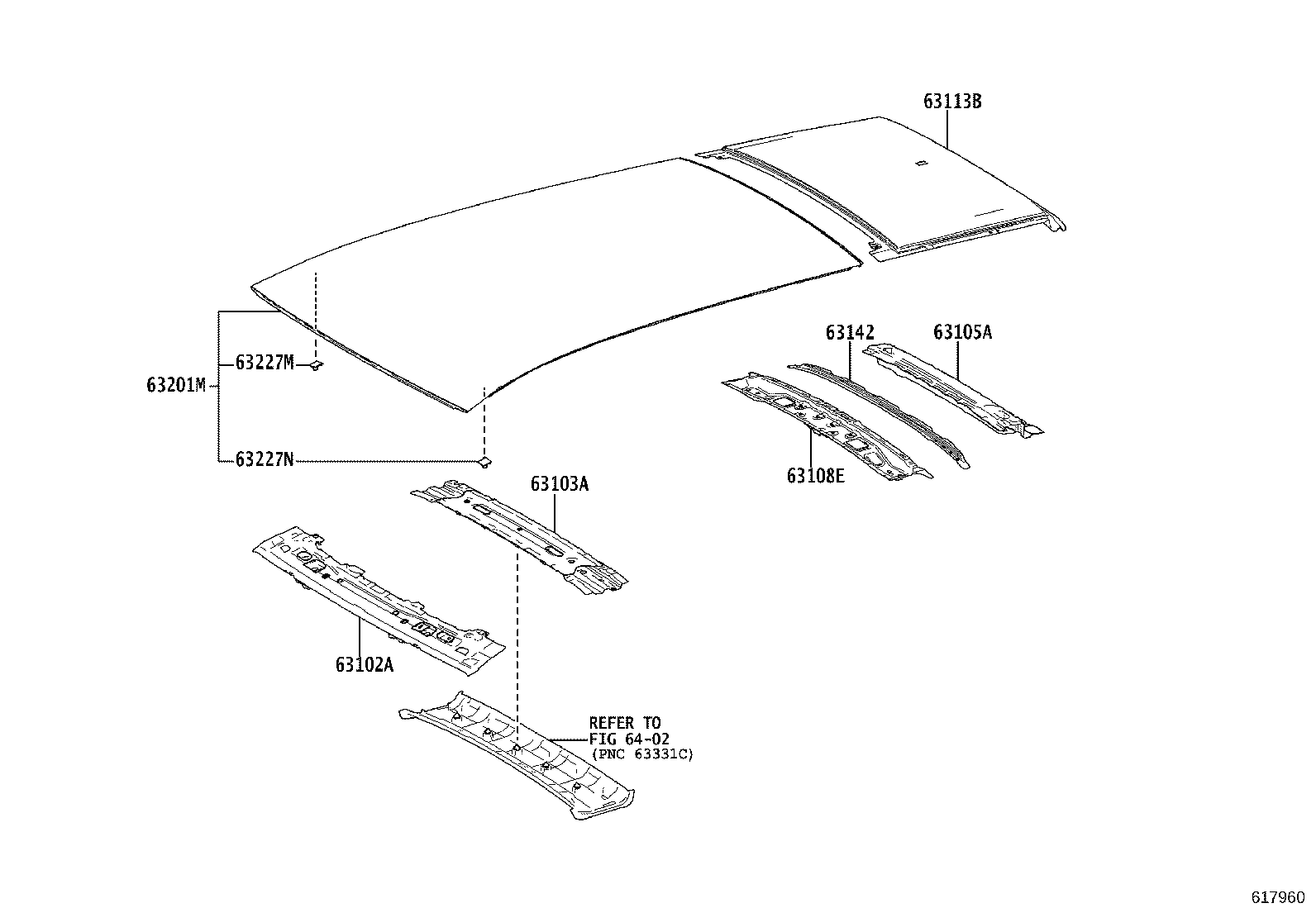

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-30510 |
Panel Sub-assy, Windshield Header
2024-09 → —
|
AZSH39 | — | |
| 63102-30510 |
Panel Sub-assy, Windshield Header
2024-05 → —
|
AZSH38 G | — | |
| 63102-30914 note |
Panel Sub-assy, Windshield Header
2024-05 → —
|
AZSH38 G | — | |
| 63102-30914 note |
Panel Sub-assy, Windshield Header
2024-09 → —
|
AZSH39 | — | |
| 63103A — Reinforcement Sub-assy, Roof Panel | ||||
| 63103-30460 |
Reinforcement Sub-assy, Roof Panel
2024-05 → —
|
AZSH38 M | — | |
| 63103-30460 note |
Reinforcement Sub-assy, Roof Panel
2024-05 → —
|
AZSH38 G | — | |
| 63103-30460 note |
Reinforcement Sub-assy, Roof Panel
2024-09 → —
|
AZSH39 | — | |
| 63103-30470 |
Reinforcement Sub-assy, Roof Panel
2024-05 → —
|
AZSH38 G | — | |
| 63103-30470 |
Reinforcement Sub-assy, Roof Panel
2024-09 → —
|
AZSH39 | — | |
| 63105A — Frame Sub-assy, Back Door Opening | ||||
| 63105-30150 |
Frame Sub-assy, Back Door Opening
2024-05 → —
|
AZSH38 | — | |
| 63105-30150 |
Frame Sub-assy, Back Door Opening
2024-09 → —
|
AZSH39 | — | |
| 63108E — Reinforcement Sub-assy, Roof Panel, NO.6 | ||||
| 63108-30080 |
Reinforcement Sub-assy, Roof Panel, NO.6
2024-05 → —
|
AZSH38 G | — | |
| 63108-30080 |
Reinforcement Sub-assy, Roof Panel, NO.6
2024-09 → —
|
AZSH39 | — | |
| 63113B — Panel, Roof, Rear | ||||
| 63113-30040 |
Panel, Roof, Rear
2024-09 → —
|
AZSH39 | — | |
| 63113-30040 |
Panel, Roof, Rear
2024-05 → —
|
AZSH38 G | — | |
| 63142 — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-30260 |
Reinforcement, Roof Panel, NO.2
2024-05 → —
|
AZSH3# | — | |
| 63201M — Glass Sub-assy, Roof Window, NO.1 | ||||
| 63201-30270 |
Glass Sub-assy, Roof Window, NO.1
2024-05 → —
|
AZSH38 G | — | |
| 63201-30270 note |
Glass Sub-assy, Roof Window, NO.1
2024-05 → —
|
AZSH38 G | — | |
| 63201-30270 |
Glass Sub-assy, Roof Window, NO.1
2024-09 → —
|
AZSH39 | — | |
| 63201-30270 note |
Glass Sub-assy, Roof Window, NO.1
2024-09 → —
|
AZSH39 | — | |
| 63227M — Clip, Roof Window, Lower | ||||
| 63227-30050 |
Clip, Roof Window, Lower
2024-05 → —
|
AZSH38 G | — | |
| 63227-30050 note |
Clip, Roof Window, Lower
2024-05 → —
|
AZSH38 G | — | |
| 63227-30050 |
Clip, Roof Window, Lower
2024-09 → —
|
AZSH39 | — | |
| 63227-30050 note |
Clip, Roof Window, Lower
2024-09 → —
|
AZSH39 | — | |
| 63227N — Clip, Roof Window, Lower, NO.2 | ||||
| 63228-30050 |
Clip, Roof Window, Lower, NO.2
2024-05 → —
|
AZSH38 G | — | |
| 63228-30050 note |
Clip, Roof Window, Lower, NO.2
2024-05 → —
|
AZSH38 G | — | |
| 63228-30050 |
Clip, Roof Window, Lower, NO.2
2024-09 → —
|
AZSH39 | — | |
| 63228-30050 note |
Clip, Roof Window, Lower, NO.2
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
