Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

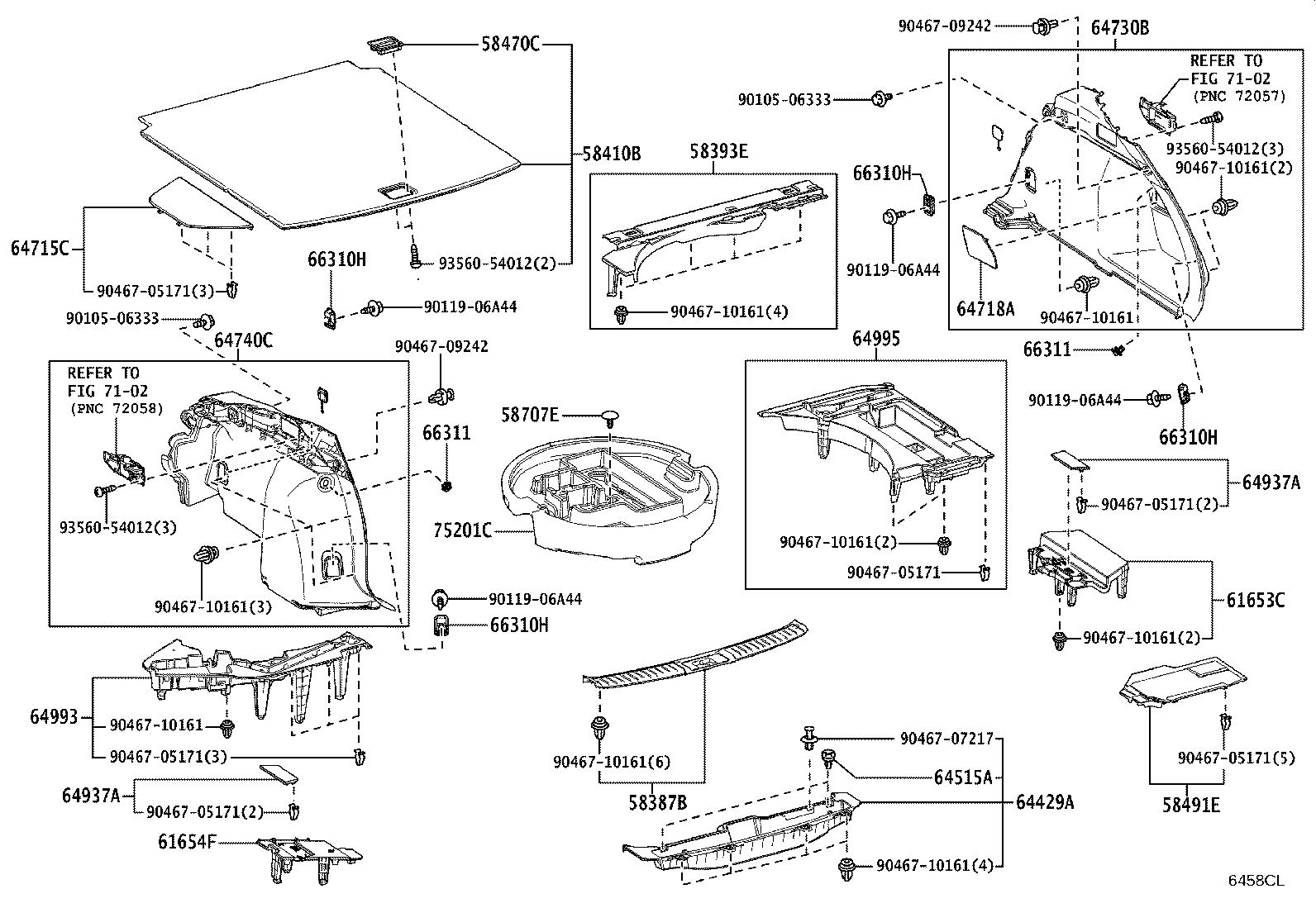

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58387B — Plate, Rear Floor Finish | ||||
| 58387-30290-C0 note |
Plate, Rear Floor Finish
2024-05 → —
|
AZSH38 G | — | |
| 58387-30290-C0 note |
Plate, Rear Floor Finish
2024-05 → —
|
AZSH38 M | — | |
| 58387-30290-C0 note |
Plate, Rear Floor Finish
2024-09 → —
|
AZSH39 | — | |
| 58393E — Support, Deck Board Set | ||||
| 58393-30030 |
Support, Deck Board Set
2024-05 → —
|
AZSH38 | — | |
| 58393-30040 |
Support, Deck Board Set
2024-09 → —
|
AZSH39 | — | |
| 58410B — Board Assy, Deck | ||||
| 58410-30040-C1 note |
Board Assy, Deck
2024-05 → —
|
AZSH38 M | — | |
| 58410-30040-C1 note |
Board Assy, Deck
2024-05 → —
|
AZSH38 G | — | |
| 58410-30040-C1 note |
Board Assy, Deck
2024-09 → —
|
AZSH39 | — | |
| 58410-30050-C1 note |
Board Assy, Deck
2024-05 → —
|
AZSH38 | — | |
| 58470C — Handle Assy, Deck Board | ||||
| 58470-78020-C1 note |
Handle Assy, Deck Board
2024-05 → —
|
AZSH38 M | — | |
| 58470-78020-C1 note |
Handle Assy, Deck Board
2024-05 → —
|
AZSH38 G | — | |
| 58470-78020-C1 note |
Handle Assy, Deck Board
2024-09 → —
|
AZSH39 | — | |
| 58491E — Plate, Battery Service Cover | ||||
| 58491-30010 |
Plate, Battery Service Cover
2024-09 → —
|
AZSH39 | — | |
| 58491-30010 |
Plate, Battery Service Cover
2024-05 → —
|
AZSH38 | — | |
| 58707E — Plug Set, Hole | ||||
| 64778-52160 |
Plug Set, Hole
2024-05 → —
|
AZSH38 | — | |
| 64778-52160 |
Plug Set, Hole
2024-09 → —
|
AZSH39 | — | |
| 61653C — Bracket, Deck Side Trim, RH | ||||
| 61653-30060 |
Bracket, Deck Side Trim, RH
2024-05 → —
|
AZSH38 | — | |
| 61653-30060 |
Bracket, Deck Side Trim, RH
2024-09 → —
|
AZSH39 | — | |
| 61654F — Bracket, Deck Side Trim, LH | ||||
| 61654-30050 |
Bracket, Deck Side Trim, LH
2024-05 → —
|
AZSH38 | — | |
| 61654-30050 |
Bracket, Deck Side Trim, LH
2024-09 → —
|
AZSH39 | — | |
| 64429A — Box, Luggage Compartment Trim | ||||
| 64429-30050 |
Box, Luggage Compartment Trim
2024-05 → —
|
AZSH38 | — | |
| 64429-30050 |
Box, Luggage Compartment Trim
2024-09 → —
|
AZSH39 | — | |
| 64515A — Holder, Luggage Compartment Door Hook | ||||
| 64515-28020-C0 note |
Holder, Luggage Compartment Door Hook
2024-05 → —
|
AZSH38 | — | |
| 64515-28020-C0 note |
Holder, Luggage Compartment Door Hook
2024-09 → —
|
AZSH39 | — | |
| 64715C — Cover, Deck Side Trim, LH | ||||
| 64715-30430-C1 note |
Cover, Deck Side Trim, LH
2024-05 → —
|
AZSH38 | — | |
| 64718A — Cover, Deck Trim Service Hole | ||||
| 64718-30190-C1 note |
Cover, Deck Trim Service Hole
2024-05 → —
|
AZSH38 G | — | |
| 64718-30190-C1 note |
Cover, Deck Trim Service Hole
2024-09 → —
|
AZSH39 | — | |
| 64718-30190-C1 note |
Cover, Deck Trim Service Hole
2024-05 → —
|
AZSH38 M | — | |
| 64730B — Panel Assy, Deck Trim Side, RH | ||||
| 64730-30030-C1 note |
Panel Assy, Deck Trim Side, RH
2024-05 → —
|
AZSH38 M | — | |
| 64730-30030-C1 note |
Panel Assy, Deck Trim Side, RH
2024-05 → —
|
AZSH38 G | — | |
| 64730-30030-C1 note |
Panel Assy, Deck Trim Side, RH
2024-09 → —
|
AZSH39 | — | |
| 64740C — Panel Assy, Deck Trim Side, LH | ||||
| 64740-30020-C1 note |
Panel Assy, Deck Trim Side, LH
2024-05 → —
|
AZSH38 M | — | |
| 64740-30020-C1 note |
Panel Assy, Deck Trim Side, LH
2024-05 → —
|
AZSH38 G | — | |
| 64740-30020-C1 note |
Panel Assy, Deck Trim Side, LH
2024-09 → —
|
AZSH39 | — | |
| 64937A — Cap, Tonneau Cover Holder, NO.1 | ||||
| 64937-30010 |
Cap, Tonneau Cover Holder, NO.1
2024-05 → —
|
AZSH38 | — | |
| 64937-30010 |
Cap, Tonneau Cover Holder, NO.1
2024-09 → —
|
AZSH39 | — | |
| 64993 — Box, Deck Floor, Rear | ||||
| 64993-30010 |
Box, Deck Floor, Rear
2024-05 → —
|
AZSH38 | — | |
| 64993-30010 |
Box, Deck Floor, Rear
2024-09 → —
|
AZSH39 | — | |
| 64995 — Box, Deck Floor, RH | ||||
| 64995-30010 |
Box, Deck Floor, RH
2024-05 → —
|
AZSH38 | — | |
| 64995-30030 |
Box, Deck Floor, RH
2024-09 → —
|
AZSH39 | — | |
| 66310H — Hook Assy, Rope | ||||
| 66310-30011-C1 note |
Hook Assy, Rope
2024-05 → —
|
AZSH38 M | — | |
| 66310-30011-C1 note |
Hook Assy, Rope
2024-05 → —
|
AZSH38 G | — | |
| 66310-30011-C1 note |
Hook Assy, Rope
2024-09 → —
|
AZSH39 | — | |
| 66311 — Hook, Rope | ||||
| 66311-30010-C1 note |
Hook, Rope
2024-05 → —
|
AZSH38 M | — | |
| 66311-30010-C1 note |
Hook, Rope
2024-05 → —
|
AZSH38 G | — | |
| 66311-30010-C1 note |
Hook, Rope
2024-09 → —
|
AZSH39 | — | |
| 75201C — Box Sub-assy, Tool, NO.1 | ||||
| 75201-30180 |
Box Sub-assy, Tool, NO.1
2024-05 → —
|
AZSH38 | — | |
| 75201-30210 |
Box Sub-assy, Tool, NO.1
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
