Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General

Supported model Data version 2024-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

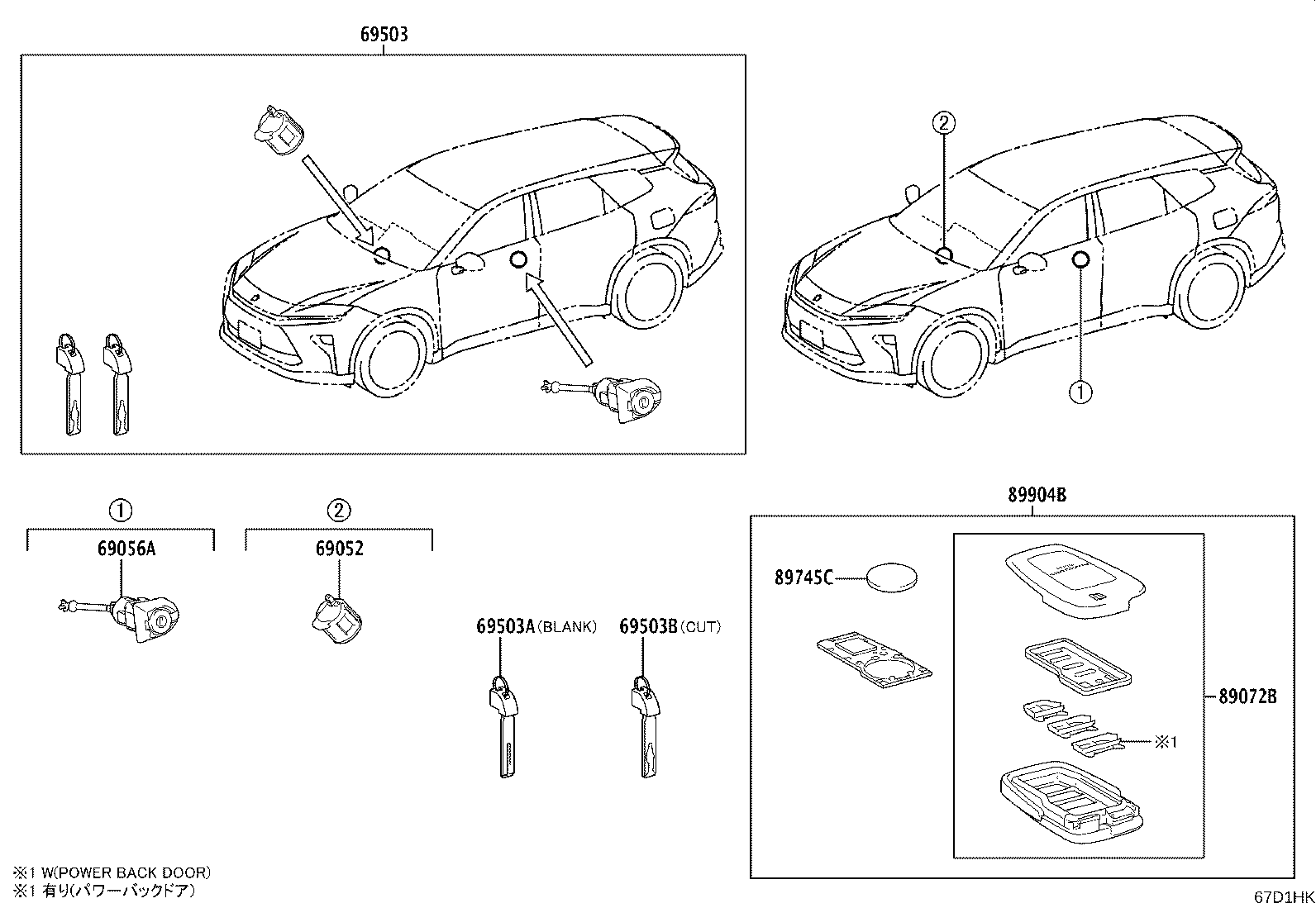

18 parts on this figure

Part number	Description	Fitment	Price
69052 — Cylinder & Key Set, Door Lock, LH
69052-30400	Cylinder & Key Set, Door Lock, LH 2024-09 → —	AZSH39	—
69052-30400	Cylinder & Key Set, Door Lock, LH 2024-05 → —	AZSH38	—
69056A — Cylinder & Key Set, Glove Compartment Lock
69056-30310	Cylinder & Key Set, Glove Compartment Lock 2024-05 → —	AZSH38	—
69056-30310	Cylinder & Key Set, Glove Compartment Lock 2024-09 → —	AZSH39	—
69503 — Cylinder Set, Lock
69005-30K40	Cylinder Set, Lock 2024-05 → —	AZSH38	—
69005-30K40	Cylinder Set, Lock 2024-09 → —	AZSH39	—
69503A — Key, Blank
69515-K0020 note	Key, Blank 2024-05 → —	AZSH38	—
69515-K0020 note	Key, Blank 2024-09 → —	AZSH39	—
69503B — Key, Cut
69515-K0010 note	Key, Cut 2024-09 → —	AZSH39	—
69515-K0010 note	Key, Cut 2024-05 → —	AZSH38	—
89072B — Housing Set, Door Control Transmitter (FOR SMART KEY)
89072-30B80 note	Housing Set, Door Control Transmitter (FOR SMART KEY) 2024-05 → —	AZSH38 M	—
89072-30B90 note	Housing Set, Door Control Transmitter (FOR SMART KEY) 2024-05 → —	AZSH38 G	—
89072-30B90 note	Housing Set, Door Control Transmitter (FOR SMART KEY) 2024-09 → —	AZSH39	—
89745C — Battery, Transmitter
89745-K0010 note	Battery, Transmitter 2024-05 → —	AZSH38	—
89745-K0010 note	Battery, Transmitter 2024-09 → —	AZSH39	—
89904B — Transmitter Sub-assy, Electrical Key
8990H-30120	Transmitter Sub-assy, Electrical Key 2024-05 → —	AZSH38 M	—
8990H-30130	Transmitter Sub-assy, Electrical Key 2024-05 → —	AZSH38 G	—
8990H-30130	Transmitter Sub-assy, Electrical Key 2024-09 → —	AZSH39	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
