Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General

Supported model Data version 2024-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

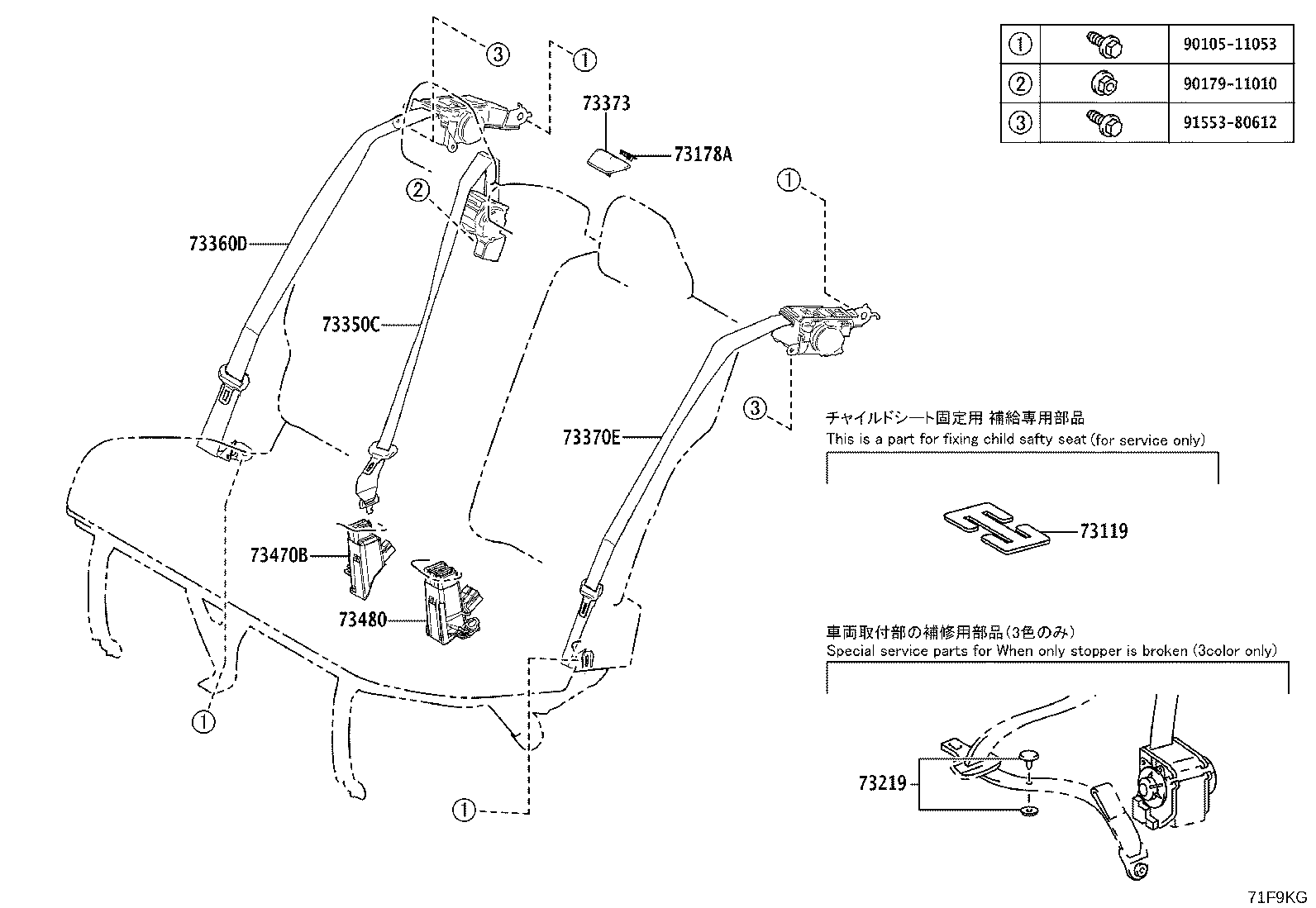

15 parts on this figure

Part number	Description	Fitment	Price
73119 — Plate, Seat Belt Webbing Clip
73119-22010	Plate, Seat Belt Webbing Clip 2024-05 → —	AZSH3#	—
73178A — Cap, Seat Belt Anchor Cover
73178-47010-C0 note	Cap, Seat Belt Anchor Cover 2024-05 → —	AZSH3# G	—
73178-47010-C0 note	Cap, Seat Belt Anchor Cover 2024-05 → —	AZSH38 M	—
73219 — Stopper, Tongue Plate
73219-33010 note	Stopper, Tongue Plate 2024-05 → —	AZSH3#	—
73219-33020 note	Stopper, Tongue Plate 2024-05 → —	AZSH3#	—
73219-33030 note	Stopper, Tongue Plate 2024-05 → —	AZSH3#	—
73350C — Belt Assy, Rear Seat, Outer Center
73350-30300-C0 note	Belt Assy, Rear Seat, Outer Center 2024-05 → —	AZSH3#	—
73360D — Belt Assy, Rear Seat, Outer RH
73360-30630-C1 note	Belt Assy, Rear Seat, Outer RH 2024-05 → —	AZSH3#	—
73370E — Belt Assy, Rear Seat, Outer LH
73370-30440-C1 note	Belt Assy, Rear Seat, Outer LH 2024-05 → —	AZSH3#	—
73373 — Cover, Rear Seat Shoulder Belt
73373-47020-C0 note	Cover, Rear Seat Shoulder Belt 2024-05 → —	AZSH3# G	—
73373-47020-C0 note	Cover, Rear Seat Shoulder Belt 2024-05 → —	AZSH38 M	—
73470B — Belt Assy, Rear Seat Inner W/Center, RH
73470-30090-C0 note	Belt Assy, Rear Seat Inner W/Center, RH 2024-05 → —	AZSH38	—
73470-30130-C0 note	Belt Assy, Rear Seat Inner W/Center, RH 2024-09 → —	AZSH39	—
73480 — Belt Assy, Rear Seat Inner W/Center, LH
73480-30400-C0 note	Belt Assy, Rear Seat Inner W/Center, LH 2024-05 → —	AZSH38	—
73480-30420-C0 note	Belt Assy, Rear Seat Inner W/Center, LH 2024-09 → —	AZSH39	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
