Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

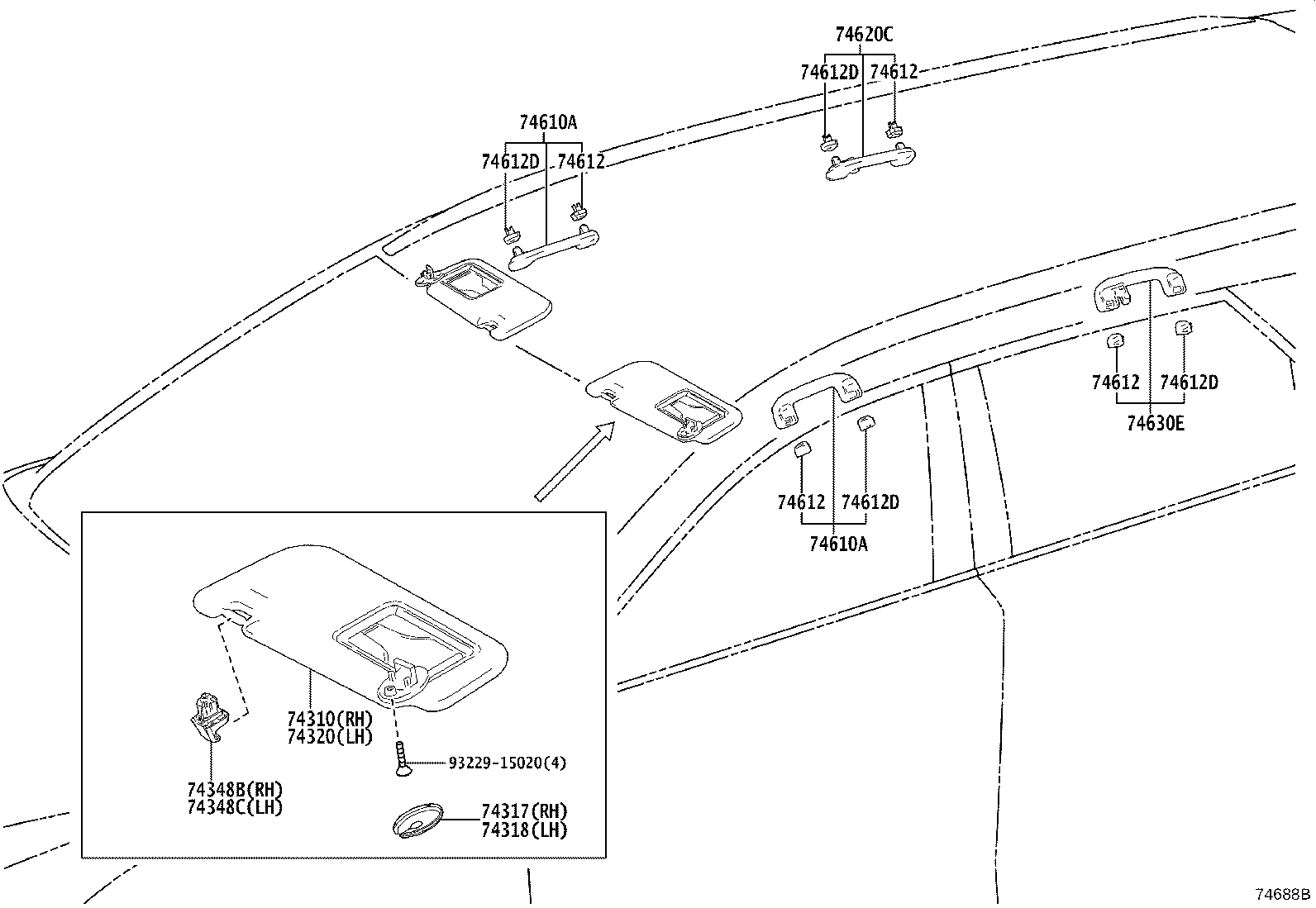

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-30F80-C2 note |
Visor Assy, RH
2024-09 → —
|
AZSH39 | — | |
| 74310-30F80-C2 note |
Visor Assy, RH
2024-05 → —
|
AZSH38 | — | |
| 74317 — Cover, Visor Bracket, RH | ||||
| 74317-60020-C2 note |
Cover, Visor Bracket, RH
2024-05 → —
|
AZSH38 | — | |
| 74317-60020-C2 note |
Cover, Visor Bracket, RH
2024-09 → —
|
AZSH39 | — | |
| 74318 — Cover, Visor Bracket, LH | ||||
| 74317-60020-C2 note |
Cover, Visor Bracket, LH
2024-05 → —
|
AZSH38 | — | |
| 74317-60020-C2 note |
Cover, Visor Bracket, LH
2024-09 → —
|
AZSH39 | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-30E80-C3 note |
Visor Assy, LH
2024-05 → —
|
AZSH38 | — | |
| 74320-30E80-C3 note |
Visor Assy, LH
2024-09 → —
|
AZSH39 | — | |
| 74348B — Holder, Visor, RH | ||||
| 74348-47010-C0 note |
Holder, Visor, RH
2024-05 → —
|
AZSH38 | — | |
| 74348-47010-C0 note |
Holder, Visor, RH
2024-09 → —
|
AZSH39 | — | |
| 74348C — Holder, Visor, LH | ||||
| 74348-47010-C0 note |
Holder, Visor, LH
2024-09 → —
|
AZSH39 | — | |
| 74348-47010-C0 note |
Holder, Visor, LH
2024-05 → —
|
AZSH38 | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74610-33120-C0 note |
Grip Sub-assy, Assist
2024-05 → —
|
AZSH38 | — | |
| 74610-33120-C0 note |
Grip Sub-assy, Assist
2024-09 → —
|
AZSH39 | — | |
| 74612 — Cover, Assist Grip | ||||
| 74611-33020-C0 note |
Cover, Assist Grip
2024-05 → —
|
AZSH38 | — | |
| 74611-33020-C0 note |
Cover, Assist Grip
2024-09 → —
|
AZSH39 | — | |
| 74612D — Cover, Assist Grip | ||||
| 74612-33030-C0 note |
Cover, Assist Grip
2024-05 → —
|
AZSH38 | — | |
| 74612-33030-C0 note |
Cover, Assist Grip
2024-09 → —
|
AZSH39 | — | |
| 74620C — Grip Assy, Assist, Rear RH | ||||
| 74610-33130-C0 note |
Grip Assy, Assist, Rear RH
2024-05 → —
|
AZSH38 | — | |
| 74610-33130-C0 note |
Grip Assy, Assist, Rear RH
2024-09 → —
|
AZSH39 | — | |
| 74630E — Grip Assy, Assist, Rear LH | ||||
| 74610-33140-C0 note |
Grip Assy, Assist, Rear LH
2024-05 → —
|
AZSH38 | — | |
| 74610-33140-C0 note |
Grip Assy, Assist, Rear LH
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
