Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

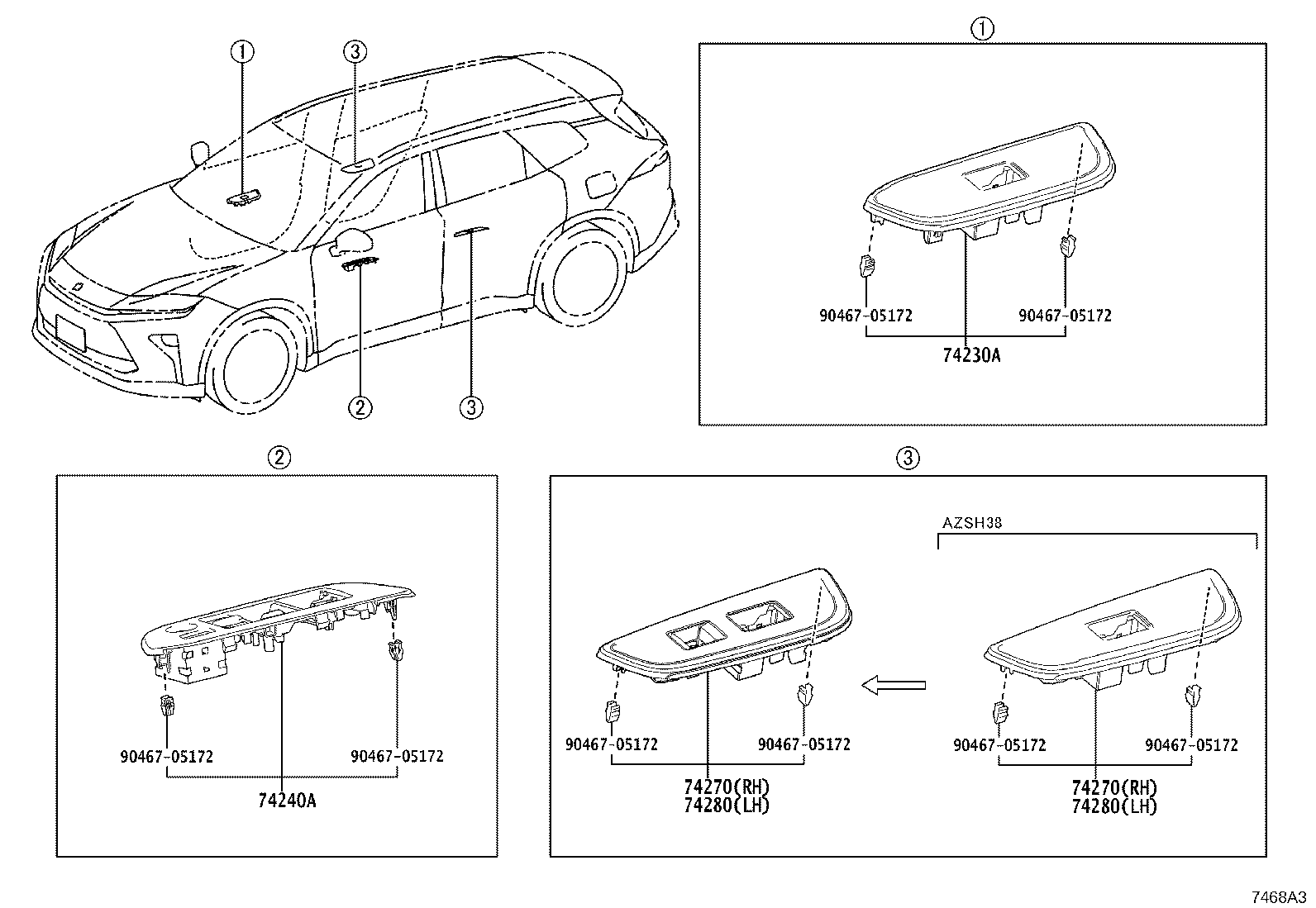

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74230A — Panel Assy, Front Door Armrest Base, RH | ||||
| 74230-30400-B1 note |
Panel Assy, Front Door Armrest Base, RH
2024-05 → 2024-09
ended
|
AZSH38 G | — | |
| 74230-30400-B1 note |
Panel Assy, Front Door Armrest Base, RH
2024-05 → 2024-10
ended
|
AZSH39 | — | |
| 74230-30400-B1 note |
Panel Assy, Front Door Armrest Base, RH
2024-05 → 2024-09
ended
|
AZSH38 M | — | |
| 74230-30401-B1 note |
Panel Assy, Front Door Armrest Base, RH
2024-10 → —
|
AZSH3# | — | |
| 74240A — Panel Assy, Front Door Armrest Base, LH | ||||
| 74240-30410-B1 note |
Panel Assy, Front Door Armrest Base, LH
2024-05 → 2024-09
ended
|
AZSH38 G | — | |
| 74240-30410-B1 note |
Panel Assy, Front Door Armrest Base, LH
2024-05 → 2024-10
ended
|
AZSH39 | — | |
| 74240-30411 |
Panel Assy, Front Door Armrest Base, LH
2024-10 → —
|
AZSH38 | — | |
| 74240-30411-B1 note |
Panel Assy, Front Door Armrest Base, LH
2024-05 → 2024-10
ended
|
AZSH38 | — | |
| 74240-30411-B1 note |
Panel Assy, Front Door Armrest Base, LH
2024-05 → —
|
AZSH39 | — | |
| 74270 — Panel Assy, Rear Door Armrest Base, RH | ||||
| 74270-30210-B1 note |
Panel Assy, Rear Door Armrest Base, RH
2024-05 → 2024-09
ended
|
AZSH38 M | — | |
| 74270-30210-B1 note |
Panel Assy, Rear Door Armrest Base, RH
2024-05 → 2024-09
ended
|
AZSH38 G | — | |
| 74270-30211-B1 note |
Panel Assy, Rear Door Armrest Base, RH
2024-10 → —
|
AZSH38 | — | |
| 74270-30220-B1 note |
Panel Assy, Rear Door Armrest Base, RH
2024-09 → 2024-10
ended
|
AZSH39 | — | |
| 74270-30221-B1 note |
Panel Assy, Rear Door Armrest Base, RH
2024-10 → —
|
AZSH39 | — | |
| 74280 — Panel Assy, Rear Door Armrest Base, LH | ||||
| 74280-30210-B1 note |
Panel Assy, Rear Door Armrest Base, LH
2024-05 → 2024-09
ended
|
AZSH38 M | — | |
| 74280-30210-B1 note |
Panel Assy, Rear Door Armrest Base, LH
2024-05 → 2024-09
ended
|
AZSH38 G | — | |
| 74280-30211-B1 note |
Panel Assy, Rear Door Armrest Base, LH
2024-10 → —
|
AZSH38 | — | |
| 74280-30220-B1 note |
Panel Assy, Rear Door Armrest Base, LH
2024-09 → 2024-10
ended
|
AZSH39 | — | |
| 74280-30221-B1 note |
Panel Assy, Rear Door Armrest Base, LH
2024-10 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
