Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

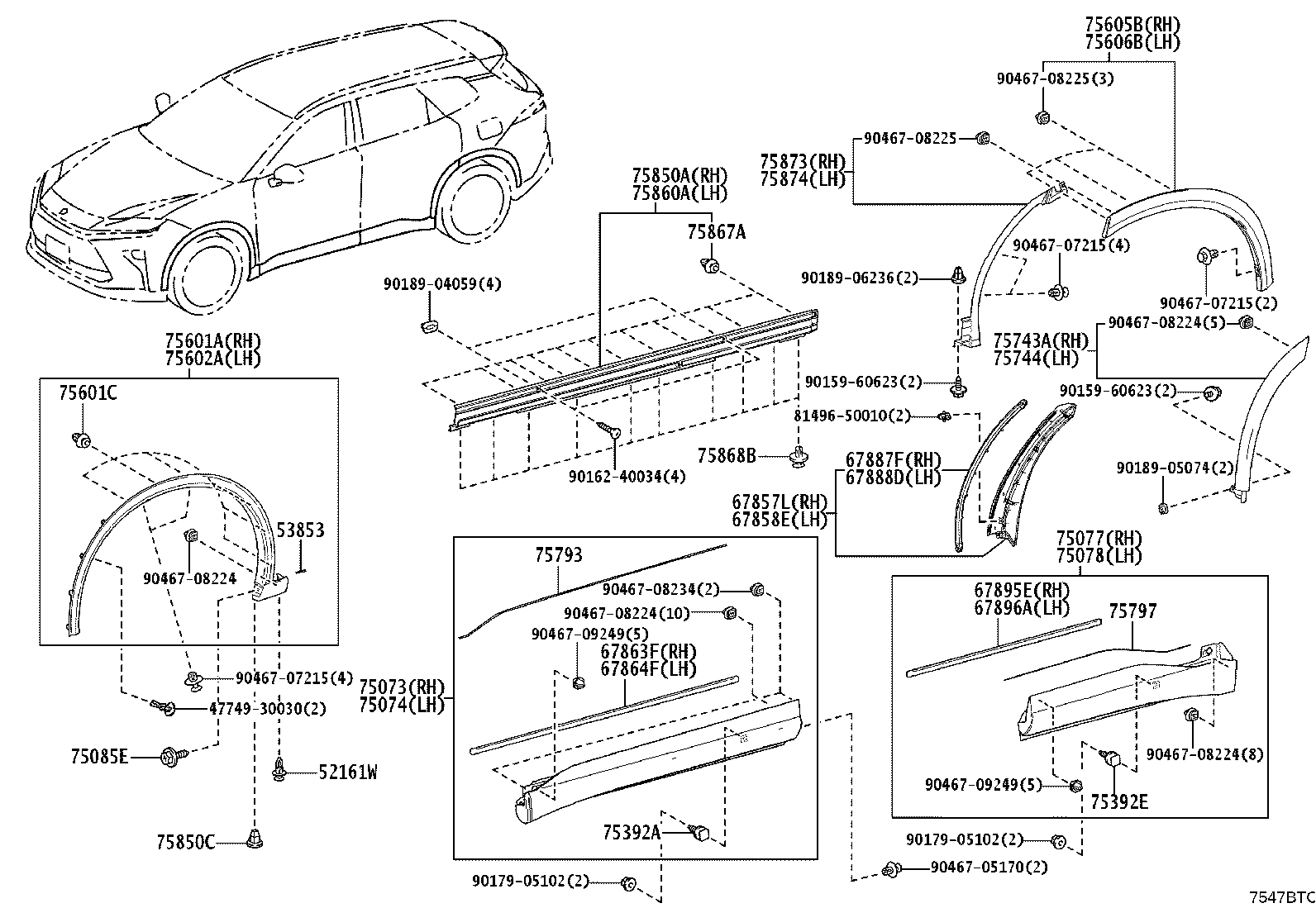

Exploded illustration 7547BTC 9046708224 — not listed in this catalogue 9046708225 — not listed in this catalogue 9046708225 — not listed in this catalogue 9046709249 — not listed in this catalogue 9046708224 — not listed in this catalogue 9046708234 — not listed in this catalogue 9018906236 — not listed in this catalogue 9015960623 — not listed in this catalogue 8149650010 — not listed in this catalogue 9016240034 — not listed in this catalogue 9018904059 — not listed in this catalogue 9046707215 — not listed in this catalogue 9018905074 — not listed in this catalogue 9015960623 — not listed in this catalogue 9046708224 — not listed in this catalogue 9046707215 — not listed in this catalogue 4774930030 — not listed in this catalogue 9046707215 — not listed in this catalogue 9017905102 — not listed in this catalogue 9046709249 — not listed in this catalogue 9017905102 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046708224 — not listed in this catalogue 75601C — CLIP, FRONT FENDER MOULDING (1 parts) 75392A — RETAINER, OUTSIDE MOULDING, NO.1 (1 parts) 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (1 parts) 75867A — CLIP, ROCKER PANEL MOULDING (1 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (1 parts) 75850A — MOULDING ASSY, BODY ROCKER PANEL, RH (1 parts) 75860A — MOULDING ASSY, BODY ROCKER PANEL, LH (1 parts) 75873 — MOULDING, QUARTER PANEL WHEEL OPENING, RH (1 parts) 75874 — MOULDING, QUARTER PANEL WHEEL OPENING, LH (1 parts) 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (1 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (1 parts) 75743A — MOULDING, REAR DOOR, OUTSIDE UPPER REAR RH (1 parts) 75744 — MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH (1 parts) 75073 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH (1 parts) 75074 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH (1 parts) 75868B — CLIP, ROCKER PANEL MOULDING, NO.2 (1 parts) 67863F — WEATHERSTRIP, FRONT DOOR, NO.2 RH (1 parts) 67864F — WEATHERSTRIP, FRONT DOOR, NO.2 LH (1 parts) 67895E — WEATHERSTRIP, REAR DOOR, NO.3 RH (1 parts) 67896A — WEATHERSTRIP, REAR DOOR, NO.3 LH (1 parts) 67887F — WEATHERSTRIP, REAR DOOR, NO.2 RH (1 parts) 67888D — WEATHERSTRIP, REAR DOOR, NO.2 LH (1 parts) 67857L — PROTECTOR, REAR DOOR PANEL, RH (1 parts) 67858E — PROTECTOR, REAR DOOR PANEL, LH (1 parts) 75077 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH (1 parts) 75078 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH (1 parts) 75797 — PAD, REAR DOOR OUTSIDE MOULDING, UPPER (1 parts) 75392E — RETAINER, OUTSIDE MOULDING, NO.1 (1 parts) 75793 — PAD, FRONT DOOR OUTSIDE MOULDING, UPPER (1 parts) 75850C — GROMMET, NO.1 (1 parts) 52161W — PIECE, FRONT BUMPER (1 parts) 53853 — PAD, FRONT WHEEL OPENING EXTENSION, NO.3 (1 parts) 75085E — SCREW, NO.1 (1 parts)
7547BTC · 33 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
52161W — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2024-05 → —
AZSH3# —
53853 — Pad, Front Wheel Opening Extension, NO.3
53853-30110 Pad, Front Wheel Opening Extension, NO.3
2024-05 → —
AZSH3# —
67857L — Protector, Rear Door Panel, RH
67857-30070 Protector, Rear Door Panel, RH
2024-05 → —
AZSH3# —
67858E — Protector, Rear Door Panel, LH
67858-30070 Protector, Rear Door Panel, LH
2024-05 → —
AZSH3# —
67863F — Weatherstrip, Front Door, NO.2 RH
67863-30201 Weatherstrip, Front Door, NO.2 RH
2024-05 → —
AZSH3# —
67864F — Weatherstrip, Front Door, NO.2 LH
67863-30201 Weatherstrip, Front Door, NO.2 LH
2024-05 → —
AZSH3# —
67887F — Weatherstrip, Rear Door, NO.2 RH
67887-30230 Weatherstrip, Rear Door, NO.2 RH
2024-05 → —
AZSH3# —
67888D — Weatherstrip, Rear Door, NO.2 LH
67887-30230 Weatherstrip, Rear Door, NO.2 LH
2024-05 → —
AZSH3# —
67895E — Weatherstrip, Rear Door, NO.3 RH
67873-30071 Weatherstrip, Rear Door, NO.3 RH
2024-05 → —
AZSH3# —
67896A — Weatherstrip, Rear Door, NO.3 LH
67873-30071 Weatherstrip, Rear Door, NO.3 LH
2024-05 → —
AZSH3# —
75073 — Moulding Sub-assy, Front Door, Outside Lower RH
75073-30040 Moulding Sub-assy, Front Door, Outside Lower RH
2024-05 → —
AZSH3# —
75074 — Moulding Sub-assy, Front Door, Outside Lower LH
75074-30040 Moulding Sub-assy, Front Door, Outside Lower LH
2024-05 → —
AZSH3# —
75077 — Moulding Sub-assy, Rear Door Outside Lower RH
75077-30050 note Moulding Sub-assy, Rear Door Outside Lower RH
2024-05 → —
AZSH3# —
75078 — Moulding Sub-assy, Rear Door Outside Lower LH
75078-30050 note Moulding Sub-assy, Rear Door Outside Lower LH
2024-05 → —
AZSH3# —
75085E — Screw, NO.1
90159-60623 Screw, NO.1
2024-05 → —
AZSH3# —
75392A — Retainer, Outside Moulding, NO.1
75392-33020 Retainer, Outside Moulding, NO.1
2024-05 → —
AZSH3# —
75392E — Retainer, Outside Moulding, NO.1
75392-33020 Retainer, Outside Moulding, NO.1
2024-05 → —
AZSH3# —
75601A — Moulding Sub-assy, Front Fender, RH
75601-30170 note Moulding Sub-assy, Front Fender, RH
2024-05 → —
AZSH3# —
75601C — Clip, Front Fender Moulding
75867-68010 Clip, Front Fender Moulding
2024-05 → —
AZSH3# —
75602A — Moulding Sub-assy, Front Fender, LH
75602-30160 note Moulding Sub-assy, Front Fender, LH
2024-05 → —
AZSH3# —
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-30230 note Moulding Sub-assy, Quarter Outside, RH
2024-05 → —
AZSH3# —
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-30230 note Moulding Sub-assy, Quarter Outside, LH
2024-05 → —
AZSH3# —
75743A — Moulding, Rear Door, Outside Upper Rear RH
75061-30480 note Moulding, Rear Door, Outside Upper Rear RH
2024-05 → —
AZSH3# —
75744 — Moulding, Rear Door, Outside Upper Rear LH
75062-30070 note Moulding, Rear Door, Outside Upper Rear LH
2024-05 → —
AZSH3# —
75793 — Pad, Front Door Outside Moulding, Upper
75793-30040 Pad, Front Door Outside Moulding, Upper
2024-05 → —
AZSH3# —
75797 — Pad, Rear Door Outside Moulding, Upper
75797-30050 Pad, Rear Door Outside Moulding, Upper
2024-05 → —
AZSH3# —
75850A — Moulding Assy, Body Rocker Panel, RH
75850-30540 Moulding Assy, Body Rocker Panel, RH
2024-05 → —
AZSH3# —
75850C — Grommet, NO.1
90189-06236 Grommet, NO.1
2024-05 → —
AZSH3# —
75860A — Moulding Assy, Body Rocker Panel, LH
75860-30530 Moulding Assy, Body Rocker Panel, LH
2024-05 → —
AZSH3# —
75867A — Clip, Rocker Panel Moulding
75867-30130 Clip, Rocker Panel Moulding
2024-05 → —
AZSH3# —
75868B — Clip, Rocker Panel Moulding, NO.2
90467-09242 Clip, Rocker Panel Moulding, NO.2
2024-05 → —
AZSH3# —
75873 — Moulding, Quarter Panel Wheel Opening, RH
75873-30400 Moulding, Quarter Panel Wheel Opening, RH
2024-05 → —
AZSH3# —
75874 — Moulding, Quarter Panel Wheel Opening, LH
75874-30400 Moulding, Quarter Panel Wheel Opening, LH
2024-05 → —
AZSH3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
