Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

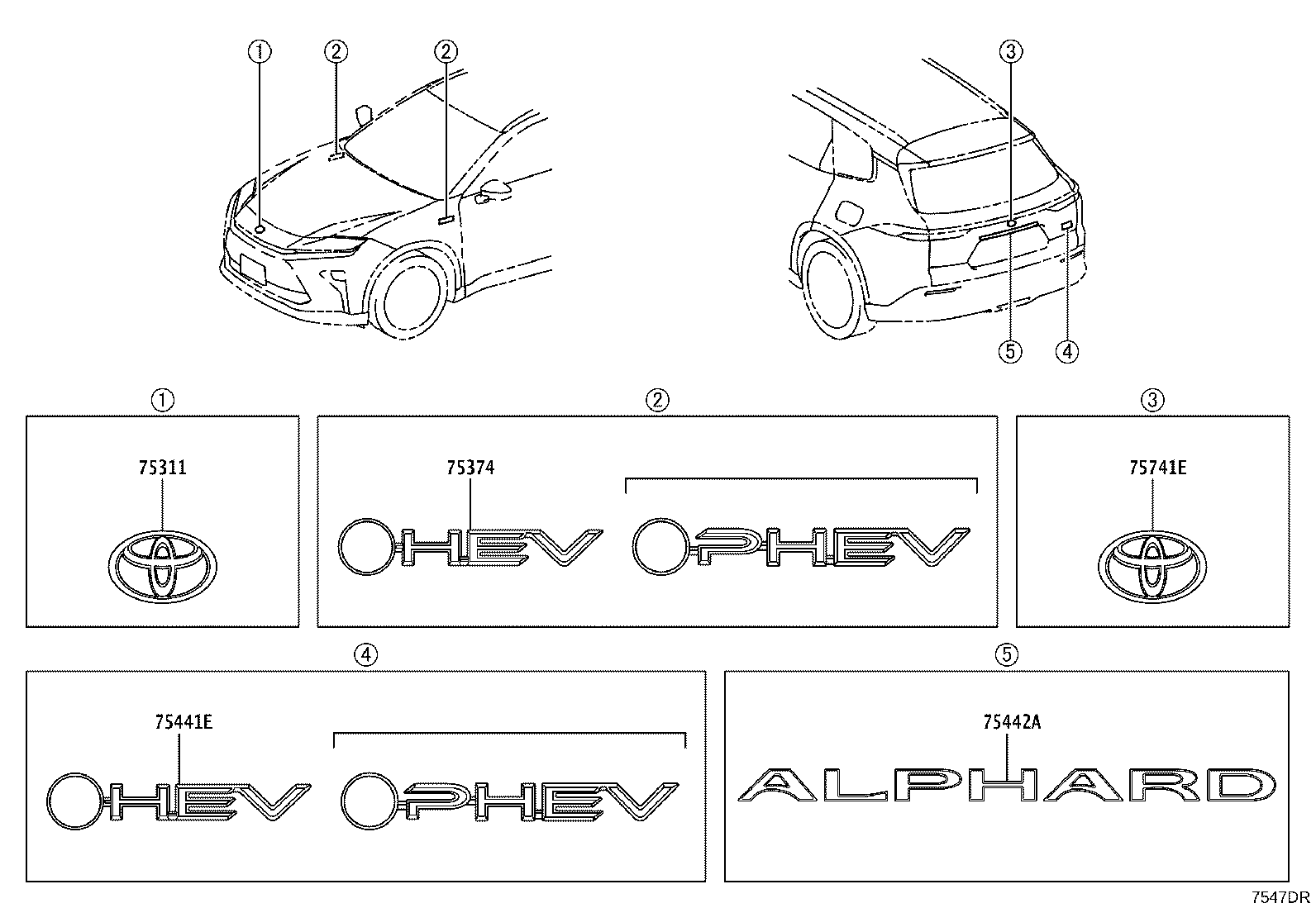

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75311 — Emblem, Radiator Grille (OR FRONT PANEL) | ||||
| 75403-30060 |
Emblem, Radiator Grille (OR FRONT PANEL)
2024-05 → —
|
AZSH3# | — | |
| 75374 — Emblem, Side Panel | ||||
| 75440-30030 |
Emblem, Side Panel
2024-05 → —
|
AZSH38 | — | |
| 75440-30140 |
Emblem, Side Panel
2024-09 → —
|
AZSH39 | — | |
| 75441E — Plate, Back Door Name, NO.1 | ||||
| 75440-30070 note |
Plate, Back Door Name, NO.1
2024-05 → —
|
AZSH38 | — | |
| 75440-30090 note |
Plate, Back Door Name, NO.1
2024-09 → —
|
AZSH39 | — | |
| 75442A — Plate, Back Door Name, NO.2 | ||||
| 75441-30470 note |
Plate, Back Door Name, NO.2
2024-05 → —
|
AZSH38 | — | |
| 75741E — Emblem, Symbol | ||||
| 90975-02250 note |
Emblem, Symbol
2024-05 → —
|
AZSH3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
