Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

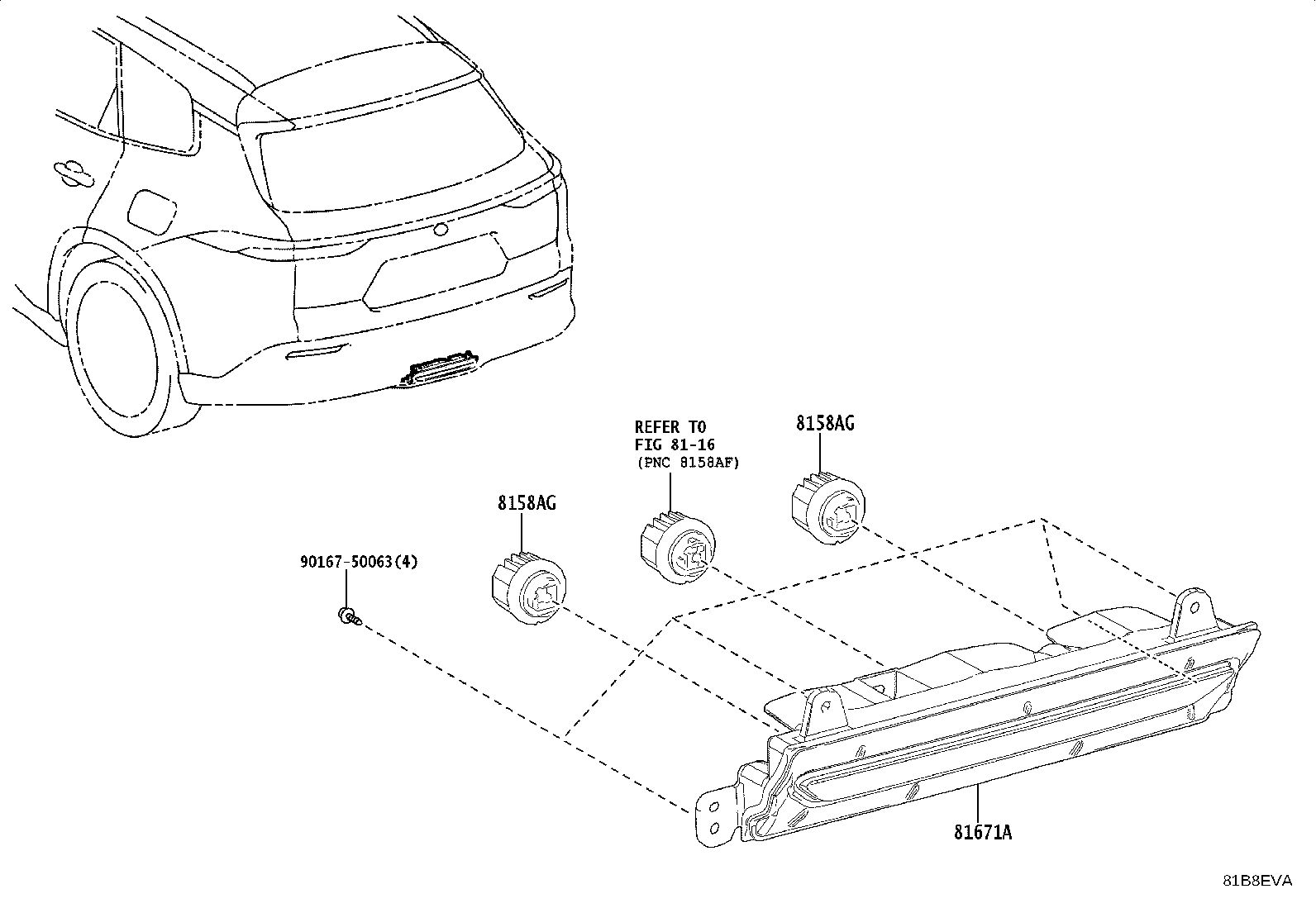

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 8158AG — Led, Back-up Lamp | ||||
| 81965-52060 |
Led, Back-up Lamp
2024-05 → —
|
AZSH3# | — | |
| 81671A — Lens & Body, Back-up Lamp | ||||
| 81671-30280 |
Lens & Body, Back-up Lamp
2024-05 → —
|
AZSH3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
