Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

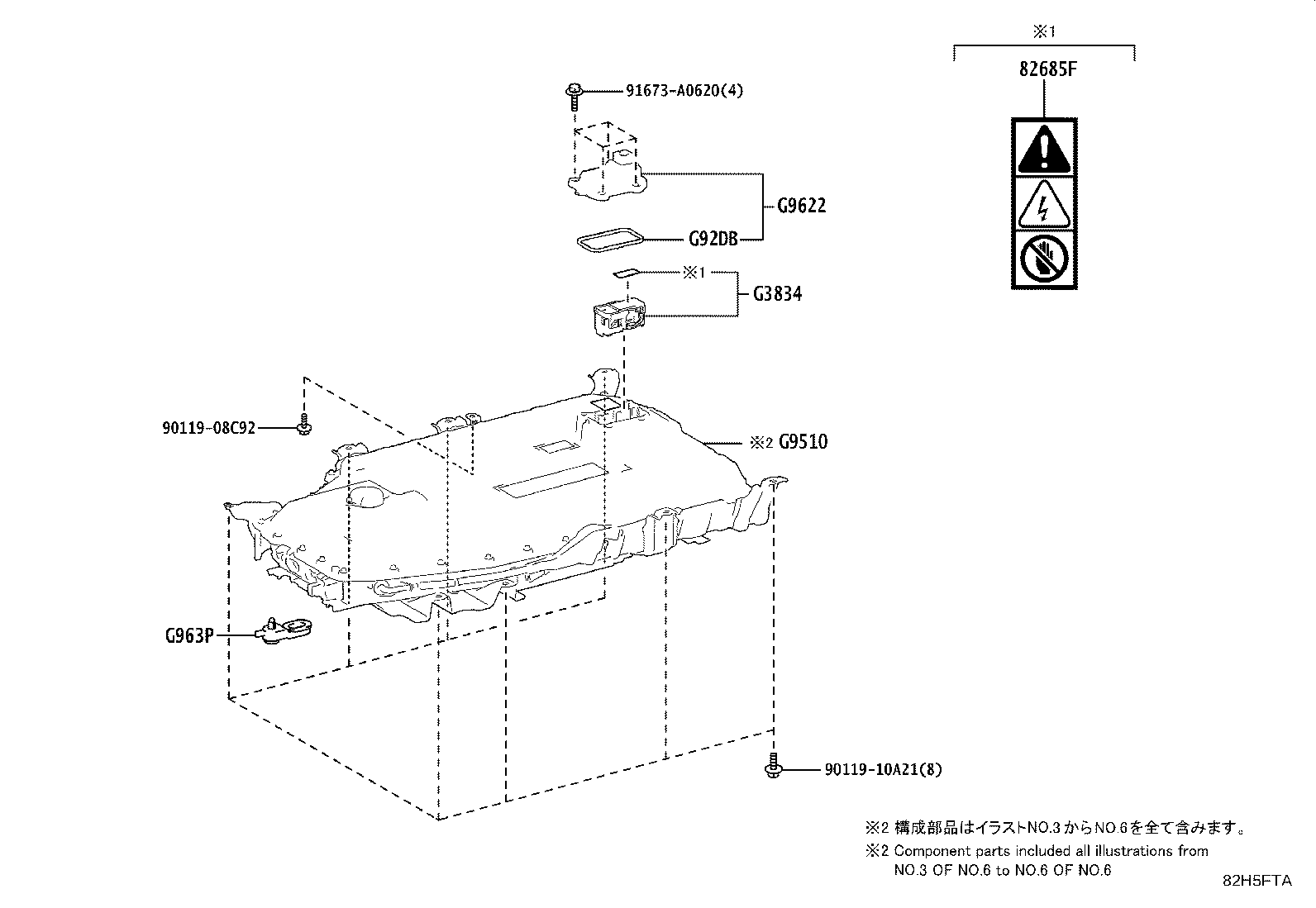

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685F — Main Battery Caution Plate, NO.1 | ||||
| 82685-76021 |
Main Battery Caution Plate, NO.1
2024-09 → —
|
AZSH39 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-47050 |
Grip, Service Plug
2024-05 → —
|
AZSH38 | — | |
| G3855-42010 |
Grip, Service Plug
2024-09 → —
|
AZSH39 | — | |
| G92DB — Seal, Hybrid Battery, NO.1 | ||||
| G92DB-42010 |
Seal, Hybrid Battery, NO.1
2024-09 → —
|
AZSH39 | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-30110 |
Battery Assy, HV Supply
2024-05 → —
|
AZSH38 | — | |
| G9510-30140 |
Battery Assy, HV Supply
2024-09 → 2024-11
ended
|
AZSH39 | — | |
| G9510-30141 |
Battery Assy, HV Supply
2024-12 → —
|
AZSH39 | — | |
| G9622 — Cover, Traction Battery, NO.2 | ||||
| G9622-42010 |
Cover, Traction Battery, NO.2
2024-09 → —
|
AZSH39 | — | |
| G963P — Bracket, Traction Battery, NO.23 | ||||
| G963P-42010 |
Bracket, Traction Battery, NO.23
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
