Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General

Supported model Data version 2024-05

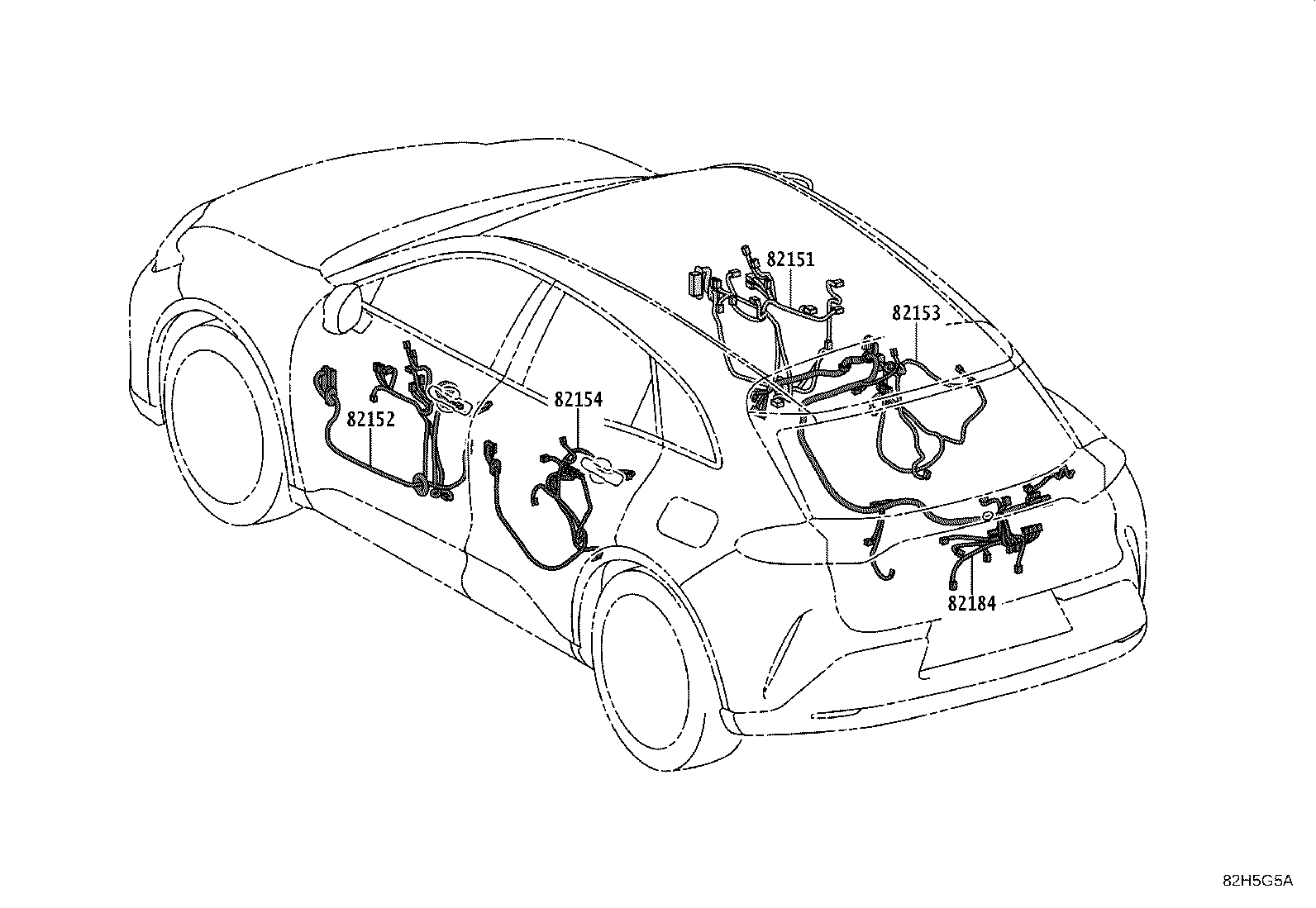

15 parts on this figure

Part number	Description	Fitment	Price
82151 — Wire, Front Door, RH
82151-30N70	Wire, Front Door, RH 2024-05 → —	AZSH38 M	—
82151-30N90	Wire, Front Door, RH 2024-05 → —	AZSH38 G	—
82151-30N90	Wire, Front Door, RH 2024-09 → —	AZSH39	—
82152 — Wire, Front Door, LH
82152-30M30	Wire, Front Door, LH 2024-05 → —	AZSH38 M	—
82152-30M50	Wire, Front Door, LH 2024-05 → —	AZSH38 G	—
82152-30M50	Wire, Front Door, LH 2024-09 → —	AZSH39	—
82153 — Wire, Rear Door, NO.1
82153-30D60	Wire, Rear Door, NO.1 2024-05 → —	AZSH38 M	—
82153-30E00	Wire, Rear Door, NO.1 2024-05 → —	AZSH38 G	—
82153-30E10	Wire, Rear Door, NO.1 2024-09 → —	AZSH39	—
82154 — Wire, Rear Door, NO.2
82154-30C80	Wire, Rear Door, NO.2 2024-05 → —	AZSH38 M	—
82154-30D20	Wire, Rear Door, NO.2 2024-05 → —	AZSH38 G	—
82154-30D30	Wire, Rear Door, NO.2 2024-09 → —	AZSH39	—
82184 — Wire, Back Door, NO.1
82184-30220	Wire, Back Door, NO.1 2024-05 → —	AZSH38 M	—
82184-30310	Wire, Back Door, NO.1 2024-05 → —	AZSH38 G	—
82184-30310	Wire, Back Door, NO.1 2024-09 → —	AZSH39	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
