Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

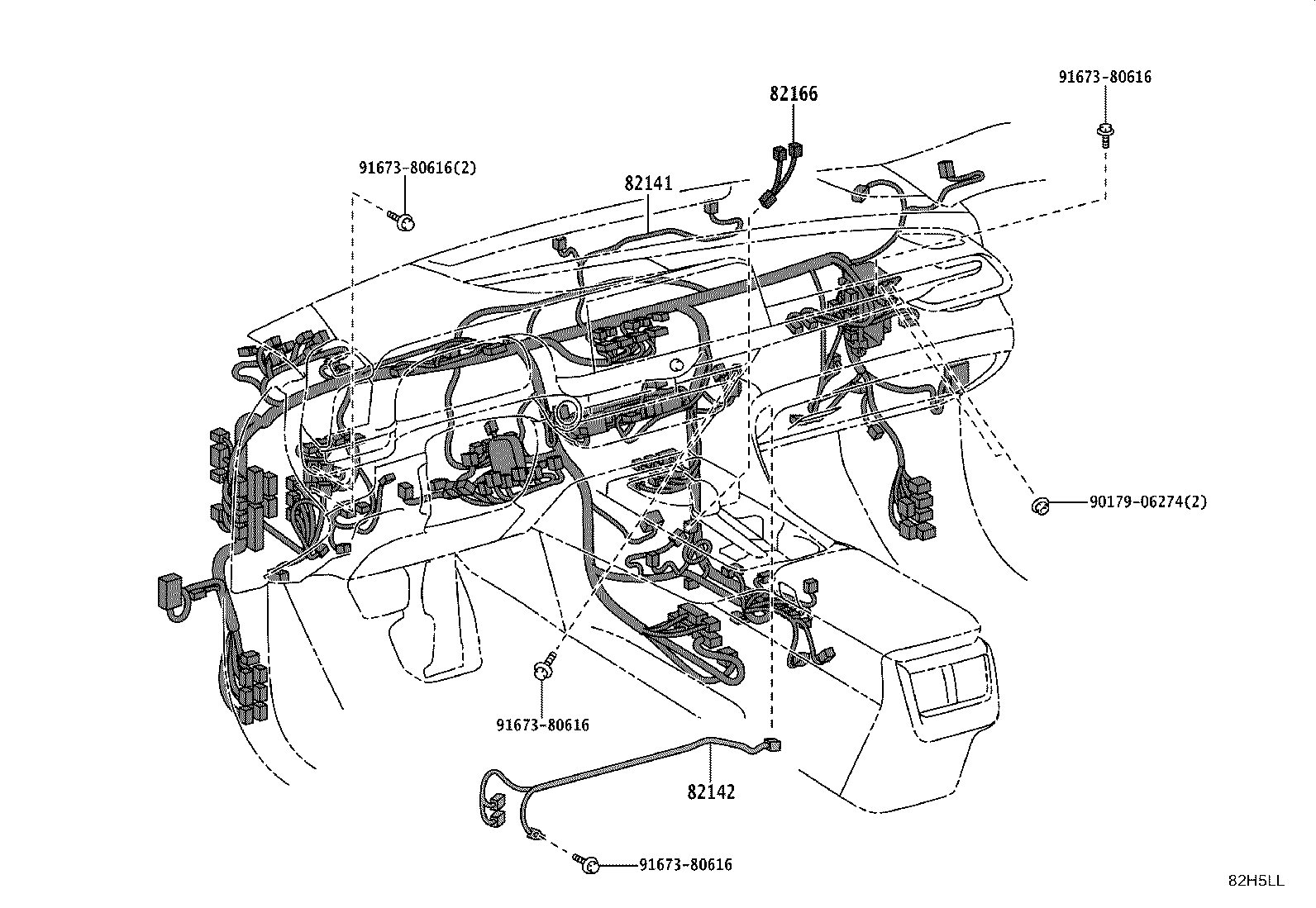

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-3KE60 |
Wire, Instrument Panel
2024-05 → —
|
AZSH38 M | — | |
| 82141-3KE80 |
Wire, Instrument Panel
2024-05 → —
|
AZSH38 G | — | |
| 82141-3KF00 |
Wire, Instrument Panel
2024-09 → —
|
AZSH39 | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-30250 |
Wire, Instrument Panel, NO.2
2024-09 → —
|
AZSH39 | — | |
| 82166 — Wire, Console Box | ||||
| 82166-30320 |
Wire, Console Box
2024-05 → —
|
AZSH38 | — | |
| 82166-30320 |
Wire, Console Box
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
