Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

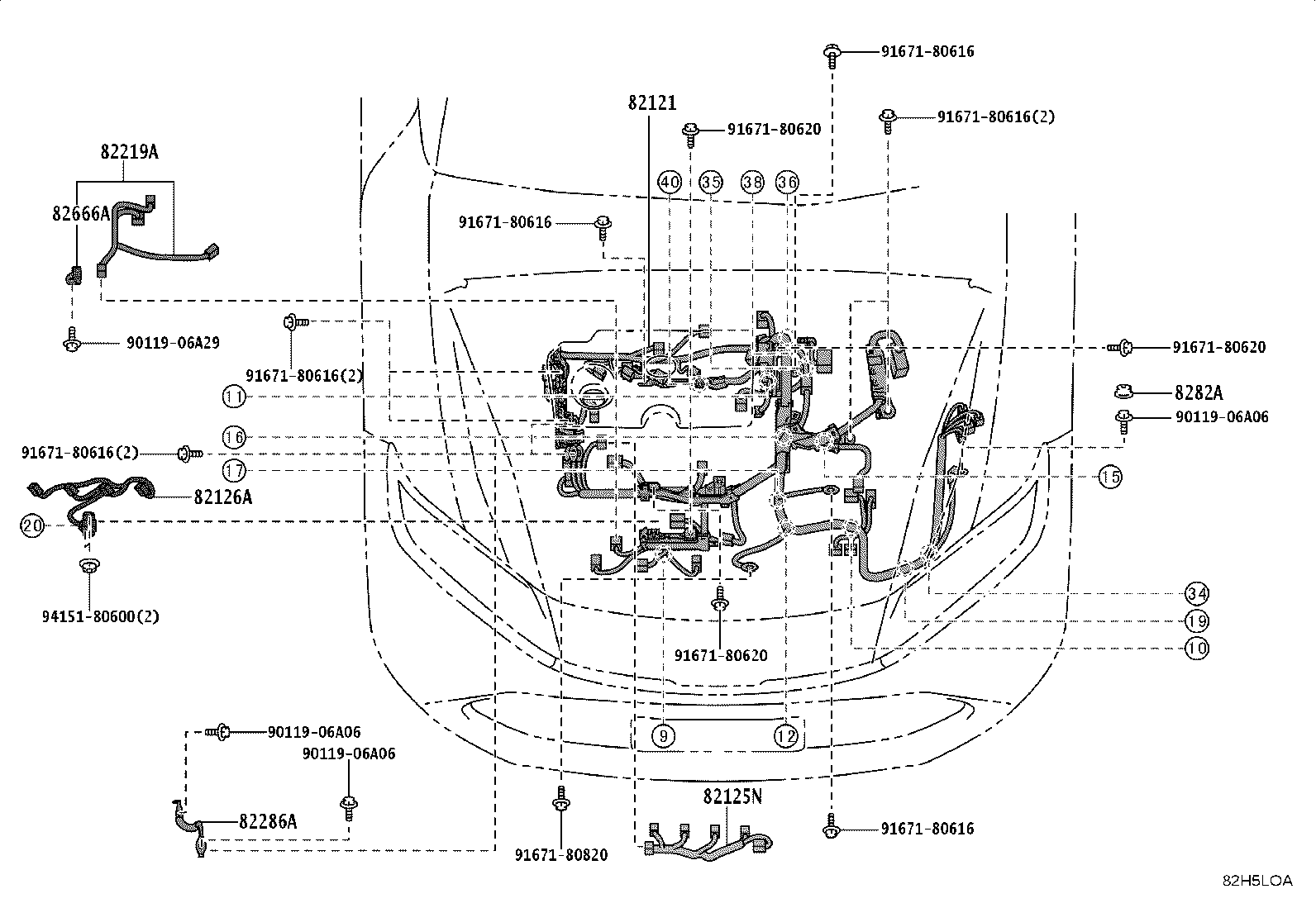

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-30N50 |
Wire, Engine
2024-05 → —
|
AZSH38 | — | |
| 82121-30N80 |
Wire, Engine
2024-09 → —
|
AZSH39 | — | |
| 82125N — Wire, Engine, NO.5 | ||||
| 82125-33180 |
Wire, Engine, NO.5
2024-05 → —
|
AZSH38 | — | |
| 82125-33180 |
Wire, Engine, NO.5
2024-09 → —
|
AZSH39 | — | |
| 82126A — Wire, Engine, NO.6 | ||||
| 82126-33050 |
Wire, Engine, NO.6
2024-05 → —
|
AZSH38 | — | |
| 82126-33050 |
Wire, Engine, NO.6
2024-09 → —
|
AZSH39 | — | |
| 82219A — Wire, Sensor | ||||
| 82219-33141 |
Wire, Sensor
2024-05 → —
|
AZSH38 | — | |
| 82219-33141 |
Wire, Sensor
2024-09 → —
|
AZSH39 | — | |
| 82286A — Wire, Earth, NO.2 | ||||
| 82286-42050 |
Wire, Earth, NO.2
2024-05 → —
|
AZSH38 | — | |
| 82286-42050 |
Wire, Earth, NO.2
2024-09 → —
|
AZSH39 | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-33720 |
Holder, Connector NO.2
2024-05 → —
|
AZSH38 | — | |
| 82666-33720 |
Holder, Connector NO.2
2024-09 → —
|
AZSH39 | — | |
| 8282A — Cap, Earth Bolt, NO.1 | ||||
| 8282A-52010 |
Cap, Earth Bolt, NO.1
2024-05 → —
|
AZSH38 | — | |
| 8282A-52010 |
Cap, Earth Bolt, NO.1
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
