Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

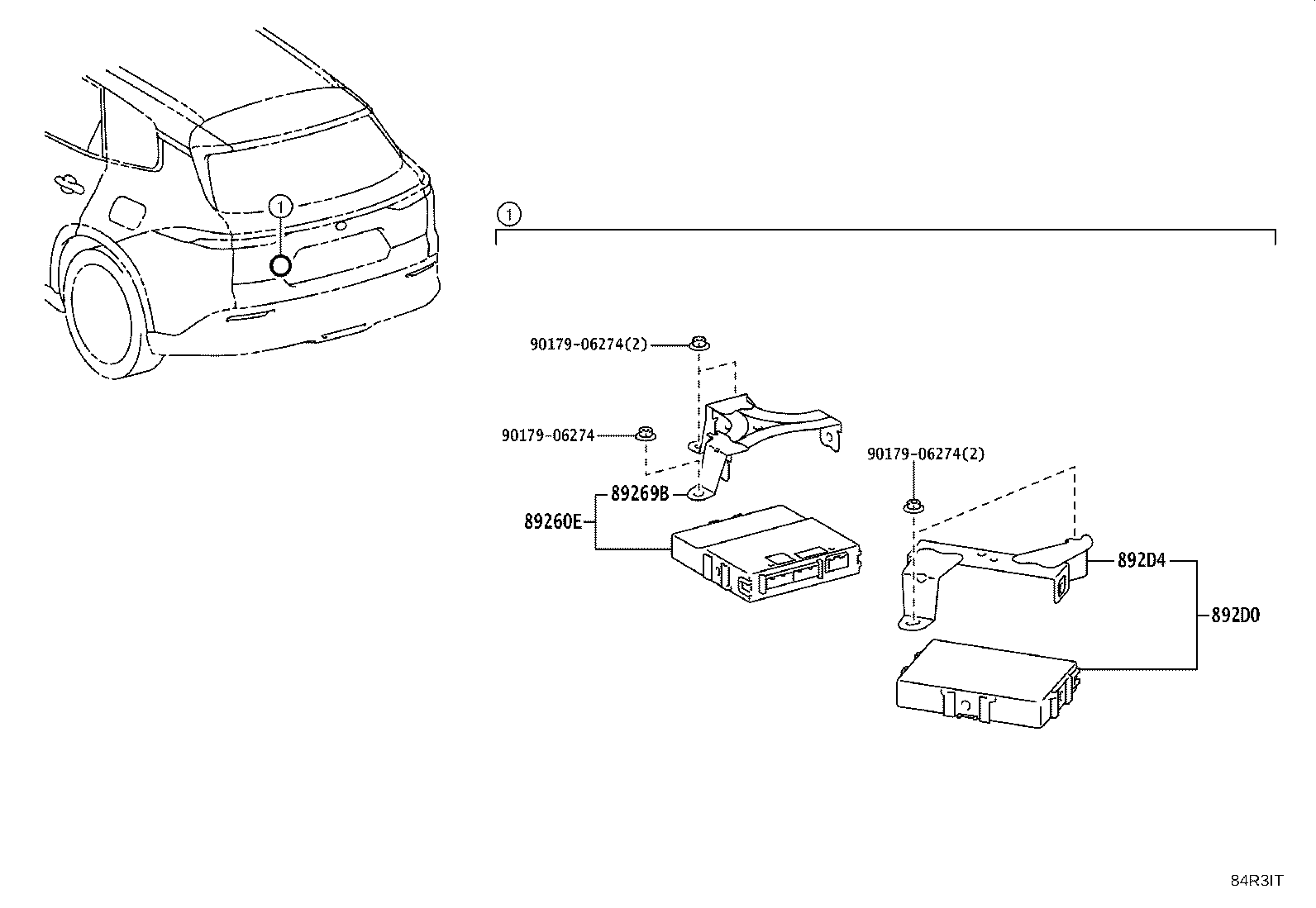

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89260E — Computer Assy, Plugin Charge Control | ||||
| 89260-30070 |
Computer Assy, Plugin Charge Control
2024-09 → —
|
AZSH39 | — | |
| 89269B — Bracket, Plugin Charge Control Computer | ||||
| 89269-30100 |
Bracket, Plugin Charge Control Computer
2024-09 → —
|
AZSH39 | — | |
| 892D0 — Computer, Communication | ||||
| 892D0-30020 |
Computer, Communication
2024-09 → —
|
AZSH39 | — | |
| 892D4 — Bracket, Communication Computer | ||||
| 892D4-30020 |
Bracket, Communication Computer
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
