Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

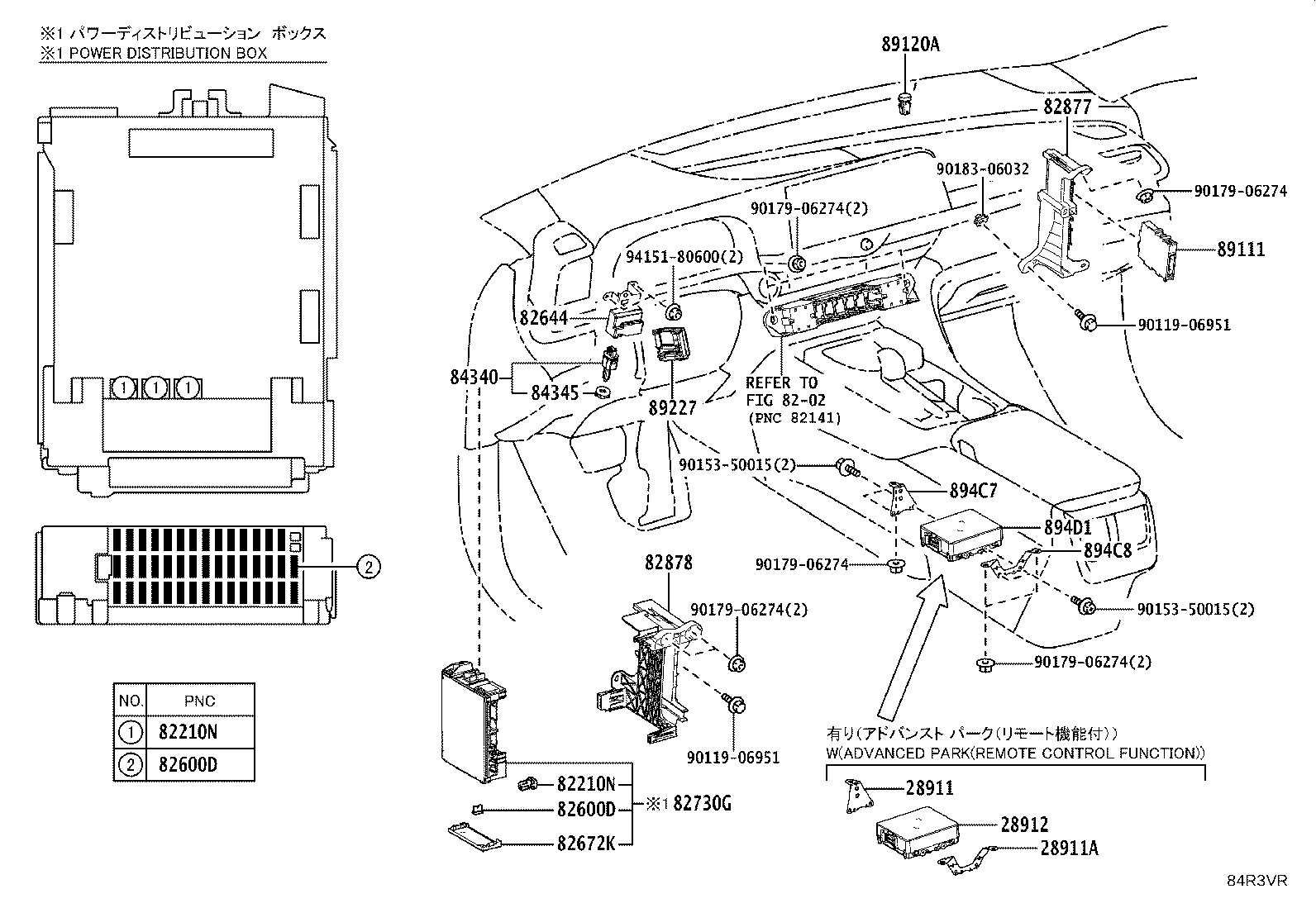

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28911 — Bracket, Integration Control Supply, NO.1 | ||||
| 894D2-30010 |
Bracket, Integration Control Supply, NO.1
2024-05 → —
|
A25 AZSH38 G | — | |
| 894D2-30050 |
Bracket, Integration Control Supply, NO.1
2024-09 → —
|
A25 AZSH39 | — | |
| 28911A — Bracket, Integration Control Supply, NO.2 | ||||
| 894D2-30020 |
Bracket, Integration Control Supply, NO.2
2024-05 → —
|
A25 AZSH38 G | — | |
| 894D2-30060 |
Bracket, Integration Control Supply, NO.2
2024-09 → —
|
A25 AZSH39 | — | |
| 28912 — Supply, Integration Control | ||||
| 28912-24030 |
Supply, Integration Control
2024-05 → —
|
A25 AZSH38 G | — | |
| 28912-24030 |
Supply, Integration Control
2024-09 → —
|
A25 AZSH39 | — | |
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08306 note |
Instrument Panel Fusible Link
2024-05 → —
|
AZSH38 | — | |
| 90982-08306 note |
Instrument Panel Fusible Link
2024-09 → —
|
AZSH39 | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2024-05 → —
|
AZSH38 | — | |
| 90982-09019 note |
Instrument Panel Fuse
2024-09 → —
|
AZSH39 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2024-05 → —
|
AZSH38 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2024-09 → —
|
AZSH39 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2024-05 → —
|
AZSH38 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2024-09 → —
|
AZSH39 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2024-05 → —
|
AZSH38 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2024-09 → —
|
AZSH39 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2024-05 → —
|
AZSH38 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2024-09 → —
|
AZSH39 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2024-05 → —
|
AZSH38 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2024-09 → —
|
AZSH39 | — | |
| 82644 — Computer, Semiconductor Power Integration | ||||
| 82644-30060 |
Computer, Semiconductor Power Integration
2024-05 → —
|
AZSH38 M | — | |
| 82644-30070 |
Computer, Semiconductor Power Integration
2024-05 → —
|
AZSH38 G | — | |
| 82644-30070 |
Computer, Semiconductor Power Integration
2024-09 → —
|
AZSH39 | — | |
| 82672K — Cover, Power Distribution Box | ||||
| 82672-30570 |
Cover, Power Distribution Box
2024-05 → —
|
AZSH38 M | — | |
| 82672-30580 |
Cover, Power Distribution Box
2024-09 → —
|
AZSH39 | — | |
| 82672-30580 |
Cover, Power Distribution Box
2024-05 → —
|
AZSH38 G | — | |
| 82730G — Box Assy, Power Distribution | ||||
| 82730-30N20 |
Box Assy, Power Distribution
2024-05 → —
|
AZSH38 M | — | |
| 82730-30N30 |
Box Assy, Power Distribution
2024-05 → —
|
AZSH38 G | — | |
| 82730-30N30 |
Box Assy, Power Distribution
2024-09 → —
|
AZSH39 | — | |
| 82877 — Box, Computer Integration, RH | ||||
| 82877-30030 |
Box, Computer Integration, RH
2024-05 → —
|
AZSH38 | — | |
| 82877-30030 |
Box, Computer Integration, RH
2024-09 → —
|
AZSH39 | — | |
| 82878 — Box, Computer Integration, LH | ||||
| 82878-30070 |
Box, Computer Integration, LH
2024-05 → —
|
AZSH38 | — | |
| 82878-30070 |
Box, Computer Integration, LH
2024-09 → —
|
AZSH39 | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-19075 |
Switch Assy, Stop Lamp
2024-05 → —
|
AZSH38 | — | |
| 84340-19075 |
Switch Assy, Stop Lamp
2024-09 → —
|
AZSH39 | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2024-05 → —
|
AZSH38 | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2024-09 → —
|
AZSH39 | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-30350 |
Computer, Network Gateway
2024-05 → —
|
AZSH38 | — | |
| 89111-30360 |
Computer, Network Gateway
2024-09 → —
|
AZSH39 | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-30020 |
Sensor, Automatic Light Control
2024-05 → —
|
AZSH38 | — | |
| 89121-30020 |
Sensor, Automatic Light Control
2024-09 → —
|
AZSH39 | — | |
| 89227 — Computer, Multiplex Tilt & Telescopic | ||||
| 89227-48070 |
Computer, Multiplex Tilt & Telescopic
2024-05 → —
|
AZSH38 G | — | |
| 89227-48070 |
Computer, Multiplex Tilt & Telescopic
2024-09 → —
|
AZSH39 | — | |
| 894C7 — Bracket, Shift Control Computer, NO.1 | ||||
| 894D2-30010 |
Bracket, Shift Control Computer, NO.1
2024-05 → —
|
AZSH38 M | — | |
| 894C8 — Bracket, Shift Control Computer, NO.2 | ||||
| 894D2-30020 |
Bracket, Shift Control Computer, NO.2
2024-05 → —
|
AZSH38 M | — | |
| 894D1 — Supply, Shift Control | ||||
| 894D1-42010 |
Supply, Shift Control
2024-05 → —
|
AZSH38 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
