Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General

Supported model Data version 2024-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

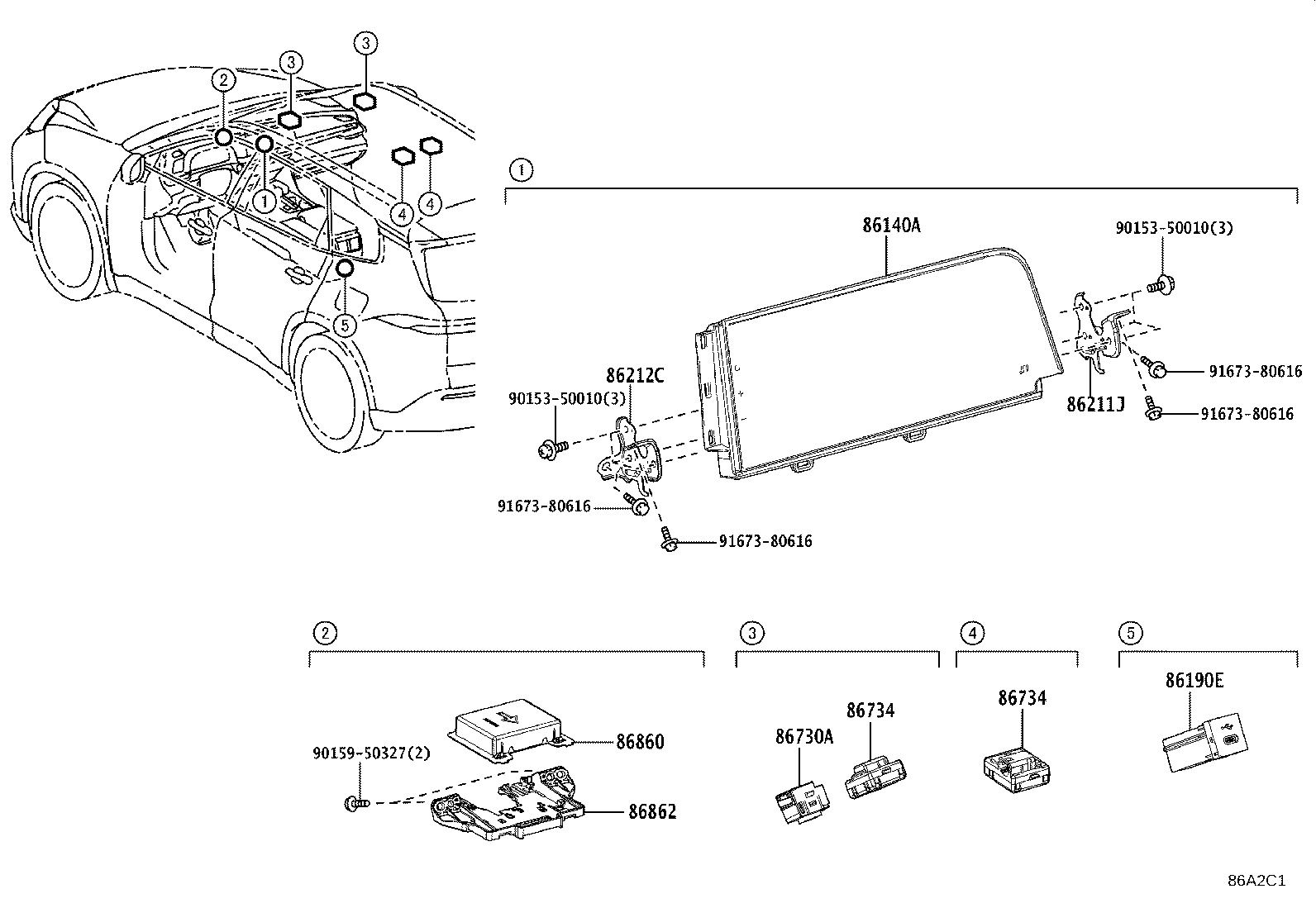

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

18 parts on this figure

Part number	Description	Fitment	Price
86140A — Receiver Assy, Radio & Display
86100-30640 note	Receiver Assy, Radio & Display 2024-05 → —	AZSH38 G	—
86100-30C50 note	Receiver Assy, Radio & Display 2024-09 → —	AZSH39	—
86140-30170 note	Receiver Assy, Radio & Display 2024-05 → —	AZSH38 M	—
86190E — Adapter Assy, Stereo Jack
86190-12080	Adapter Assy, Stereo Jack 2024-05 → —	AZSH38	—
86190-12080	Adapter Assy, Stereo Jack 2024-09 → —	AZSH39	—
86211J — Bracket, Radio Receiver, NO.1
86211-12470	Bracket, Radio Receiver, NO.1 2024-05 → —	AZSH38	—
86211-12470	Bracket, Radio Receiver, NO.1 2024-09 → —	AZSH39	—
86212C — Bracket, Radio Receiver, NO.2
86212-12460	Bracket, Radio Receiver, NO.2 2024-05 → —	AZSH38	—
86212-12460	Bracket, Radio Receiver, NO.2 2024-09 → —	AZSH39	—
86730A — Microphone Assy, Telephone
86730-78010	Microphone Assy, Telephone 2024-05 → —	AZSH38 M	—
86730-78010	Microphone Assy, Telephone 2024-09 → —	AZSH39	—
86730-78010	Microphone Assy, Telephone 2024-05 → —	AZSH38 G	—
86734 — Microphone, Active Noise Control
86734-11030	Microphone, Active Noise Control 2024-05 → —	AZSH38	—
86734-11030	Microphone, Active Noise Control 2024-09 → —	AZSH39	—
86860 — Antenna Assy, Navigation
86880-42030	Antenna Assy, Navigation 2024-05 → —	AZSH38	—
86880-42030	Antenna Assy, Navigation 2024-09 → —	AZSH39	—
86862 — Bracket, Navigation Antenna
86862-42010	Bracket, Navigation Antenna 2024-05 → —	AZSH38	—
86862-42010	Bracket, Navigation Antenna 2024-09 → —	AZSH39	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
