Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

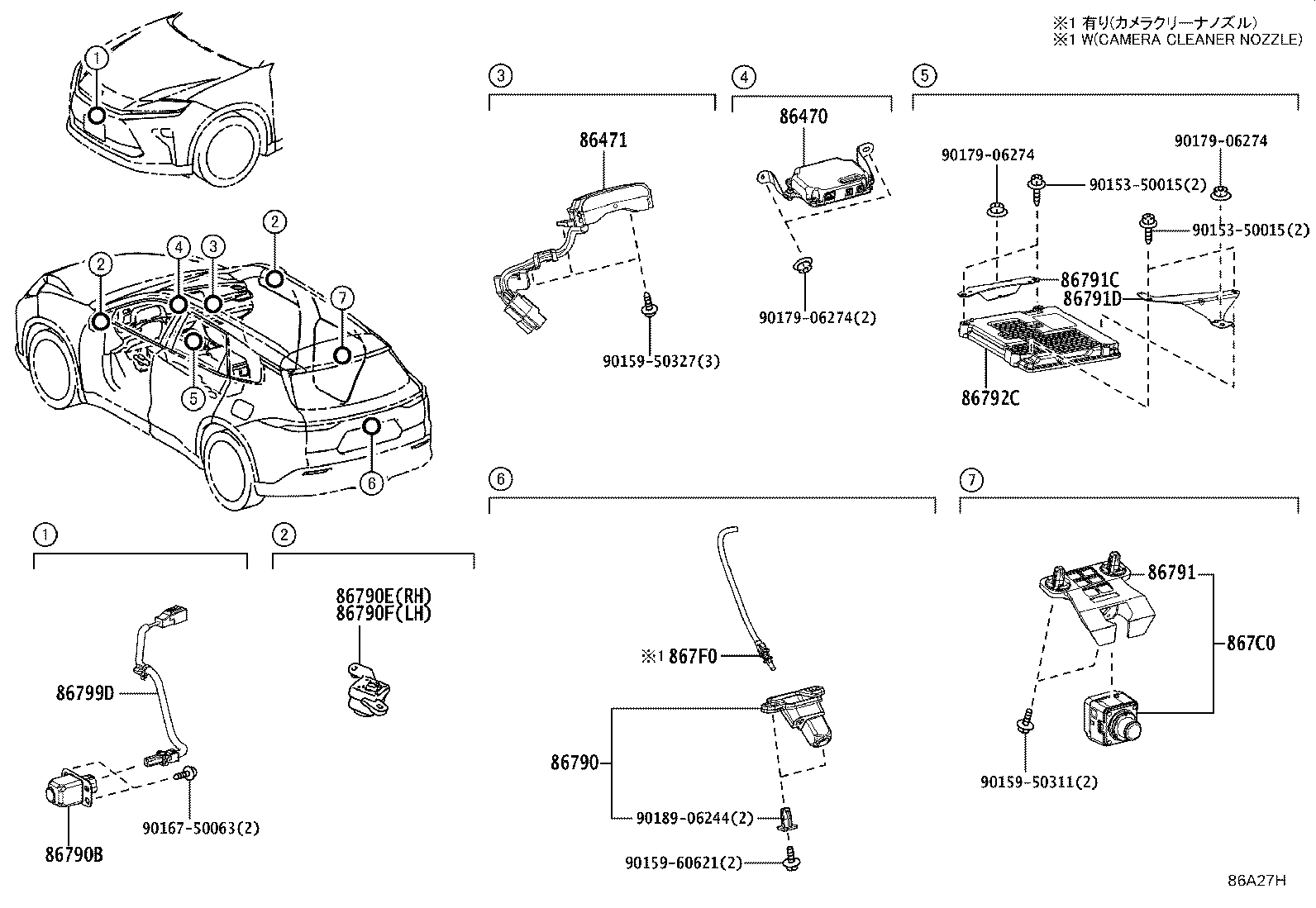

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86470 — Computer Assy, Driver Monitor | ||||
| 86470-30090 |
Computer Assy, Driver Monitor
2024-09 → —
|
AZSH39 | — | |
| 86470-30090 |
Computer Assy, Driver Monitor
2024-05 → —
|
AZSH38 G | — | |
| 86471 — Camera, Driver Monitor | ||||
| 86471-30040 |
Camera, Driver Monitor
2024-05 → —
|
AZSH38 G | — | |
| 86471-30040 |
Camera, Driver Monitor
2024-09 → —
|
AZSH39 | — | |
| 86790 — Camera Assy, Television | ||||
| 86790-30530 |
Camera Assy, Television
2024-12 → —
|
AZSH38 M | — | |
| 86790-30550 |
Camera Assy, Television
2024-05 → —
|
AZSH38 G | — | |
| 86790-30550 |
Camera Assy, Television
2024-09 → —
|
AZSH39 | — | |
| 86790B — Camera Assy, Television, FR | ||||
| 86790-30560 |
Camera Assy, Television, FR
2024-05 → —
|
AZSH38 G | — | |
| 86790-30560 |
Camera Assy, Television, FR
2024-09 → —
|
AZSH39 | — | |
| 86790E — Camera Assy, Television, Side RH | ||||
| 86790-30580 |
Camera Assy, Television, Side RH
2024-05 → —
|
AZSH38 G | — | |
| 86790-30580 |
Camera Assy, Television, Side RH
2024-09 → —
|
AZSH39 | — | |
| 86790F — Camera Assy, Television, Side LH | ||||
| 86790-30590 |
Camera Assy, Television, Side LH
2024-05 → —
|
AZSH38 G | — | |
| 86790-30590 |
Camera Assy, Television, Side LH
2024-09 → —
|
AZSH39 | — | |
| 86791 — Bracket, Television Camera | ||||
| 86791-30200 |
Bracket, Television Camera
2024-05 → —
|
AZSH38 G | — | |
| 86791-30200 |
Bracket, Television Camera
2024-09 → —
|
AZSH39 | — | |
| 86791C — Bracket, Computer Parking Assist, NO.1 | ||||
| 86791-30050 |
Bracket, Computer Parking Assist, NO.1
2024-05 → —
|
AZSH38 G | — | |
| 86791-30050 |
Bracket, Computer Parking Assist, NO.1
2024-09 → —
|
AZSH39 | — | |
| 86791D — Bracket, Computer Parking Assist, NO.2 | ||||
| 86791-30060 |
Bracket, Computer Parking Assist, NO.2
2024-05 → —
|
AZSH38 G | — | |
| 86791-30060 |
Bracket, Computer Parking Assist, NO.2
2024-09 → —
|
AZSH39 | — | |
| 86792C — Computer, Parking Assist | ||||
| 86792-30600 |
Computer, Parking Assist
2024-05 → —
|
AZSH38 G | — | |
| 86792-30600 |
Computer, Parking Assist
2024-09 → —
|
AZSH39 | — | |
| 86799D — Wire, Television Camera, Front | ||||
| 86799-30160 |
Wire, Television Camera, Front
2024-05 → —
|
AZSH38 G | — | |
| 86799-30160 |
Wire, Television Camera, Front
2024-09 → —
|
AZSH39 | — | |
| 867C0 — Camera Assy, Inner Mirror | ||||
| 867C0-30070 |
Camera Assy, Inner Mirror
2024-05 → —
|
AZSH38 G | — | |
| 867C0-30070 |
Camera Assy, Inner Mirror
2024-09 → —
|
AZSH39 | — | |
| 867F0 — Nozzle Assy, Camera Cleaner | ||||
| 867F0-30030 |
Nozzle Assy, Camera Cleaner
2024-05 → —
|
AZSH38 G | — | |
| 867F0-30030 |
Nozzle Assy, Camera Cleaner
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
