Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

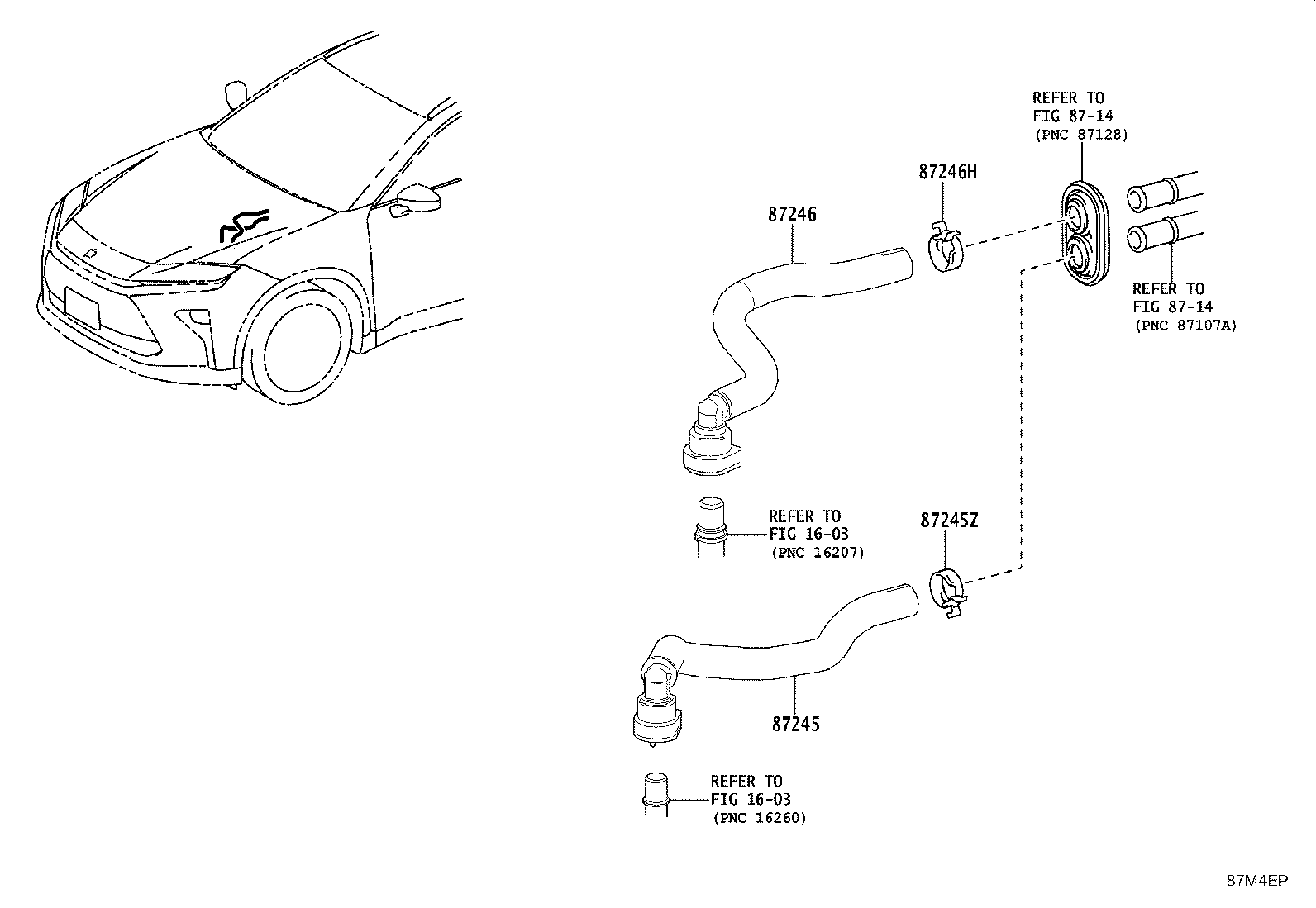

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245 — Hose, Heater Water, Inlet | ||||
| 87209-30810 |
Hose, Heater Water, Inlet
2024-05 → —
|
AZSH38 | — | |
| 87245Z — Clip OR Clamp (FOR HEATER WATER HOSE) | ||||
| 96138-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2024-05 → —
|
AZSH38 | — | |
| 96138-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2024-09 → —
|
AZSH39 | — | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87209-30820 |
Hose, Heater Water, Outlet
2024-05 → —
|
AZSH38 | — | |
| 87246H — Clip OR Clamp(FOR HEATER WATER HOSE) | ||||
| 96138-42501 |
Clip OR Clamp(FOR HEATER WATER HOSE)
2024-05 → —
|
AZSH38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
