Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

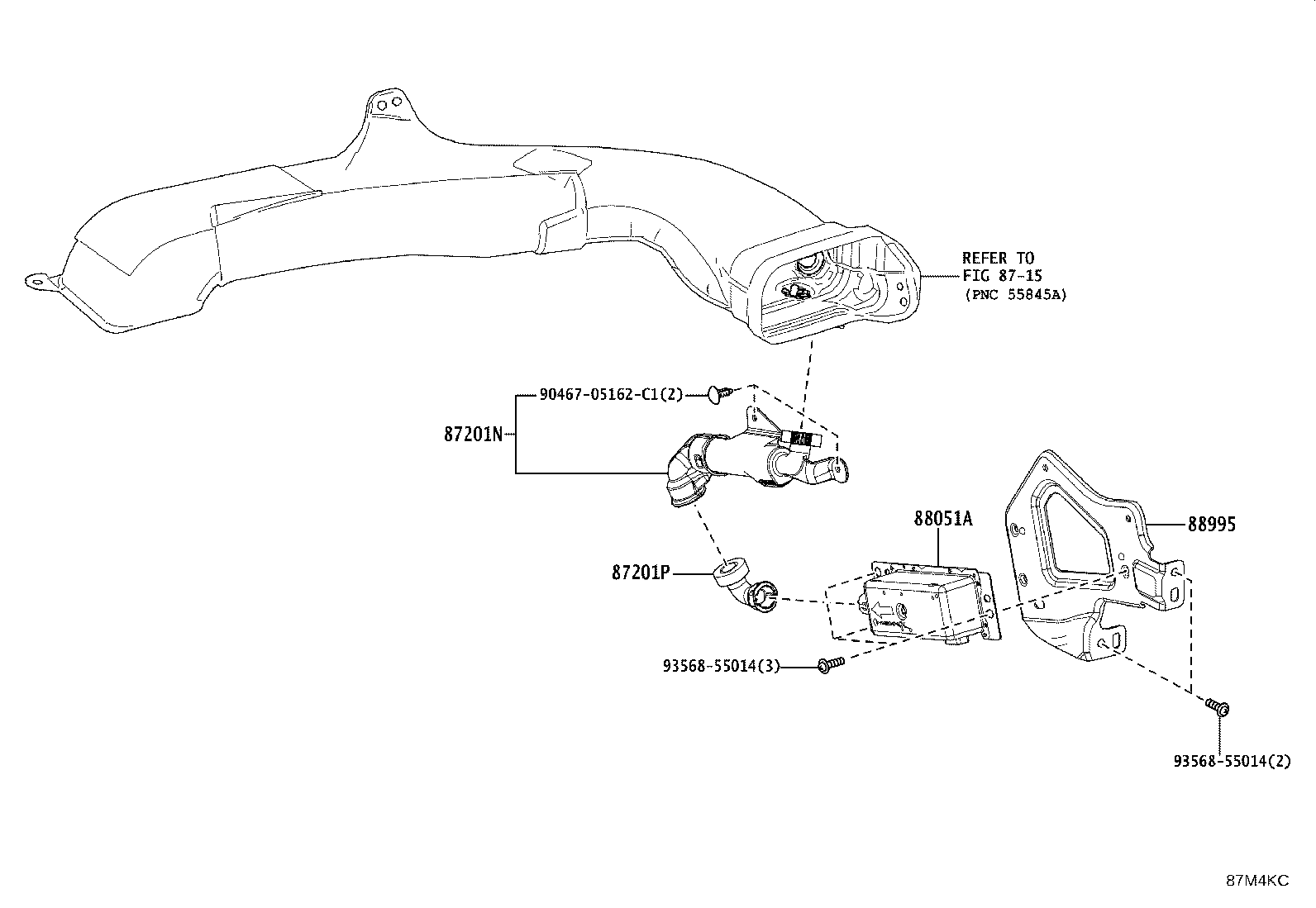

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87201N — Duct Sub-assy, Air | ||||
| 55840-30090 |
Duct Sub-assy, Air
2024-05 → —
|
AZSH38 | — | |
| 55840-30090 |
Duct Sub-assy, Air
2024-09 → —
|
AZSH39 | — | |
| 87201P — Duct Sub-assy, Air ,NO.2 | ||||
| 55848-48060 |
Duct Sub-assy, Air ,NO.2
2024-05 → —
|
AZSH38 | — | |
| 55848-48060 |
Duct Sub-assy, Air ,NO.2
2024-09 → —
|
AZSH39 | — | |
| 88051A — Generator Sub-assy,Ion | ||||
| 88051-48010 |
Generator Sub-assy,Ion
2024-05 → —
|
AZSH38 | — | |
| 88051-48010 |
Generator Sub-assy,Ion
2024-09 → —
|
AZSH39 | — | |
| 88995 — Bracket,Ion Generator, NO.1 | ||||
| 88995-30060 |
Bracket,Ion Generator, NO.1
2024-05 → —
|
AZSH38 | — | |
| 88995-30060 |
Bracket,Ion Generator, NO.1
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
