Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

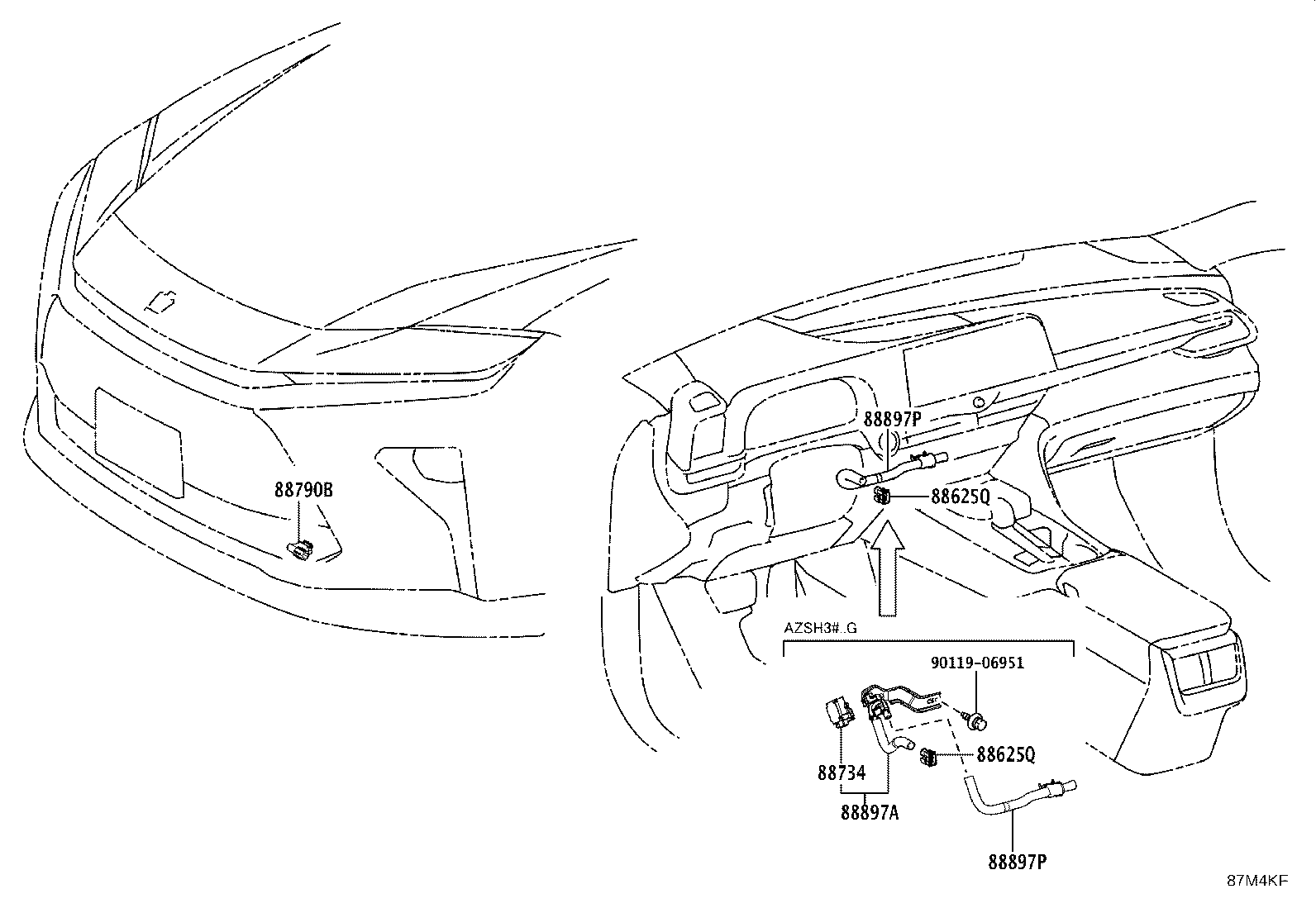

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2024-05 → —
|
AZSH38 | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2024-09 → —
|
AZSH39 | — | |
| 88734 — Sensor, Air Conditioner Particulate Matter | ||||
| 88734-30020 |
Sensor, Air Conditioner Particulate Matter
2024-05 → —
|
AZSH38 G | — | |
| 88734-30020 |
Sensor, Air Conditioner Particulate Matter
2024-09 → —
|
AZSH39 | — | |
| 88790B — Thermistor Assy | ||||
| 88790-28100 |
Thermistor Assy
2024-05 → —
|
AZSH38 | — | |
| 88790-28100 |
Thermistor Assy
2024-09 → —
|
AZSH39 | — | |
| 88897A — Pipe, Aspirator | ||||
| 88505-30020 |
Pipe, Aspirator
2024-05 → —
|
AZSH38 G | — | |
| 88505-30020 |
Pipe, Aspirator
2024-09 → —
|
AZSH39 | — | |
| 88897P — Aspirator | ||||
| 87201-30750 |
Aspirator
2024-05 → —
|
AZSH38 M | — | |
| 87201-48320 |
Aspirator
2024-05 → —
|
AZSH38 G | — | |
| 87201-48320 |
Aspirator
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
