Toyota Century
2023-10 → present · chassis GRG75 · catalogue 343210 · General
Supported model
Data version 2023-10

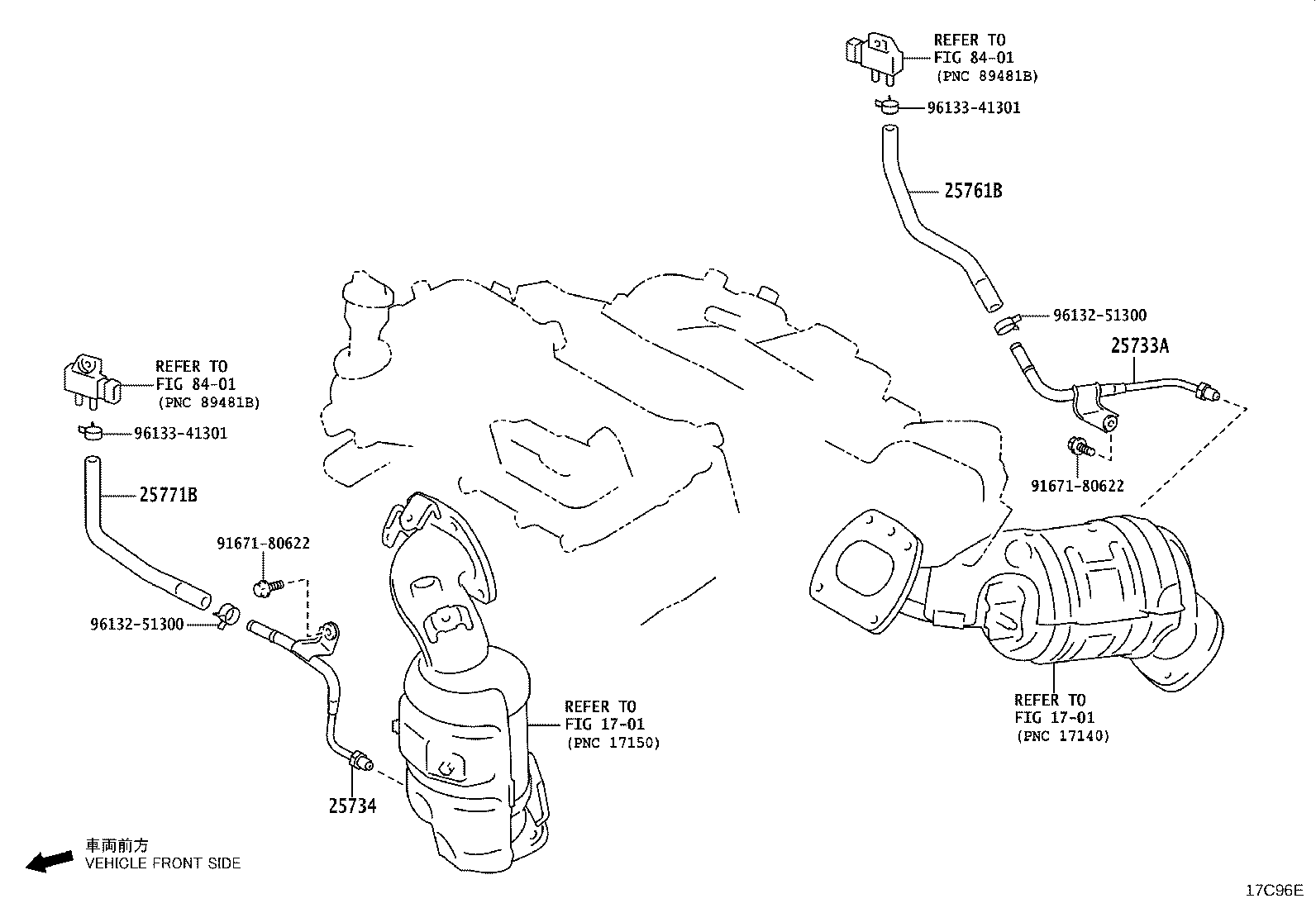

Vacuum Piping
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23211K | Bracket |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23830 | Hose Assy, Fuel Vapor Feed, NO.2 |
| 25733A | Pipe, Vacuum, NO.1 |
| 25734 | Pipe, Vacuum, NO.2 |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25771B | Hose, Vaccum Transmitting, NO.2 |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
