Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10

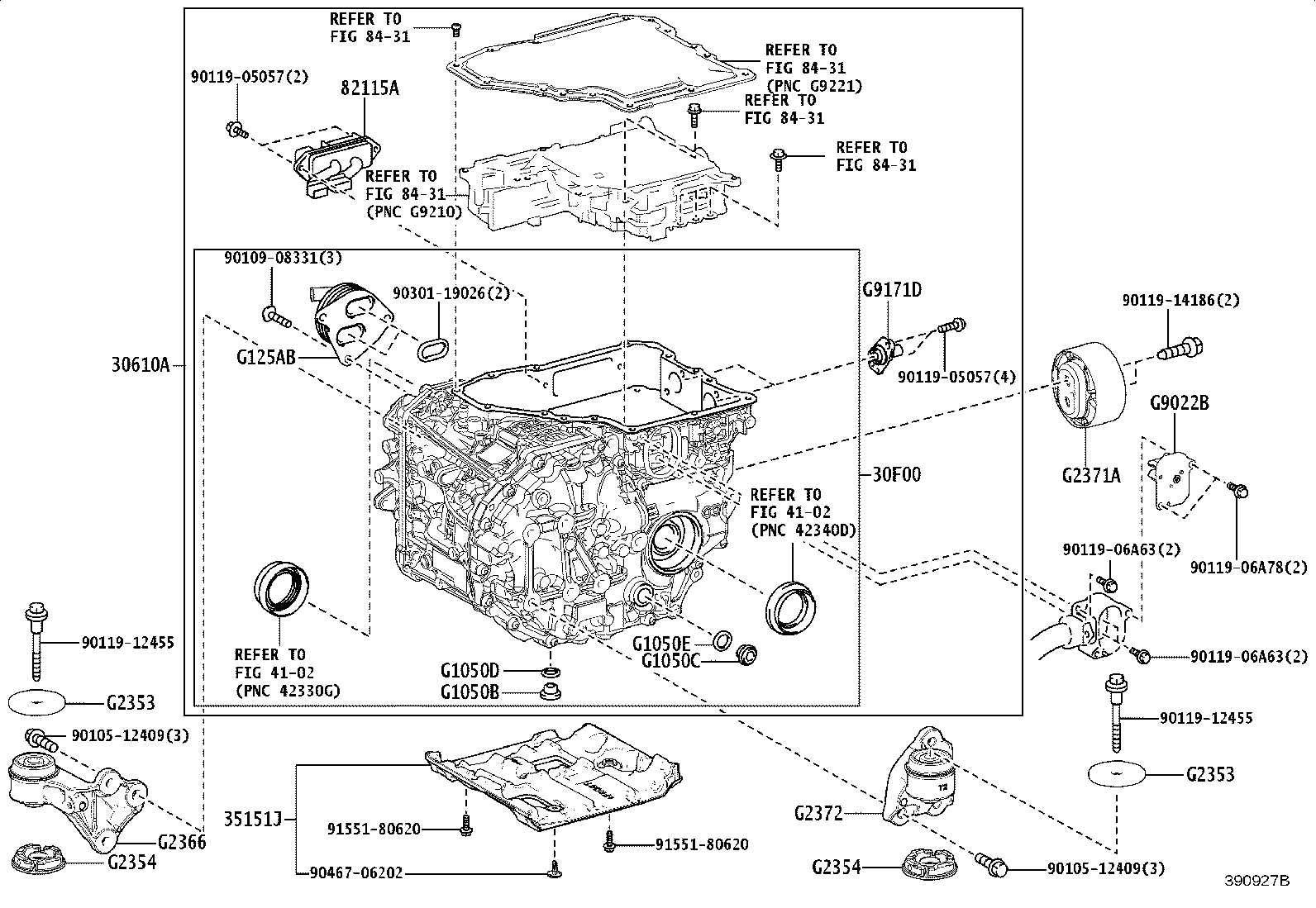

Transaxle Assy(HEV OR BEV OR FCEV)

37 part groups · 2 illustrations

PNC	Description
30610A	Transaxle Assy, Rear W/Motor & Inverter
30900	Transaxle Assy, Hybrid Vehicle
30900D	Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
30900E	Gasket(FOR TRANSAXLE HOUSING & CASE)
30900F	Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
30900G	Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900K	Connector, Tube(FOR TRANSAXLE HOUSING)
30900N	Plug, Breather(FOR TRANSAXLE)
30900P	Plug, Drain(HEV)
30900Q	Plug, Filler(HEV)
30900R	Gasket, Drain Plug(HEV)
30900S	Gasket, Filler Plug(HEV)
30F00	Rear Transaxle Assy, W/Motor
31270	Damper Assy, Transmission Input
33185B	Bracket, Transaxle Under Stopper
35151J	Cover, Automatic Transmission Case
35153C	Cover, Automatic Transmission Case, NO.3
35541	Bracket, Shift Control Actuator
35563	Seal, Shift Control Actuator
35580	Actuator Assy, Shift Control
35710A	Seal, Type T Oil(FOR INPUT SHAFT)
82115A	Wire, Motor Compartment, Main (FOR REAR TRANSAXLE)
82821T	Cover, Connector
82823M	Cap, Terminal
G1050B	Plug, Drain(FOR REAR TRACTION MOTOR)
G1050C	Plug, Filler(FOR REAR TRACTION MOTOR)
G1050D	Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
G1050E	Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
G1148	Cable, Motor
G125AB	Cooler, Motor Cooling (FOR REAR TRANSAXLE)
G2353	Stopper, Motor Mounting, Upper
G2354	Stopper, Motor Mounting, Lower
G2366	Insulator, Rear Motor Mounting, RH
G2371A	Insulator, Motor Mounting, Rear
G2372	Insulator, Motor Mounting, LH
G9022B	Cover Sub-assy, Inverter, Upper
G9171D	Pipe, Inverter Cooling, NO.1 (FOR REAR TRANSAXLE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
