Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10

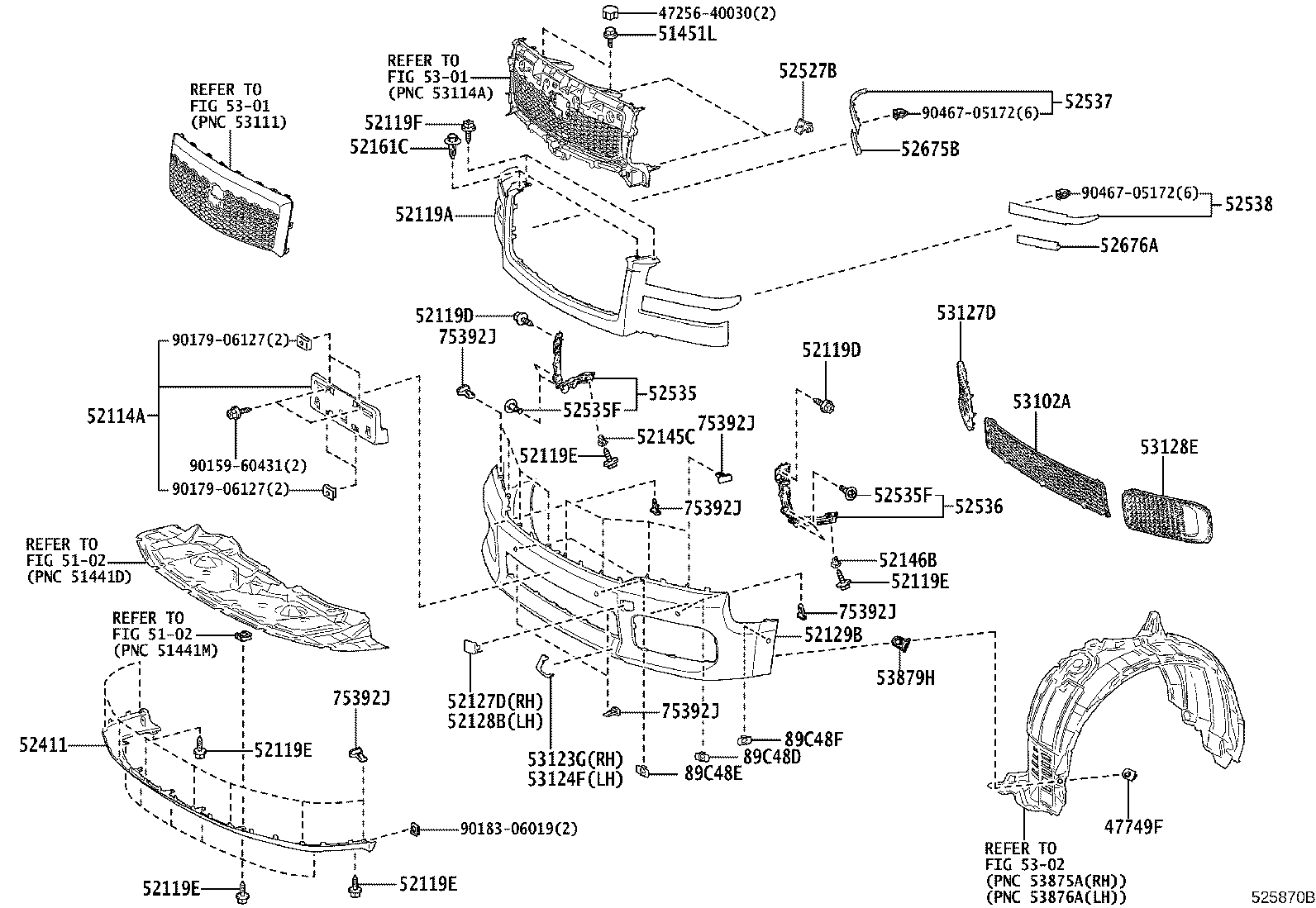

Front Bumper & Bumper Stay

40 part groups · 2 illustrations

PNC	Description
47749F	Clip, Pin Hold
51451L	Bolt, NO.1
52021	Reinforcement Sub-assy, Front Bumper
52029C	Reinforcement Sub-assy, Front Bumper, NO.2
52102B	Extension Sub-assy, Front Bumper, RH
52103A	Extension Sub-assy, Front Bumper, LH
52114A	Bracket, Front Bumper Extension Mounting
52119A	Cover, Front Bumper
52119D	Screw, NO.1
52119E	Screw, NO.2
52119F	Screw, NO.3
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52129B	Cover, Front Bumper, Lower
52145C	Bracket, Front Bumper Side Mounting, RH
52146B	Bracket, Front Bumper Side Mounting, LH
52147B	Bracket, Front Bumper Mounting
52148H	Bracket, Front Bumper Mounting, NO.2
52161C	Piece, Front Bumper
52411	Guard, Front Bumper
52527B	Retainer, Front Bumper, Lower NO.2
52535	Retainer, Front Bumper Side, RH
52535F	Clip, Front Bumper Side Retainer
52536	Retainer, Front Bumper Side, LH
52537	Retainer, Front Bumper End, RH
52538	Retainer, Front Bumper End, LH
52611	Absorber, Front Bumper Energy
52618	Absorber, Front Bumper, Lower
52675B	Support, Front Bumper Side, NO.1 RH
52676A	Support, Front Bumper Side, NO.1 LH
53102A	Grille Sub-assy, Radiator, Lwr
53123G	Moulding, Radiator Grille Side, RH
53124F	Moulding, Radiator Grille Side, LH
53127D	Grille, Radiator, Lower Side RH
53128E	Grille, Radiator, Lower Side LH
53879H	Retainer, Front Fender Liner
75392J	Retainer, Outside Moulding
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center
89C48F	Retainer, Ultrasonic Sensor, Front Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
