Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10

Hood & Front Fender

40 part groups · 2 illustrations

PNC	Description
53153K	Guide, Radiator Grille Side Air, RH
53154L	Guide, Radiator Grille Side Air, LH
53301	Hood Sub-assy
53301A	Plug, Hole(FOR HOOD)
53341B	Insulator, Hood
53381E	Seal, Hood TO Radiator Support
53383A	Clip(FOR HOOD TO COWL TOP SEAL)
53388D	Seal, Hood TO Front Fender, RH
53389B	Seal, Hood TO Front Fender, LH
53393B	Protector, Hood, Front
53801	Fender Sub-assy, Front RH
53802	Fender Sub-assy, Front LH
53803A	Bracket Sub-assy, Front Side Panel, RH
53804A	Bracket Sub-assy, Front Side Panel, LH
53807A	Shield Sub-assy, Fender Splash, Rear RH
53808A	Shield Sub-assy, Fender Splash, Rear LH
53813B	Extension, Front Fender, RH
53814B	Extension, Front Fender, LH
53827L	Protector, Front Fender Side Panel, RH
53827Q	Clip, Front Fender Side Panel Protector, NO.1
53828K	Protector, Front Fender Side Panel, LH
53828N	Clip, Front Fender Side Panel Protector, NO.1
53828P	Clip, Front Fender Side Panel Protector, NO.2
53845A	Brace, Front Wheel Opening Apron, RH
53846A	Brace, Front Wheel Opening Apron, LH
53857C	Retainer, Front Wheel Opening Extension, RH
53858B	Retainer, Front Wheel Opening Extension, LH

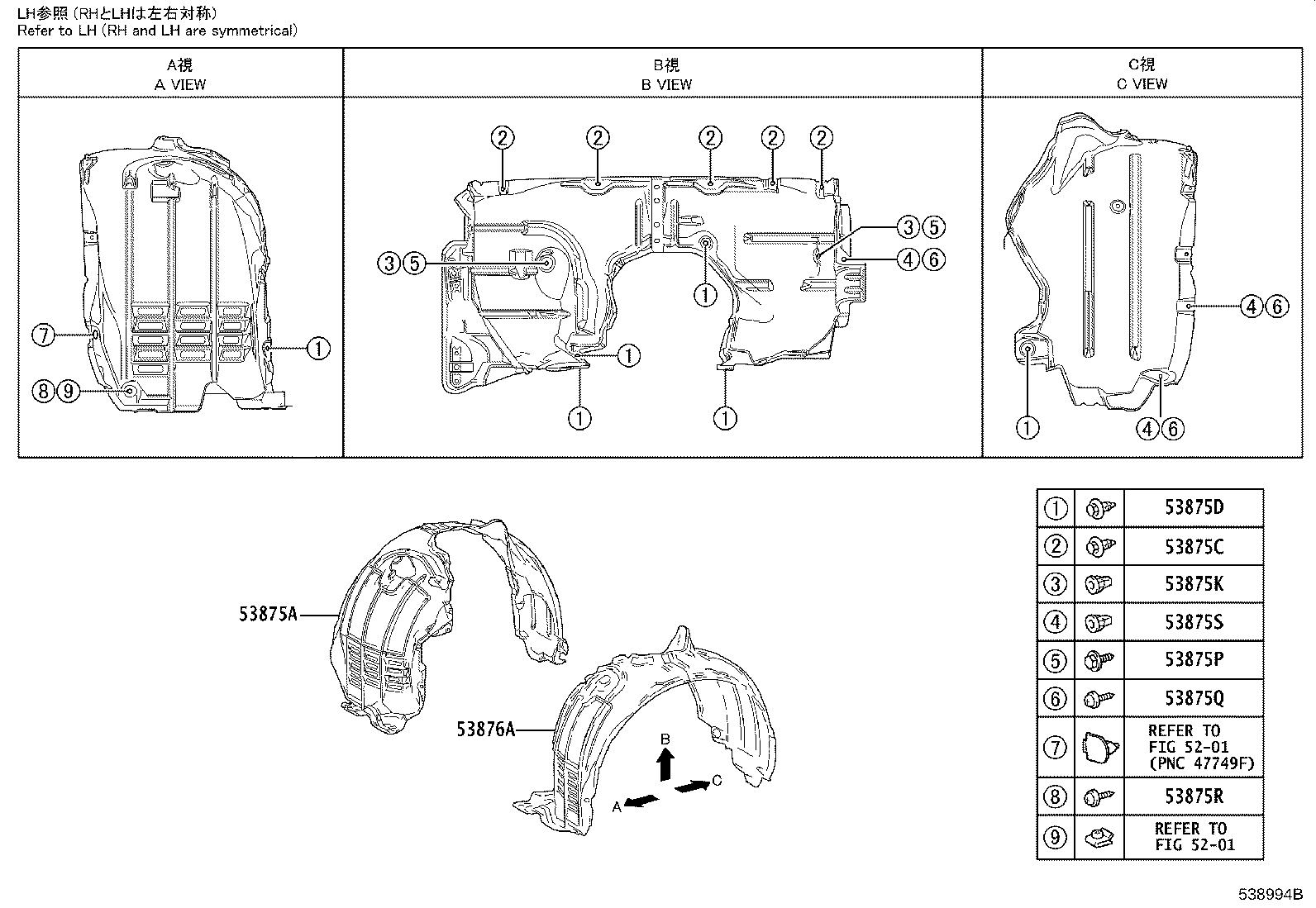

53875A	Liner, Front Fender, RH
53875C	Clip, Front Fender Liner
53875D	Clip, Front Fender Liner, NO.2
53875K	Grommet, Screw
53875P	Screw, NO.1
53875Q	Screw, NO.2
53875R	Screw, NO.3
53875S	Grommet, NO.1
53876A	Liner, Front Fender, LH
53882K	Seal, Front Fender
53883K	Seal, Front Fender, LH
53891B	Seal, Front Fender Splash Shield, Front RH
53892C	Seal, Front Fender Splash Shield, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
