Toyota Century
2023-10 → present · chassis GRG75 · catalogue 343210 · General
Supported model
Data version 2023-10

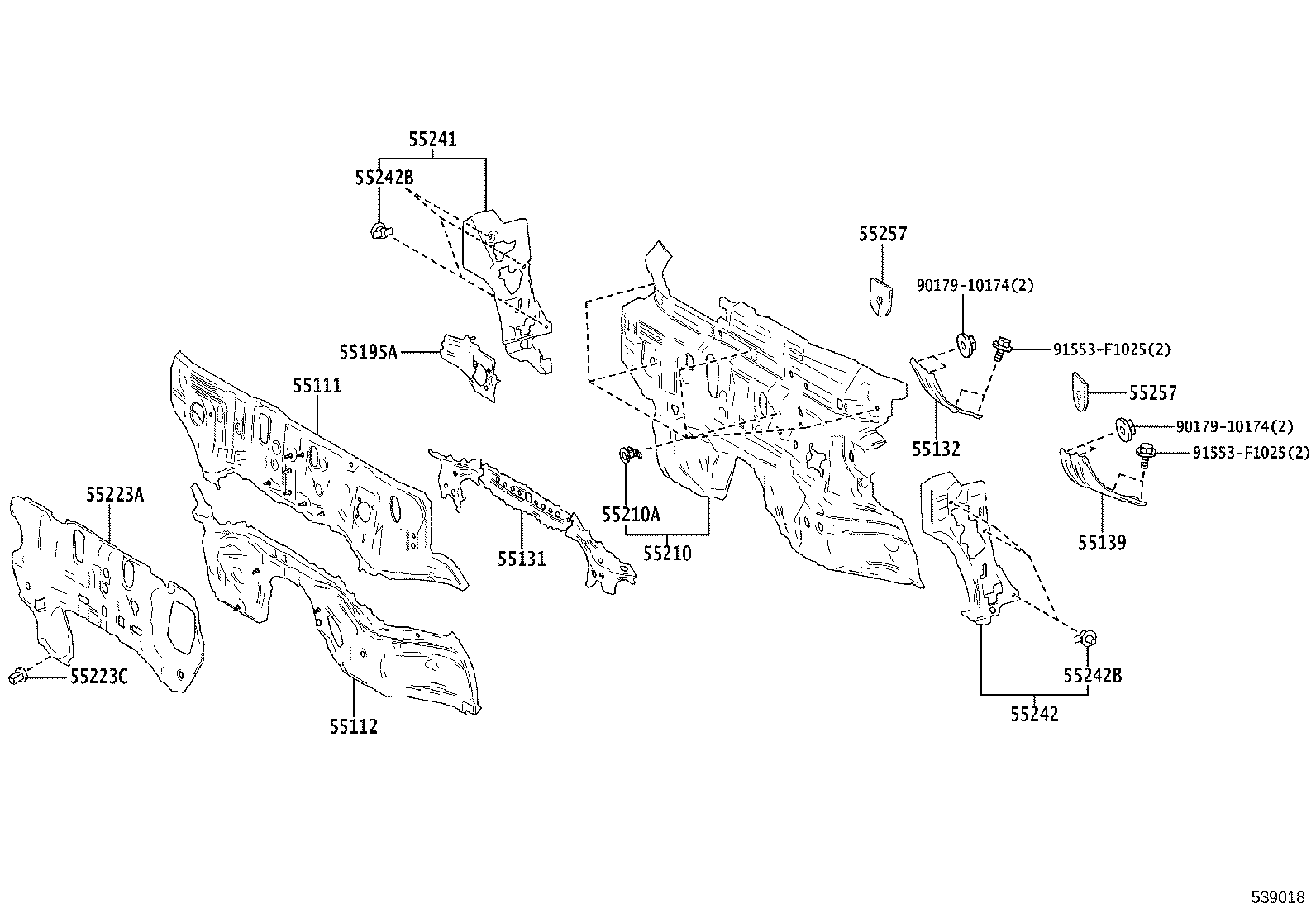

Front Fender Apron & Dash Panel
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16592A | Guide, Radiator Air, NO.3 |
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16594A | Guide, Radiator Air, NO.2 |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 48691P | Damper, Suspension Tower |
| 53151 | Bracket, Radiator Cover Support |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53223B | Bracket, Radiator Grille Mounting |
| 53225B | Bracket, Radiator Grille Mounting, NO.3 |
| 53245 | Bracket, Headlamp, RH |
| 53246 | Bracket, Headlamp, LH |
| 53291B | Plate, Radiator Cover |
| 53381J | Seal, Hood TO Radiator Support |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705E | Member Sub-assy, Front Apron TO Cowl Side, RH |
| 53706D | Member Sub-assy, Front Apron TO Cowl Side, LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53733J | Member, Front Apron TO Cowl Side, Outer Front RH |
| 53734G | Member, Front Apron TO Cowl Side, Outer Front LH |
| 53783A | Insulator, Apron Front Fender, RH |
| 53784A | Insulator, Apron Front Fender, LH |
| 53785A | Gusset, Front Fender Apron, Upper RH |
| 53786B | Gusset, Front Fender Apron, Upper LH |
| 53795A | Cover, Engine Room, Side |
| 53796A | Cover, Engine Room Side, LH |
| 53837B | Bracket, Front Side Panel, NO.2 |
| 53838D | Bracket, Front Side Panel, NO.2 LH |
| 55111 | Panel, Dash |
| 55112 | Panel, Dash, NO.2 |
| 55131 | Reinforcement, Dash Panel |
| 55132 | Reinforcement, Dash Panel, NO.2 |
| 55139 | Reinforcement, Dash TO Frame Brace |
| 55195A | Spacer, Brake Pedal Bracket |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
| 55257 | Cover, Dash Panel Opening |
| 57104D | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
