Toyota Century
2023-10 → present · chassis GRG75 · catalogue 343210 · General
Supported model
Data version 2023-10

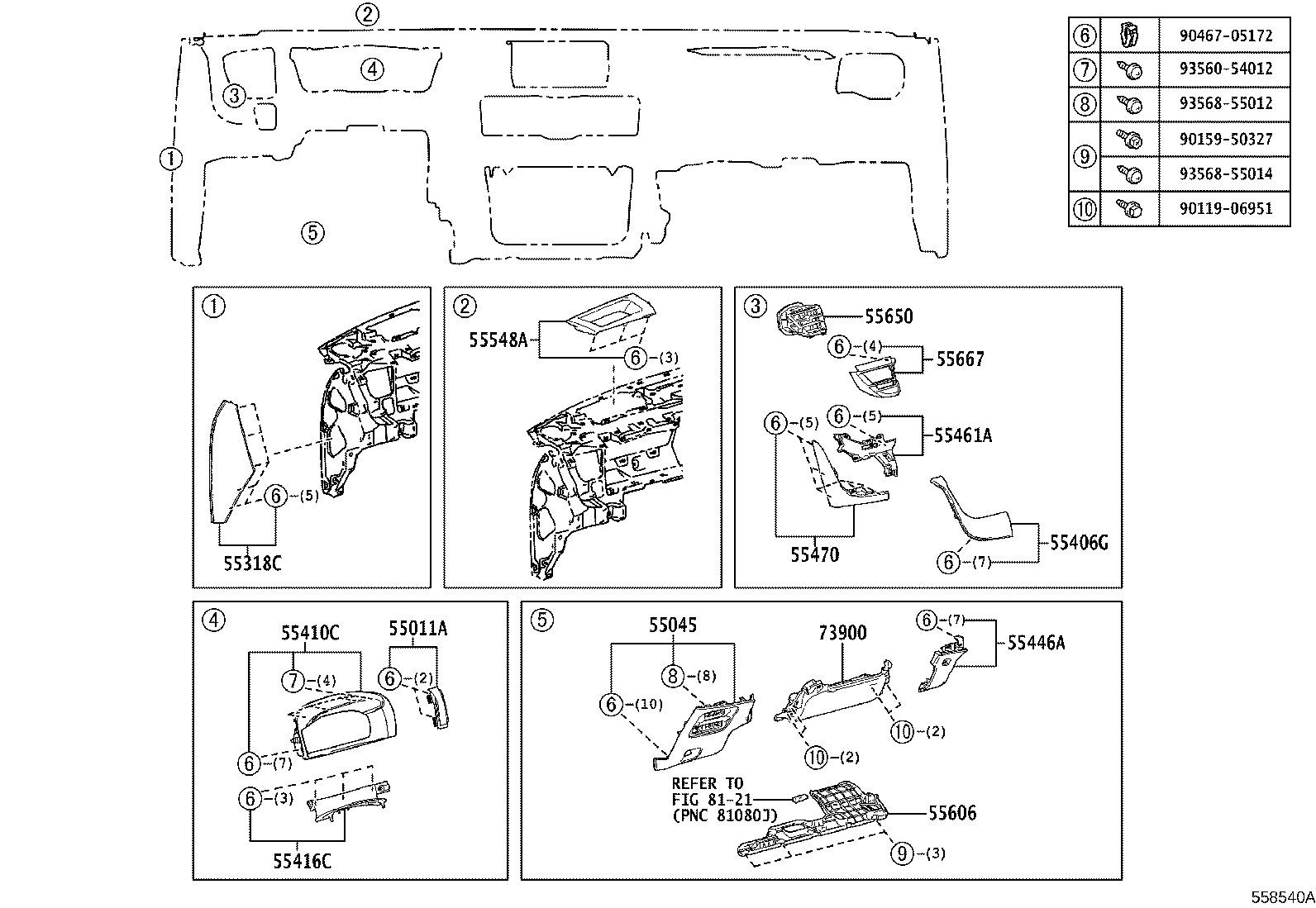

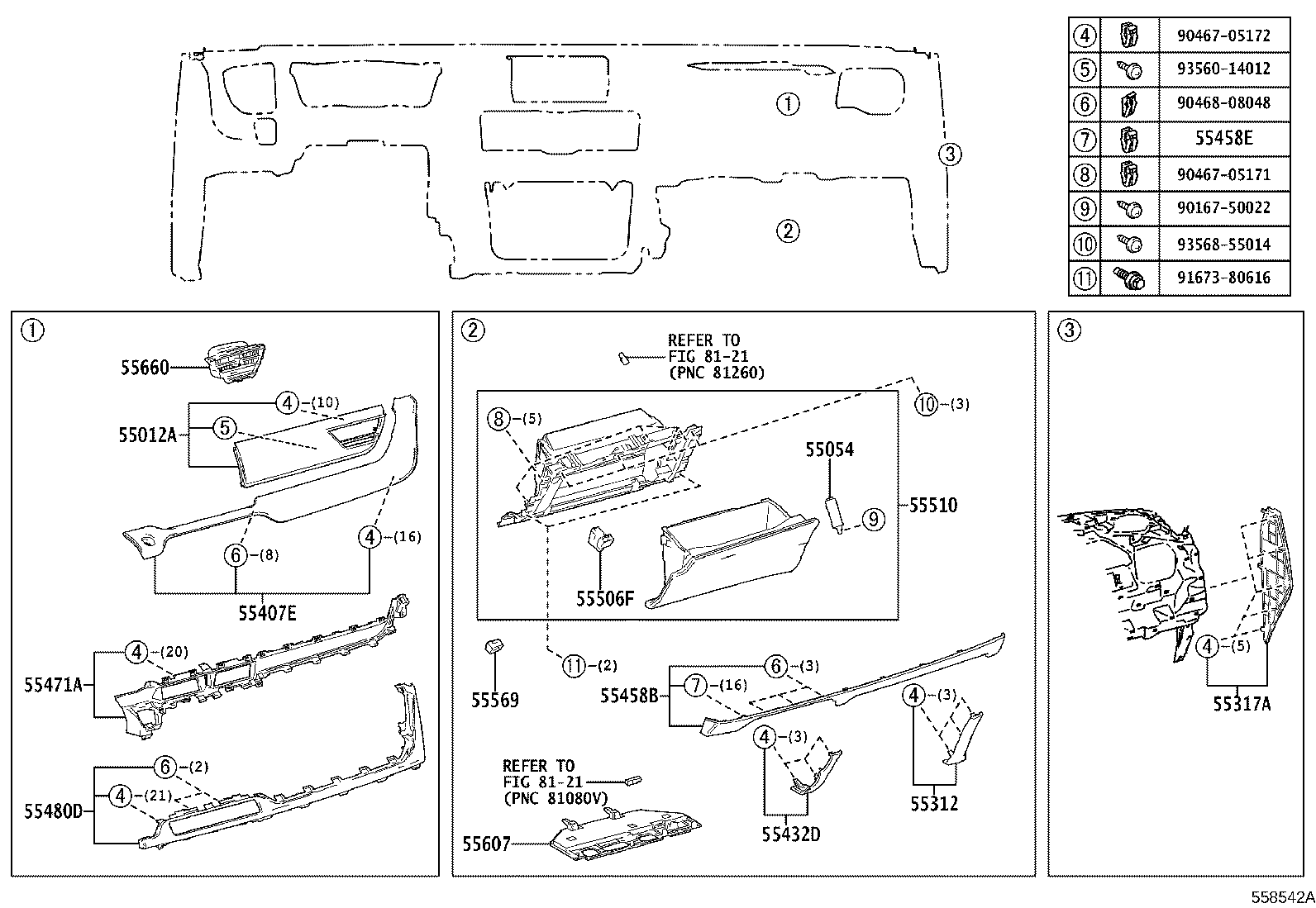

Instrument Panel & Glove Compartment
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161V | Piece, Instrument Panel |
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55312 | Panel, Instrument, Lower |
| 55317A | Panel, Instrument Side, RH |
| 55317E | Panel, Instrument Side, NO.1 |
| 55318C | Panel, Instrument Side, LH |
| 55318F | Panel, Instrument Side, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406G | Plate Sub-assy, Instrument Panel Safety Pad |
| 55407E | Insert Sub-assy, Instrument Panel Safety Pad |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55446A | Base, Switch Hole, NO.1 |
| 55458B | Cover, Instrument, Lwr |
| 55458E | Clip(FOR INSTRUMENT LOWER COVER) |
| 55461A | Ornament, Instrument Panel |
| 55470 | Garnish Assy, Instrument Cluster Finish Panel |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55506F | Lock Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55548A | Cover, Instrument Panel Hole |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55667 | Garnish, Instrument Panel Register Bezel |
| 55670A | Register Assy, Instrument Panel, Center |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
