Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Separation Trim

16 part groups · 2 illustrations

Illustrations

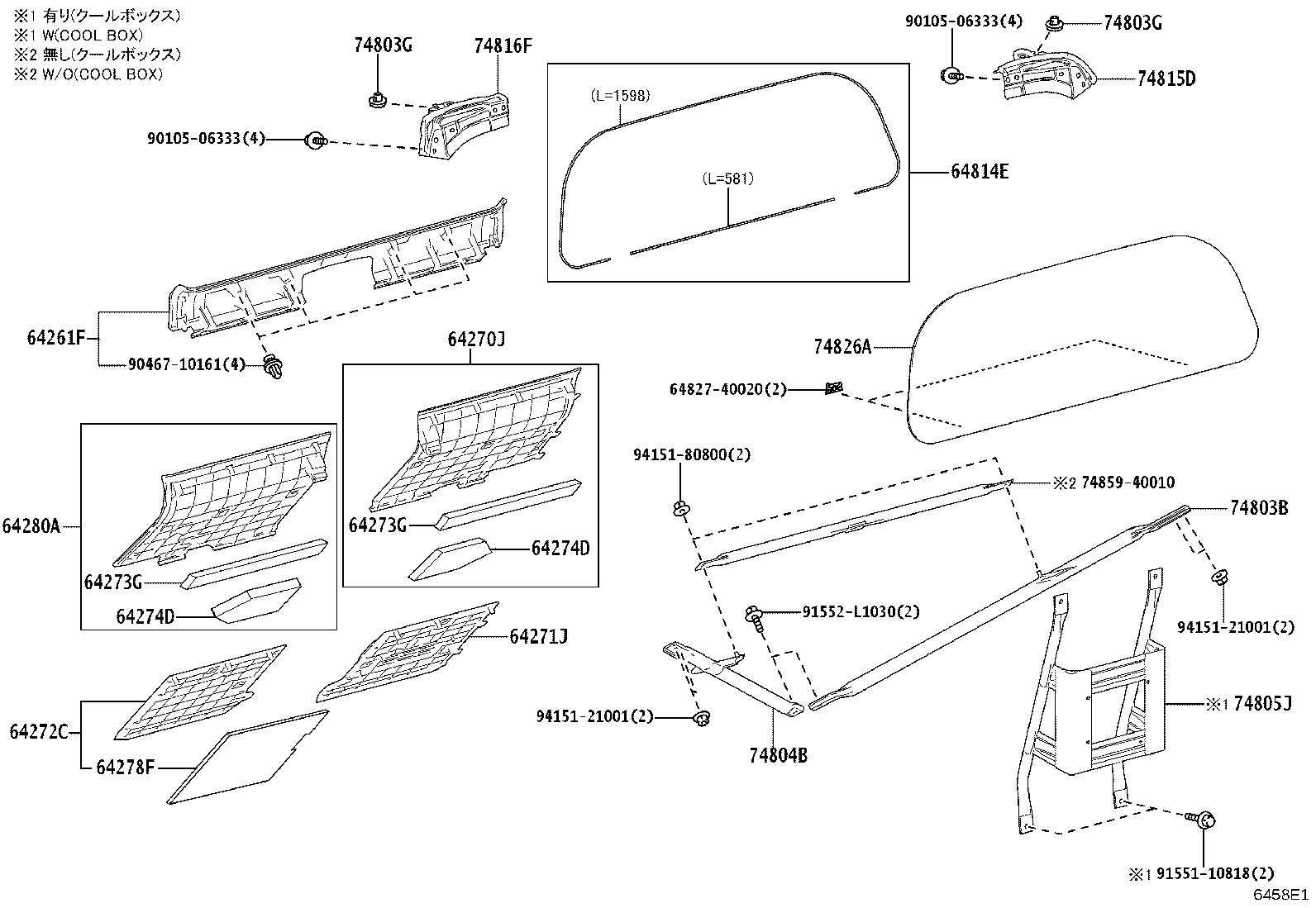

Figure 645875C 645875C 2023-10 → 2024-06 Figure 6458E1 6458E1 2024-06 → —

Part groups

PNCDescription
64261F Garnish, Back Panel, Upper
64270J Board Assy, Room Partition, RH
64271J Board, Room Partition, RH
64272C Board, Room Partition, LH
64273G Pad, Room Partition, NO.1
64274D Pad, Room Partition, NO.2
64278F Pad, Room Partition, NO.3
64280A Board Assy, Room Partition, LH
64814E Dam, Separator Window Glass Adhesive, NO.1
74803B Bar Sub-assy, Separator Vertical, RH
74803G Clip, Separator Trim
74804B Bar Sub-assy, Separator Vertical, LH
74805J Bar Sub-assy, Separator, A
74815D Plate, Separator, RH
74816F Plate, Separator, LH
74826A Window, Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
