Toyota Century
2023-10 → present · chassis GRG75 · catalogue 343210 · General
Supported model
Data version 2023-10

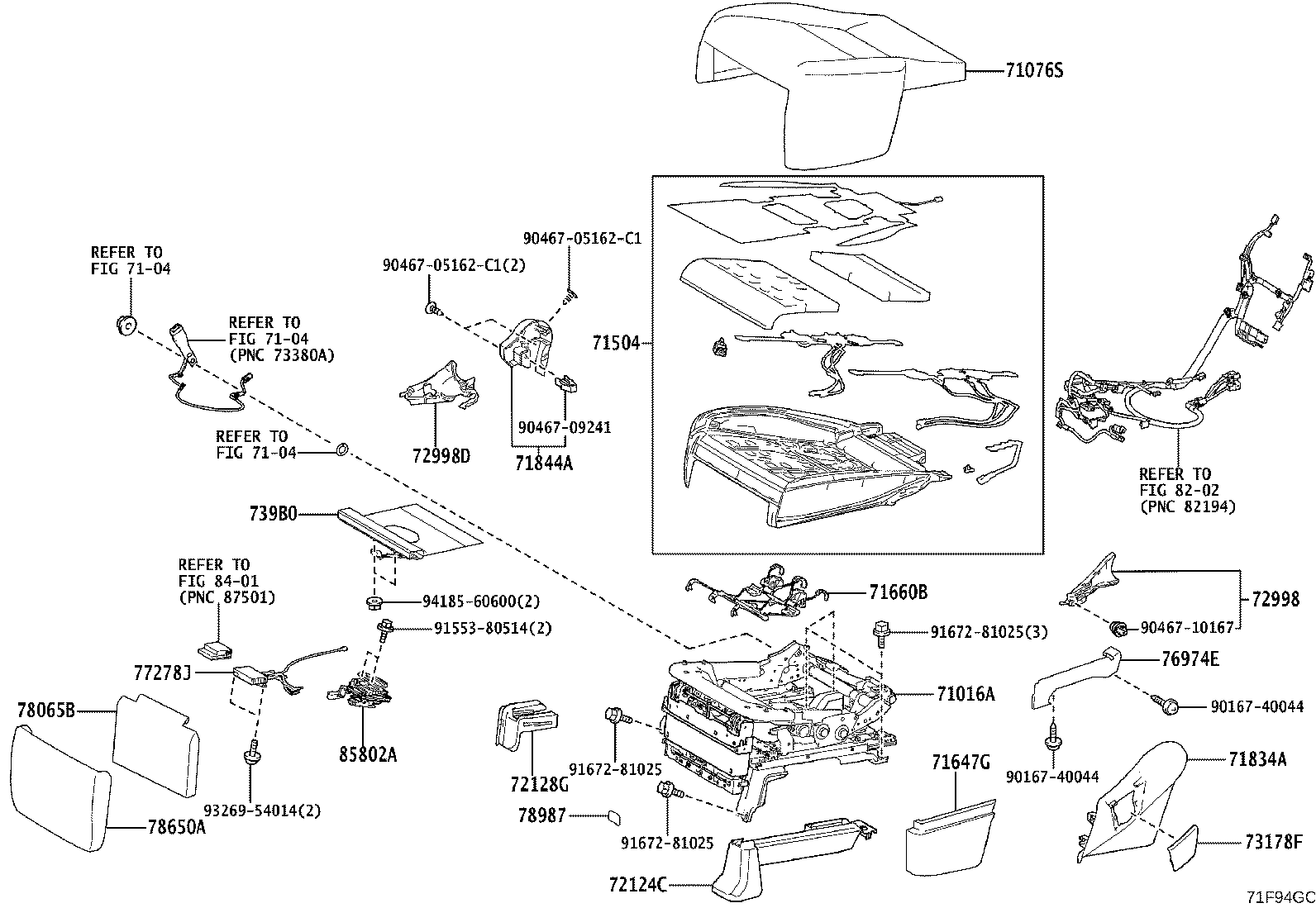

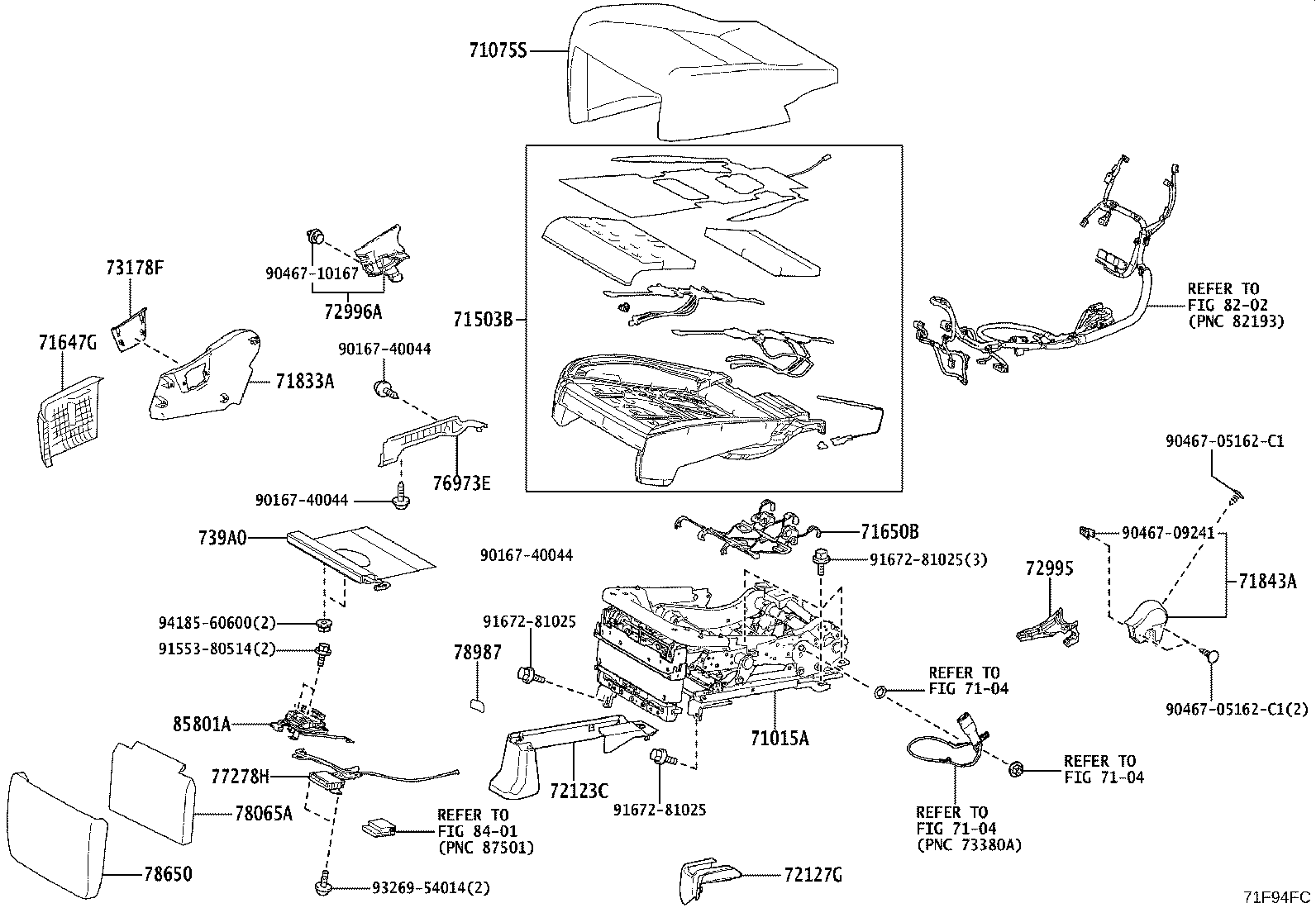

Rear Seat & Seat Track
54 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71503B | Pad Sub-assy, Rear Seat Cushion, RH |
| 71504 | Pad Sub-assy, Rear Seat Cushion, LH |
| 71507 | Pad Sub-assy, Rear Seatback, RH |
| 71508 | Pad Sub-assy, Rear Seatback, LH |
| 71587A | Protector, Rear Seatback Edge |
| 71647G | Protector, Rear Seat Cushion Edge |
| 71650B | Spring Assy, Rear Seat Cushion, RH |
| 71660B | Spring Assy, Rear Seat Cushion, LH |
| 71759J | Hook, Rear Seatback |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 72071D | Pump Sub-assy, Lumber Support, RH |
| 72072B | Pump Sub-assy, Lumber Support, LH |
| 72123C | Cover, Seat Track Bracket, Outer Front RH |
| 72124C | Cover, Seat Track Bracket, Outer Front LH |
| 72127G | Cover, Seat Track Bracket, Inner Front RH |
| 72128G | Cover, Seat Track Bracket, Inner Front LH |
| 72750G | Adjuster Assy, Lumbar Support, RH |
| 72760G | Adjuster Assy, Lumbar Support, LH |
| 72995 | Cover, Rear Seat Cushion, RH |
| 72996 | Cover, Rear Seatback, RH |
| 72996A | Cover, Rear Seatback |
| 72998 | Cover, Rear Seat Cushion, LH |
| 72998D | Cover, Rear Seat Cushion, LH |
| 73178F | Cap, Seat Belt Anchor Cover, NO.3 |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
| 739A0 | Airbag Assy, Rear Seat Cushion, RH |
| 739B0 | Airbag Assy, Rear Seat Cushion, LH |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
| 77278H | Valve, Check W/Hose, RH(FOR SEAT CUSHION) |
| 77278J | Valve, Check W/Hose, LH(FOR SEAT CUSHION) |
| 78065A | Cover Sub-assy, Rear Seat Legrest, RH |
| 78065B | Cover Sub-assy, Rear Seat Legrest, LH |
| 78650 | Legrest Assy, Rear Seat |
| 78650A | Legrest Assy, Rear Seat |
| 78987 | Cover, Rear Seat Footrest, NO.1 |
| 85801A | Blower Sub-assy, Seat Cushion Climate, RH |
| 85802A | Blower Sub-assy, Seat Cushion Climate, LH |
| 85867B | Blower, Rear Seatback Climate Control, RH |
| 85867C | Blower, Rear Seatback Climate Control, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
