Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

139 part groups · 12 illustrations

Illustrations

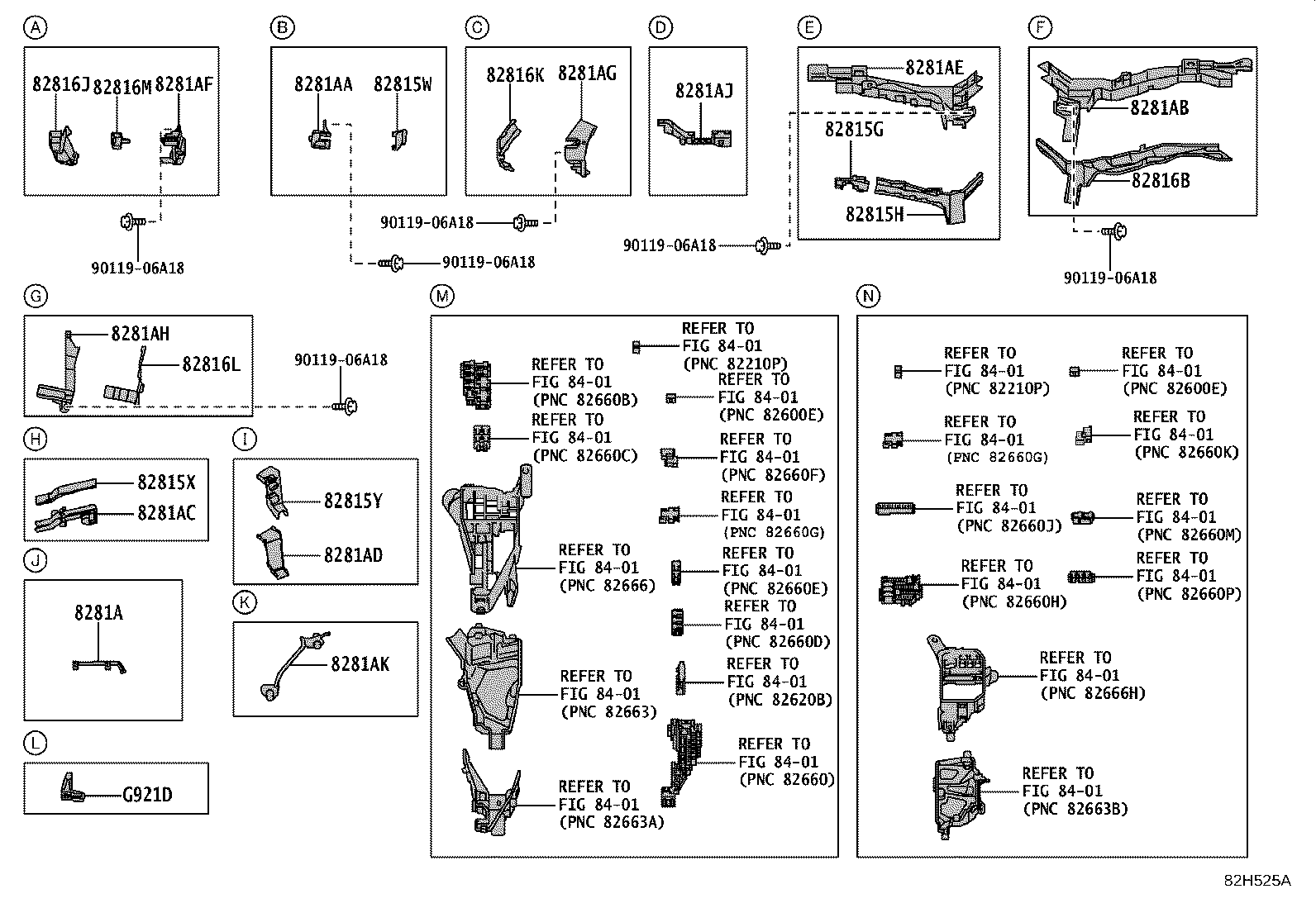

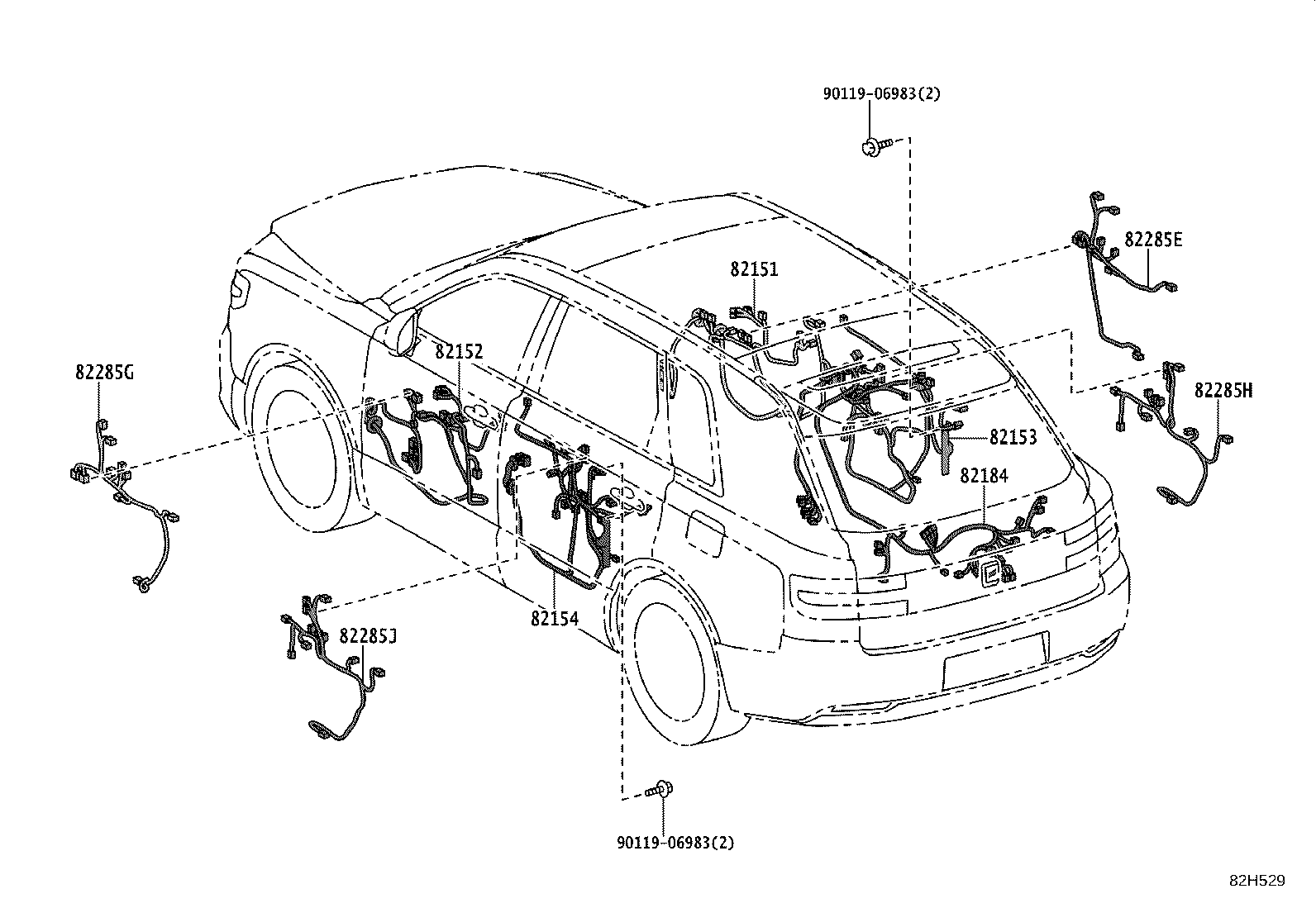

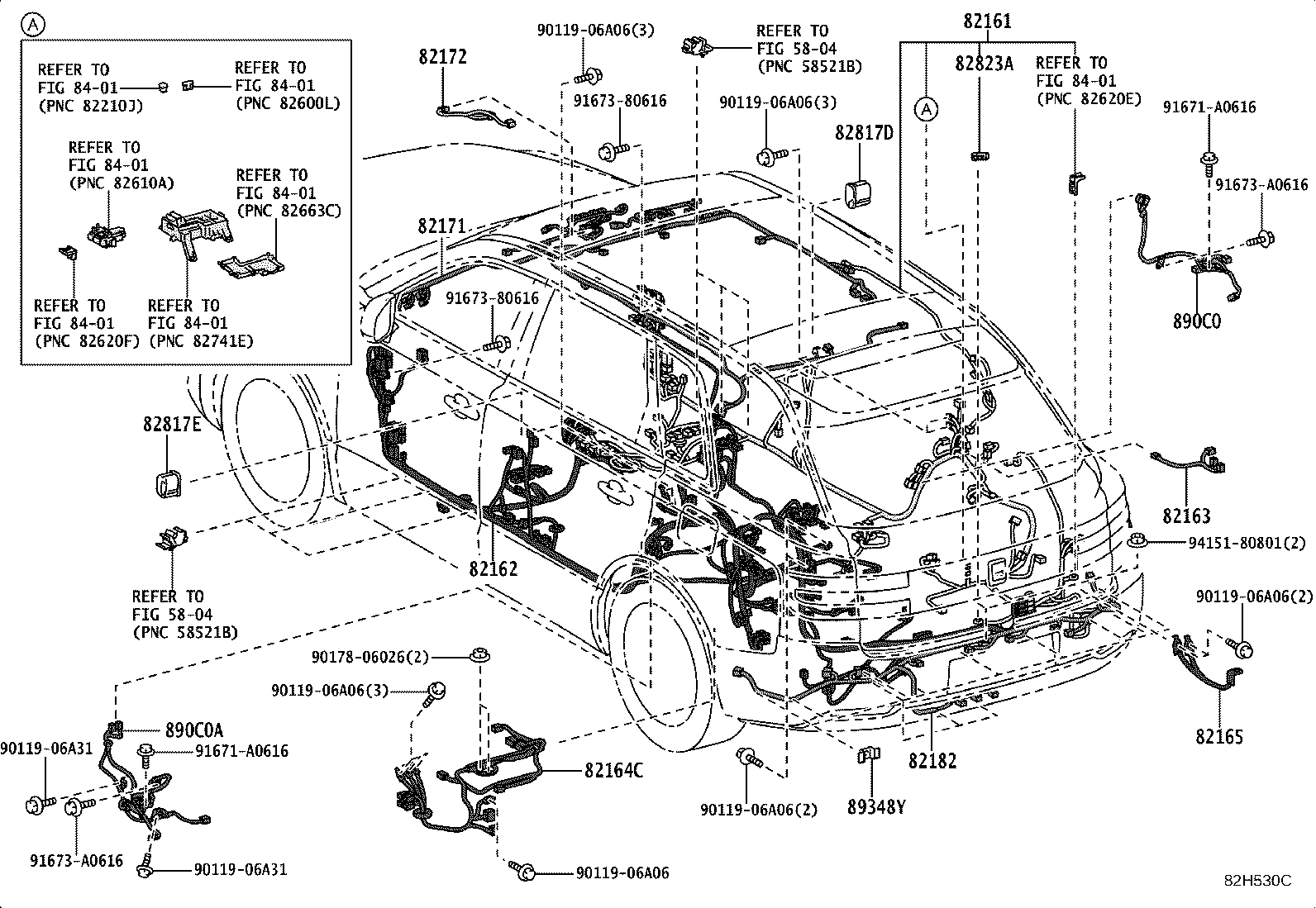

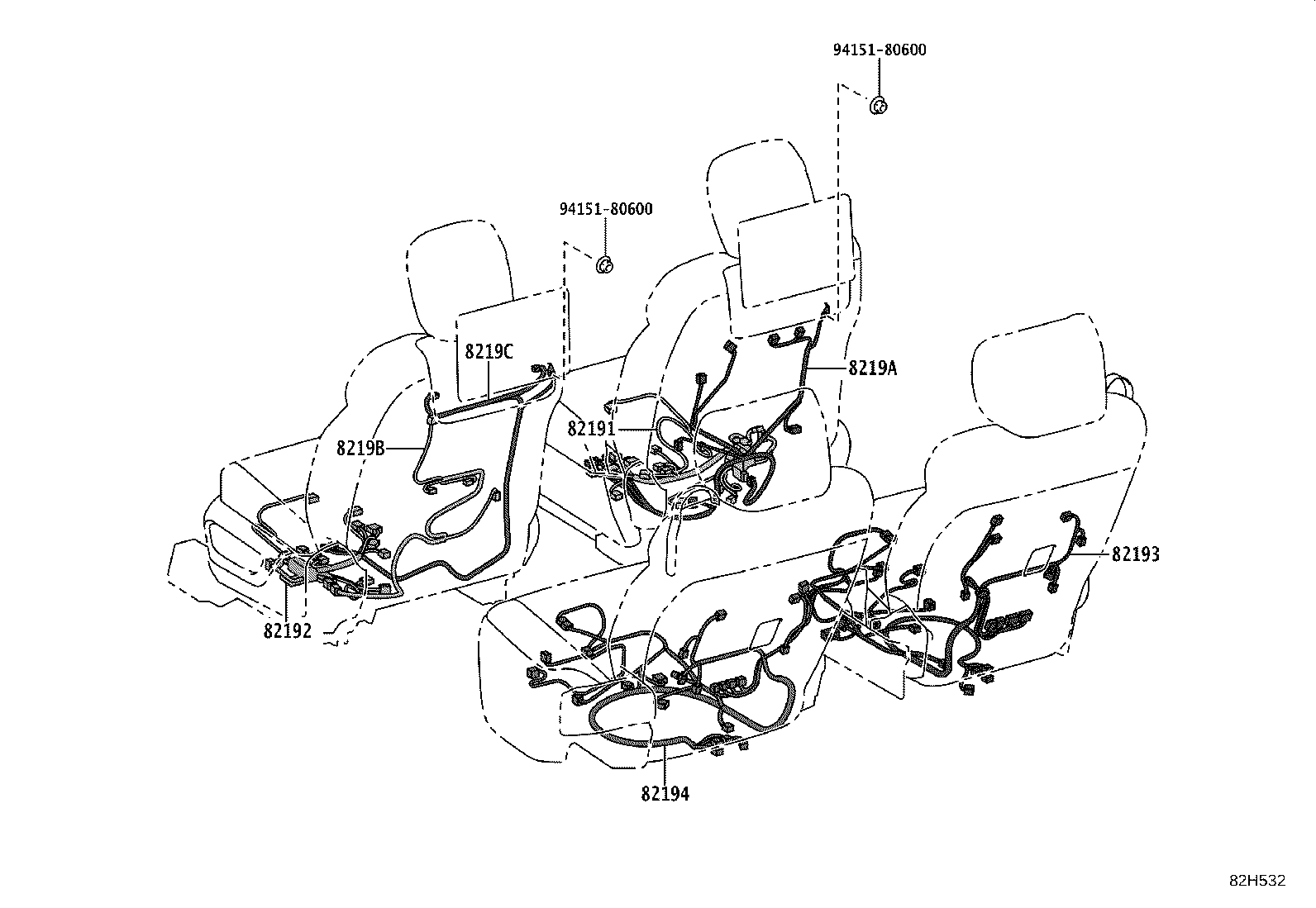

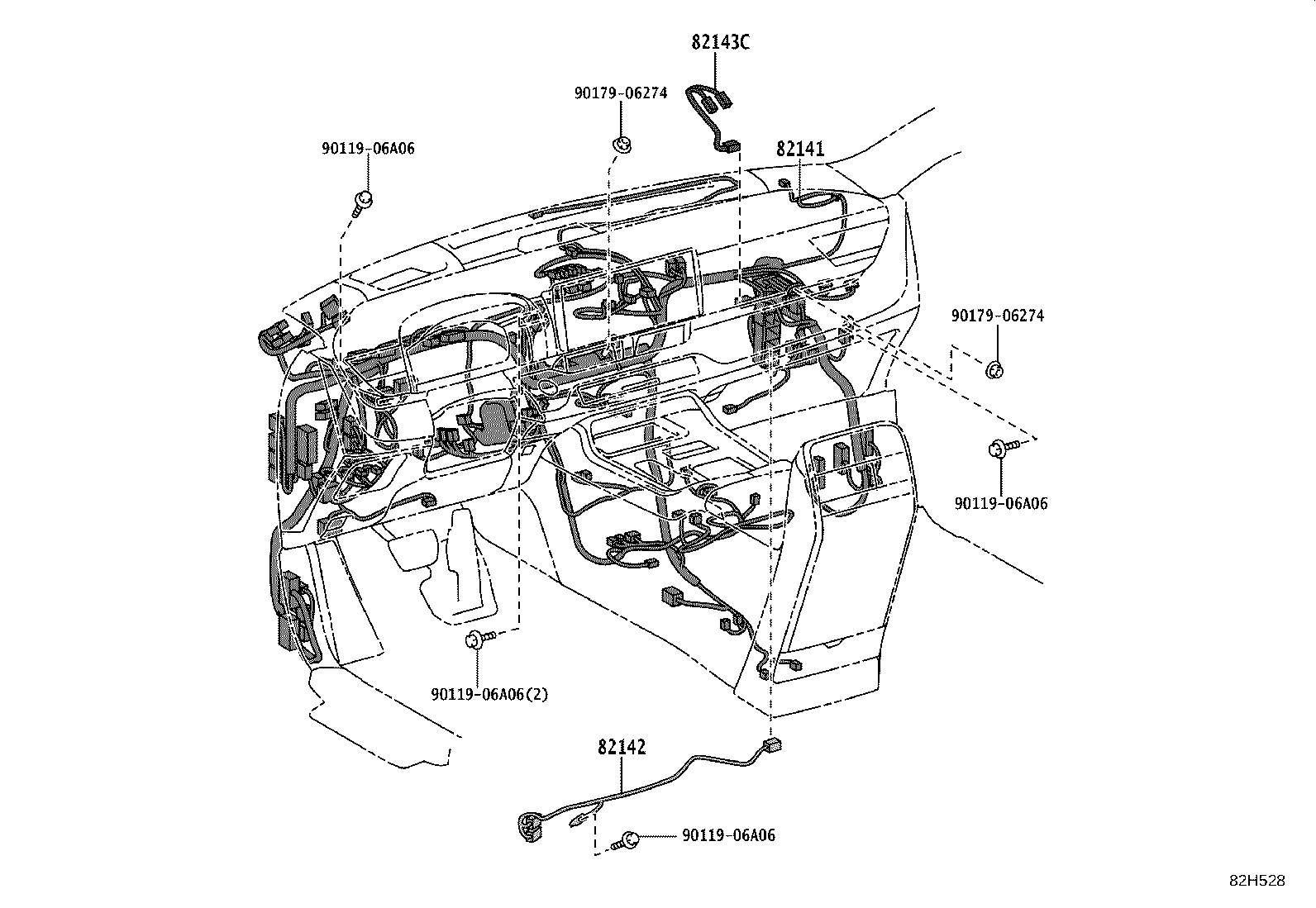

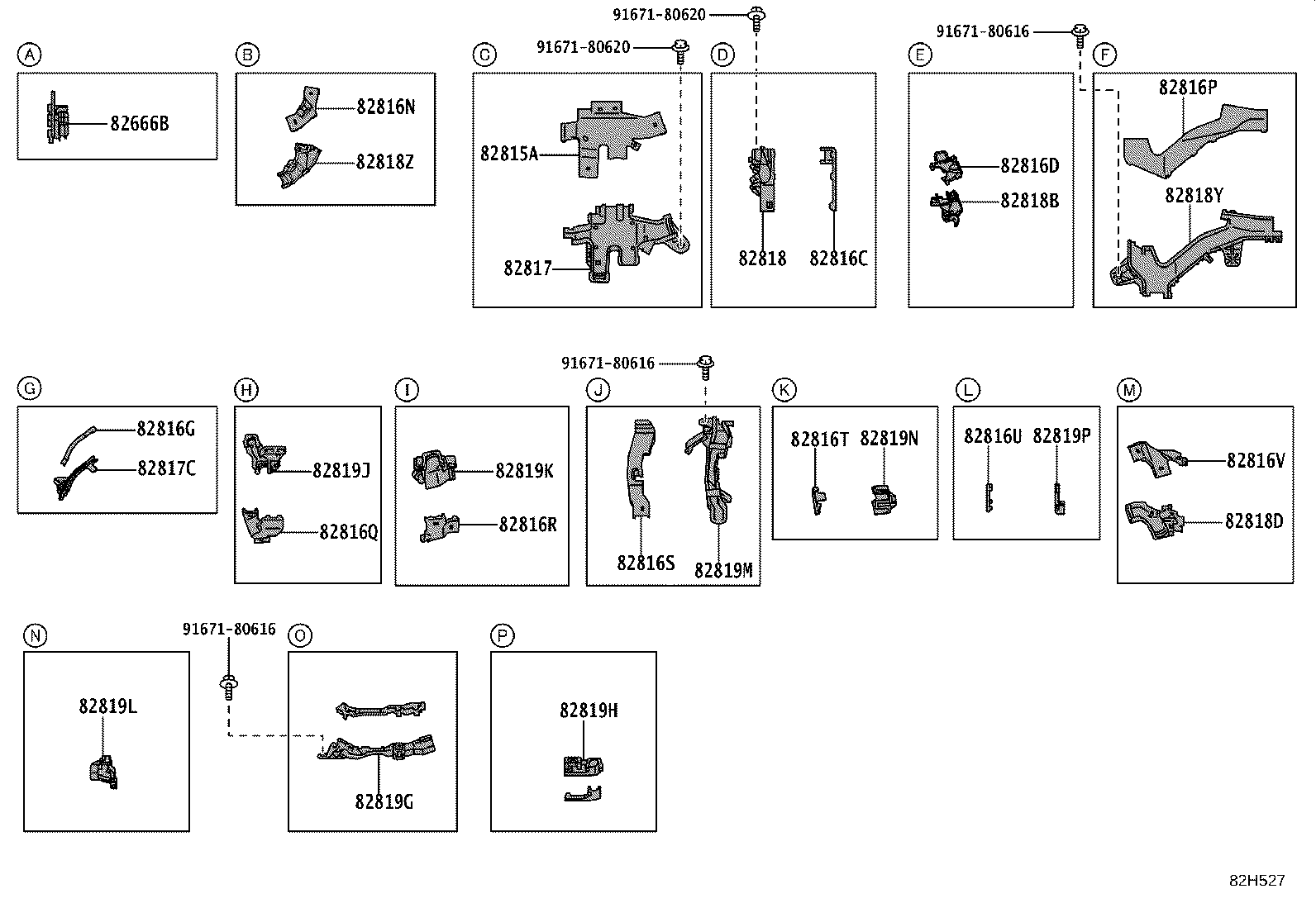

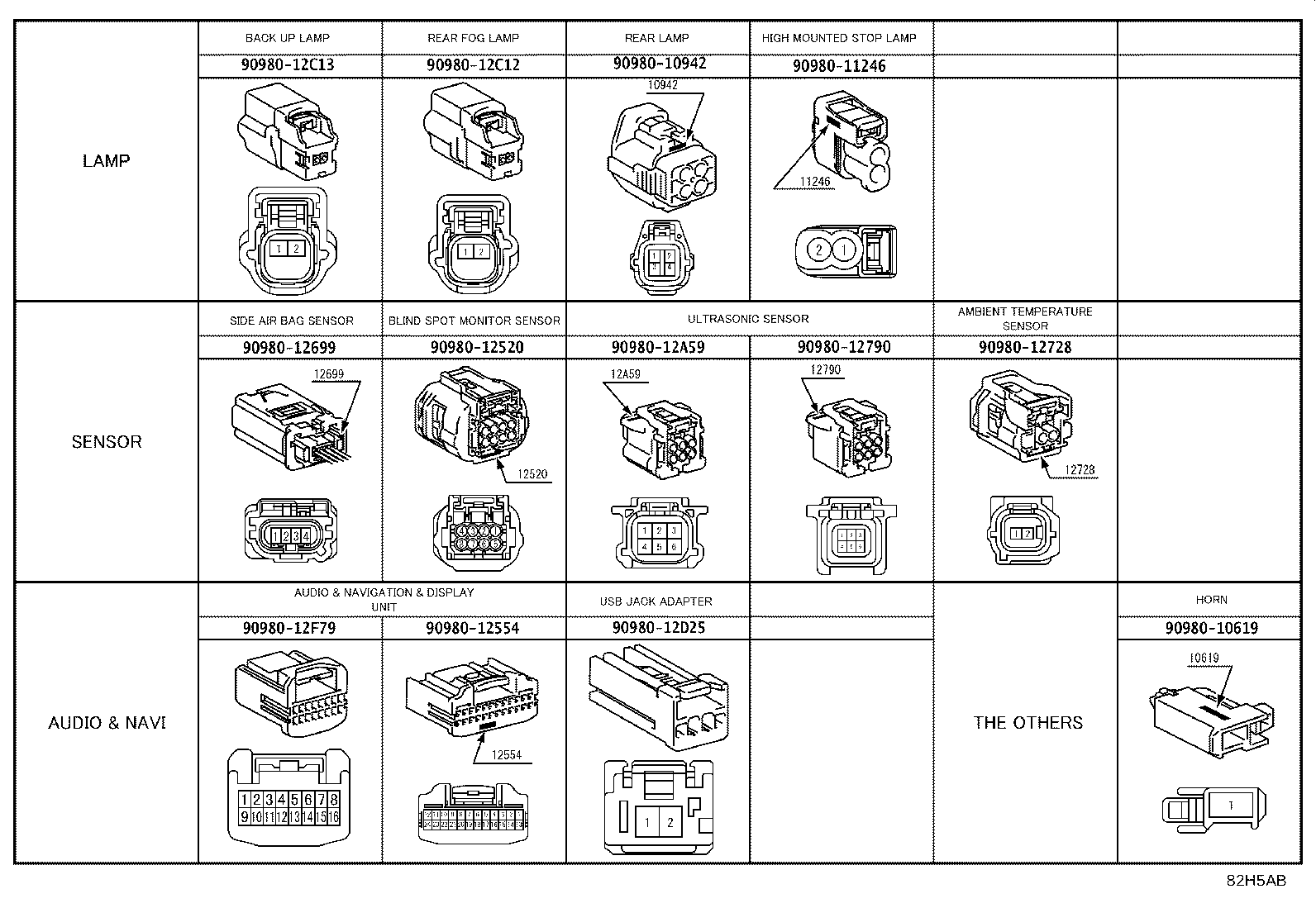

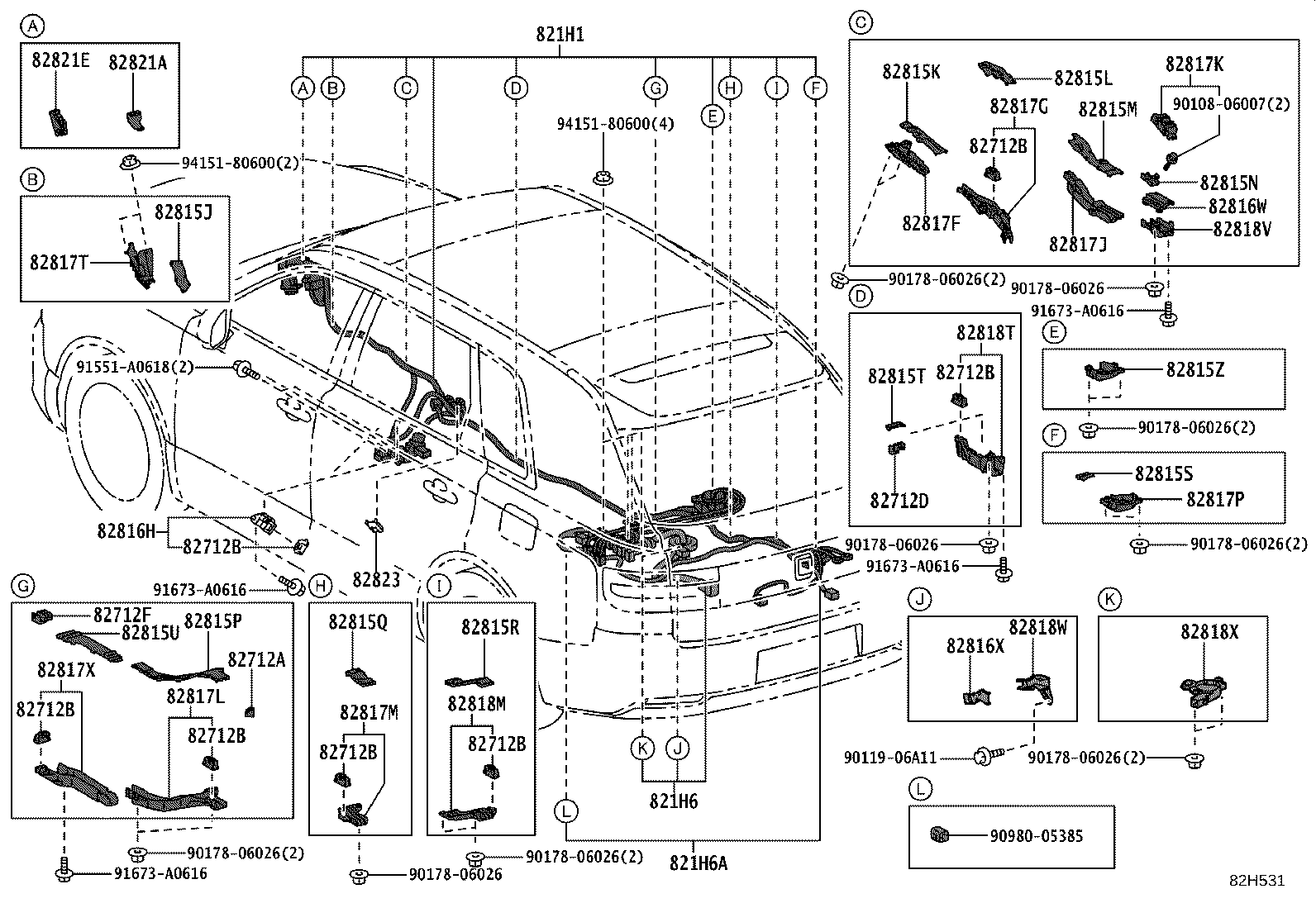

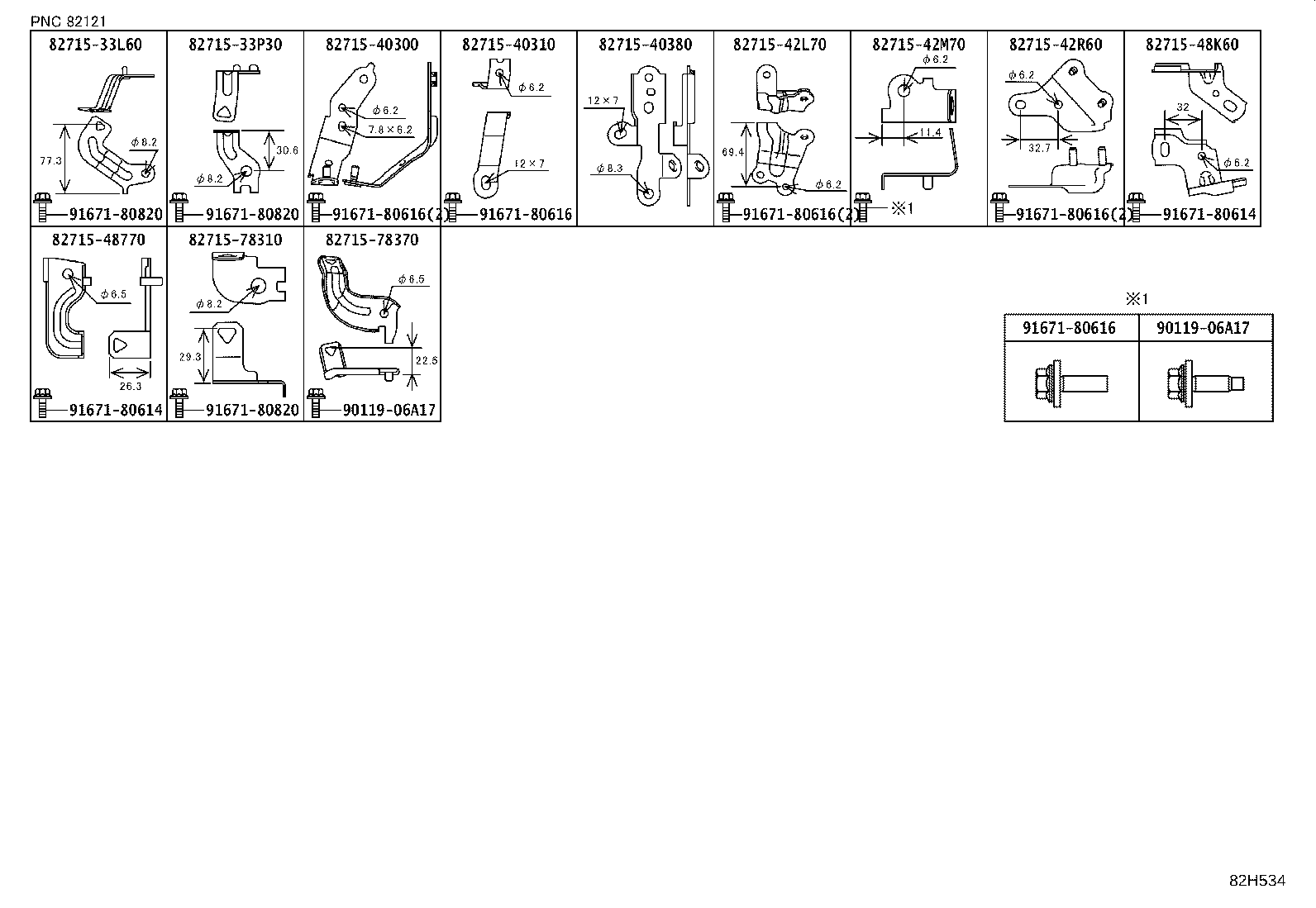

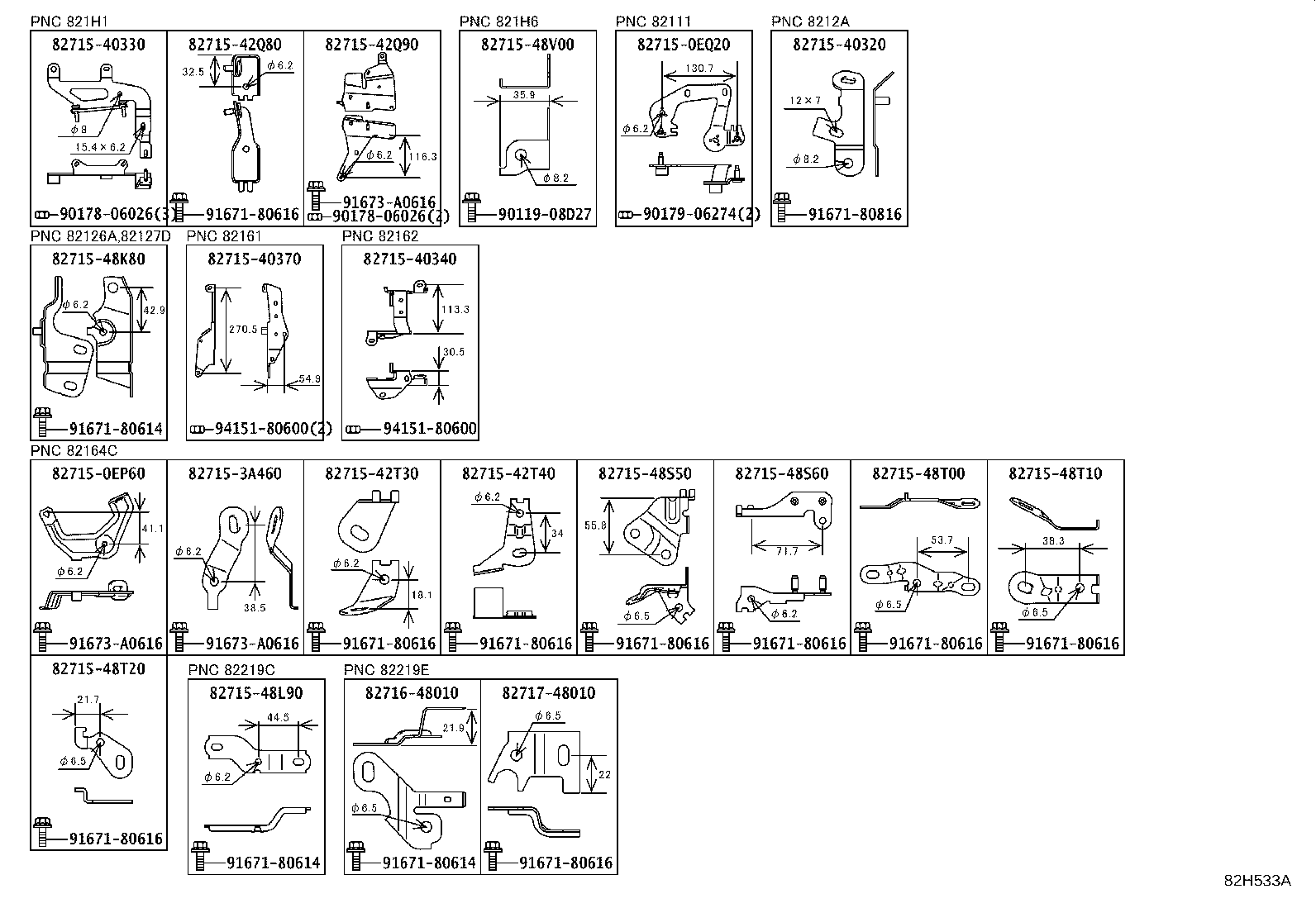

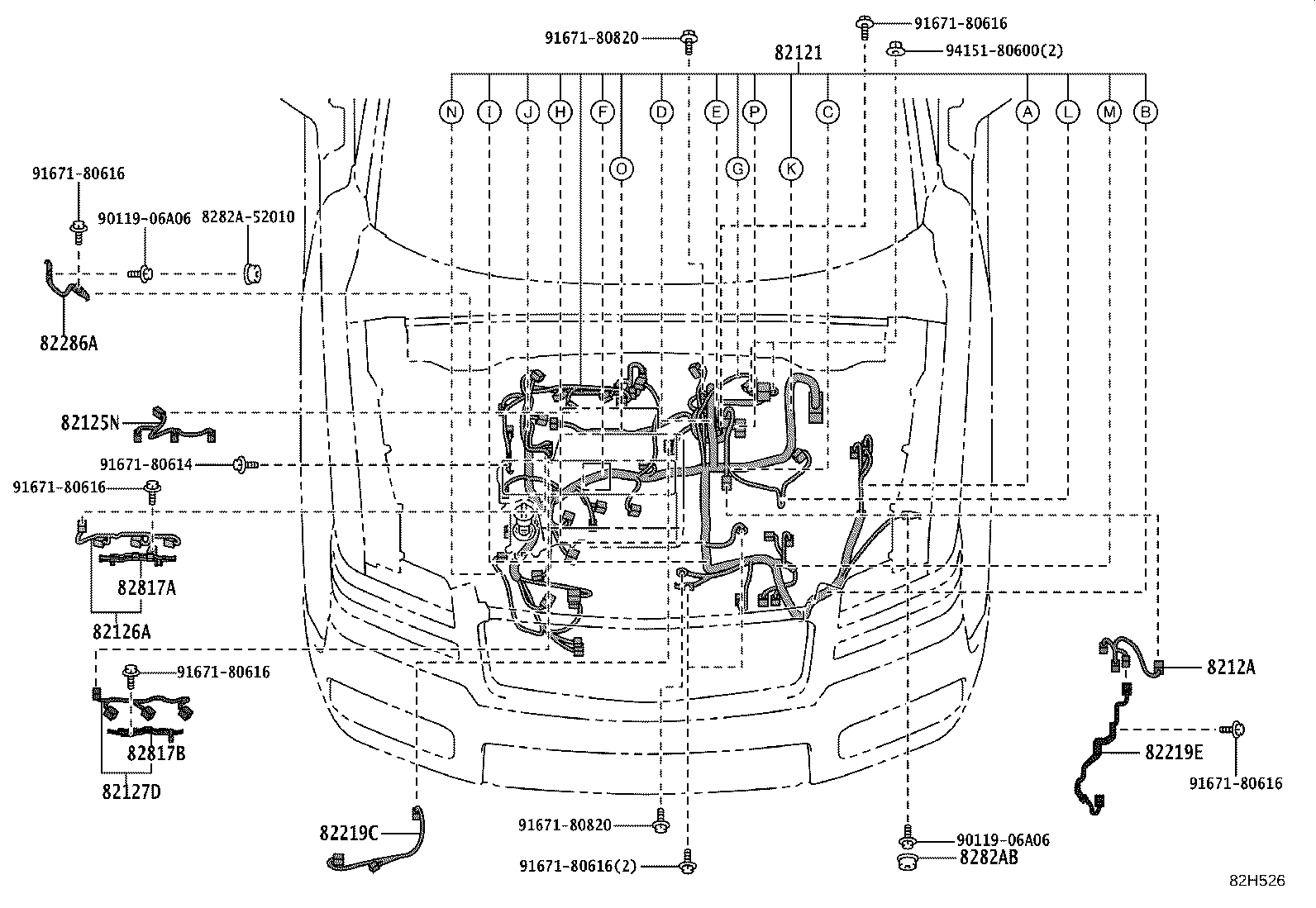

Figure 82H524 82H524 2023-10 → — Figure 82H525A 82H525A 2023-10 → — Figure 82H526 82H526 2023-10 → — Figure 82H527 82H527 2023-10 → — Figure 82H528 82H528 2023-10 → — Figure 82H529 82H529 2023-10 → — Figure 82H530C 82H530C 2023-10 → — Figure 82H531 82H531 2023-10 → — Figure 82H532 82H532 2023-10 → — Figure 82H533A 82H533A 2023-10 → — Figure 82H534 82H534 2023-10 → — Figure 82H5AB 82H5AB 2023-10 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
8212A Wire, Engine, NO.9
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
8219C Wire, Seat Audio
821H1 Wire, Floor Under
821H6 Wire, HV Floor Under, NO.2
821H6A Wire, Floor Under, NO.2
82219C Wire, Sensor
82219E Wire, Sensor
82285E Wire, Illumination
82285G Wire, Illumination, NO.2
82285H Wire, Illumination, NO.3
82285J Wire, Illumination, NO.4
82286A Wire, Earth, NO.2
82666B Holder, Connector NO.3
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712D Support, Wiring Harness
82712F Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816S Cover, Wiring Harness Protector, NO.15
82816T Cover, Wiring Harness Protector, NO.16
82816U Cover, Wiring Harness Protector, NO.17
82816V Cover, Wiring Harness Protector, NO.18
82816W Cover, Wiring Harness Protector, NO.19
82816X Cover, Wiring Harness Protector, NO.20
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818D Protector, Wiring Harness, NO.5
82818M Protector, Wiring Harness, NO.13
82818T Protector, Wiring Harness, NO.16
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819K Protector, Wiring Harness, NO.26
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
82819N Protector, Wiring Harness, NO.29
82819P Protector, Wiring Harness, NO.30
8281A Protector, Wiring Harness, NO.1
8281AA Protector, Wiring Harness, NO.2
8281AB Protector, Wiring Harness, NO.3
8281AC Protector, Wiring Harness, NO.4
8281AD Protector, Wiring Harness, NO.5
8281AE Protector, Wiring Harness, NO.6
8281AF Protector, Wiring Harness, NO.7
8281AG Protector, Wiring Harness, NO.8
8281AH Protector, Wiring Harness, NO.9
8281AJ Protector, Wiring Harness, NO.10
8281AK Protector, Wiring Harness, NO.11
82821A Cover, Connector
82821E Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
8282AB Cap, Earth Bolt, NO.3
82930 Condenser Assy, Wiring Harness, NO.1
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348Y Clip, Ultrasonic Sensor, Rear
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
