Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

164 part groups · 11 illustrations

Illustrations

Part groups

PNC	Description
28371D	Relay, Ignition, NO.3
28371E	Relay, Ignition, NO.4
28371J	Relay, Igb
28371L	Relay, Igp
28850C	Sensor Assy, Battery State
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
35300G	Relay, Oil Pump
82210J	Fusible Link
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82610A	Block Assy, Fuse
82616	Puller, Fuse
82620B	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link
82644	Computer, Semiconductor Power Integration

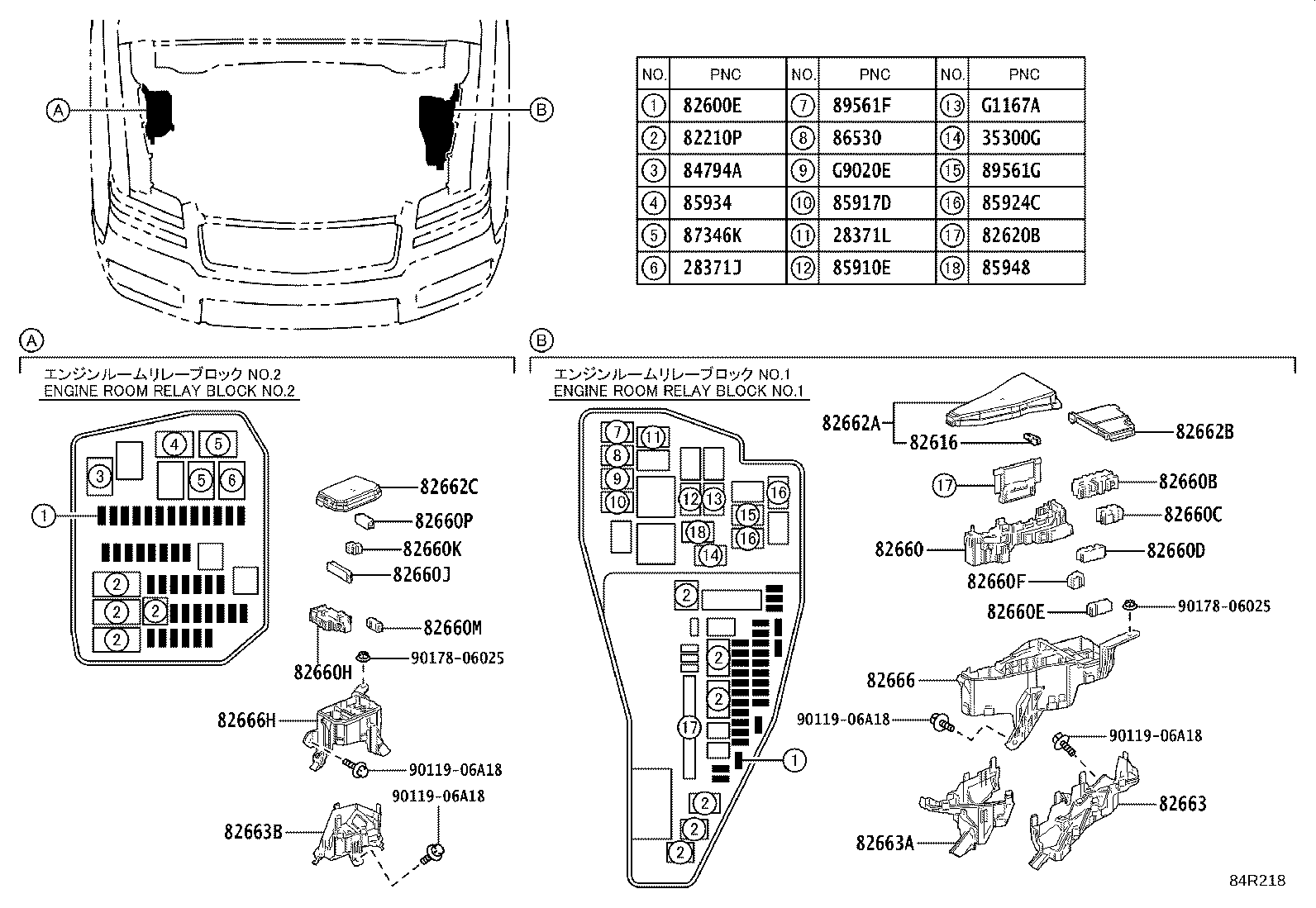

82660	Block Assy, Relay, Engine Room
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660H	Block Assy, Relay
82660J	Block Assy, Relay
82660K	Block Assy, Relay
82660M	Block Assy, Relay
82660P	Block Assy, Relay

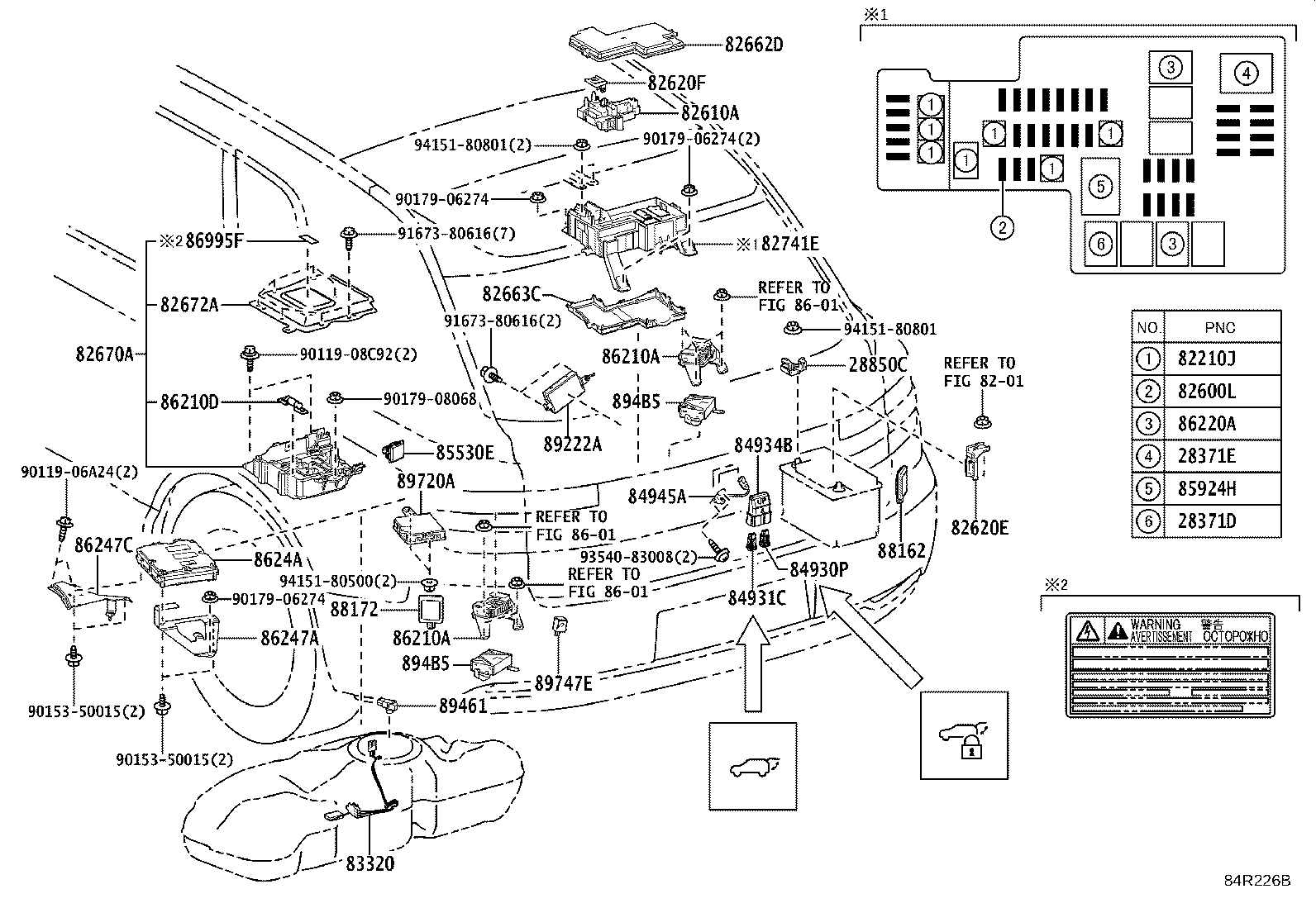

82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82666J	Holder, Connector, NO.3
82670A	Block Assy, Junction, NO.1
82672A	Cover, Junction Block
82672K	Cover, Power Distribution Box

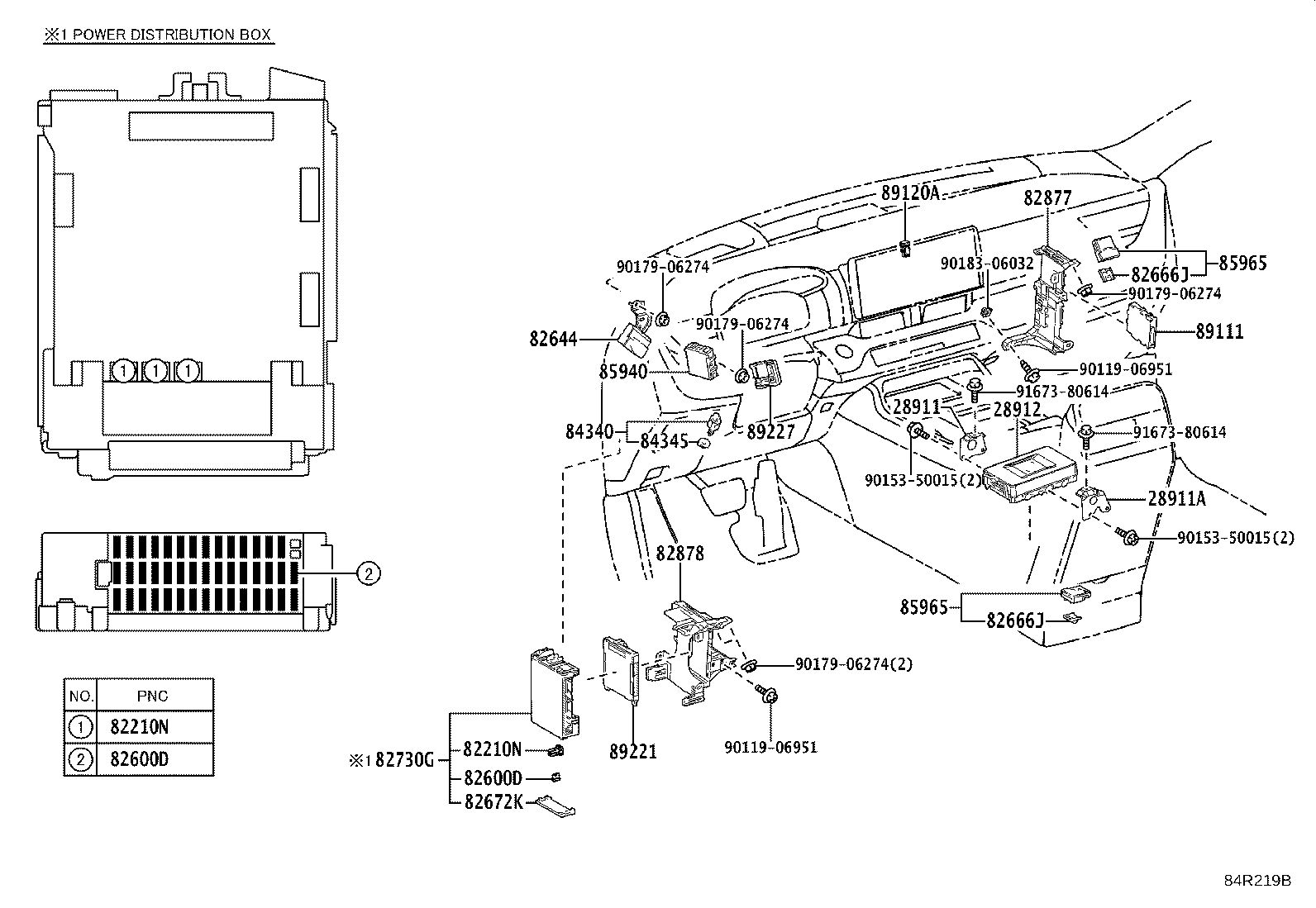

82730G	Box Assy, Power Distribution
82741E	Block, Luggage Room Relay, NO.1
82877	Box, Computer Integration, RH
82878	Box, Computer Integration, LH
83320	Gage Assy, Fuel Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83910G	Clock Assy

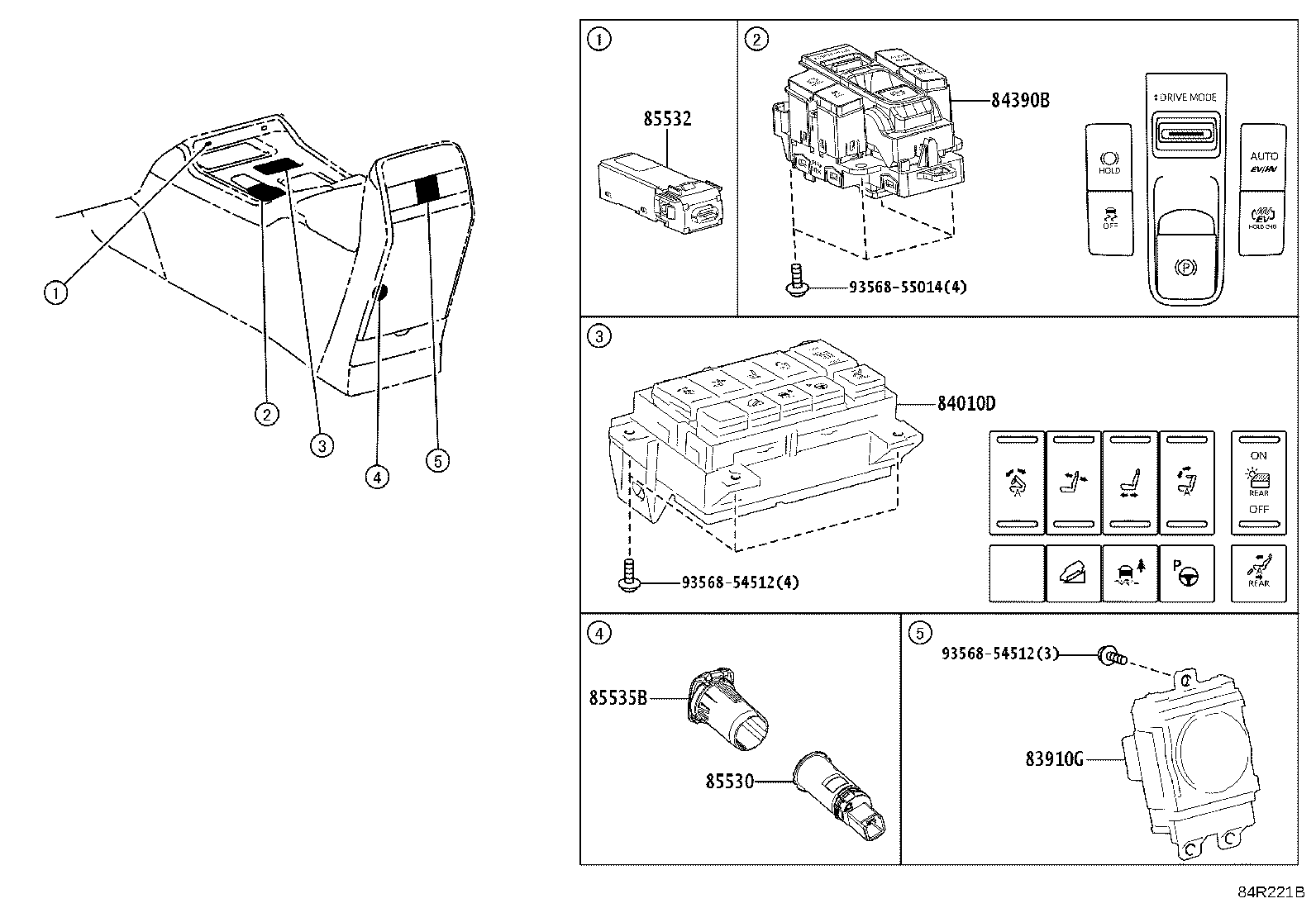

84010D	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network

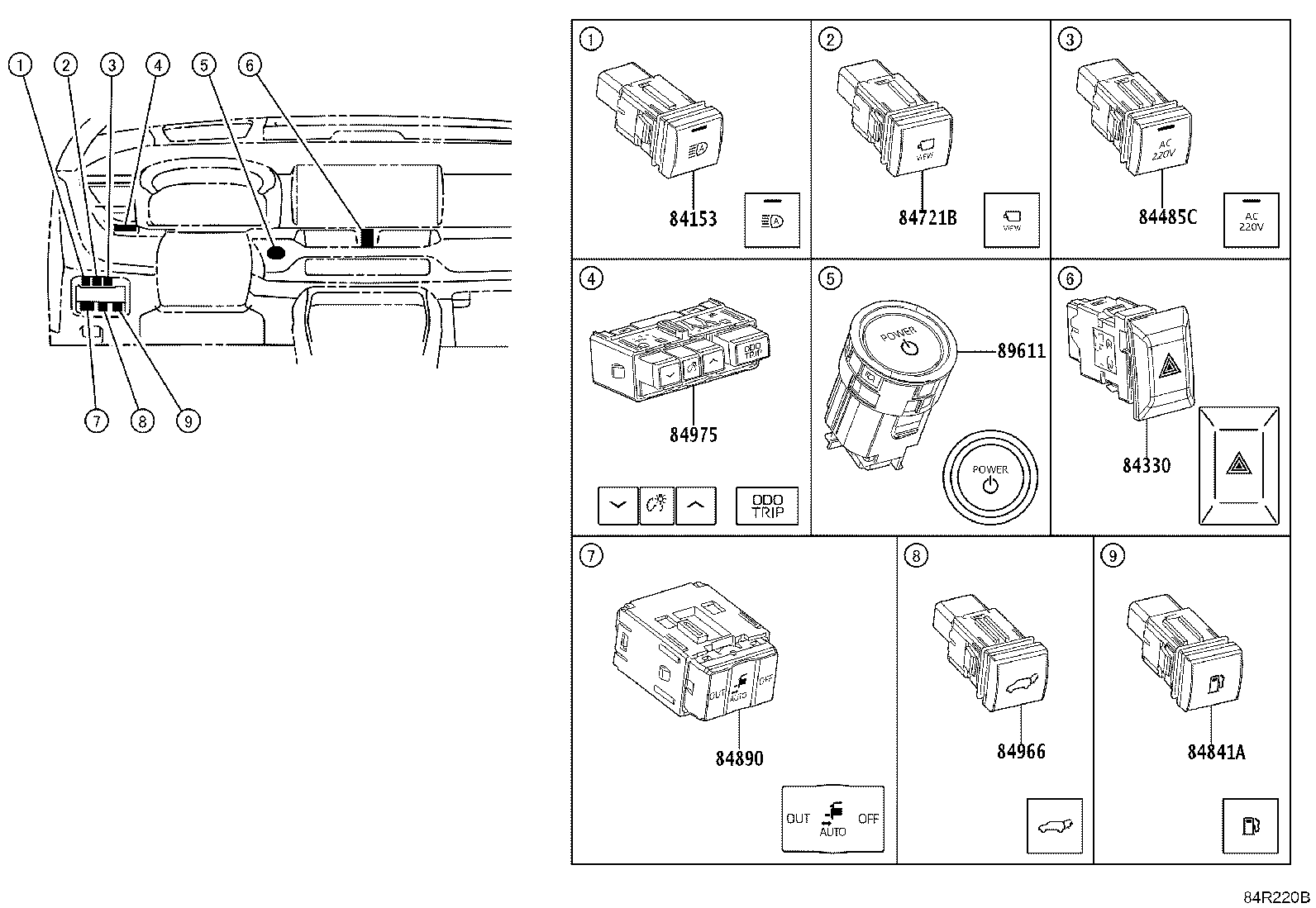

84153	Switch, Auto High Beam
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)

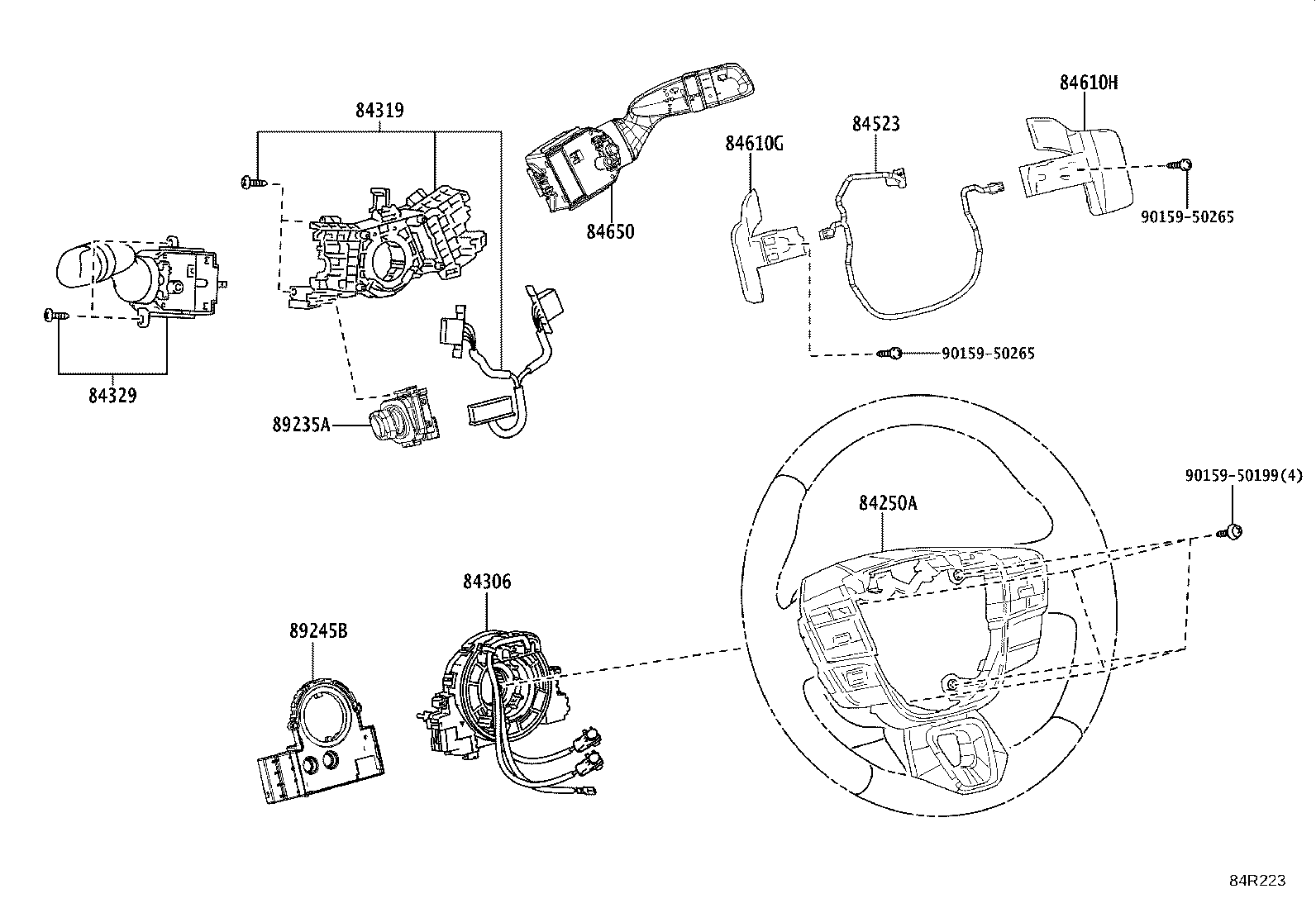

84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84390B	Switch Assy, Electric Parking Brake
84485C	Switch, Power Outlet
84523	Wire, Switch NO.1
84610G	Switch Assy, Transmission Shift, NO.1
84610H	Switch Assy, Transmission Shift, NO.2
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84656C	Bezel, Switch NO.2
84721B	Switch, Panoramic View Monitor

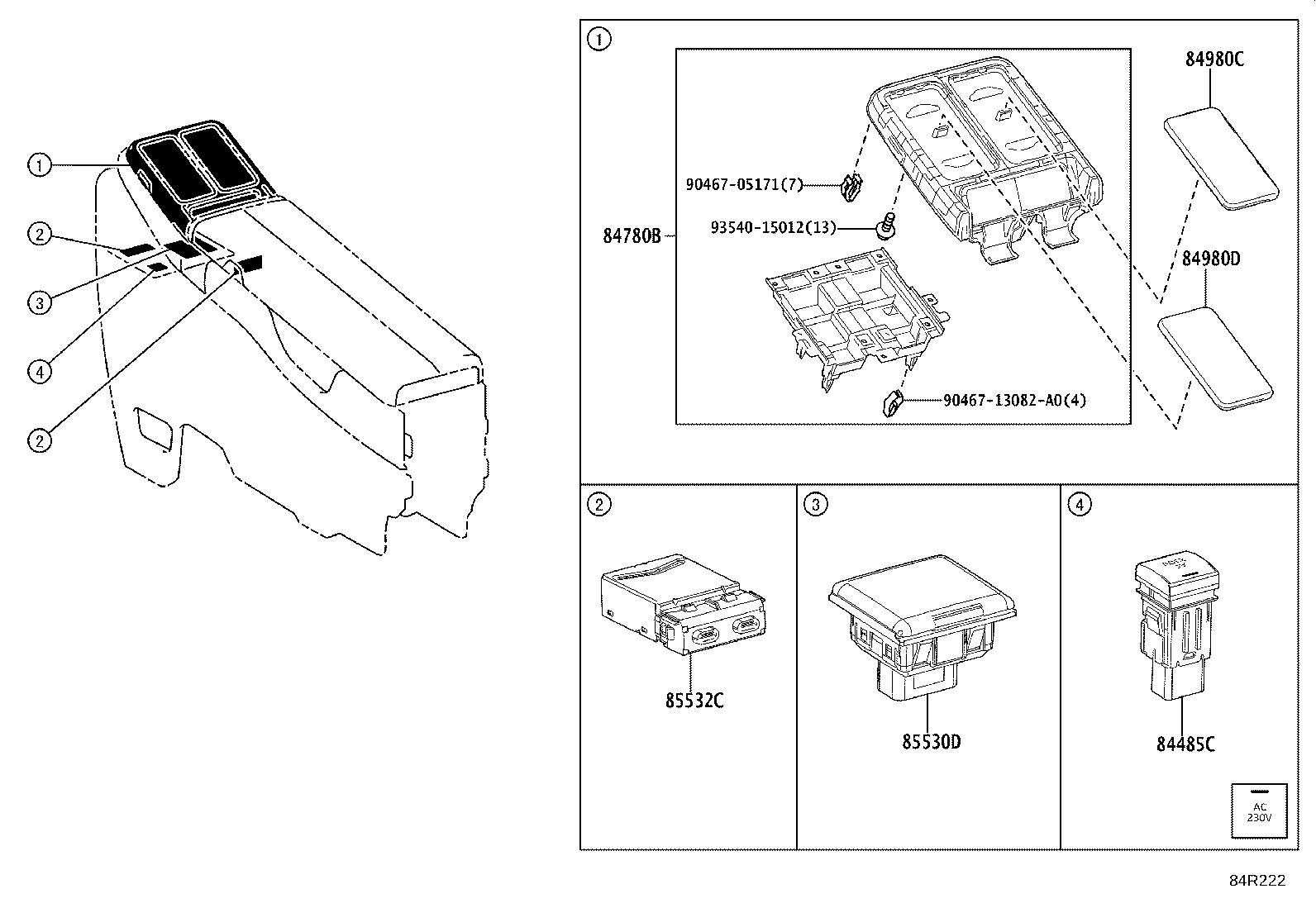

84780B	Controller Assy, Remote Operation
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84841A	Switch, Fuel Lid Opener
84890	Switch Assy, Side Auto Step
848A1	Switch, Partition Light Dimmer

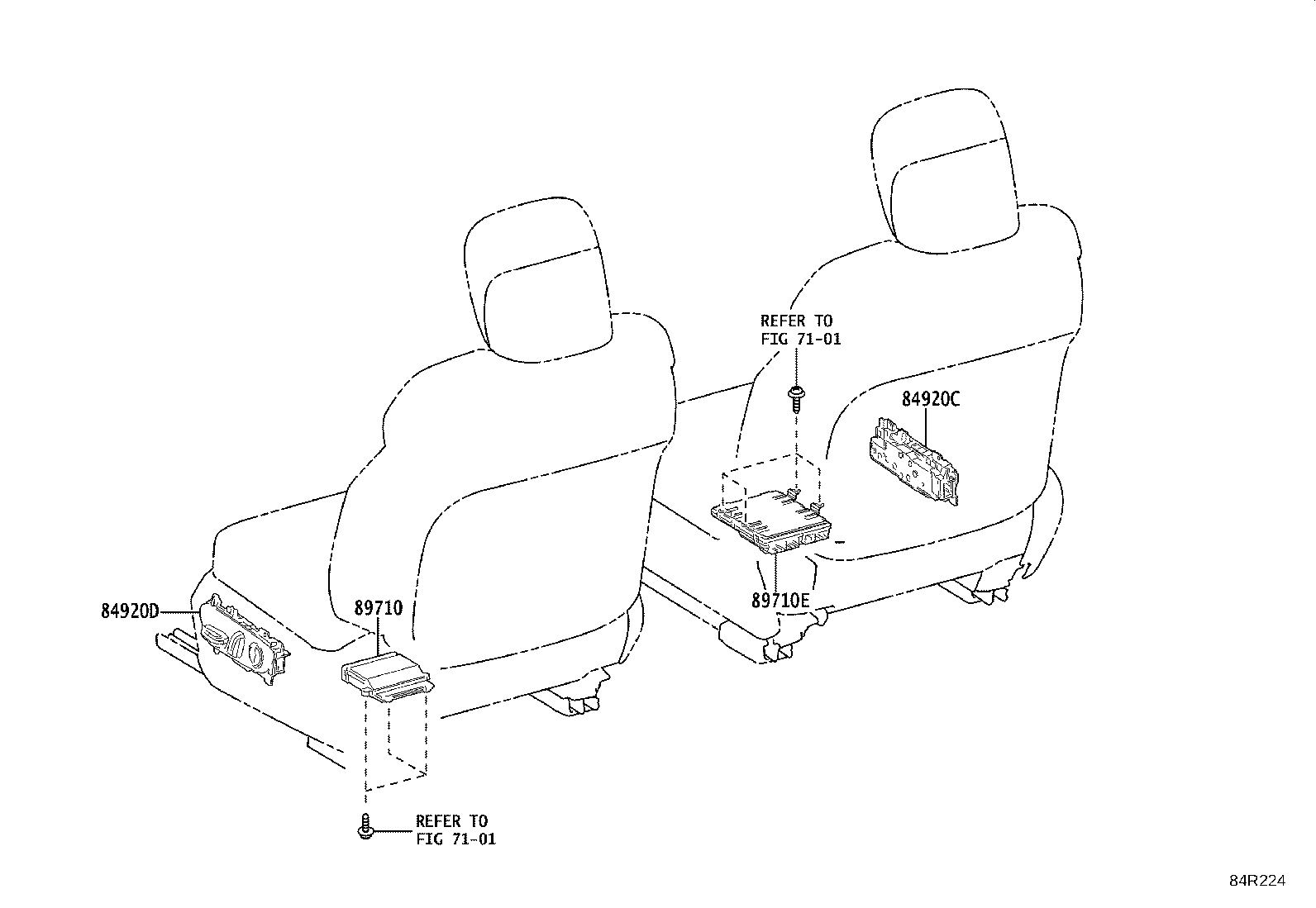

84920C	Switch Assy, Power Seat Front, RH
84920D	Switch Assy, Power Seat Front, LH
84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84927B	Switch, Seat Memory, RH
84927C	Switch, Seat Memory, LH

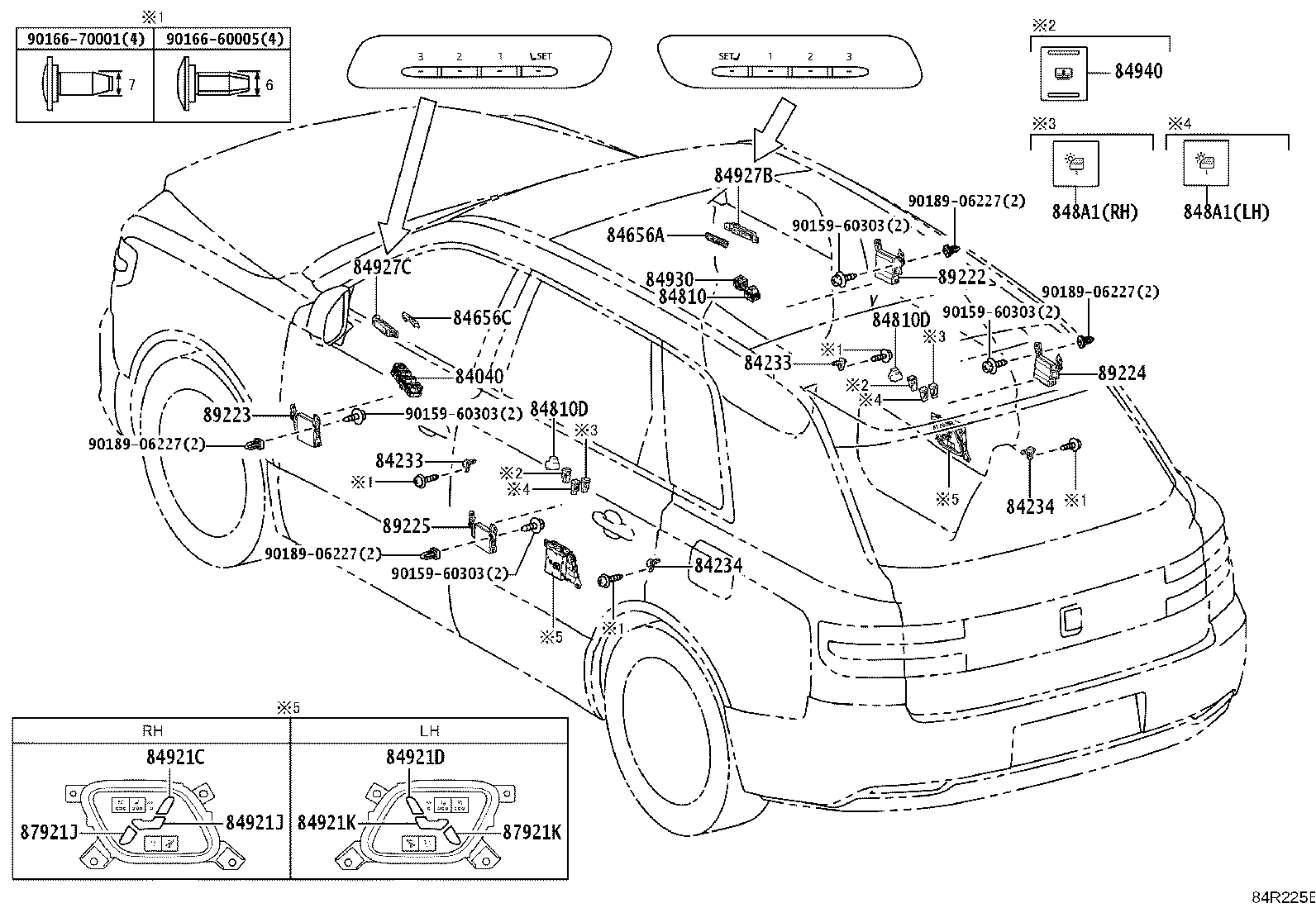

84930	Switch Assy, Door Control
84930P	Switch Assy, Door Control
84931C	Switch, Back Door Control
84934B	Cover, Door Control Switch
84940	Switch Assy, Curtain
84945A	Switch, Luggage Electrical Key
84966	Switch, Power Back Door Control
84975	Switch, Trip
84980C	Switch Assy, Remote Controller, RH
84980D	Switch Assy, Remote Controller, LH
85530	Socket Assy, Power Outlet, NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85532	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85910E	Relay, Injector
85917D	Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C	Relay, Igct
85924H	Relay, Igct-scene
85934	Relay, Magnet-clutch
85940	Relay Assy, Windshield Wiper
85948	Relay, Windshield Wiper
85965	Relay, Room Lamp Control
86210A	Inverter Assy, Voltage
86210D	Fuse, High Voltage
86220A	Relay, Inverter
86247A	Bracket, Voltage Inverter
86247C	Bracket, Voltage Inverter, NO.2
8624A	Inverter, Voltage
86530	Relay Assy, Horn
86995F	Label, Caution
87346K	Relay, Ptc Heater

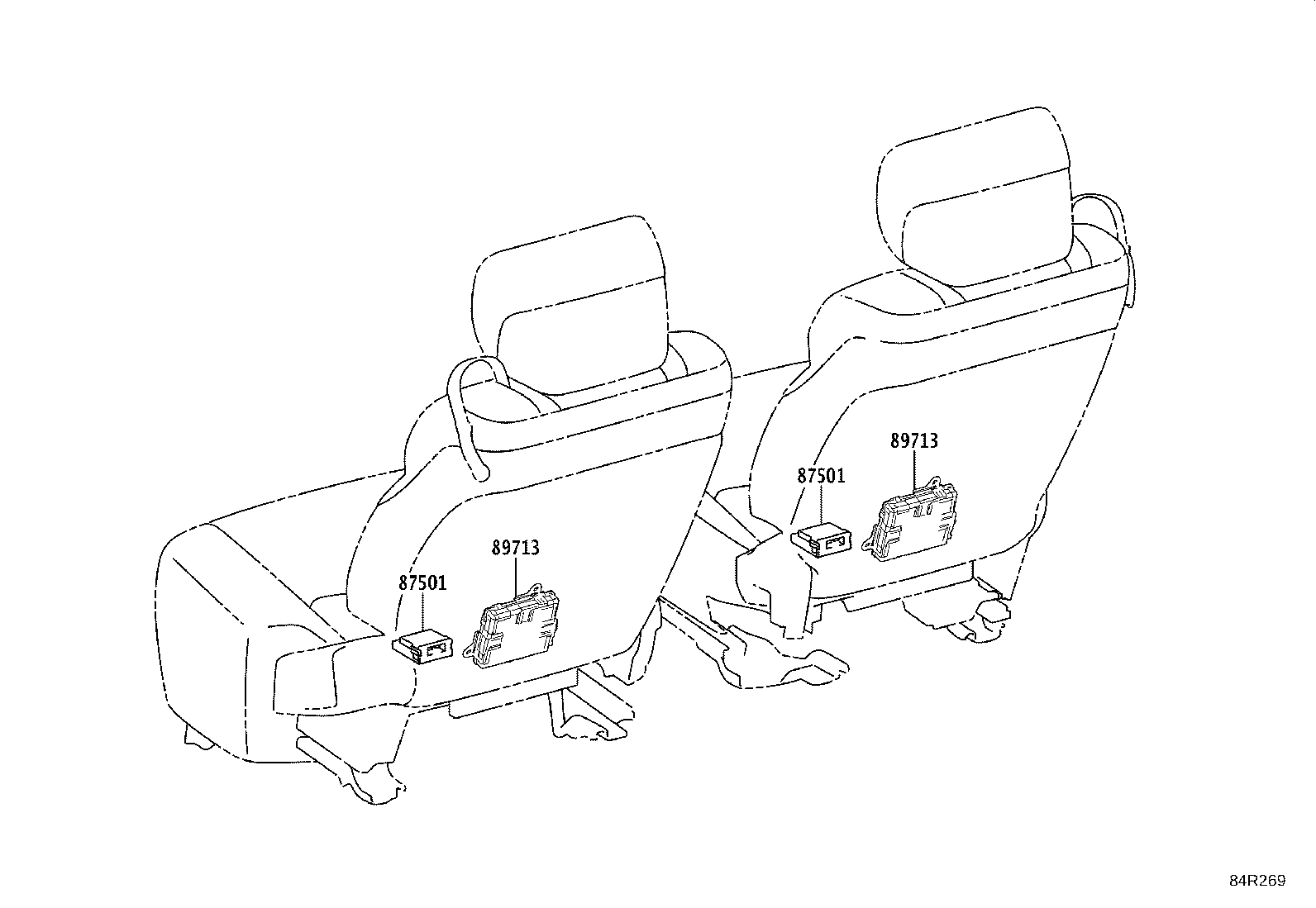

87501	Control Sub-assy, Seat Heater
87921J	Knob, Power Seat Switch, RH NO.2
87921K	Knob, Power Seat Switch, LH NO.2
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89222A	Computer, Multiplex Network Door
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89422A	Sensor, Water Temperature
89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89425B	Sensor, Exhaust Gas Temperature, NO.3
89425C	Sensor, Exhaust Gas Temperature, NO.4
89461	Sensor, Vapor Pressure
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89467D	Sensor, Air Fuel Ratio, NO.3
89467E	Sensor, Air Fuel Ratio, NO.4
8946A	Bracket, Exhaust Sensor Clamp
8946AA	Bracket, Exhaust Sensor Clamp, NO.2
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
894B5	Filter, Solar Roof
89561F	Relay, Electronic Fuel Injection Main, NO.1
89561G	Relay, Electronic Fuel Injection Main, NO.2
89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89710E	Computer Assy, Position Control, NO.2
89713	Computer, Position Control
89720A	Computer Assy, Side Auto Step Controller
89747E	Buzzer, Power Back Door Warning
G1167A	Relay (FOR OIL PUMP MOTOR)
G9020E	Relay, Hybrid Water Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
