Toyota Century

2023-10 → present · chassis GRG75 · catalogue 343210 · General

Supported model Data version 2023-10

Heating & Air Conditioning - Control & Air Duct

44 part groups · 4 illustrations

PNC	Description

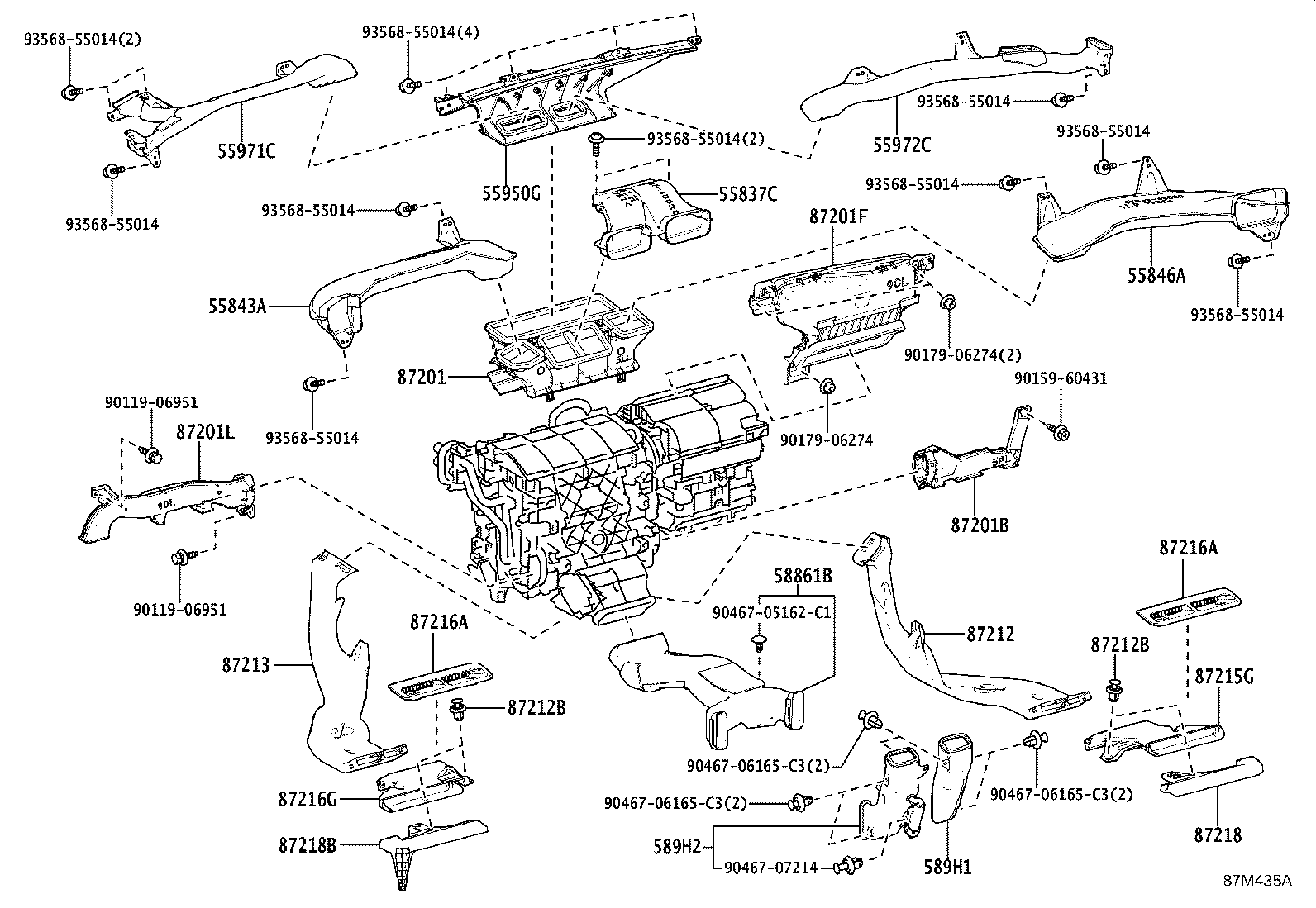

55837C	Duct, Heater TO Register Center Sub
55843A	Duct, Heater TO Register, NO.1
55846A	Duct, Heater TO Register, NO.4
55900	Control Assy, Air Conditioner
55950G	Nozzle Assy, Defroster
55971C	Duct, Side Defroster Nozzle, NO.1
55972C	Duct, Side Defroster Nozzle, NO.2
58861B	Duct, Console Box, NO.1
589H1	Duct, Rear Seat Console, NO.1
589H2	Duct, Rear Seat Console, NO.2

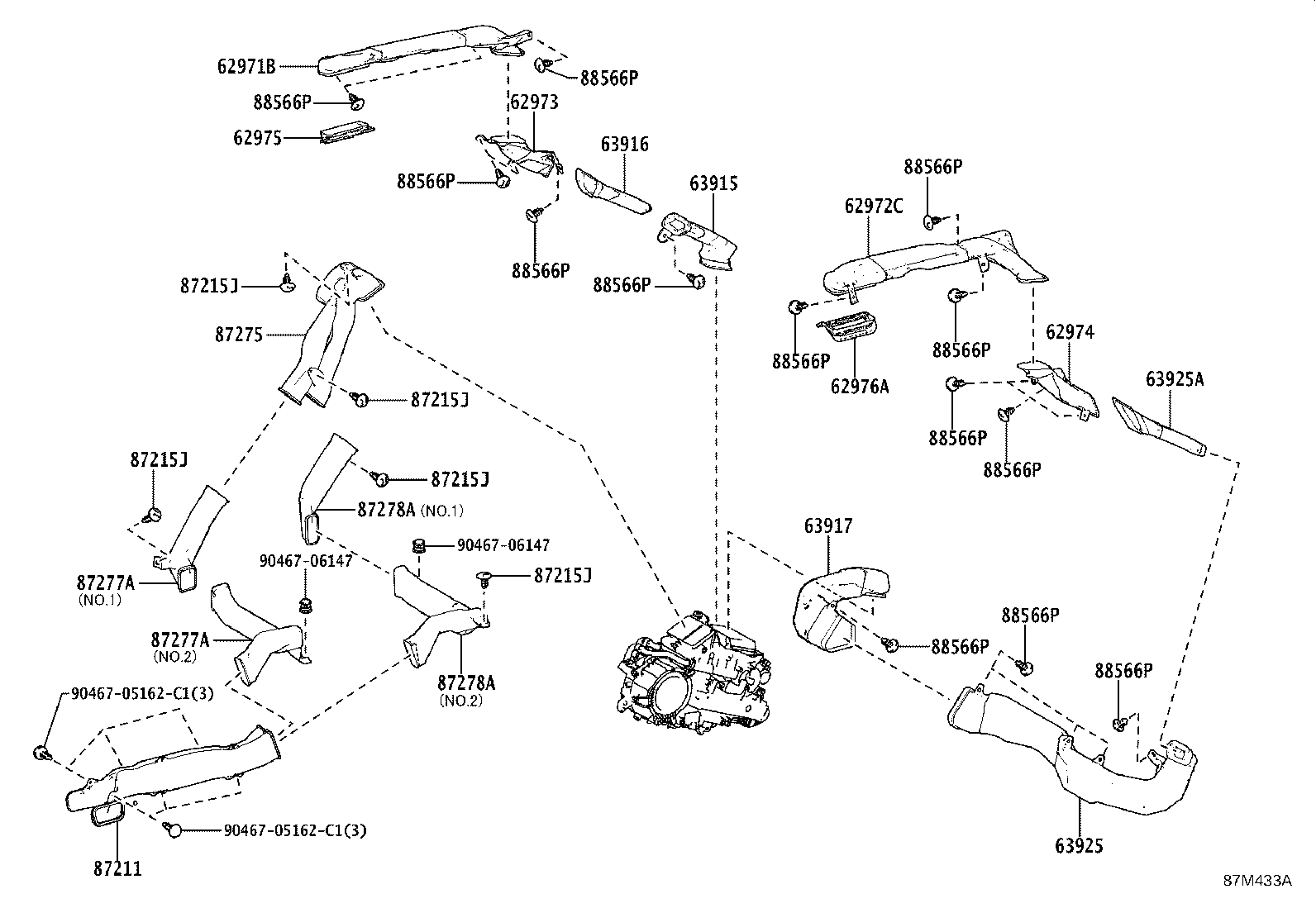

62971B	Duct, Roof Side Air, NO.1 RH
62972C	Duct, Roof Side Air, NO.1 LH
62973	Duct, Roof Side Air, NO.2 RH
62974	Duct, Roof Side Air, NO.2 LH
62975	Adapter, Rear Cooler Air Duct, RH
62976A	Adapter, Rear Cooler Air Duct, LH
63915	Duct, Cooler, Inner NO.1 RH
63916	Duct, Cooler, Inner NO.2 RH
63917	Duct, Cooler, Inner NO.3 RH
63925	Duct, Cooler, Inner NO.1 LH
63925A	Duct, Cooler, Inner NO.2 LH
87201	Duct Sub-assy, Air, NO.1
87201B	Duct Sub-assy, Air, NO.2
87201F	Duct Sub-assy, Air, NO.3
87201L	Duct Sub-assy, Air, NO.4
87201M	Duct Sub-assy, Air, NO.5
87211	Duct, Air, NO.1
87212	Duct, Air, Rear NO.1
87212B	Clip, Air Duct
87213	Duct, Air, Rear NO.2
87215G	Guide, Air Duct, Rear RH
87215J	Clip (FOR AIR REAR DUCT)
87216A	Duct, Air, Rear NO.5
87216G	Guide, Air Duct, Rear LH
87218	Bracket, Rear Air Duct
87218B	Bracket
87275	Duct, Floor Heater Air, NO.1 RH
87277A	Duct, Floor Heater Air, NO.2 RH
87278A	Duct, Floor Heater Air, NO.2 LH
88566P	Clip, Cooler Air Duct

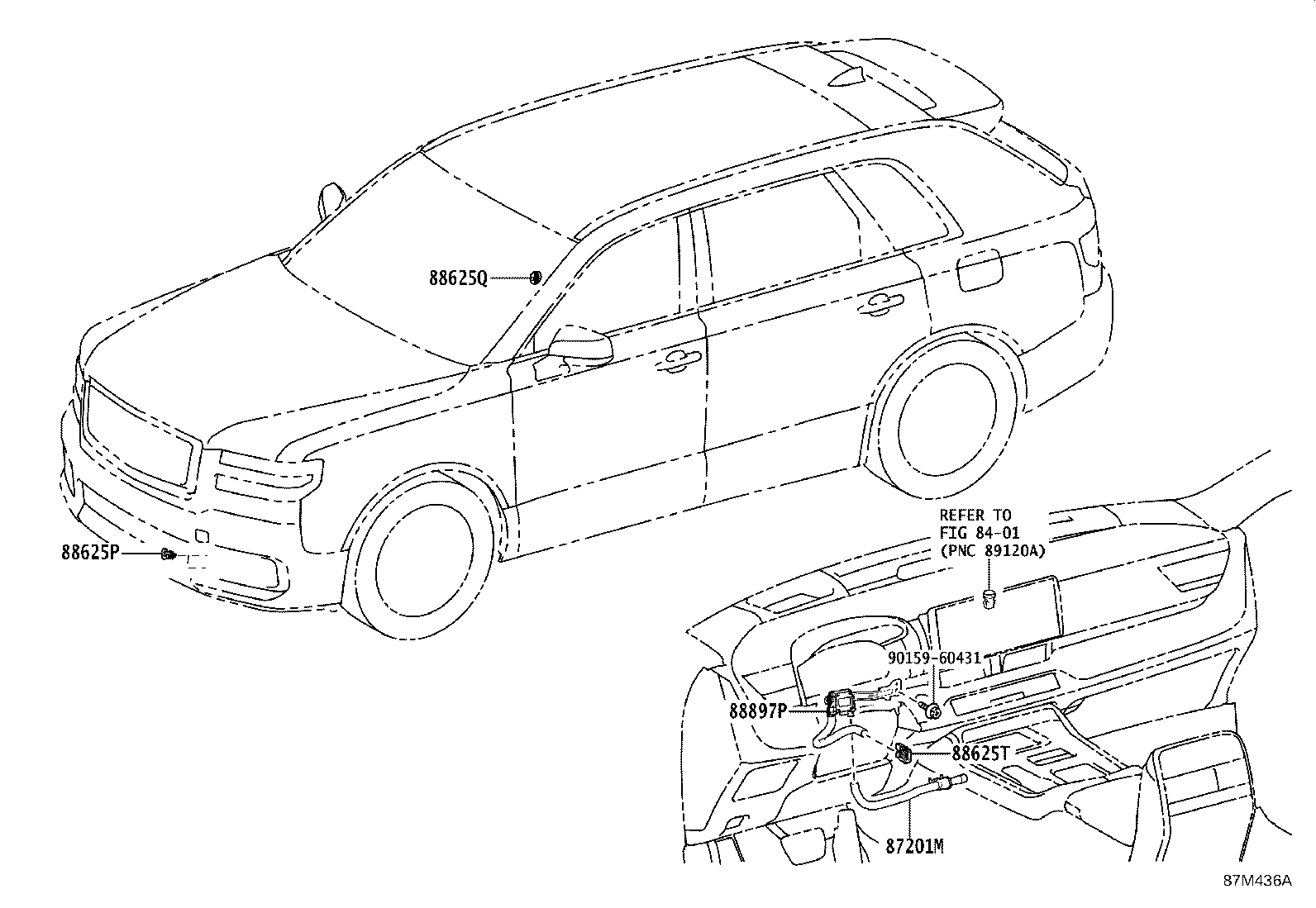

88625P	Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q	Thermistor, Cooler (ROOM TEMP. SENSOR)
88625T	Thermistor, Cooler (ROOM TEMP. SENSOR NO.2)
88897P	Aspirator

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
