Toyota Century
2023-10 → present · chassis GRG75 · catalogue 343210 · General
Supported model
Data version 2023-10

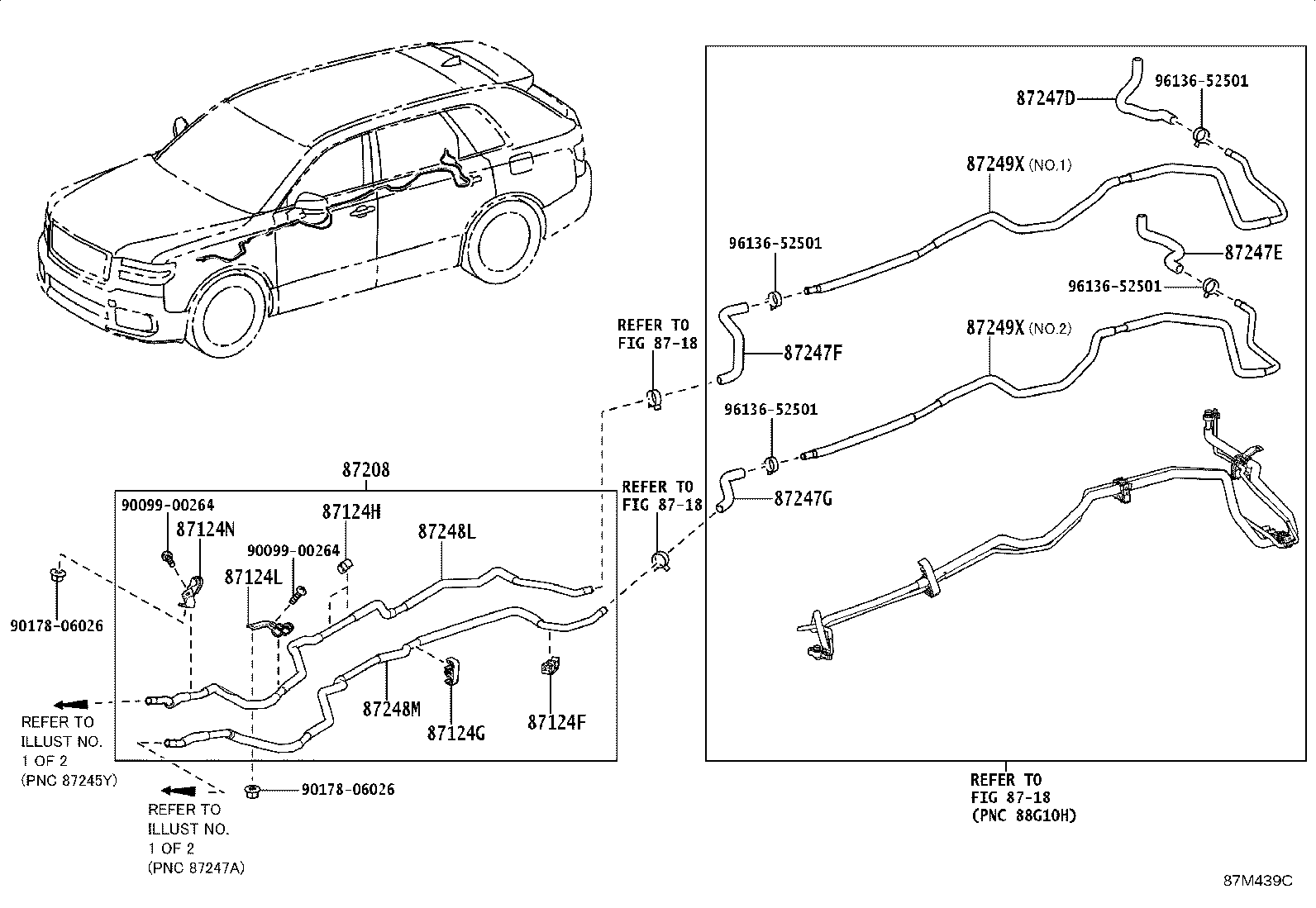

Heating & Air Conditioning - Water Piping
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16407E | Cock Sub-assy, Radiator Drain |
| 16E81 | Clamp, Hose(FOR WATER HOSE) |
| 16E81A | Clamp, Hose (FOR WATER HOSE), NO.2 |
| 16E81B | Clamp, Hose (FOR WATER HOSE), NO.3 |
| 16E81C | Clamp, Hose (FOR WATER HOSE), NO.4 |
| 16E81D | Clamp, Hose (FOR WATER HOSE), NO.5 |
| 82212E | Harness, Air Conditioner NO.1 |
| 82212F | Harness, Air Conditioner NO.2 |
| 87101G | Heater Sub-assy, Electric |
| 87121F | Bracket, Heater |
| 87121Q | Bracket, Heater NO.2 |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87124H | Clamp, Heater Hose, NO.3 |
| 87124L | Clamp, Heater Hose, NO.4 |
| 87124N | Clamp, Heater Hose, NO.5 |
| 87208 | Pipe Sub-assy, Heater Water |
| 87209 | Hose Sub-assy, Water |
| 87240 | Valve Assy, Heater Water |
| 87245X | Hose, Heater Water |
| 87245Y | Hose, Heater Water |
| 87246X | Hose, Heater Water |
| 87246Y | Hose, Heater Water |
| 87247A | Hose, Heater Water, A |
| 87247B | Hose, Heater Water, B |
| 87247C | Hose, Heater Water, C |
| 87247D | Hose, Heater Water, D |
| 87247E | Hose, Heater Water, E |
| 87247F | Hose, Heater Water, F |
| 87247G | Hose, Heater Water, G |
| 87247M | Clip, Hose |
| 87247N | Clip, Hose |
| 87248L | Pipe, Heater Water, L |
| 87248M | Pipe, Heater Water, M |
| 87248X | Pipe, Heater Water |
| 87249X | Pipe, Water |
| 87260B | Pump Assy, Heater, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
