Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · General
Discontinued model
Data version 1995-03

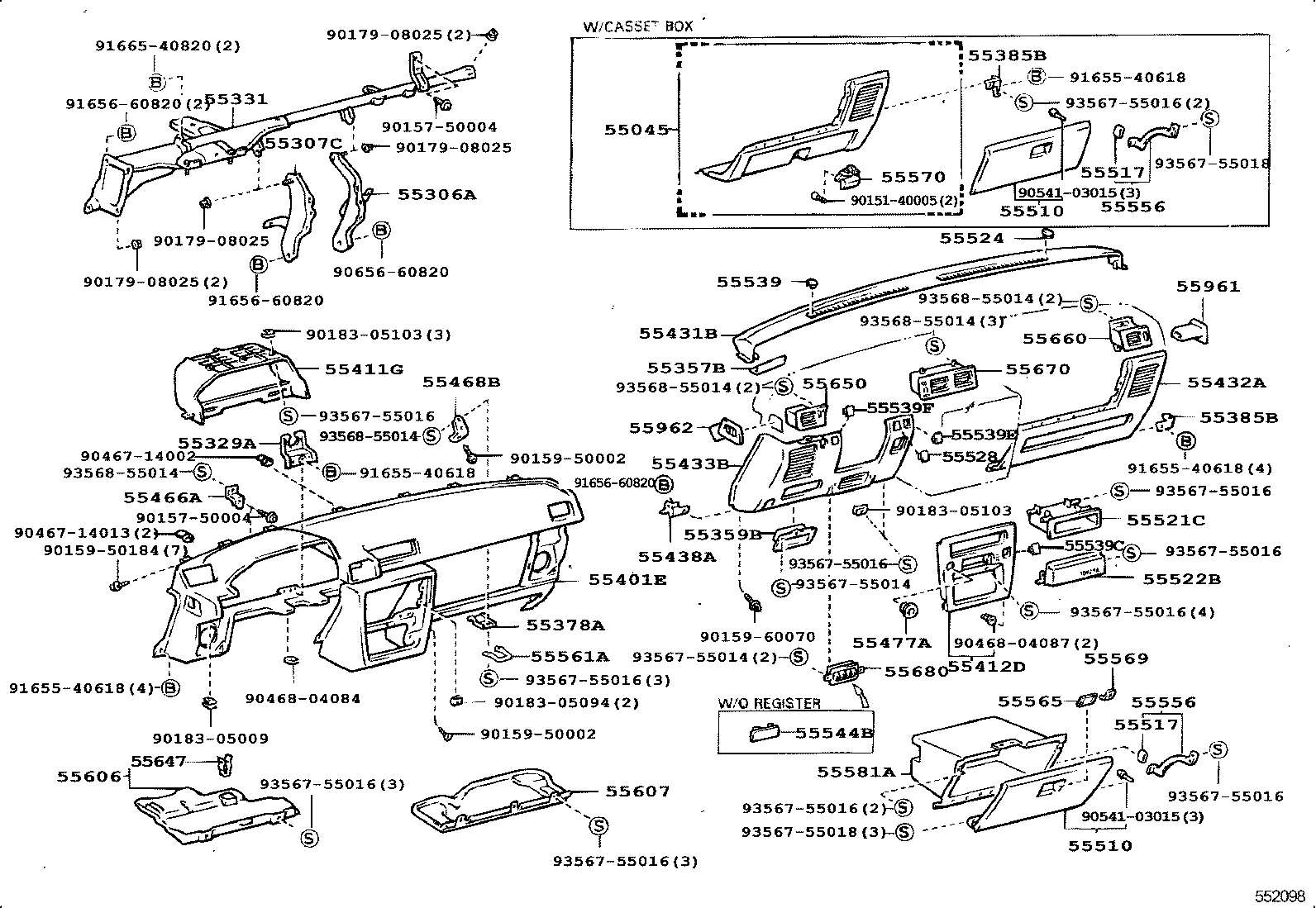

Instrument Panel & Glove Compartment
50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55329A | Bracket, Instrument Panel Meter |
| 55331 | Reinforcement, Instrument Panel |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55359B | Box, Instrument Panel, Center |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55385B | Bracket, Finish Panel Mounting, NO.5 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55434A | Panel, Instrument Finish, Lower Sub |
| 55438A | Retainer, Instrument Panel Finish Panel, NO.2 |
| 55466A | Retainer, Instrument Panel Safety Pad |
| 55468B | Retainer, Instrument Panel Safety Pad, NO.3 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55506C | Compartment Sub-assy, Glove |
| 55510 | Door Assy, Glove Compartment |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55528 | Cover, Auto Drive Opening |
| 55531B | Cover, Choke Knob Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55544B | Cover, Instrument Panel Lower Register Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55561A | Striker, Glove Compartment Door Lock |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55570 | Lock Assy, Cassette Box |
| 55581A | Compartment, Glove |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55647 | Clamp, Instrument Panel Under Cover |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
