Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · General
Discontinued model
Data version 1995-03

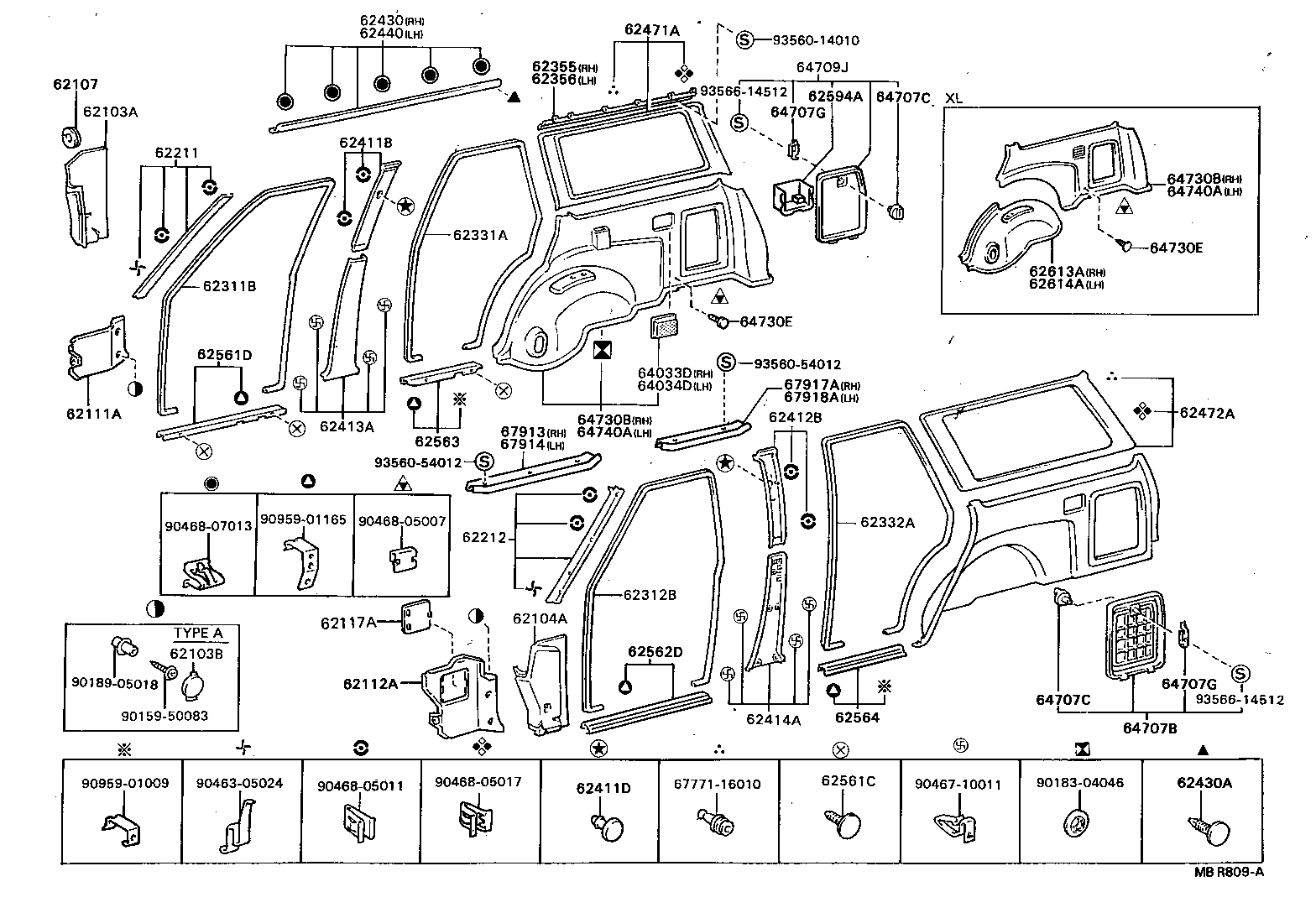

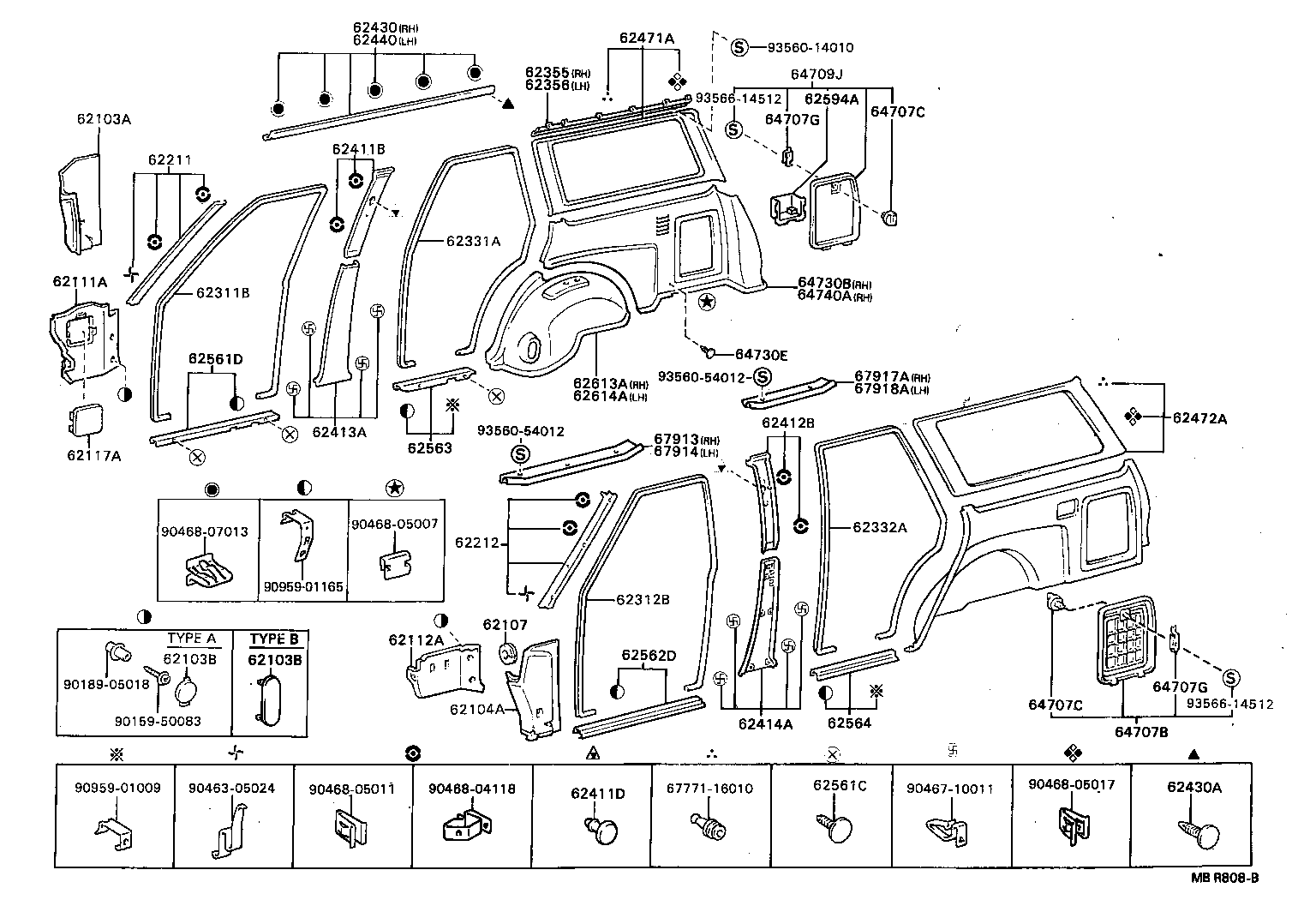

Inside Trim Board & Door Opening Trim Moulding
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62103B | Plug(FOR COWL SIDE TRIM BOARD) |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62107 | Insulator Sub-assy, Cowl Side, Upper RH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62355 | Retainer, Quarter Window Inside Trim, RH |
| 62356 | Retainer, Quarter Window Inside Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62411D | Plug, Hole (FOR CENTER PILLAR GARNISH) |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62473C | Board, Roof Side Inner Garnish, RH |
| 62474C | Board, Roof Side Inner Garnish, LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62561C | Clip (FOR ROCKER PANEL INNER PROTECTOR) |
| 62561D | Protector, Rocker Panel, Inner Front RH |
| 62562D | Protector, Rocker Panel, Inner Front LH |
| 62563 | Protector, Rocker Panel, Inner Rear RH |
| 62564 | Protector, Rocker Panel, Inner Rear LH |
| 62581C | Garnish, Rear Window Side, RH |
| 62582C | Garnish, Rear Window Side, LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62613A | Cover, Quarter Wheel House, RH |
| 62614A | Cover, Quarter Wheel House, LH |
| 64033D | Grille Sub-assy, Rear Speaker, RH |
| 64034D | Grille Sub-assy, Rear Speaker, LH |
| 64707B | Cover Sub-assy, Quarter Trim Jack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64709J | Cover Sub-assy, Deck Trim Pocket |
| 64740A | Panel Assy, Deck Trim Side, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
