Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · General
Discontinued model
Data version 1995-03
Meter
29 part groups · 5 illustrations
Part groups

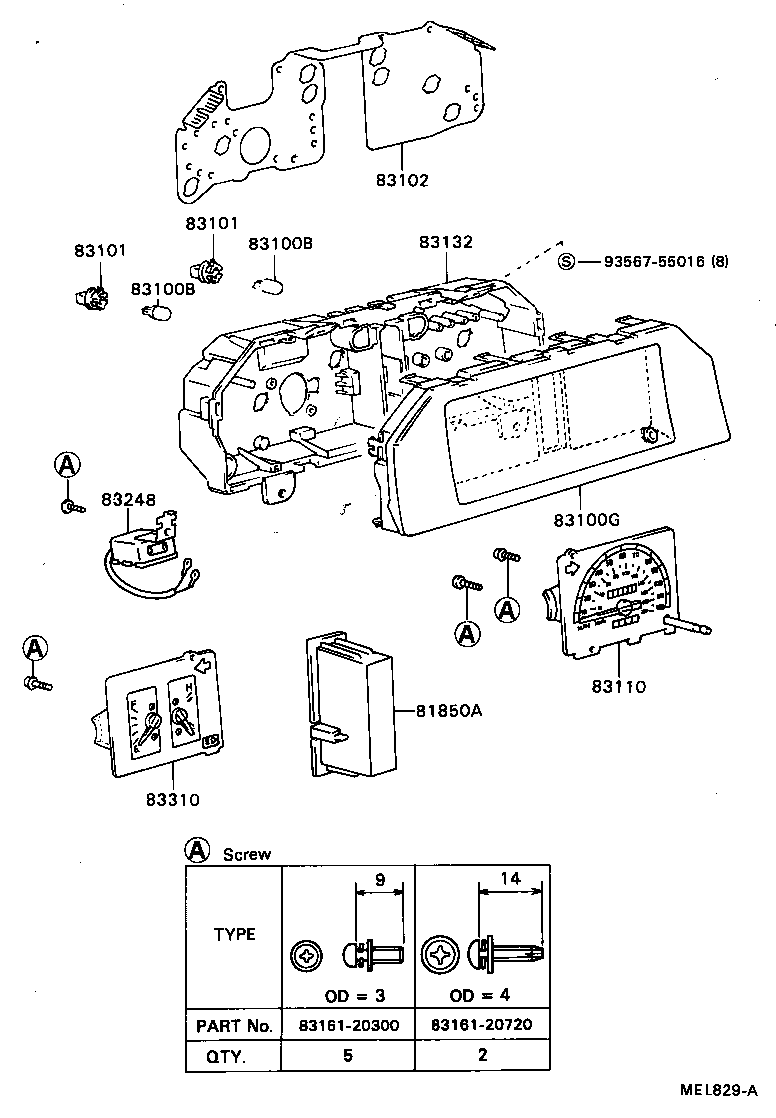

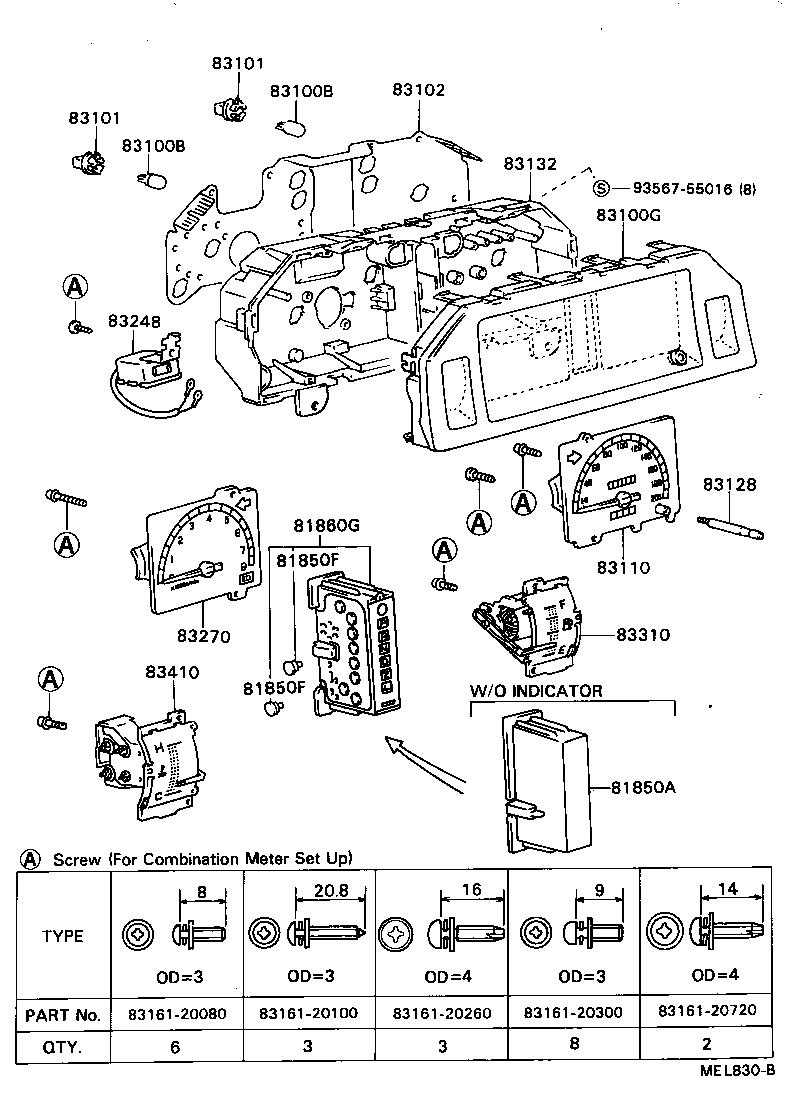

| PNC | Description |
|---|---|
| 81850A | Lamp Assy, Indicator |
| 81850F | Bulb, Indicator Lamp |
| 81860G | Lamp Assy, Transmission Indicator |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83121 | Counter, Total |
| 83121A | Sensor, Speed |
| 83121B | Cable, Counter And Sensor |
| 83128 | Knob, Trip Counter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83145 | Lens, Meter, NO.1 |
| 83146A | Cover, Speedmeter |
| 83159 | Switch, Meter, NO.1 |
| 83189 | Bracket, Meter |
| 83248 | Chime, Speed Warning |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |

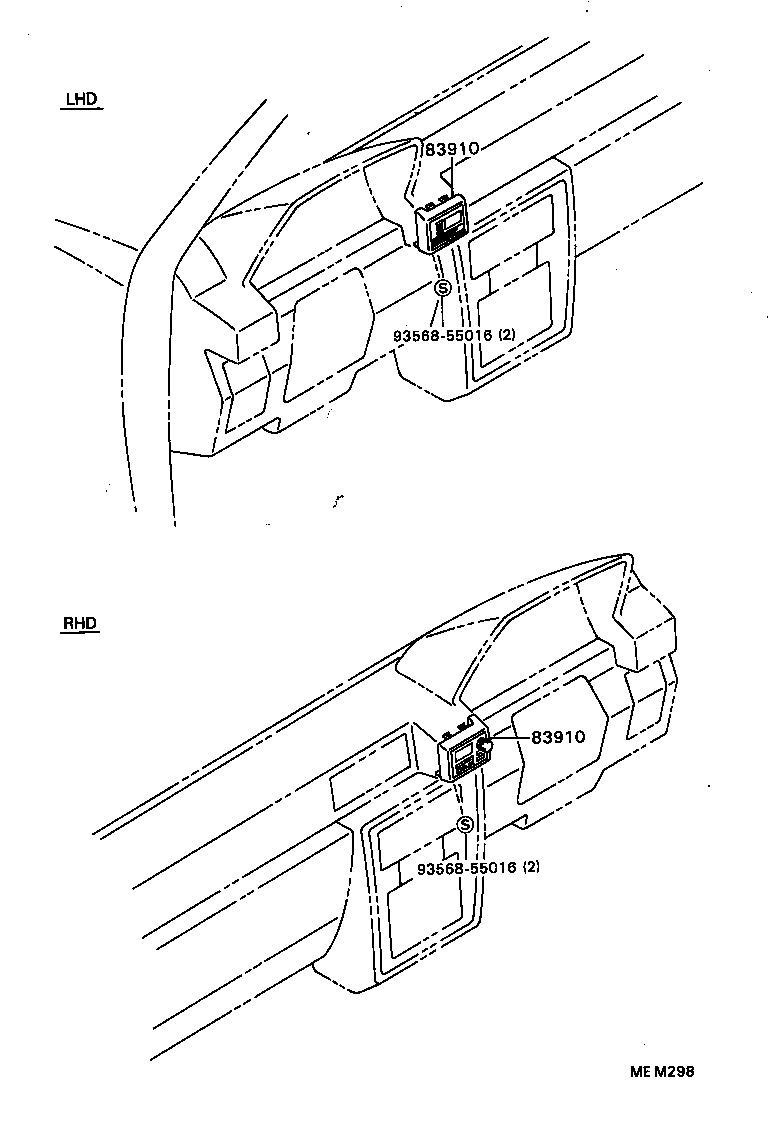

| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
