Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

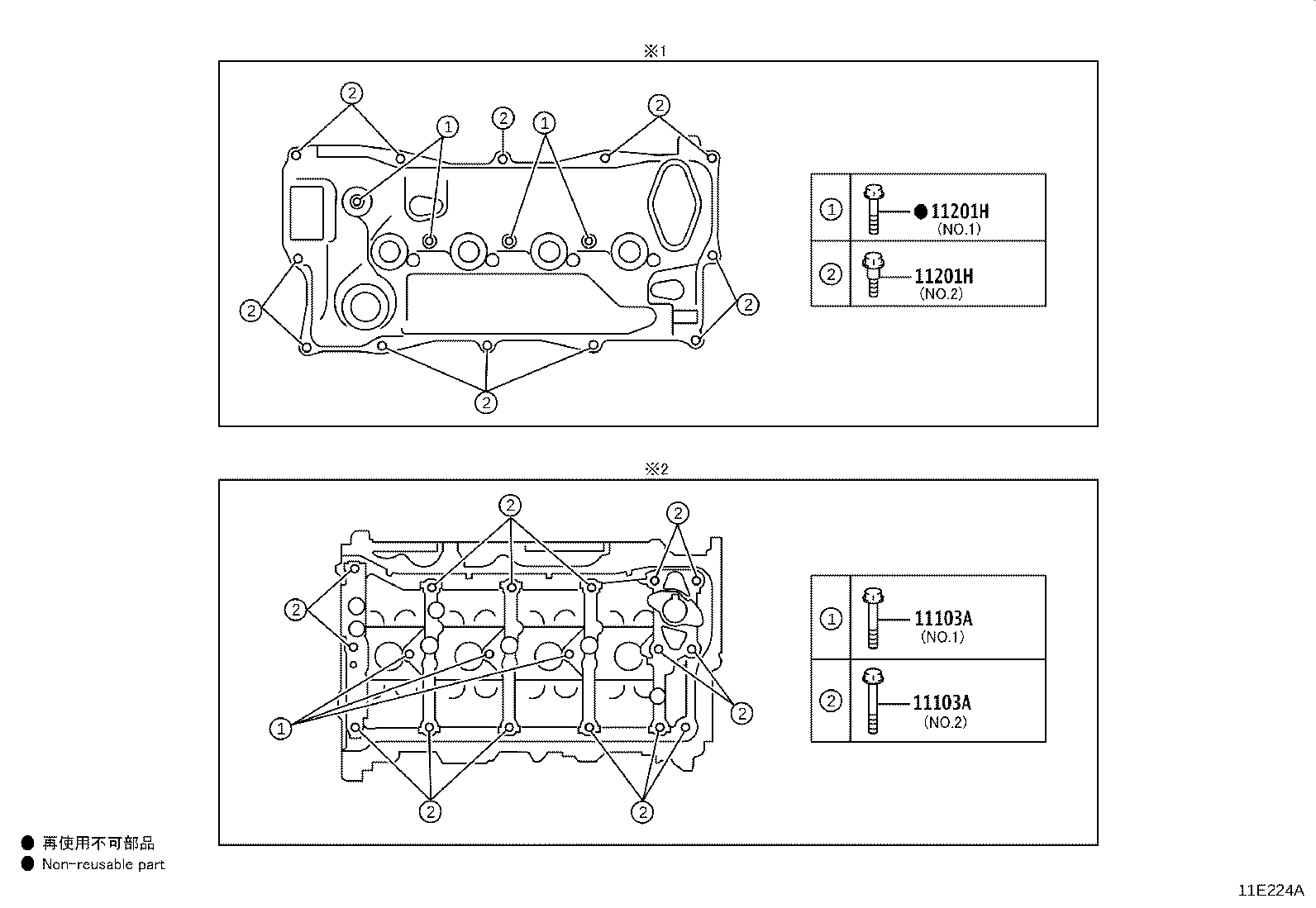

Exploded illustration 11E224A 11103A — BOLT(FOR CAMSHAFT HOUSING SET) (26 parts) 11103A — BOLT(FOR CAMSHAFT HOUSING SET) (26 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (34 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (34 parts)
11E224A · 4 callouts Full size ↗
60 parts on this figure
Part number Description Fitment Price
11103A — Bolt(FOR CAMSHAFT HOUSING SET)
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2019-10 → 2021-06 ended
M20 MXXA50 —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2019-03 → 2021-07 ended
A25 AXXH50 —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2019-03 → 2021-06 ended
A25 AXXA50 —
91551-G0865 note Bolt(FOR CAMSHAFT HOUSING SET)
2019-03 → 2021-06 ended
A25 AXXA50 —
91551-G0865 note Bolt(FOR CAMSHAFT HOUSING SET)
2019-03 → 2021-07 ended
A25 AXXH50 —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2022-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2023-03 ended
M20 MXXA50 —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2022-02 ended
M20 MXXA50 —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2022-02 ended
A25 AXXH50 E —
91551-G0865 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2022-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
91551-G0865 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2022-02 ended
A25 AXXH50 E —
91551-G0865 note Bolt(FOR CAMSHAFT HOUSING SET)
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
90105-C0168 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-12 → —
A25 AXXA50,AXXH50 —
90105-C0421 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-12 → 2024-07 ended
M20 MXXA50 B,E —
90105-C0421 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-12 → —
A25 AXXA50,AXXH50 —
90105-C0421 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-12 → —
M20 MXXA50 G —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-12 → 2024-07 ended
M20 MXXA50 B,E —
91551-G0840 Bolt(FOR CAMSHAFT HOUSING SET)
2023-04 → 2023-12 ended
M20 MXXA50 —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-12 → —
M20 MXXA50 G —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-04 → 2023-11 ended
A25 AXXA50,AXXH50 —
91551-G0865 note Bolt(FOR CAMSHAFT HOUSING SET)
2023-04 → 2023-11 ended
A25 AXXA50,AXXH50 —
90105-C0168 note Bolt(FOR CAMSHAFT HOUSING SET)
2024-07 → —
A25 AXXH52 —
90105-C0421 note Bolt(FOR CAMSHAFT HOUSING SET)
2024-07 → —
A25 AXXH52 —
90105-C0421 note Bolt(FOR CAMSHAFT HOUSING SET)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
91551-G0840 note Bolt(FOR CAMSHAFT HOUSING SET)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2019-03 → 2021-06 ended
A25 AXXA50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2019-10 → 2021-06 ended
M20 MXXA50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2019-03 → 2021-07 ended
A25 AXXH50 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2019-03 → 2021-06 ended
A25 AXXA50 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2019-10 → 2021-06 ended
M20 MXXA50 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2019-03 → 2021-07 ended
A25 AXXH50 —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2019-10 → 2021-06 ended
M20 MXXA50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2022-02 ended
M20 MXXA50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2022-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2023-03 ended
M20 MXXA50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2022-02 ended
A25 AXXH50 E —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2022-02 ended
A25 AXXH50 E —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2022-02 ended
M20 MXXA50 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2022-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2023-03 ended
M20 MXXA50 —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2024-03 → 2024-07 ended
M20 MXXA50 B,E —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2024-03 → —
M20 MXXA50 G —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2024-02 → —
A25 AXXA50,AXXH50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2023-04 → 2024-03 ended
M20 MXXA50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2023-04 → 2024-02 ended
A25 AXXA50,AXXH50 —
90105-C0367 note Bolt(FOR CYLINDER HEAD COVER)
2024-03 → 2024-07 ended
M20 MXXA50 B,E —
90105-C0367 note Bolt(FOR CYLINDER HEAD COVER)
2024-02 → —
A25 AXXA50,AXXH50 —
90105-C0367 note Bolt(FOR CYLINDER HEAD COVER)
2024-03 → —
M20 MXXA50 G —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2023-04 → 2024-07 ended
M20 MXXA50 B,E —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2023-04 → —
M20 MXXA50 G —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2023-04 → —
A25 AXXA50,AXXH50 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2024-07 → —
A25 AXXH52 —
90105-06359 note Bolt(FOR CYLINDER HEAD COVER)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
90105-C0367 note Bolt(FOR CYLINDER HEAD COVER)
2024-07 → —
A25 AXXH52 —
90105-C0367 note Bolt(FOR CYLINDER HEAD COVER)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2024-07 → —
A25 AXXH52 —
90109-C0027 note Bolt(FOR CYLINDER HEAD COVER)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
