Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

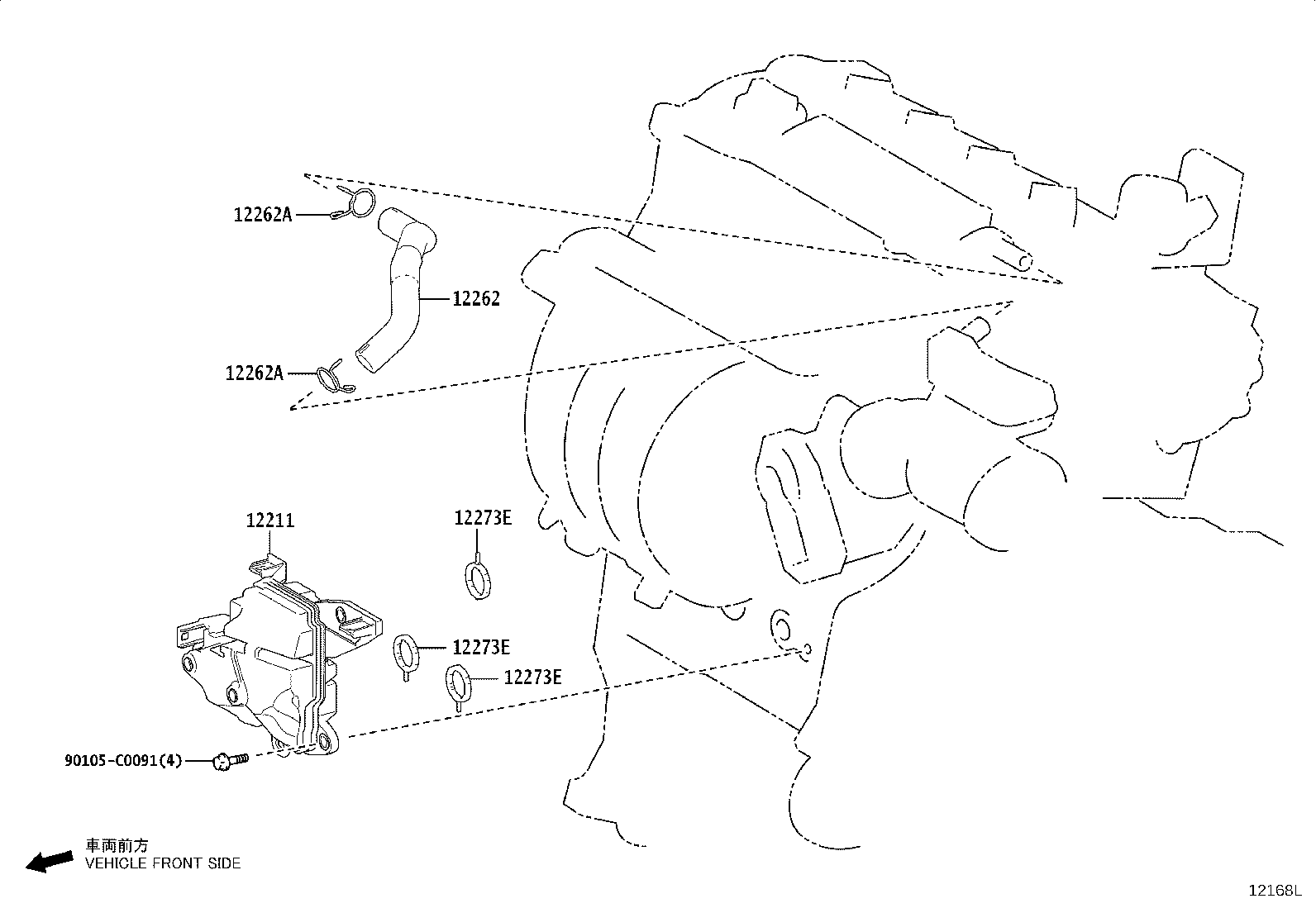

Exploded illustration 12168L 12262A — CLIP(FOR VENTILATION HOSE NO.2) (11 parts) 12211 — CASE, VENTILATION, NO.1 (18 parts) 12273E — GASKET(FOR VENTILATION CASE) (14 parts) 12273E — GASKET(FOR VENTILATION CASE) (14 parts) 12273E — GASKET(FOR VENTILATION CASE) (14 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (11 parts) 90105C0091 — not listed in this catalogue 12262 — HOSE, VENTILATION, NO.2 (14 parts)
12168L · 7 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
12211 — Case, Ventilation, NO.1
12211-24010 note Case, Ventilation, NO.1
2019-10 → 2021-06 ended
M20 MXXA50 —
12211-25010 Case, Ventilation, NO.1
2019-03 → 2020-07 ended
A25 AXXA50,AXXH50 —
12211-25011 Case, Ventilation, NO.1
2020-08 → 2021-06 ended
A25 AXXA50 —
12211-25011 Case, Ventilation, NO.1
2020-08 → 2021-07 ended
A25 AXXH50 —
12211-F2040 note Case, Ventilation, NO.1
2019-10 → 2021-06 ended
M20 MXXA50 —
12211-24010 note Case, Ventilation, NO.1
2021-06 → 2022-02 ended
M20 MXXA50 —
12211-25011 note Case, Ventilation, NO.1
2021-06 → 2022-02 ended
A25 AXXH50 E —
12211-25011 note Case, Ventilation, NO.1
2021-06 → 2022-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
12211-25011 note Case, Ventilation, NO.1
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
12211-F0020 note Case, Ventilation, NO.1
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
12211-F2040 note Case, Ventilation, NO.1
2021-06 → 2023-03 ended
M20 MXXA50 —
12211-25011 note Case, Ventilation, NO.1
2023-04 → —
A25 AXXA50,AXXH50 —
12211-F0020 note Case, Ventilation, NO.1
2023-04 → —
A25 AXXA50,AXXH50 —
12211-F2040 Case, Ventilation, NO.1
2023-04 → 2024-07 ended
M20 MXXA50 B,E —
12211-F2040 Case, Ventilation, NO.1
2023-04 → —
M20 MXXA50 G —
12211-25011 note Case, Ventilation, NO.1
2024-07 → —
A25 AXXH52 —
12211-F0020 note Case, Ventilation, NO.1
2024-07 → —
A25 AXXH52 —
12211-F2040 Case, Ventilation, NO.1
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
12262 — Hose, Ventilation, NO.2
12262-24060 Hose, Ventilation, NO.2
2019-10 → 2021-06 ended
M20 MXXA50 —
12262-25030 Hose, Ventilation, NO.2
2019-03 → 2021-06 ended
A25 AXXA50 —
12262-25040 Hose, Ventilation, NO.2
2019-03 → 2021-07 ended
A25 AXXH50 —
12262-24060 Hose, Ventilation, NO.2
2021-06 → 2023-03 ended
M20 MXXA50 —
12262-25030 Hose, Ventilation, NO.2
2021-06 → 2023-03 ended
A25 AXXA50 —
12262-25040 Hose, Ventilation, NO.2
2021-07 → 2022-02 ended
A25 AXXH50 E —
12262-25040 Hose, Ventilation, NO.2
2021-07 → 2023-03 ended
A25 AXXH50 B,G,Q —
12262-24060 Hose, Ventilation, NO.2
2023-04 → 2024-07 ended
M20 MXXA50 B,E —
12262-24060 Hose, Ventilation, NO.2
2023-04 → —
M20 MXXA50 G —
12262-25030 Hose, Ventilation, NO.2
2023-04 → —
A25 AXXA50 —
12262-25040 Hose, Ventilation, NO.2
2023-04 → —
A25 AXXH50 —
12262-24060 Hose, Ventilation, NO.2
2024-07 → —
M20 MXXA50 B,E —
12262-25040 Hose, Ventilation, NO.2
2024-07 → —
A25 AXXH52 —
12262-25060 Hose, Ventilation, NO.2
2024-07 → —
M20 MXXH50 —
12262A — Clip(FOR VENTILATION HOSE NO.2)
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2019-03 → 2021-06 ended
A25 AXXA50 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2019-10 → 2021-06 ended
M20 MXXA50 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2019-03 → 2021-07 ended
A25 AXXH50 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2021-06 → 2022-02 ended
A25 AXXH50 E —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2021-06 → 2023-03 ended
M20 MXXA50 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2023-04 → 2024-07 ended
M20 MXXA50 B,E —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2023-04 → —
M20 MXXA50 G —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2023-04 → —
A25 AXXA50,AXXH50 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2024-07 → —
A25 AXXH52 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
12273E — Gasket(FOR VENTILATION CASE)
12273-24010 Gasket(FOR VENTILATION CASE)
2019-03 → 2021-06 ended
A25 AXXA50 —
12273-24010 Gasket(FOR VENTILATION CASE)
2019-03 → 2021-07 ended
A25 AXXH50 —
12273-24010 note Gasket(FOR VENTILATION CASE)
2019-10 → 2021-06 ended
M20 MXXA50 —
12273-F2020 note Gasket(FOR VENTILATION CASE)
2019-10 → 2021-06 ended
M20 MXXA50 —
12273-24010 note Gasket(FOR VENTILATION CASE)
2021-06 → 2022-02 ended
A25 AXXH50 E —
12273-24010 note Gasket(FOR VENTILATION CASE)
2021-06 → 2022-02 ended
M20 MXXA50 —
12273-24010 note Gasket(FOR VENTILATION CASE)
2021-06 → 2022-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
12273-F2020 note Gasket(FOR VENTILATION CASE)
2021-06 → 2023-03 ended
M20 MXXA50 —
12273-F2020 note Gasket(FOR VENTILATION CASE)
2021-06 → 2023-03 ended
A25 AXXA50;A25 AXXH50 B,G,Q —
12273-F2020 Gasket(FOR VENTILATION CASE)
2023-04 → 2024-07 ended
M20 MXXA50 B,E —
12273-F2020 Gasket(FOR VENTILATION CASE)
2023-04 → —
M20 MXXA50 G —
12273-F2020 Gasket(FOR VENTILATION CASE)
2023-04 → —
A25 AXXA50,AXXH50 —
12273-F2020 Gasket(FOR VENTILATION CASE)
2024-07 → —
A25 AXXH52 —
12273-F2020 Gasket(FOR VENTILATION CASE)
2024-07 → —
M20 MXXH50;M20 MXXA50 B,E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
