Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

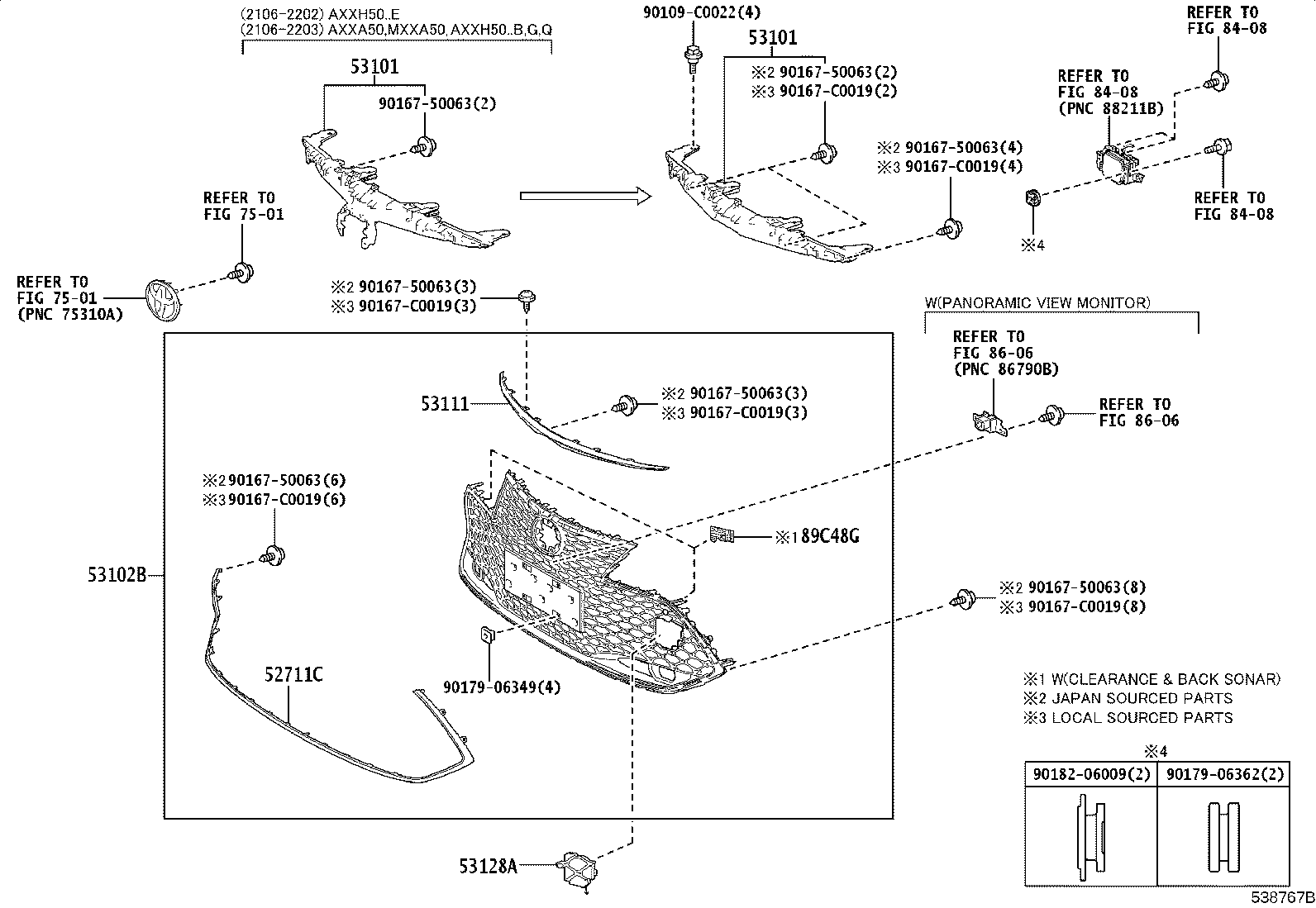

Exploded illustration 538767B 8606 — not listed in this catalogue 8606 — not listed in this catalogue 52711C — MOULDING, FRONT BUMPER (8 parts) 53111 — GRILLE, RADIATOR (8 parts) 53128A — GRILLE, RADIATOR, LOWER LH (18 parts) 90167C0019 — not listed in this catalogue 9016750063 — not listed in this catalogue 9017906349 — not listed in this catalogue 8408 — not listed in this catalogue 7501 — not listed in this catalogue 7501 — not listed in this catalogue 8408 — not listed in this catalogue 8408 — not listed in this catalogue 89C48G — RETAINER, ULTRASONIC SENSOR, FRONT CENTER (14 parts) 53101 — GRILLE SUB-ASSY, RADIATOR (8 parts) 9016750063 — not listed in this catalogue 90167C0019 — not listed in this catalogue 90109C0022 — not listed in this catalogue 9016750063 — not listed in this catalogue 90167C0019 — not listed in this catalogue 53102B — GRILLE SUB-ASSY, RADIATOR, LOWER (52 parts) 9016750063 — not listed in this catalogue 90167C0019 — not listed in this catalogue 53101 — GRILLE SUB-ASSY, RADIATOR (8 parts) 9016750063 — not listed in this catalogue 9018206009 — not listed in this catalogue 9017906362 — not listed in this catalogue 9016750063 — not listed in this catalogue 90167C0019 — not listed in this catalogue 9016750063 — not listed in this catalogue 90167C0019 — not listed in this catalogue
538767B · 7 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
108 parts on this figure
Part number Description Fitment Price
52711C — Moulding, Front Bumper
52711-07080 Moulding, Front Bumper
2019-03 → 2021-07 ended
AXXH50 —
52711-07080 Moulding, Front Bumper
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
52711-07040 Moulding, Front Bumper
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 —
52711-07080 Moulding, Front Bumper
2021-06 → 2022-02 ended
AXXH50 E —
52711-07080 Moulding, Front Bumper
2021-06 → 2022-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
52711-07040 Moulding, Front Bumper
2023-04 → 2024-07 ended
MXXA50 B,E —
52711-07040 Moulding, Front Bumper
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
52711-YK030 Moulding, Front Bumper
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
53101 — Grille Sub-assy, Radiator
53101-07210 Grille Sub-assy, Radiator
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
53101-07210 Grille Sub-assy, Radiator
2019-03 → 2021-07 ended
AXXH50 —
53101-07210 note Grille Sub-assy, Radiator
2021-06 → 2022-02 ended
AXXH50 E —
53101-07210 note Grille Sub-assy, Radiator
2021-06 → 2022-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
53101-07220 note Grille Sub-assy, Radiator
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 —
53101-07220 note Grille Sub-assy, Radiator
2023-04 → 2024-07 ended
MXXA50 B,E —
53101-07220 note Grille Sub-assy, Radiator
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
53101-07220 note Grille Sub-assy, Radiator
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
53102B — Grille Sub-assy, Radiator, Lower
53102-07180 Grille Sub-assy, Radiator, Lower
2019-03 → 2021-06 ended
AXXA50,MXXA50 B,E —
53102-07180 Grille Sub-assy, Radiator, Lower
2019-03 → 2021-07 ended
AXXH50 B,E —
53102-07190 Grille Sub-assy, Radiator, Lower
2019-03 → 2021-06 ended
AXXA50,MXXA50 G —
53102-07190 Grille Sub-assy, Radiator, Lower
2019-03 → 2021-07 ended
AXXH50 G,Q —
53102-YK040 note Grille Sub-assy, Radiator, Lower
2020-08 → 2021-06 ended
AXXA50 G —
53102-07180 Grille Sub-assy, Radiator, Lower
2021-06 → 2022-02 ended
AXXH50 E —
53102-07180 Grille Sub-assy, Radiator, Lower
2021-06 → 2022-03 ended
AXXH50 B;AXXA50,MXXA50 B,E —
53102-07190 Grille Sub-assy, Radiator, Lower
2021-06 → 2022-03 ended
AXXA50,AXXH50,MXXA50 G,Q —
53102-07210 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 E —
53102-07210 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 E —
53102-07210 Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50,AXXH50,MXXA50 B,E —
53102-07210 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 E —
53102-07211 Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50,AXXH50,MXXA50 B,E —
53102-07211 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 E —
53102-07211 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 E —
53102-07211 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 E —
53102-07220 Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
MXXA50 G —
53102-07221 Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
MXXA50 G —
53102-07230 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 G —
53102-07230 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
MXXA50 G —
53102-07230 Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50,AXXH50 G,Q —
53102-07230 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 G —
53102-07230 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 G —
53102-07231 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 G —
53102-07231 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 G —
53102-07231 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
MXXA50 G —
53102-07231 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 G —
53102-07231 Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50,AXXH50 G,Q —
53102-YK040 note Grille Sub-assy, Radiator, Lower
2021-06 → 2022-03 ended
AXXA50 G —
53102-YK050 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 E —
53102-YK050 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 E —
53102-YK050 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 E —
53102-YK051 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 E —
53102-YK051 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 E —
53102-YK051 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 E —
53102-YK060 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 G —
53102-YK060 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 G —
53102-YK060 note Grille Sub-assy, Radiator, Lower
2022-03 → 2022-07 ended
AXXA50 G —
53102-YK061 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 G —
53102-YK061 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 G —
53102-YK061 note Grille Sub-assy, Radiator, Lower
2022-07 → 2023-03 ended
AXXA50 G —
53102-07211 Grille Sub-assy, Radiator, Lower
2023-04 → 2024-07 ended
MXXA50 B,E —
53102-07211 Grille Sub-assy, Radiator, Lower
2023-04 → —
AXXA50,AXXH50 B,E —
53102-07221 Grille Sub-assy, Radiator, Lower
2023-04 → —
MXXA50 G —
53102-07231 Grille Sub-assy, Radiator, Lower
2023-04 → —
AXXA50,AXXH50 G,Q —
53102-07231 note Grille Sub-assy, Radiator, Lower
2023-04 → —
MXXA50 G —
53102-YK051 note Grille Sub-assy, Radiator, Lower
2023-04 → —
AXXA50 B —
53102-YK061 note Grille Sub-assy, Radiator, Lower
2023-04 → —
AXXA50 G —
53102-YK020 Grille Sub-assy, Radiator, Lower
2024-07 → —
MXXA50,MXXH50 E —
53102-YK030 Grille Sub-assy, Radiator, Lower
2024-07 → —
MXXH50 G,Q —
53102-YK080 Grille Sub-assy, Radiator, Lower
2024-07 → —
MXXA50,MXXH50 B —
53102-YK090 Grille Sub-assy, Radiator, Lower
2024-07 → —
AXXH52 —
53111 — Grille, Radiator
53111-07110 Grille, Radiator
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
53111-07110 Grille, Radiator
2019-03 → 2021-07 ended
AXXH50 —
53111-07030 note Grille, Radiator
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 —
53111-07110 note Grille, Radiator
2021-06 → 2022-02 ended
AXXH50 E —
53111-07110 note Grille, Radiator
2021-06 → 2022-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
53111-07030 note Grille, Radiator
2023-04 → 2024-07 ended
MXXA50 B,E —
53111-07030 note Grille, Radiator
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
53111-YK090 note Grille, Radiator
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
53128A — Grille, Radiator, Lower LH
53128-07010 Grille, Radiator, Lower LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
53128-07010 Grille, Radiator, Lower LH
2019-03 → 2021-07 ended
AXXH50 —
53128-YK010 note Grille, Radiator, Lower LH
2020-08 → 2021-06 ended
AXXA50 G —
53128-07010 Grille, Radiator, Lower LH
2021-06 → 2022-02 ended
AXXH50 E —
53128-07010 Grille, Radiator, Lower LH
2021-06 → 2022-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
53128-07020 note Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50 —
53128-07020 Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 —
53128-07020 note Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50 —
53128-07020 note Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50 —
53128-YK010 note Grille, Radiator, Lower LH
2021-06 → 2022-03 ended
AXXA50 G —
53128-YK020 note Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50 —
53128-YK020 note Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50 —
53128-YK020 note Grille, Radiator, Lower LH
2022-03 → 2023-03 ended
AXXA50 —
53128-07020 Grille, Radiator, Lower LH
2023-04 → 2024-07 ended
MXXA50 B,E —
53128-07020 Grille, Radiator, Lower LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
53128-YK020 note Grille, Radiator, Lower LH
2023-04 → —
AXXA50 —
53128-YK040 Grille, Radiator, Lower LH
2024-07 → —
MXXH50;MXXA50 B,E —
53128-YK050 Grille, Radiator, Lower LH
2024-07 → —
AXXH52 —
89C48G — Retainer, Ultrasonic Sensor, Front Center
89348-07130 note Retainer, Ultrasonic Sensor, Front Center
2019-03 → 2021-07 ended
AXXH50 G,Q —
89348-07130 note Retainer, Ultrasonic Sensor, Front Center
2019-03 → 2021-06 ended
AXXA50,MXXA50 G —
89348-07140 note Retainer, Ultrasonic Sensor, Front Center
2019-03 → 2021-06 ended
AXXA50,MXXA50 G —
89348-07140 note Retainer, Ultrasonic Sensor, Front Center
2019-03 → 2021-07 ended
AXXH50 G,Q —
89348-07130 note Retainer, Ultrasonic Sensor, Front Center
2021-06 → 2022-03 ended
AXXA50,AXXH50,MXXA50 G,Q —
89348-07140 note Retainer, Ultrasonic Sensor, Front Center
2021-06 → 2022-03 ended
AXXA50,AXXH50,MXXA50 G,Q —
89348-07170 note Retainer, Ultrasonic Sensor, Front Center
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 G,Q —
89348-07180 note Retainer, Ultrasonic Sensor, Front Center
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 G,Q —
89348-07170 note Retainer, Ultrasonic Sensor, Front Center
2023-04 → —
AXXA50,AXXH50,MXXA50 G,Q —
89348-07180 note Retainer, Ultrasonic Sensor, Front Center
2023-04 → —
AXXA50,AXXH50,MXXA50 G,Q —
89348-YK070 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
MXXA50 B;MXXH50 B,G,Q —
89348-YK080 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
MXXA50 B;MXXH50 B,G,Q —
89348-YK090 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
AXXH52 —
89348-YK100 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
AXXH52 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
