Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06

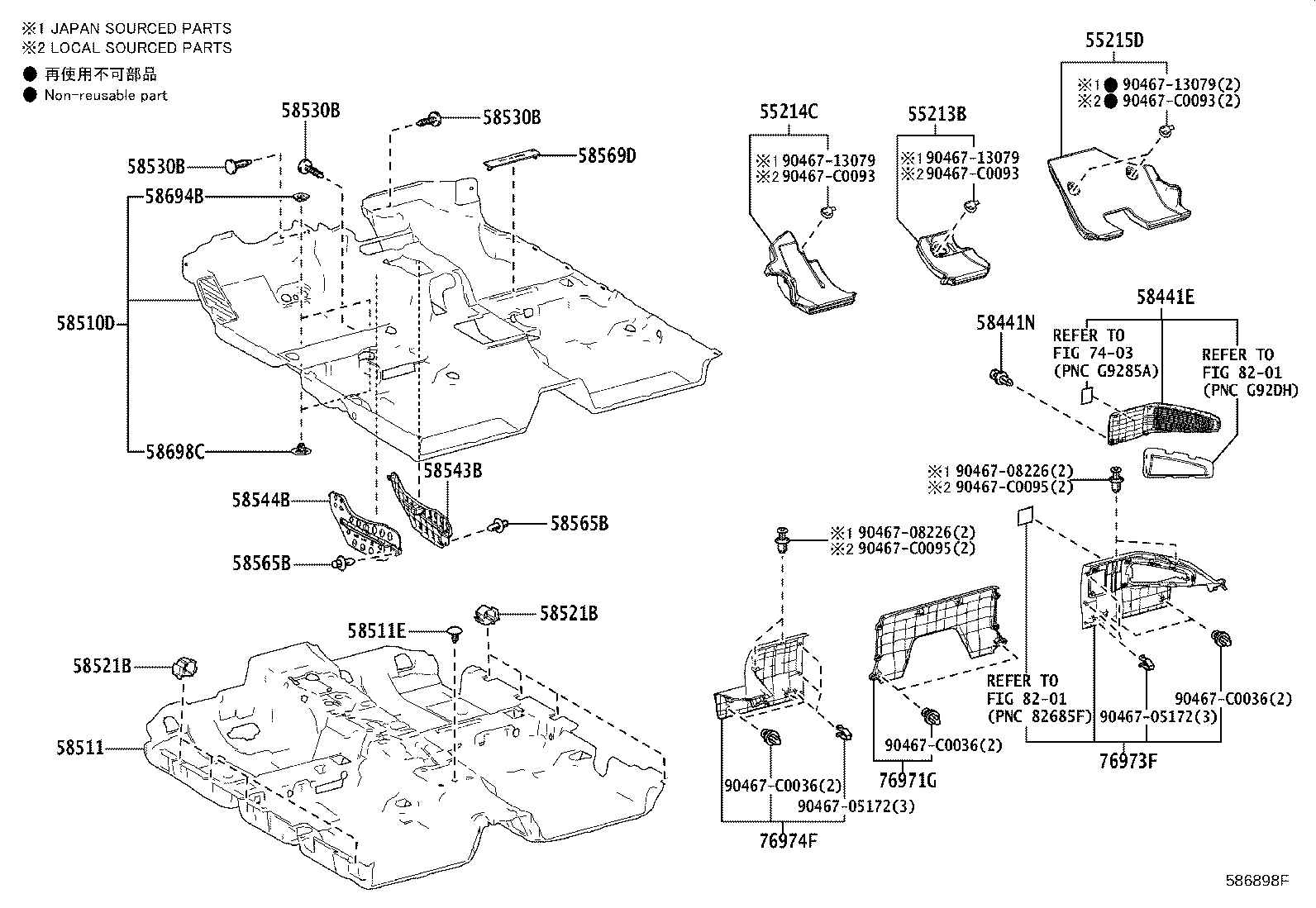

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55213B — Pad, Dash Panel Insulator, NO.1 | ||||
| 55213-07041 |
Pad, Dash Panel Insulator, NO.1
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 55213-07041 |
Pad, Dash Panel Insulator, NO.1
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 55213-07041 |
Pad, Dash Panel Insulator, NO.1
2021-06 → 2022-02
ended
|
AXXA50,AXXH50,MXXA50 | — | |
| 55213-07050 |
Pad, Dash Panel Insulator, NO.1
2022-03 → 2023-03
ended
|
AXXA50,AXXH50,MXXA50 | — | |
| 55213-07050 |
Pad, Dash Panel Insulator, NO.1
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 55213-07050 |
Pad, Dash Panel Insulator, NO.1
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 55213-07060 |
Pad, Dash Panel Insulator, NO.1
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 55214C — Pad, Dash Panel Insulator, NO.2 | ||||
| 55214-07030 |
Pad, Dash Panel Insulator, NO.2
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 55214-07030 |
Pad, Dash Panel Insulator, NO.2
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 55214-07030 |
Pad, Dash Panel Insulator, NO.2
2021-06 → 2022-02
ended
|
AXXA50,AXXH50,MXXA50 | — | |
| 55214-07040 |
Pad, Dash Panel Insulator, NO.2
2022-03 → 2023-03
ended
|
AXXA50,AXXH50,MXXA50 | — | |
| 55214-07040 |
Pad, Dash Panel Insulator, NO.2
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 55214-07040 |
Pad, Dash Panel Insulator, NO.2
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 55214-07040 |
Pad, Dash Panel Insulator, NO.2
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 55215D — Pad, Dash Panel Insulator, NO.3 | ||||
| 55215-07030 |
Pad, Dash Panel Insulator, NO.3
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 55215-07030 |
Pad, Dash Panel Insulator, NO.3
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 55215-07030 |
Pad, Dash Panel Insulator, NO.3
2021-06 → 2022-02
ended
|
AXXA50,AXXH50,MXXA50 | — | |
| 55215-07040 |
Pad, Dash Panel Insulator, NO.3
2022-03 → 2023-03
ended
|
AXXA50,AXXH50,MXXA50 | — | |
| 55215-07040 |
Pad, Dash Panel Insulator, NO.3
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 55215-07040 |
Pad, Dash Panel Insulator, NO.3
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 55215-07040 |
Pad, Dash Panel Insulator, NO.3
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58441E — Cover, Battery Service Hole | ||||
| 58441-07010 |
Cover, Battery Service Hole
2019-03 → 2021-05
ended
|
AXXH50 | — | |
| 58441-07010 |
Cover, Battery Service Hole
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 58441-07010 |
Cover, Battery Service Hole
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 58441-07010 |
Cover, Battery Service Hole
2023-04 → —
|
AXXH50 | — | |
| 58441-YK010 note |
Cover, Battery Service Hole
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 58441-YK020 note |
Cover, Battery Service Hole
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 58441N — Clip(FOR BATTERY SERVICE HOLE COVER) | ||||
| 90467-06165-C3 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2019-03 → 2020-07
ended
|
AXXH50 | — | |
| 90467-C0047-C0 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2020-08 → 2021-05
ended
|
AXXH50 E | — | |
| 90467-C0047-C0 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2020-08 → 2021-05
ended
|
AXXH50 B,G,Q | — | |
| 90467-06165-C3 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2021-07 → 2021-10
ended
|
AXXH50 | — | |
| 90467-C0047-C0 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2021-10 → 2022-02
ended
|
AXXH50 E | — | |
| 90467-C0047-C0 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2021-10 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 90467-C0047-C0 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2023-04 → —
|
AXXH50 | — | |
| 90467-C0047-C0 note |
Clip(FOR BATTERY SERVICE HOLE COVER)
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-07050-C0 note |
Carpet Assy, Floor, Front
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58510-07060-C0 note |
Carpet Assy, Floor, Front
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58510-07050-C0 note |
Carpet Assy, Floor, Front
2021-06 → 2023-03
ended
|
AXXA50;MXXA50 B,G | — | |
| 58510-07050-C0 note |
Carpet Assy, Floor, Front
2021-06 → 2023-03
ended
|
MXXA50 E | — | |
| 58510-07060-C0 note |
Carpet Assy, Floor, Front
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 58510-07060-C0 note |
Carpet Assy, Floor, Front
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 58510-07050-C0 note |
Carpet Assy, Floor, Front
2023-04 → 2024-07
ended
|
MXXA50 E | — | |
| 58510-07050-C0 note |
Carpet Assy, Floor, Front
2023-04 → 2024-07
ended
|
MXXA50 B | — | |
| 58510-07050-C0 note |
Carpet Assy, Floor, Front
2023-04 → —
|
AXXA50;MXXA50 G | — | |
| 58510-07060-C0 note |
Carpet Assy, Floor, Front
2023-04 → —
|
AXXH50 | — | |
| 58510-YK030-C0 note |
Carpet Assy, Floor, Front
2024-07 → —
|
MXXA50 B,E | — | |
| 58510-YK040-C0 note |
Carpet Assy, Floor, Front
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 58511 — Mat, Floor, Front | ||||
| 58511-07040 |
Mat, Floor, Front
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58511-07050 |
Mat, Floor, Front
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58511-07040 |
Mat, Floor, Front
2021-06 → 2022-02
ended
|
AXXA50,MXXA50 | — | |
| 58511-07050 |
Mat, Floor, Front
2021-07 → 2022-02
ended
|
AXXH50 | — | |
| 58511-07070 |
Mat, Floor, Front
2022-03 → 2023-03
ended
|
AXXA50,MXXA50 | — | |
| 58511-07080 |
Mat, Floor, Front
2022-03 → 2023-03
ended
|
AXXH50 | — | |
| 58511-07070 |
Mat, Floor, Front
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 58511-07070 |
Mat, Floor, Front
2023-04 → —
|
AXXA50;MXXA50 G | — | |
| 58511-07080 |
Mat, Floor, Front
2023-04 → —
|
AXXH50 | — | |
| 58511-YK010 |
Mat, Floor, Front
2024-07 → —
|
MXXA50 B,E | — | |
| 58511-YK020 |
Mat, Floor, Front
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 58511E — Clip(FOR FRONT FLOOR MAT) | ||||
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2019-03 → 2021-06
ended
|
AXXA50;MXXA50 B,G | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2019-03 → 2021-07
ended
|
AXXH50 E | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2019-03 → 2021-07
ended
|
AXXH50 B,G,Q | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2019-03 → 2021-06
ended
|
MXXA50 E | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2021-06 → 2023-03
ended
|
MXXA50 E | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2021-06 → 2023-03
ended
|
AXXA50;AXXH50,MXXA50 B,G,Q | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2023-04 → 2024-07
ended
|
MXXA50 B | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2023-04 → 2024-07
ended
|
MXXA50 E | — | |
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58521B — Hook, Floor Carpet | ||||
| 58521-06180 |
Hook, Floor Carpet
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58521-06180 |
Hook, Floor Carpet
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58521-06180 |
Hook, Floor Carpet
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 58521-06180 |
Hook, Floor Carpet
2021-06 → 2023-03
ended
|
AXXA50,MXXA50;AXXH50 B,G,Q | — | |
| 58521-06180 |
Hook, Floor Carpet
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 58521-06180 |
Hook, Floor Carpet
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 58521-06180 |
Hook, Floor Carpet
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58530B — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2021-06 → 2023-03
ended
|
AXXA50,MXXA50 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2021-06 → 2023-03
ended
|
AXXA50,MXXA50 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2023-04 → —
|
AXXH50 | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2023-04 → —
|
AXXA50;MXXA50 G | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2023-04 → —
|
AXXH50 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2023-04 → —
|
AXXA50;MXXA50 G | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2024-07 → —
|
MXXA50 B,E | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2024-07 → —
|
MXXA50 B,E | — | |
| 58543B — Bracket, Floor Carpet, RH | ||||
| 58543-07020 |
Bracket, Floor Carpet, RH
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58543-07020 |
Bracket, Floor Carpet, RH
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58543-07020 |
Bracket, Floor Carpet, RH
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 58543-07020 |
Bracket, Floor Carpet, RH
2021-06 → 2023-03
ended
|
AXXA50,MXXA50;AXXH50 B,G,Q | — | |
| 58543-07020 |
Bracket, Floor Carpet, RH
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 58543-07020 |
Bracket, Floor Carpet, RH
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 58543-YK010 |
Bracket, Floor Carpet, RH
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58544B — Bracket, Floor Carpet, LH | ||||
| 58544-07030 |
Bracket, Floor Carpet, LH
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58544-07030 |
Bracket, Floor Carpet, LH
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58544-07030 |
Bracket, Floor Carpet, LH
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 58544-07030 |
Bracket, Floor Carpet, LH
2021-06 → 2023-03
ended
|
AXXA50,MXXA50;AXXH50 B,G,Q | — | |
| 58544-07030 |
Bracket, Floor Carpet, LH
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 58544-07030 |
Bracket, Floor Carpet, LH
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 58544-YK010 |
Bracket, Floor Carpet, LH
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58565B — Clip | ||||
| 90467-C0026 |
Clip
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 90467-C0026 |
Clip
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 90467-C0026 |
Clip
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 90467-C0026 |
Clip
2021-06 → 2023-03
ended
|
AXXA50,MXXA50;AXXH50 B,G,Q | — | |
| 90467-C0026 |
Clip
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 90467-C0026 |
Clip
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 90467-C0026 |
Clip
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58569D — Cover, Front Floor Caution Plate | ||||
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2021-06 → 2023-03
ended
|
AXXA50;AXXH50,MXXA50 B,G,Q | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2021-06 → 2023-03
ended
|
MXXA50 E | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2023-04 → 2024-07
ended
|
MXXA50 E | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2023-04 → 2024-07
ended
|
MXXA50 B | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 58569-07020-C0 note |
Cover, Front Floor Caution Plate
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58694B — Plate, Mat Set, Upper | ||||
| 58694-78010 |
Plate, Mat Set, Upper
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2021-06 → 2023-03
ended
|
AXXA50,MXXA50;AXXH50 B,G,Q | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 58698C — Plate, Mat Set, Lower | ||||
| 58698-78010 |
Plate, Mat Set, Lower
2019-03 → 2021-06
ended
|
AXXA50,MXXA50 | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2019-03 → 2021-07
ended
|
AXXH50 | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2021-06 → 2022-02
ended
|
AXXH50 E | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2021-06 → 2023-03
ended
|
AXXA50,MXXA50;AXXH50 B,G,Q | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2023-04 → 2024-07
ended
|
MXXA50 B,E | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2023-04 → —
|
MXXA50 G;AXXA50,AXXH50 | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2024-07 → —
|
MXXA50 B,E;AXXH52,MXXH50 | — | |
| 76971G — Cover, Rear Under | ||||
| 76971-07010 |
Cover, Rear Under
2019-03 → 2021-05
ended
|
AXXH50 | — | |
| 76971-07010 |
Cover, Rear Under
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 76971-07010 |
Cover, Rear Under
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 76971-07010 |
Cover, Rear Under
2023-04 → —
|
AXXH50 | — | |
| 76971-07010 |
Cover, Rear Under
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 76973F — Cover, Rear Under Side, RH | ||||
| 76973-07010 |
Cover, Rear Under Side, RH
2019-03 → 2021-03
ended
|
AXXH50 | — | |
| 76973-07011 |
Cover, Rear Under Side, RH
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 76973-07011 |
Cover, Rear Under Side, RH
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 76973-07011 |
Cover, Rear Under Side, RH
2023-04 → —
|
AXXH50 | — | |
| 76973-YK010 note |
Cover, Rear Under Side, RH
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 76973-YK020 note |
Cover, Rear Under Side, RH
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 76974F — Cover, Rear Under Side, LH | ||||
| 76974-07010 |
Cover, Rear Under Side, LH
2019-03 → 2021-05
ended
|
AXXH50 | — | |
| 76974-07010 |
Cover, Rear Under Side, LH
2021-07 → 2022-02
ended
|
AXXH50 E | — | |
| 76974-07010 |
Cover, Rear Under Side, LH
2021-07 → 2023-03
ended
|
AXXH50 B,G,Q | — | |
| 76974-07010 |
Cover, Rear Under Side, LH
2023-04 → —
|
AXXH50 | — | |
| 76974-YK010 note |
Cover, Rear Under Side, LH
2024-07 → —
|
AXXH52,MXXH50 | — | |
| 76974-YK020 note |
Cover, Rear Under Side, LH
2024-07 → —
|
AXXH52,MXXH50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
