Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

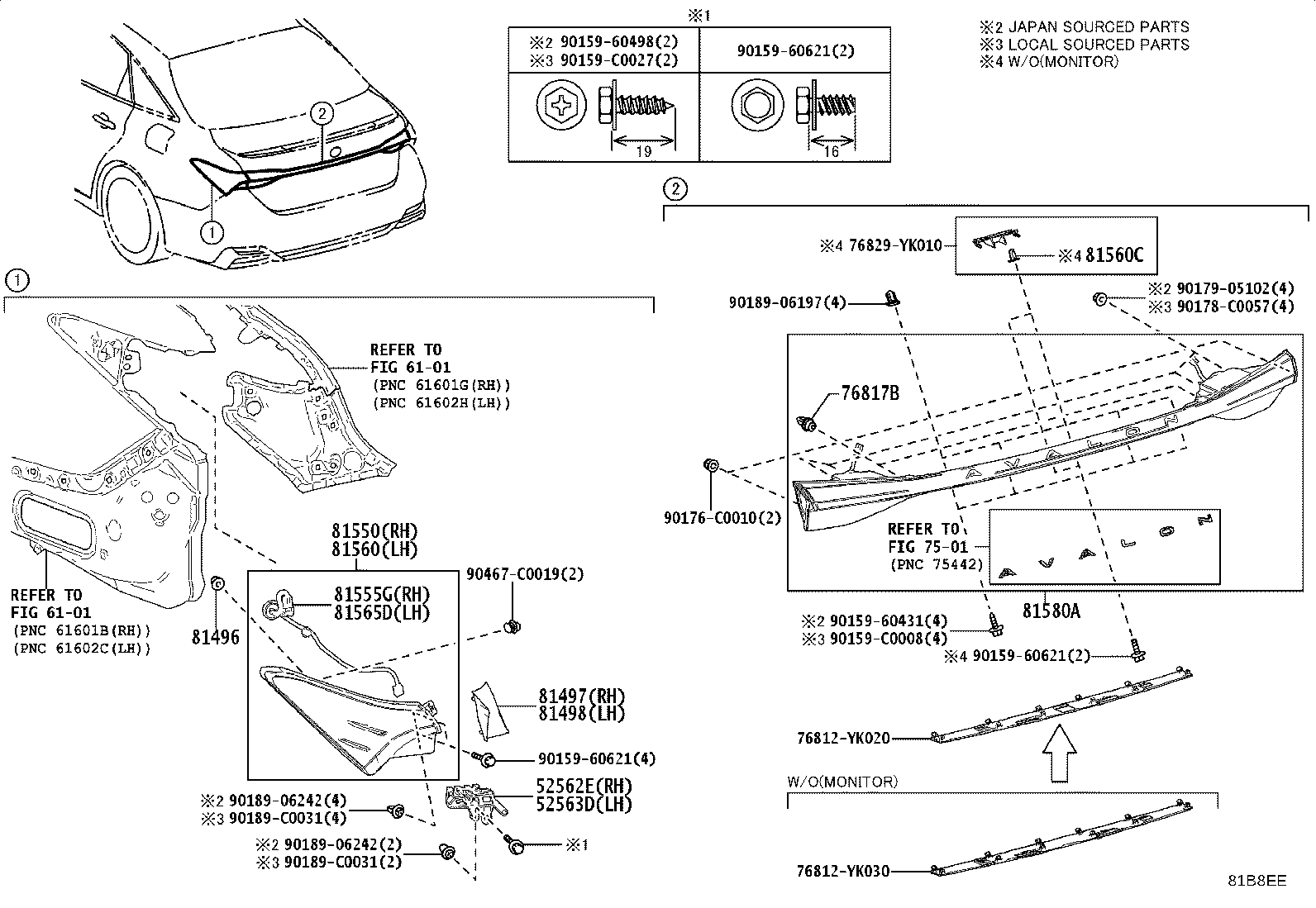

Exploded illustration 81B8EE 52562E — RETAINER, REAR BUMPER, UPPER RH (7 parts) 52563D — RETAINER, REAR BUMPER, UPPER LH (7 parts) 81496 — GUIDE, REAR COMBINATION LAMP (7 parts) 81555G — CORD, REAR COMBINATION LAMP, RH (7 parts) 81565D — CORD, REAR COMBINATION LAMP, LH (7 parts) 9015960621 — not listed in this catalogue 90467C0019 — not listed in this catalogue 9015960498 — not listed in this catalogue 90159C0027 — not listed in this catalogue 9015960621 — not listed in this catalogue 9018906242 — not listed in this catalogue 90189C0031 — not listed in this catalogue 9018906242 — not listed in this catalogue 90189C0031 — not listed in this catalogue 81497 — COVER, REAR COMBINATION LAMP, RH (7 parts) 76817B — CLIP, REAR LAMP (13 parts) 81498 — COVER, REAR COMBINATION LAMP, LH (7 parts) 6101 — not listed in this catalogue 6101 — not listed in this catalogue 7501 — not listed in this catalogue 90176C0010 — not listed in this catalogue 9015960431 — not listed in this catalogue 90159C0008 — not listed in this catalogue 9018906197 — not listed in this catalogue 9017905102 — not listed in this catalogue 90178C0057 — not listed in this catalogue 76812YK020 — not listed in this catalogue 81550 — LAMP ASSY, REAR COMBINATION, RH (8 parts) 81560 — LAMP ASSY, REAR COMBINATION, LH (8 parts) 76812YK030 — not listed in this catalogue 81560C — GROMMET (1 parts) 76829YK010 — not listed in this catalogue 9015960621 — not listed in this catalogue 81580A — LAMP ASSY, REAR (1 parts)
81B8EE · 12 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
52562E — Retainer, Rear Bumper, Upper RH
52562-07020 Retainer, Rear Bumper, Upper RH
2019-03 → 2021-07 ended
AXXH50 —
52562-07020 Retainer, Rear Bumper, Upper RH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
52562-07020 Retainer, Rear Bumper, Upper RH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
52562-07020 Retainer, Rear Bumper, Upper RH
2021-06 → 2022-02 ended
AXXH50 E —
52562-07020 Retainer, Rear Bumper, Upper RH
2023-04 → 2024-07 ended
MXXA50 B,E —
52562-07020 Retainer, Rear Bumper, Upper RH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
52562-07020 Retainer, Rear Bumper, Upper RH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
52563D — Retainer, Rear Bumper, Upper LH
52563-07020 Retainer, Rear Bumper, Upper LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
52563-07020 Retainer, Rear Bumper, Upper LH
2019-03 → 2021-07 ended
AXXH50 —
52563-07020 Retainer, Rear Bumper, Upper LH
2021-06 → 2022-02 ended
AXXH50 E —
52563-07020 Retainer, Rear Bumper, Upper LH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
52563-07020 Retainer, Rear Bumper, Upper LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
52563-07020 Retainer, Rear Bumper, Upper LH
2023-04 → 2024-07 ended
MXXA50 B,E —
52563-07020 Retainer, Rear Bumper, Upper LH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
76817B — Clip, Rear Lamp
76817-26040 Clip, Rear Lamp
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
76817-26040 Clip, Rear Lamp
2019-03 → 2021-07 ended
AXXH50 —
76817-26040 Clip, Rear Lamp
2021-06 → 2021-07 ended
AXXA50,MXXA50 —
76817-26040 note Clip, Rear Lamp
2021-07 → 2022-02 ended
AXXH50 E —
76817-26040 note Clip, Rear Lamp
2021-07 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
90467-C0083 note Clip, Rear Lamp
2021-07 → 2022-02 ended
AXXH50 E —
90467-C0083 note Clip, Rear Lamp
2021-07 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
76817-26040 note Clip, Rear Lamp
2023-04 → 2024-07 ended
MXXA50 B,E —
76817-26040 note Clip, Rear Lamp
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
90467-C0083 note Clip, Rear Lamp
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
90467-C0083 note Clip, Rear Lamp
2023-04 → 2024-07 ended
MXXA50 B,E —
90467-09206 note Clip, Rear Lamp
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
90467-C0033 note Clip, Rear Lamp
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81496 — Guide, Rear Combination Lamp
81496-02020 Guide, Rear Combination Lamp
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
81496-02020 Guide, Rear Combination Lamp
2019-03 → 2021-07 ended
AXXH50 —
81496-02020 Guide, Rear Combination Lamp
2021-06 → 2022-02 ended
AXXH50 E —
81496-02020 Guide, Rear Combination Lamp
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81496-02020 Guide, Rear Combination Lamp
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81496-02020 Guide, Rear Combination Lamp
2023-04 → 2024-07 ended
MXXA50 B,E —
81496-02020 Guide, Rear Combination Lamp
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81497 — Cover, Rear Combination Lamp, RH
81497-07020 Cover, Rear Combination Lamp, RH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
81497-07020 Cover, Rear Combination Lamp, RH
2019-03 → 2021-07 ended
AXXH50 —
81497-07020 Cover, Rear Combination Lamp, RH
2021-06 → 2022-02 ended
AXXH50 E —
81497-07020 Cover, Rear Combination Lamp, RH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81497-07020 Cover, Rear Combination Lamp, RH
2023-04 → 2024-07 ended
MXXA50 B,E —
81497-07020 Cover, Rear Combination Lamp, RH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81497-07020 Cover, Rear Combination Lamp, RH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81498 — Cover, Rear Combination Lamp, LH
81498-07020 Cover, Rear Combination Lamp, LH
2019-03 → 2021-07 ended
AXXH50 —
81498-07020 Cover, Rear Combination Lamp, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
81498-07020 Cover, Rear Combination Lamp, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81498-07020 Cover, Rear Combination Lamp, LH
2021-06 → 2022-02 ended
AXXH50 E —
81498-07020 Cover, Rear Combination Lamp, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
81498-07020 Cover, Rear Combination Lamp, LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81498-07020 Cover, Rear Combination Lamp, LH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81550 — Lamp Assy, Rear Combination, RH
81550-07110 Lamp Assy, Rear Combination, RH
2019-03 → 2019-04 ended
AXXA50,AXXH50 —
81550-07111 Lamp Assy, Rear Combination, RH
2019-05 → 2021-06 ended
AXXA50,MXXA50 —
81550-07111 Lamp Assy, Rear Combination, RH
2019-05 → 2021-07 ended
AXXH50 —
81550-07111 Lamp Assy, Rear Combination, RH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81550-07111 Lamp Assy, Rear Combination, RH
2021-06 → 2022-02 ended
AXXH50 E —
81550-07111 Lamp Assy, Rear Combination, RH
2023-04 → 2024-07 ended
MXXA50 B,E —
81550-07111 Lamp Assy, Rear Combination, RH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81550-YK050 Lamp Assy, Rear Combination, RH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81555G — Cord, Rear Combination Lamp, RH
81555-07110 Cord, Rear Combination Lamp, RH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
81555-07110 Cord, Rear Combination Lamp, RH
2019-03 → 2021-07 ended
AXXH50 —
81555-07110 Cord, Rear Combination Lamp, RH
2021-06 → 2022-02 ended
AXXH50 E —
81555-07110 Cord, Rear Combination Lamp, RH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81555-07110 Cord, Rear Combination Lamp, RH
2023-04 → 2024-07 ended
MXXA50 B,E —
81555-07110 Cord, Rear Combination Lamp, RH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81555-YK050 Cord, Rear Combination Lamp, RH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81560 — Lamp Assy, Rear Combination, LH
81560-07110 Lamp Assy, Rear Combination, LH
2019-03 → 2019-04 ended
AXXA50,AXXH50 —
81560-07111 Lamp Assy, Rear Combination, LH
2019-05 → 2021-06 ended
AXXA50,MXXA50 —
81560-07111 Lamp Assy, Rear Combination, LH
2019-05 → 2021-07 ended
AXXH50 —
81560-07111 Lamp Assy, Rear Combination, LH
2021-06 → 2022-02 ended
AXXH50 E —
81560-07111 Lamp Assy, Rear Combination, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81560-07111 Lamp Assy, Rear Combination, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
81560-07111 Lamp Assy, Rear Combination, LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81560-YK050 Lamp Assy, Rear Combination, LH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81560C — Grommet
90189-06244 Grommet
2024-07 → —
MXXA50,MXXH50 E —
81565D — Cord, Rear Combination Lamp, LH
81555-07110 Cord, Rear Combination Lamp, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
81555-07110 Cord, Rear Combination Lamp, LH
2019-03 → 2021-07 ended
AXXH50 —
81555-07110 Cord, Rear Combination Lamp, LH
2021-06 → 2022-02 ended
AXXH50 E —
81555-07110 Cord, Rear Combination Lamp, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
81555-07110 Cord, Rear Combination Lamp, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
81555-07110 Cord, Rear Combination Lamp, LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
81555-YK050 Cord, Rear Combination Lamp, LH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81580A — Lamp Assy, Rear
81580-YK050 Lamp Assy, Rear
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
