Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

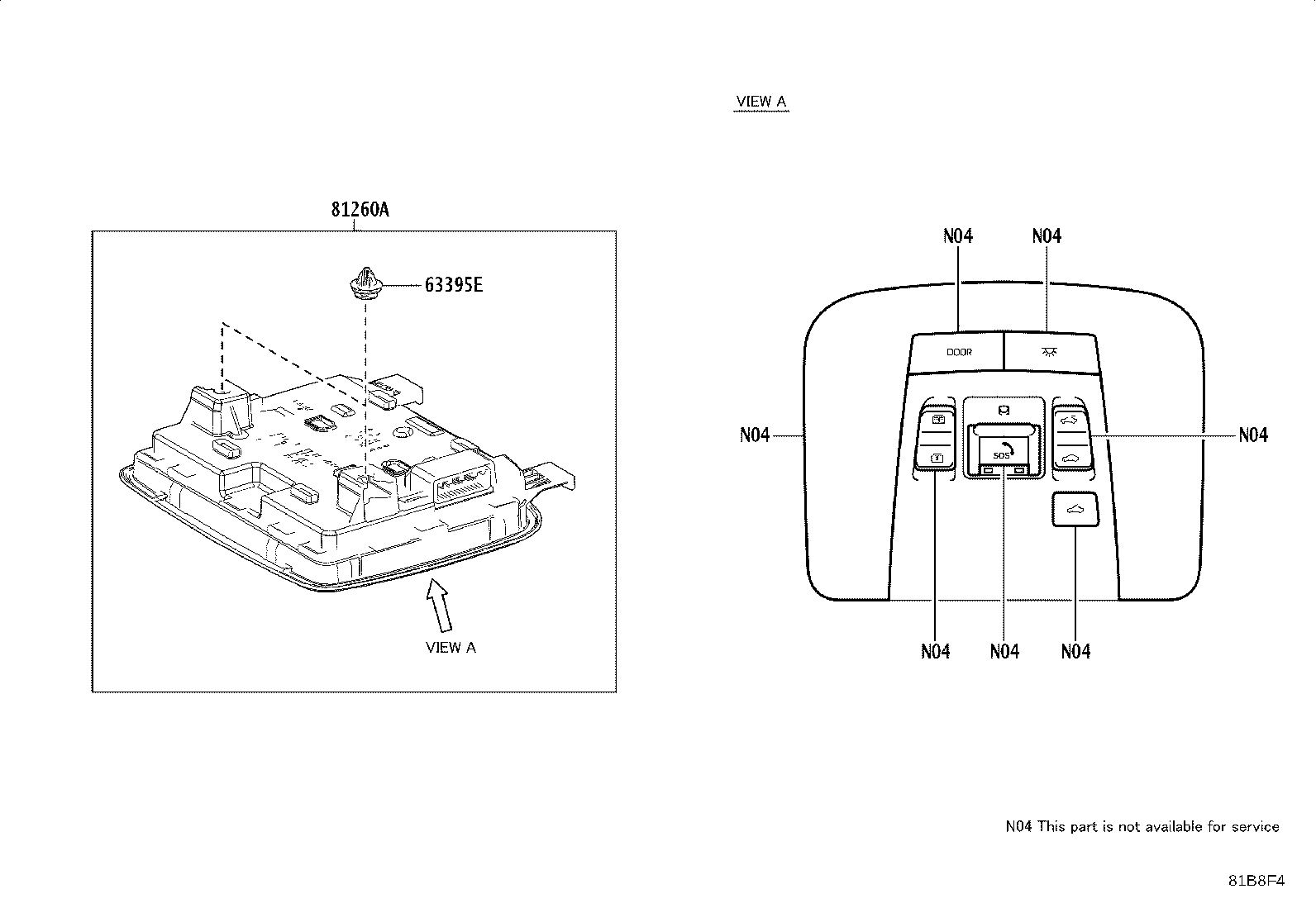

Exploded illustration 81B8F4 63395E — CLIP(FOR MAP LAMP) (8 parts) 81260A — LAMP ASSY, MAP (48 parts)
81B8F4 · 2 callouts Full size ↗
56 parts on this figure
Part number Description Fitment Price
63395E — Clip(FOR MAP LAMP)
90467-09240 Clip(FOR MAP LAMP)
2019-03 → 2021-07 ended
AXXH50 —
90467-09240 Clip(FOR MAP LAMP)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
90467-09240 Clip(FOR MAP LAMP)
2021-06 → 2023-03 ended
AXXH50 Q —
90467-09240 Clip(FOR MAP LAMP)
2022-03 → 2023-03 ended
AXXA50,AXXH50,MXXA50 B,E,G —
90467-09240 Clip(FOR MAP LAMP)
2021-06 → 2022-02 ended
AXXA50,AXXH50,MXXA50 B,E,G —
90467-09240 Clip(FOR MAP LAMP)
2023-04 → 2024-07 ended
MXXA50 B,E —
90467-09240 Clip(FOR MAP LAMP)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
90467-09240 Clip(FOR MAP LAMP)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
81260A — Lamp Assy, Map
63650-06B60-B1 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXA50,AXXH50 B,E —
63650-06B60-E0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXH50 B —
63650-06B61-B1 note Lamp Assy, Map
2020-08 → 2021-06 ended
AXXA50 G —
63650-06B61-B1 note Lamp Assy, Map
2019-06 → 2021-07 ended
AXXH50 B,E —
63650-06B61-B1 note Lamp Assy, Map
2019-06 → 2021-06 ended
MXXA50;AXXA50 E —
63650-06B61-E0 note Lamp Assy, Map
2019-06 → 2021-07 ended
AXXH50 B —
63650-06B61-E0 note Lamp Assy, Map
2019-06 → 2021-06 ended
AXXA50 E;MXXA50 B,G —
63650-07220-B0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXH50 G —
63650-07220-B0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXA50 G —
63650-07220-E0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXH50 G —
63650-07220-E0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXA50 G —
63650-07221-B0 note Lamp Assy, Map
2019-06 → 2021-07 ended
AXXH50 G —
63650-07221-B0 note Lamp Assy, Map
2019-10 → 2020-08 ended
MXXA50 G —
63650-07221-B0 note Lamp Assy, Map
2019-06 → 2021-06 ended
AXXA50 G —
63650-07221-E0 note Lamp Assy, Map
2019-06 → 2021-07 ended
AXXH50 G —
63650-07221-E0 note Lamp Assy, Map
2019-06 → 2021-06 ended
AXXA50 G —
63650-07221-E0 note Lamp Assy, Map
2019-10 → 2020-08 ended
MXXA50 G —
63650-07230-B0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXH50 Q —
63650-07230-E0 note Lamp Assy, Map
2019-03 → 2019-05 ended
AXXH50 Q —
63650-07231-B0 note Lamp Assy, Map
2019-06 → 2021-07 ended
AXXH50 Q —
63650-07231-E0 note Lamp Assy, Map
2019-06 → 2021-07 ended
AXXH50 Q —
63650-06B61-B1 note Lamp Assy, Map
2021-06 → 2022-02 ended
AXXA50 G —
63650-06B61-B1 note Lamp Assy, Map
2021-06 → 2022-02 ended
MXXA50;AXXA50,AXXH50 B,E —
63650-06B61-E0 note Lamp Assy, Map
2021-06 → 2022-02 ended
AXXA50 E;AXXH50 B;MXXA50 B,G —
63650-06C30-B1 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXA50,MXXA50 E —
63650-07221-B0 note Lamp Assy, Map
2021-06 → 2022-02 ended
AXXA50,AXXH50 G —
63650-07221-E0 note Lamp Assy, Map
2021-06 → 2022-02 ended
AXXA50,AXXH50 G —
63650-07231-B0 note Lamp Assy, Map
2021-07 → 2022-03 ended
AXXH50 Q —
63650-07231-E0 note Lamp Assy, Map
2021-07 → 2022-03 ended
AXXH50 Q —
63650-07250-B0 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXH50 B;MXXA50 B,G —
63650-07250-B0 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXA50 E —
63650-07250-E0 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXH50 B;MXXA50 B,G —
63650-07250-E0 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXA50 E —
63650-07260-B0 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXA50,AXXH50 G,Q —
63650-07260-E0 note Lamp Assy, Map
2022-03 → 2023-03 ended
AXXA50,AXXH50 G,Q —
63650-06C30-B1 note Lamp Assy, Map
2023-04 → 2024-07 ended
MXXA50 E —
63650-06C30-B1 note Lamp Assy, Map
2023-04 → —
AXXH50 E —
63650-06C30-E0 note Lamp Assy, Map
2023-04 → —
AXXH50 E —
63650-07250-B0 note Lamp Assy, Map
2023-04 → 2024-07 ended
MXXA50 B —
63650-07250-B0 note Lamp Assy, Map
2023-04 → —
MXXA50 G;AXXA50,AXXH50 B —
63650-07250-E0 note Lamp Assy, Map
2023-04 → 2024-07 ended
MXXA50 B —
63650-07250-E0 note Lamp Assy, Map
2023-04 → —
MXXA50 G;AXXA50,AXXH50 B —
63650-07260-B0 note Lamp Assy, Map
2023-04 → —
AXXA50,AXXH50 G,Q —
63650-07260-E0 note Lamp Assy, Map
2023-04 → —
AXXA50,AXXH50 G,Q —
63650-YK010-C0 note Lamp Assy, Map
2024-07 → —
MXXA50 E —
63650-YK020-C0 note Lamp Assy, Map
2024-07 → —
MXXA50 B;AXXH52,MXXH50 B,E,G —
63650-YK020-C0 note Lamp Assy, Map
2024-07 → —
MXXA50 E —
63650-YK030-C0 note Lamp Assy, Map
2024-07 → —
AXXH52,MXXH50 Q —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
