Timing Gear Cover & Rear End Plate

11 part groups · 4 illustrations

Illustrations

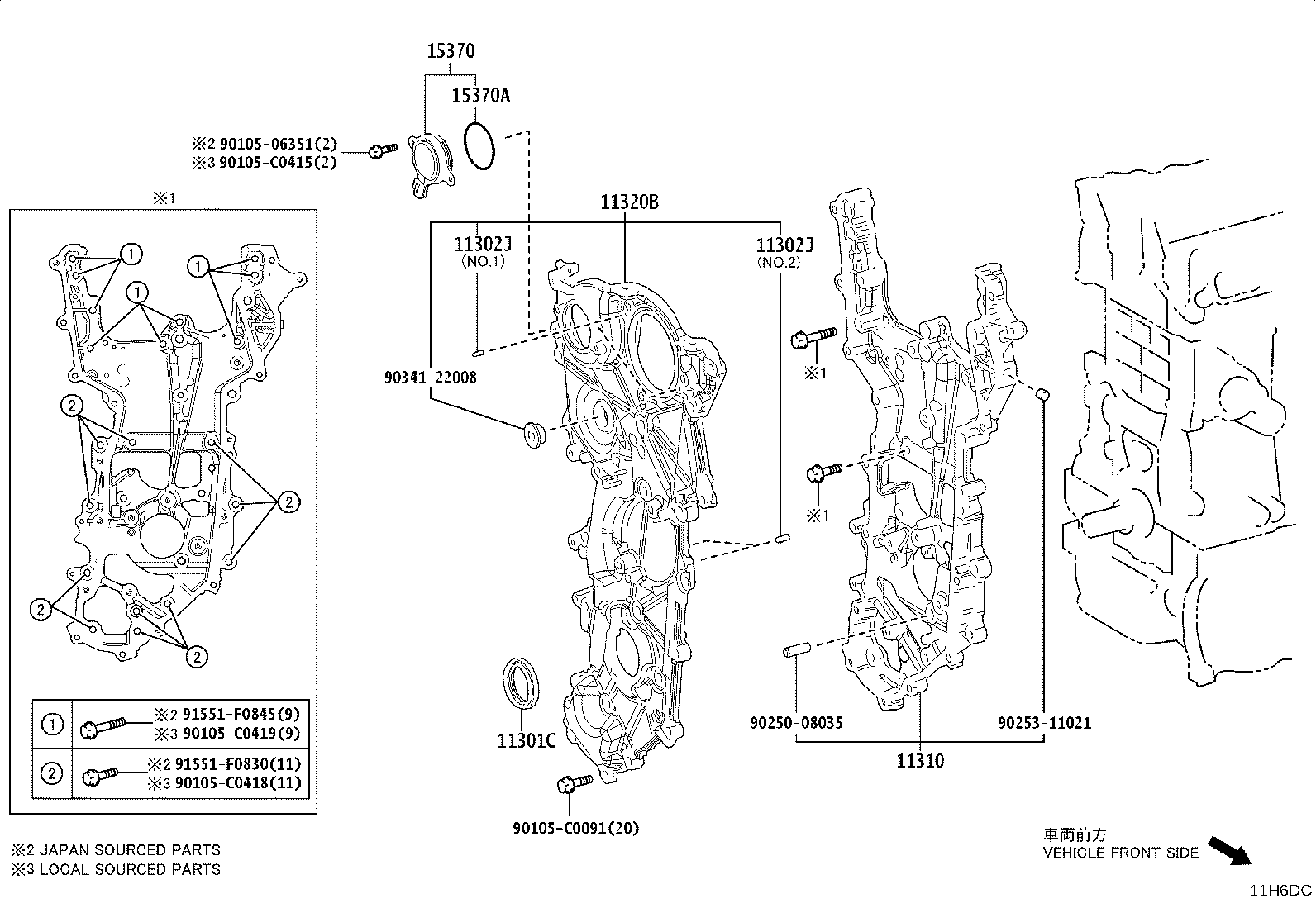

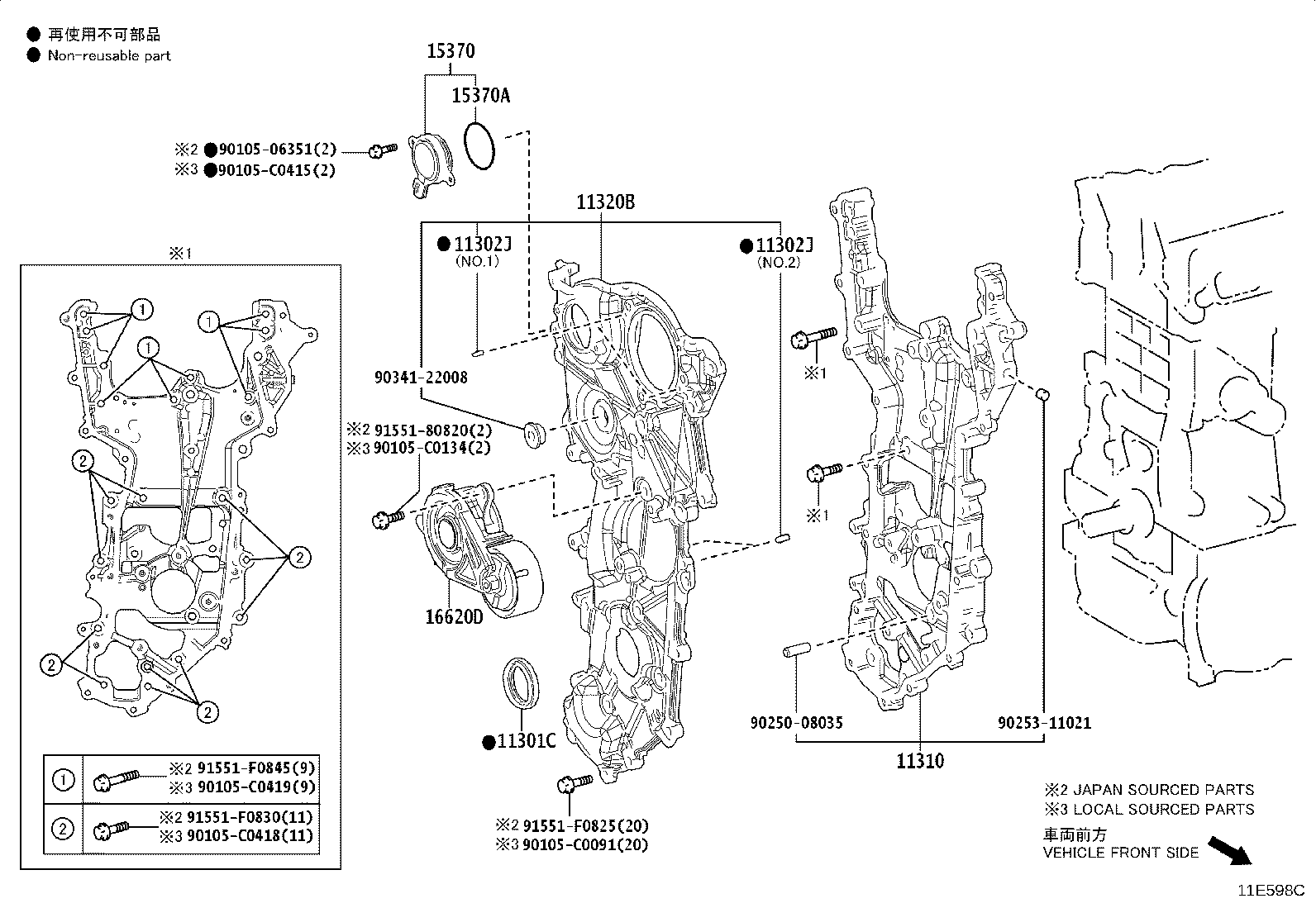

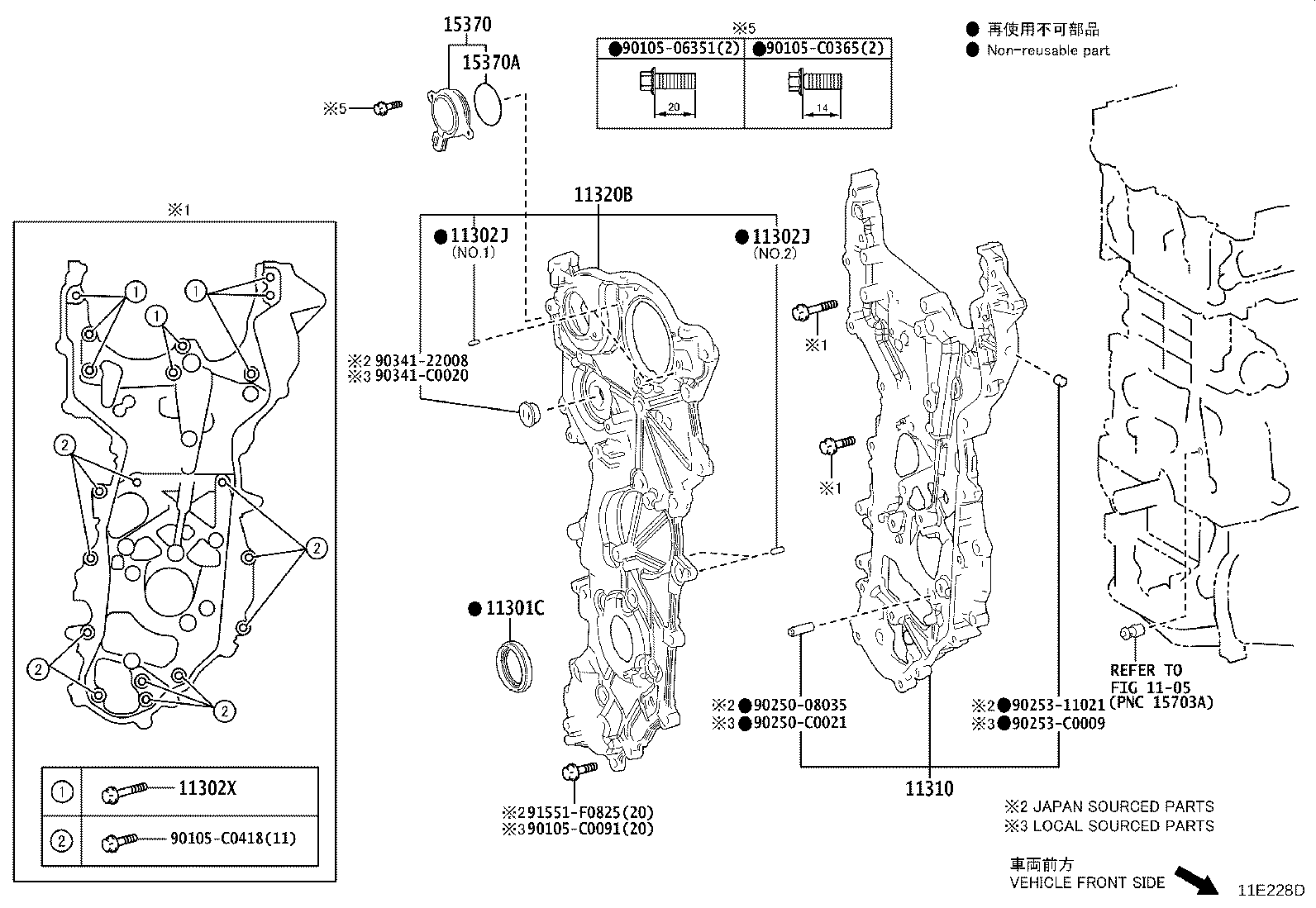

Figure 11E227F 11E227F 2019-03 → — Figure 11E228D 11E228D 2019-03 → — Figure 11E598C 11E598C 2019-10 → — Figure 11H6DC 11H6DC 2024-07 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302X Bolt, Flange
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11323C Cover, Timing Chain, NO.3
11336A Insulator, Timing Gear Cover
12602C Cover, Engine, NO.2
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
