Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

51 part groups · 7 illustrations

Illustrations

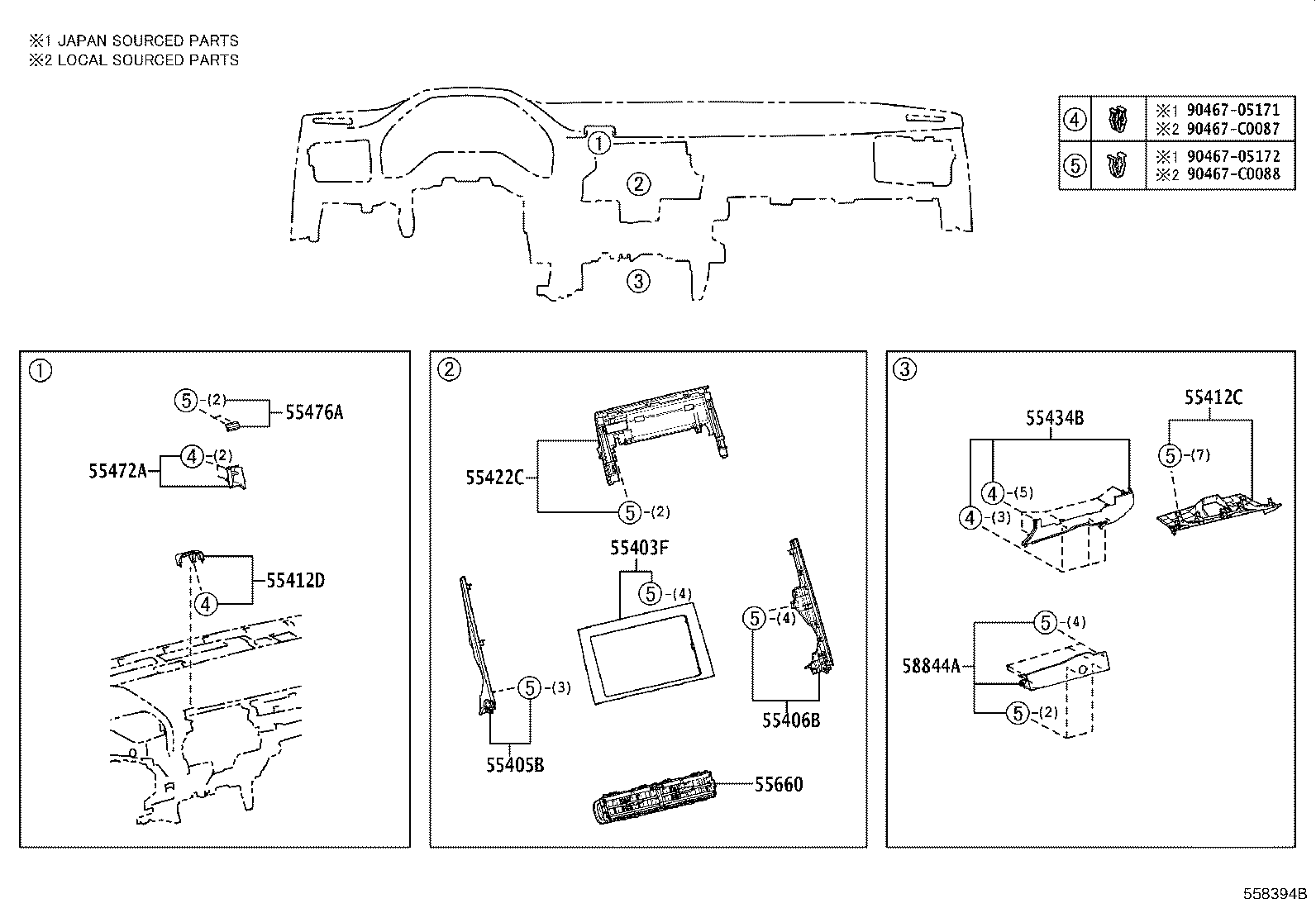

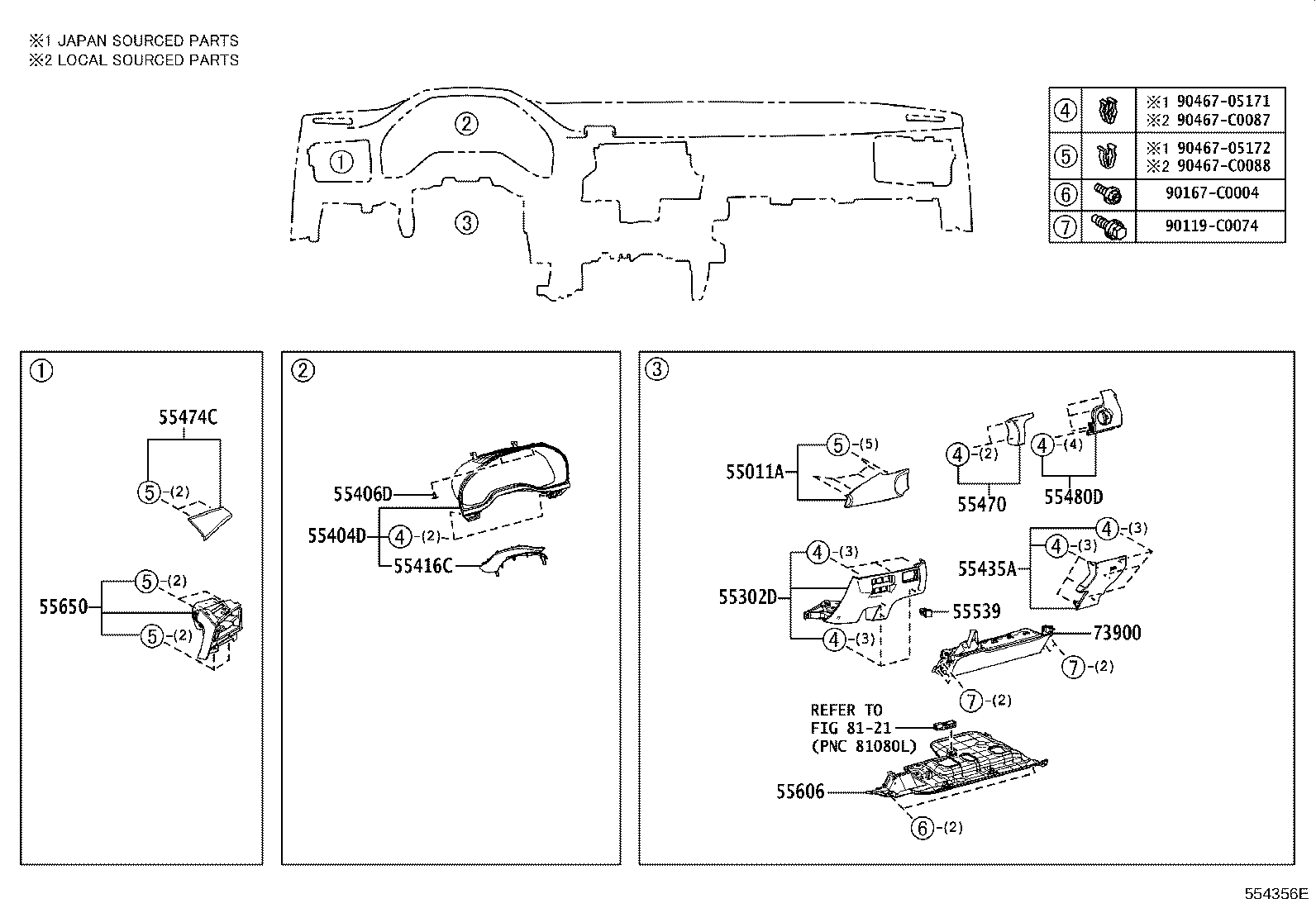

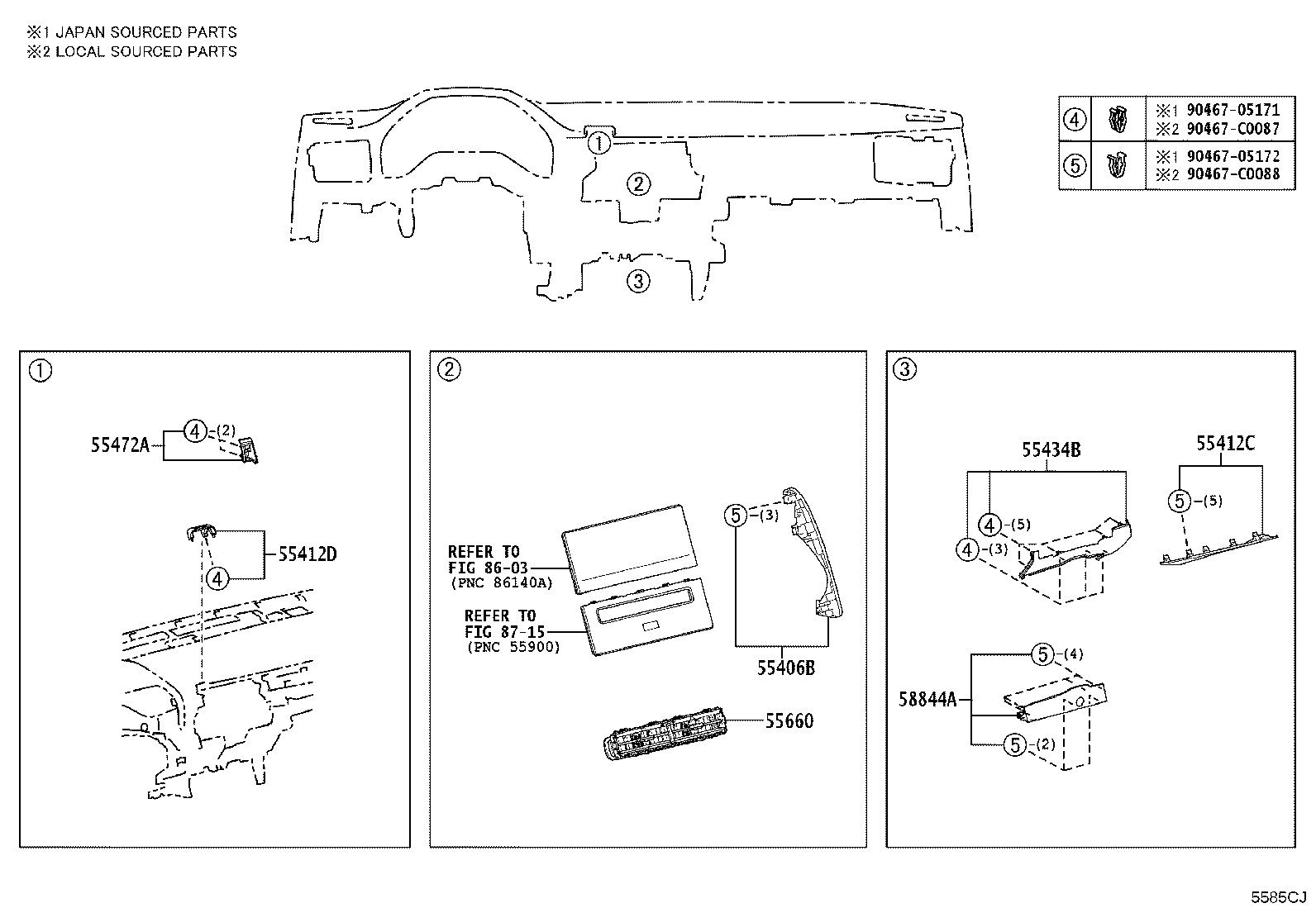

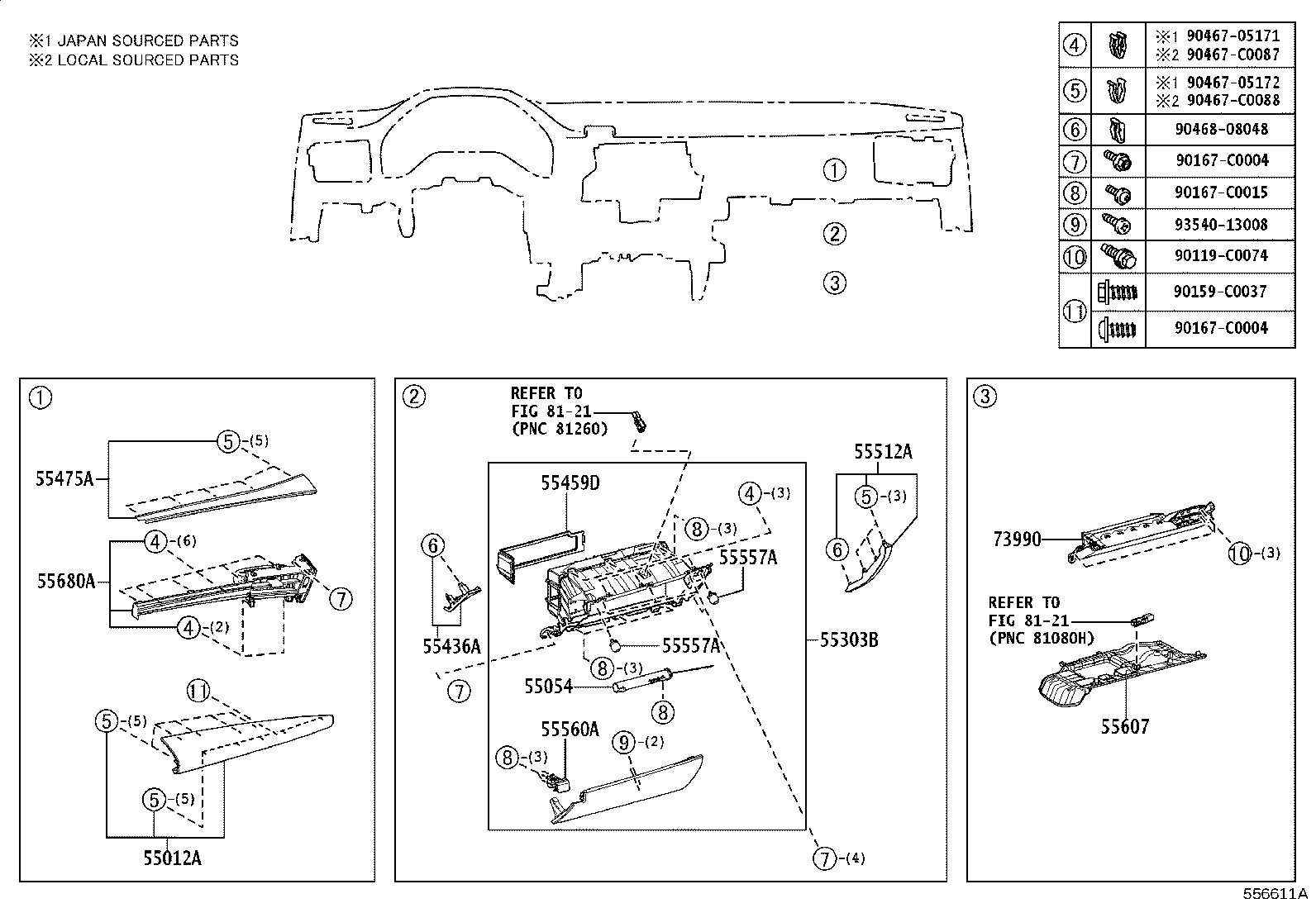

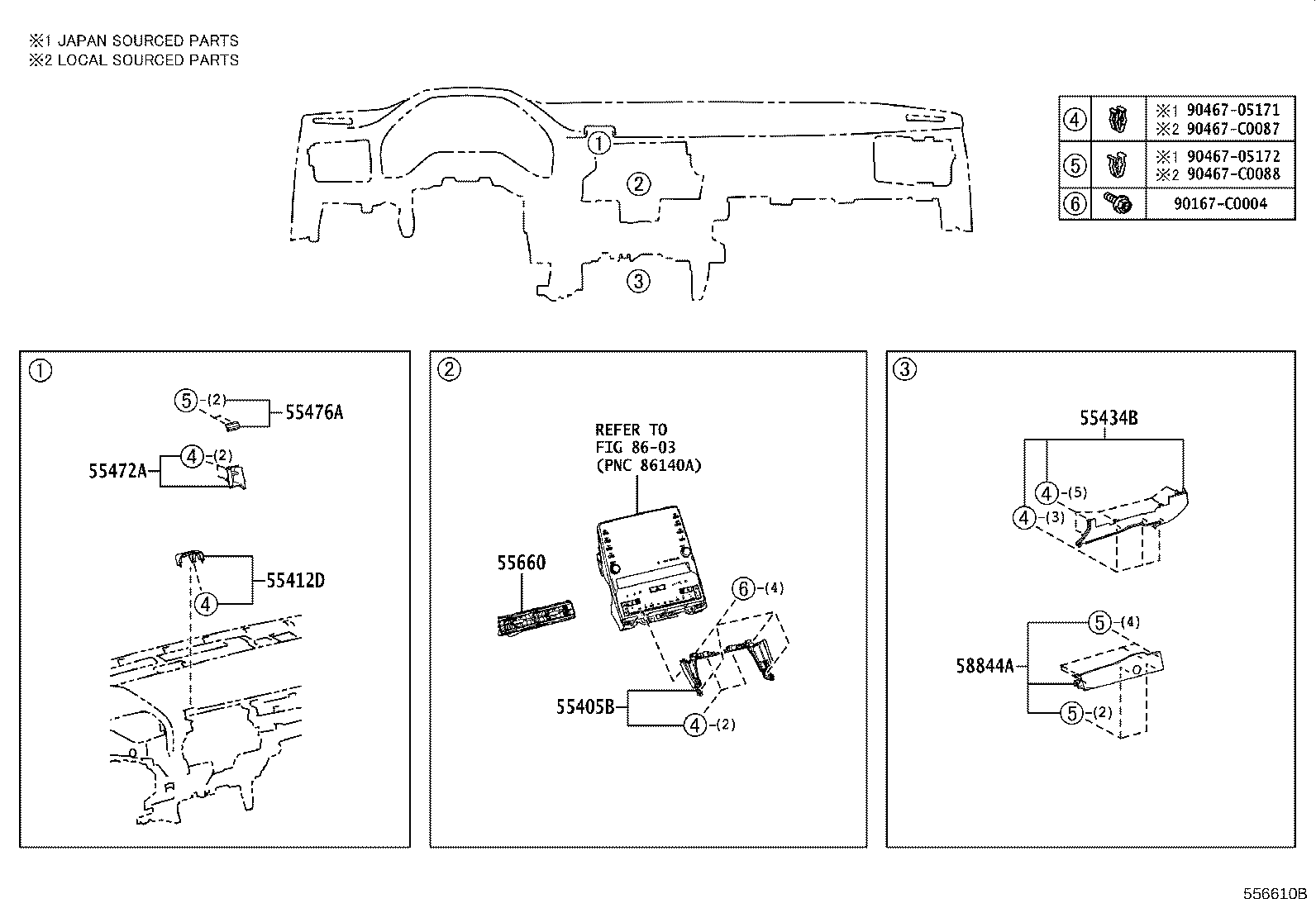

Figure 554355E 554355E 2019-03 → — Figure 554356E 554356E 2019-03 → — Figure 556610B 556610B 2019-03 → 2022-03 Figure 558394B 558394B 2022-03 → 2024-07 Figure 558394B 558394B 2024-07 → — Figure 5585CJ 5585CJ 2024-07 → — Figure 556611A 556611A 2019-03 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55302D Panel Sub-assy, Instrument, Lower, NO.1
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307E Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55349A Cushion, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55403F Panel Sub-assy, Instrument Panel Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55412C Panel, Instrument Cluster Finish, Center NO.1
55412D Panel, Instrument Cluster Finish, Center
55416C Retainer, Instrument Cluster Finish Panel
55422C Panel, Instrument Cluster Finish, Center Upper
55434B Panel, Instrument Panel Finish, Lower Center
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55459D Cover, Instrument, Lower LH
55470 Garnish Assy, Instrument Cluster Finish Panel
55472A Moulding, Instrument Cluster, NO.2
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55480D Panel Assy, Instrument Panel Finish, Lwr
55512A Plate, Glove Compartment
55539 Cover, Spare Switch Hole
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55680A Register Assy, Instrument Panel, NO.4
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58844A Bezel, Console Box
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
