Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06

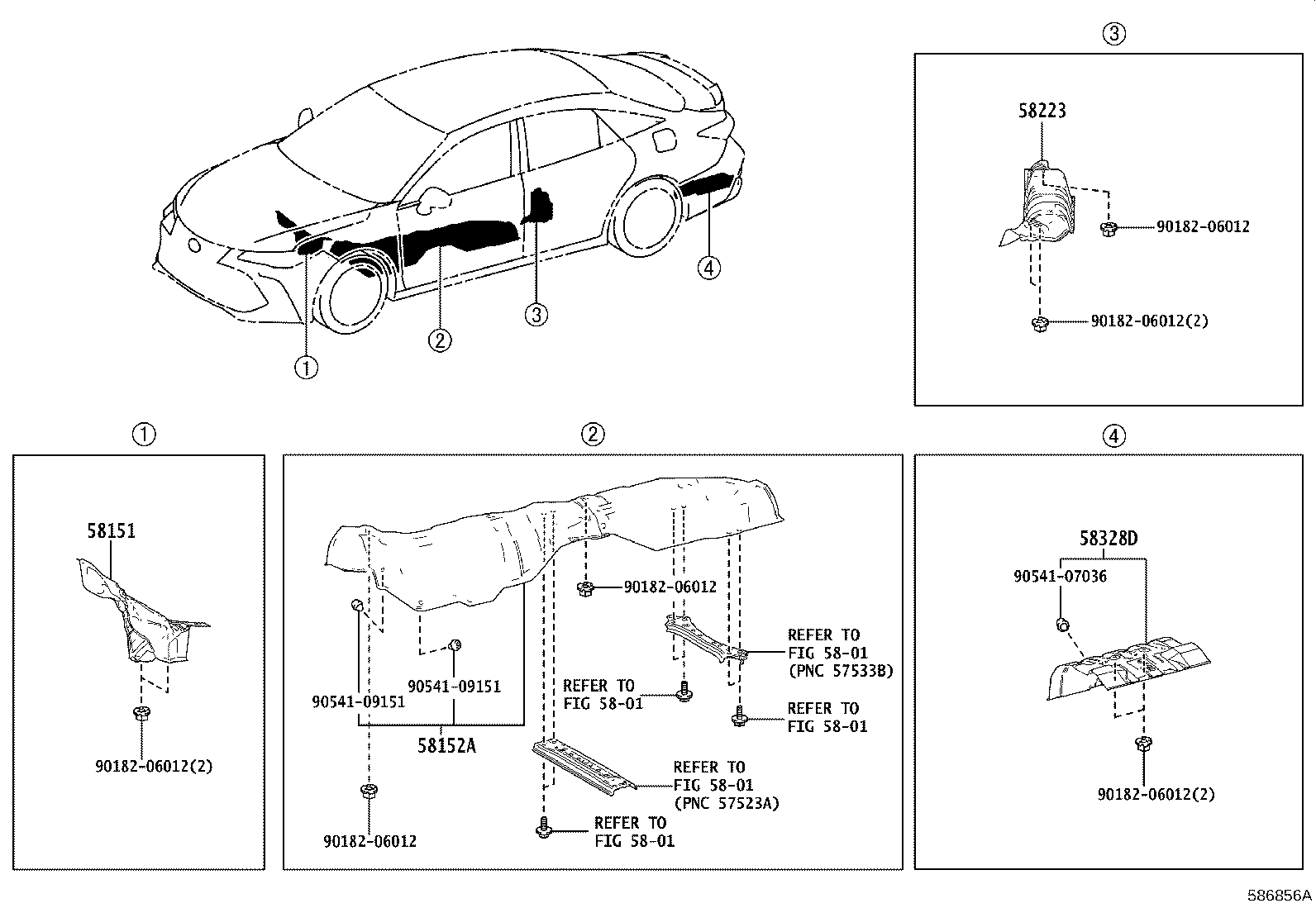

Floor Insulator
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58151 | Insulator, Front Floor Heat, NO.1 |
| 58152A | Insulator, Front Floor Heat, NO.1 Lower |
| 58223 | Insulator, Center Floor Heat, NO.2 |
| 58327F | Insulator, Main Muffler Heat, RH |
| 58328D | Insulator, Main Muffler Heat, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
