Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06

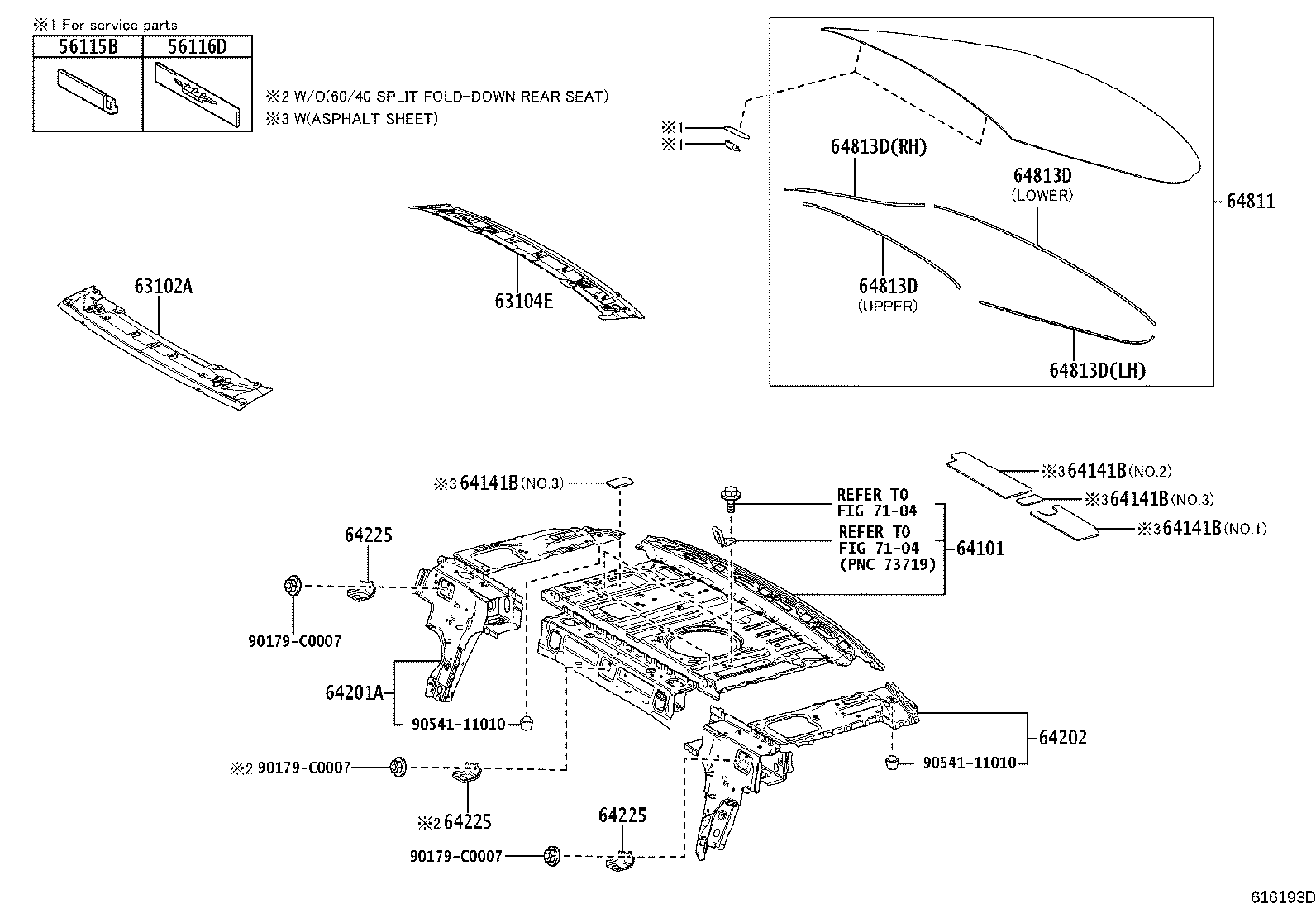

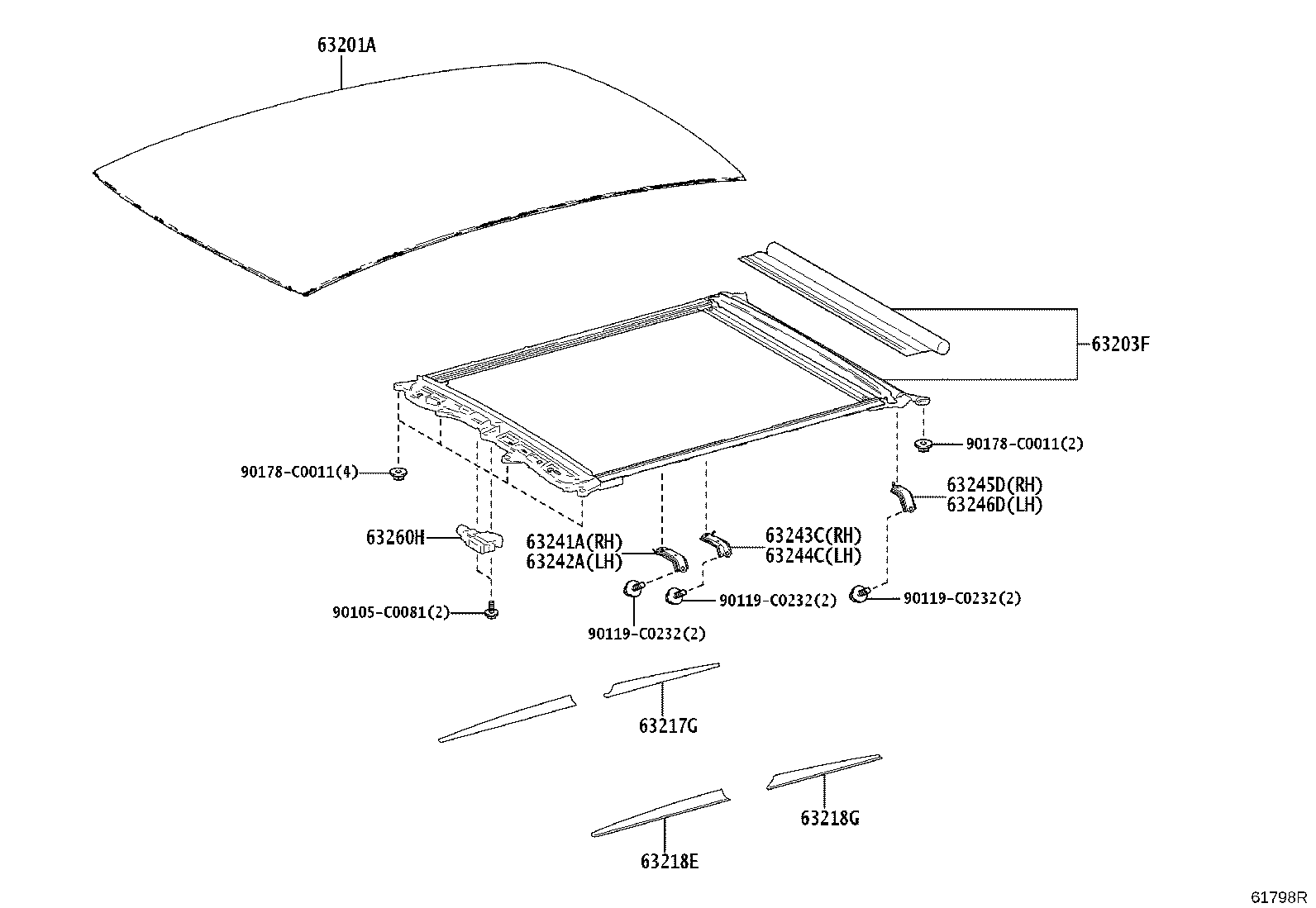

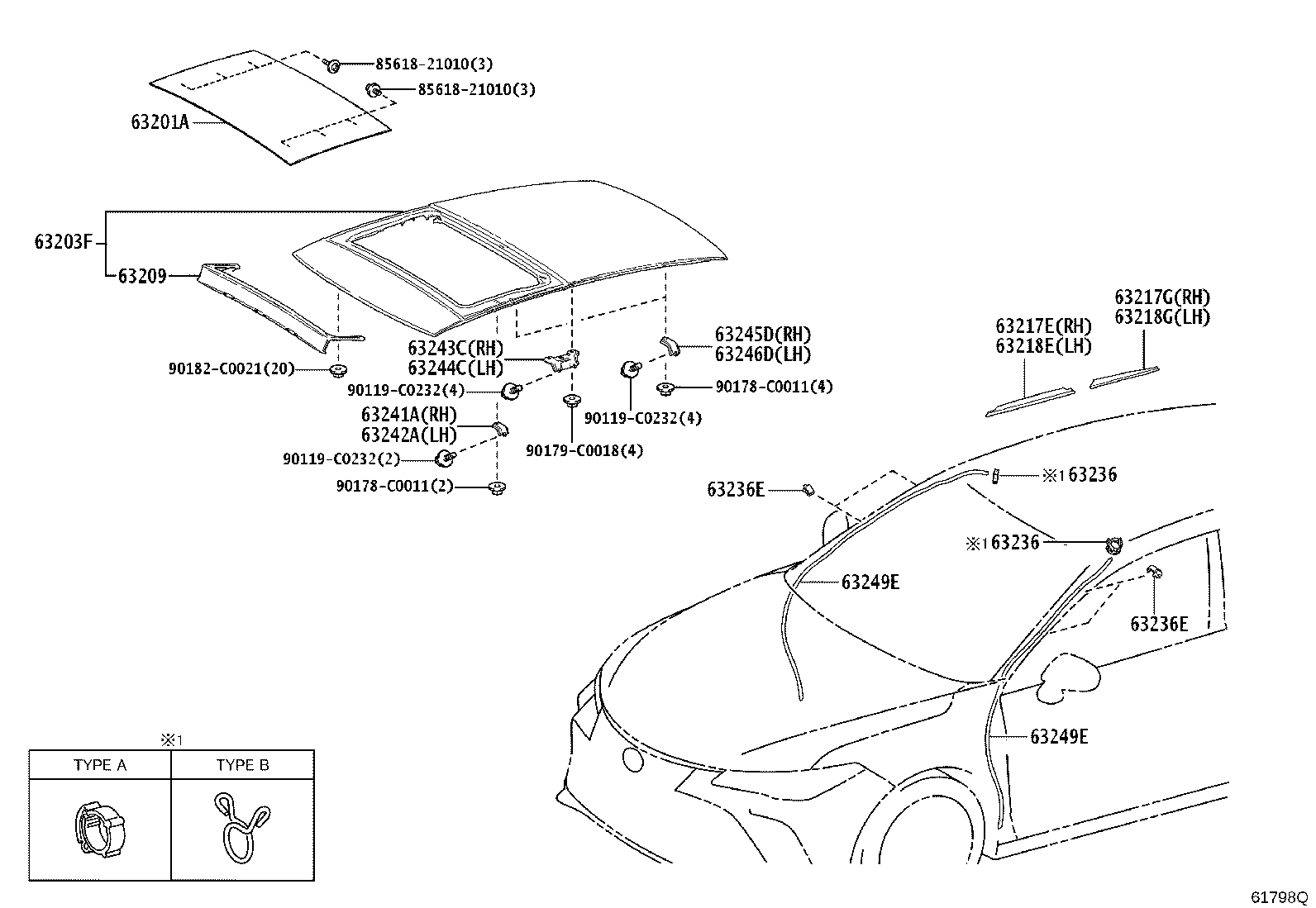

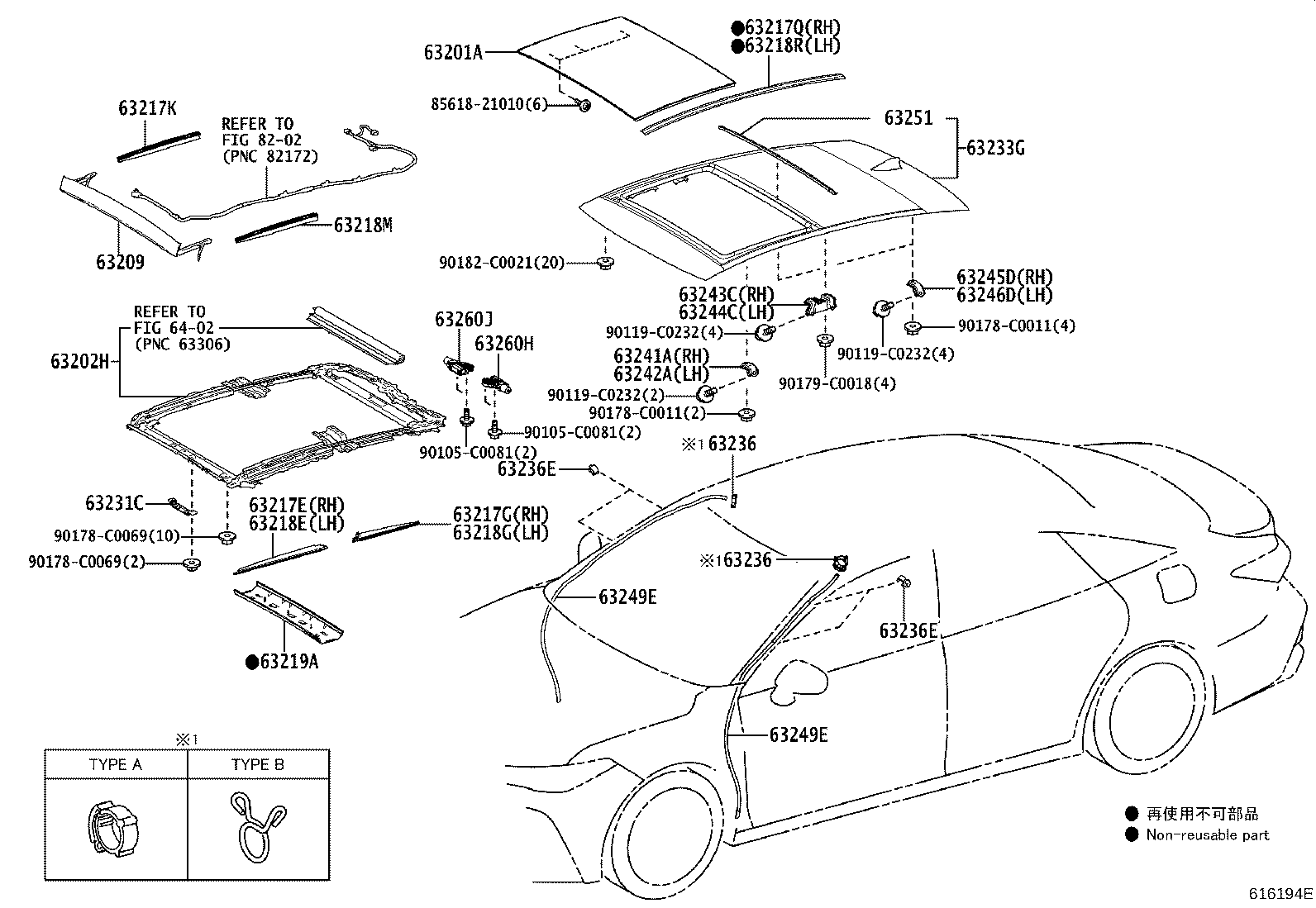

Roof Panel & Back Window Glass
50 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63104E | Reinforcement Sub-assy, Roof Panel, Rear |
| 63111 | Panel, Roof |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217E | Garnish, Sliding Roof, Front RH |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63217Q | Garnish, Sliding Roof Side, RH |
| 63218E | Garnish, Sliding Roof, Front LH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63218R | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63231C | Bracket, Room Lamp |
| 63233G | Protector, Roof Window Moulding, Lower |
| 63235D | Frame, Sliding Roof Housing, Center |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63247 | Hose, Sliding Roof Housing Drain |
| 63249E | Hose, Sliding Roof Drain |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63251H | Weatherstrip, Sliding Roof |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63260J | Gear Assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64141B | Silencer, Back Panel, NO.1 |
| 64201A | Extension Sub-assy, Package Tray, RH |
| 64202 | Extension Sub-assy, Package Tray, LH |
| 64225 | Hanger, Rear Seat Cushion Support |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
