Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06

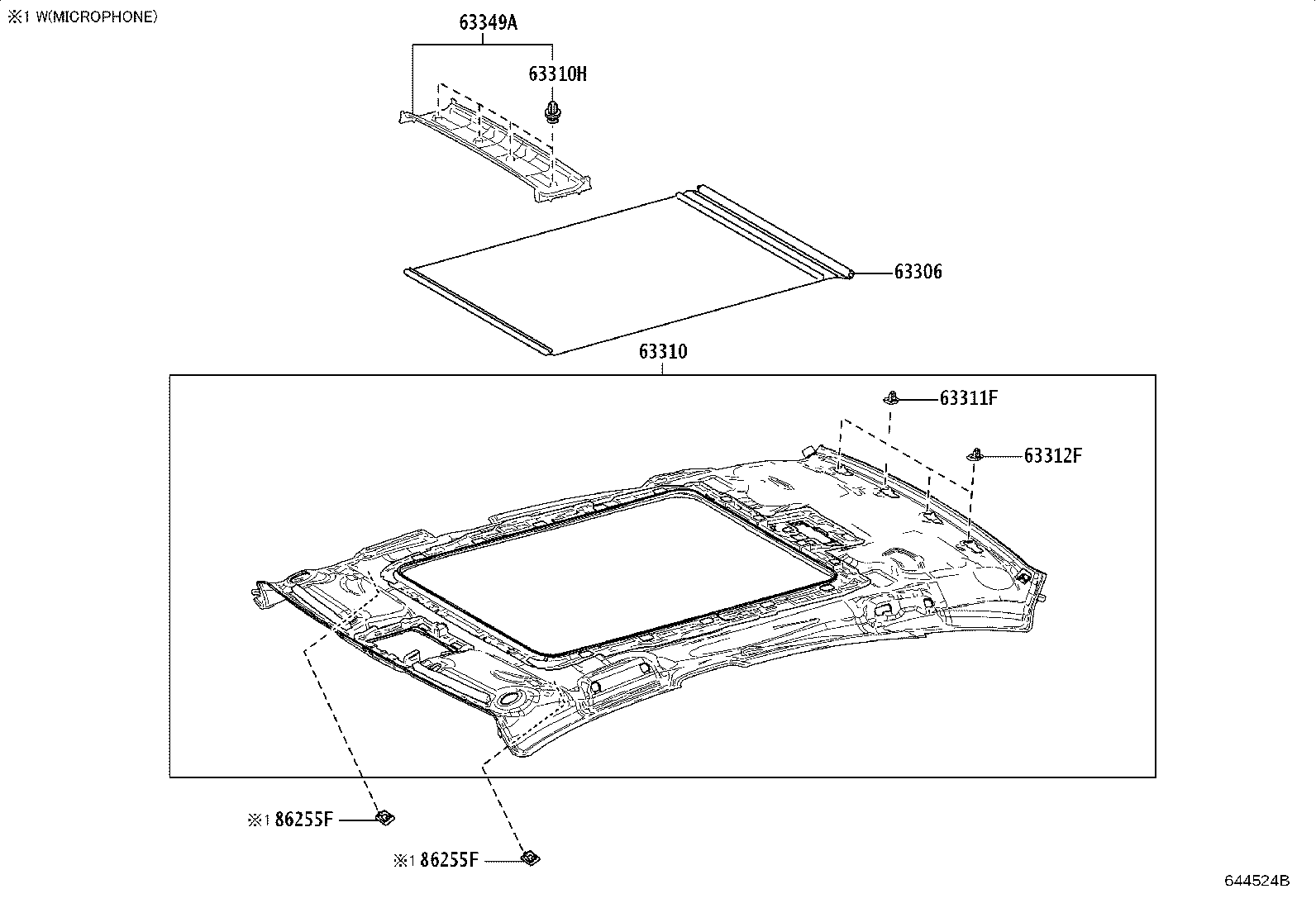

Roof Headlining & Silencer Pad
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311F | Clip, Roof Headlining, NO.1 |
| 63312F | Clip, Roof Headlining, NO.2 |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63349A | Garnish, Roof Headlining, Rear |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
