Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

83 part groups · 31 illustrations

Illustrations

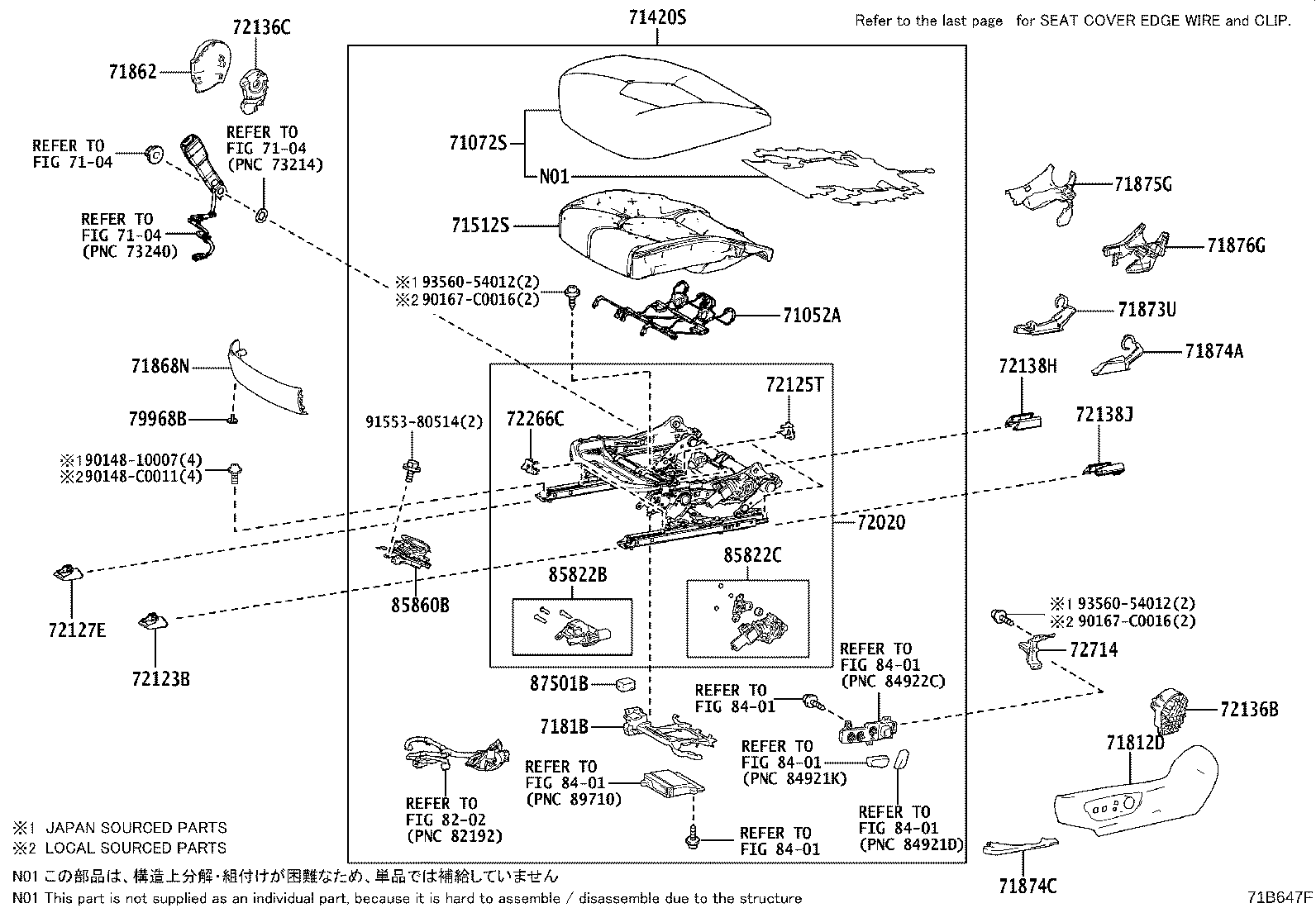

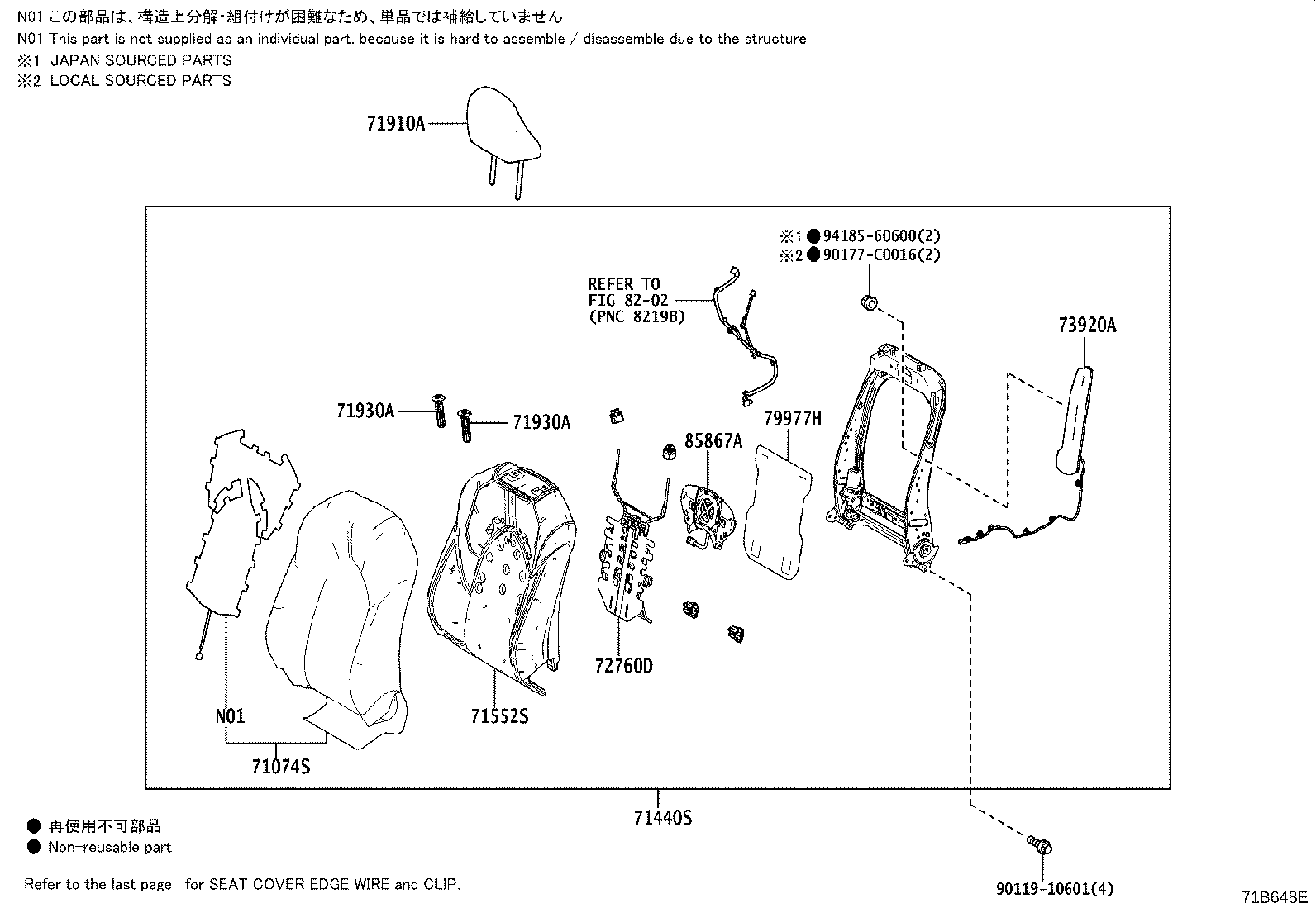

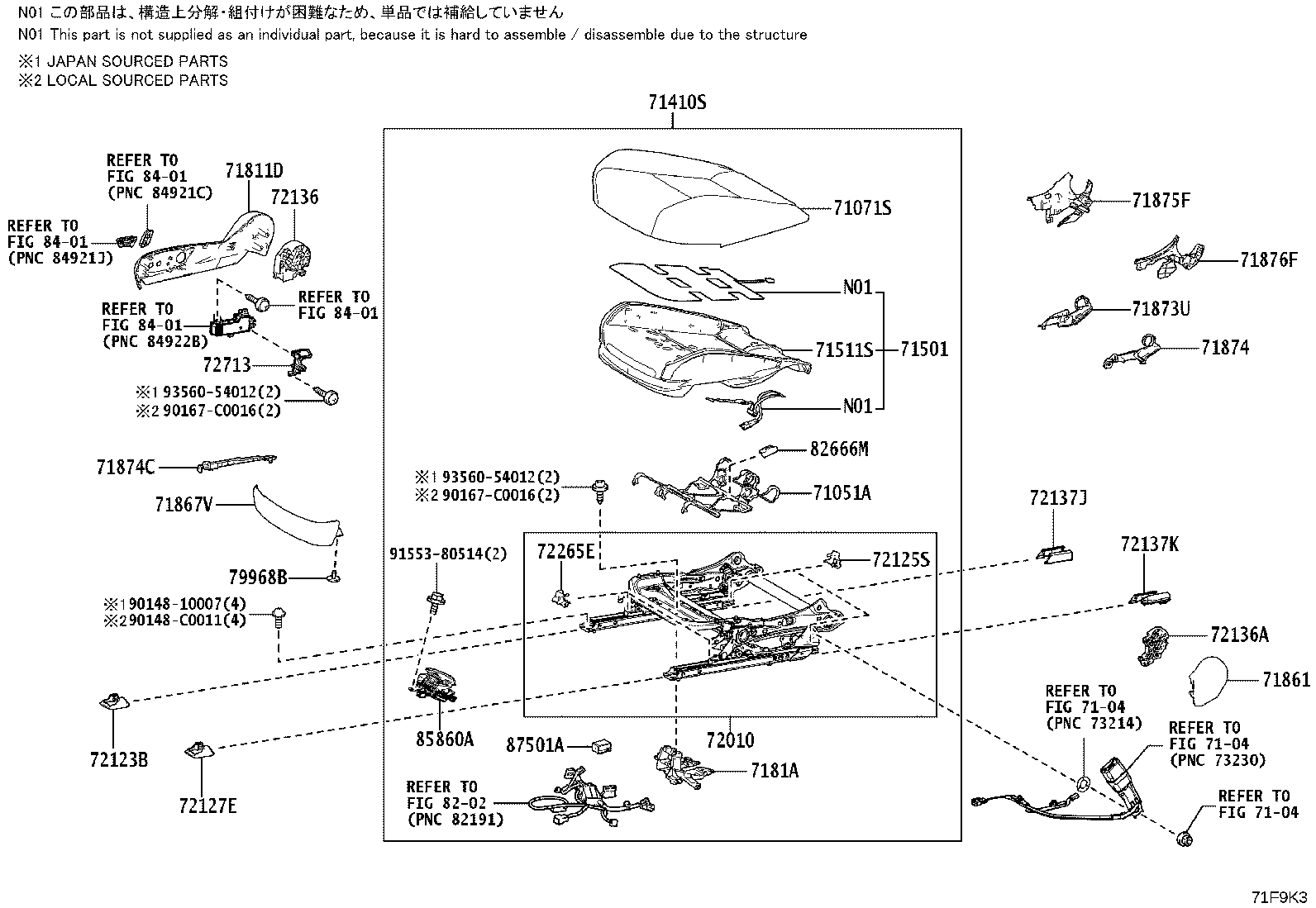

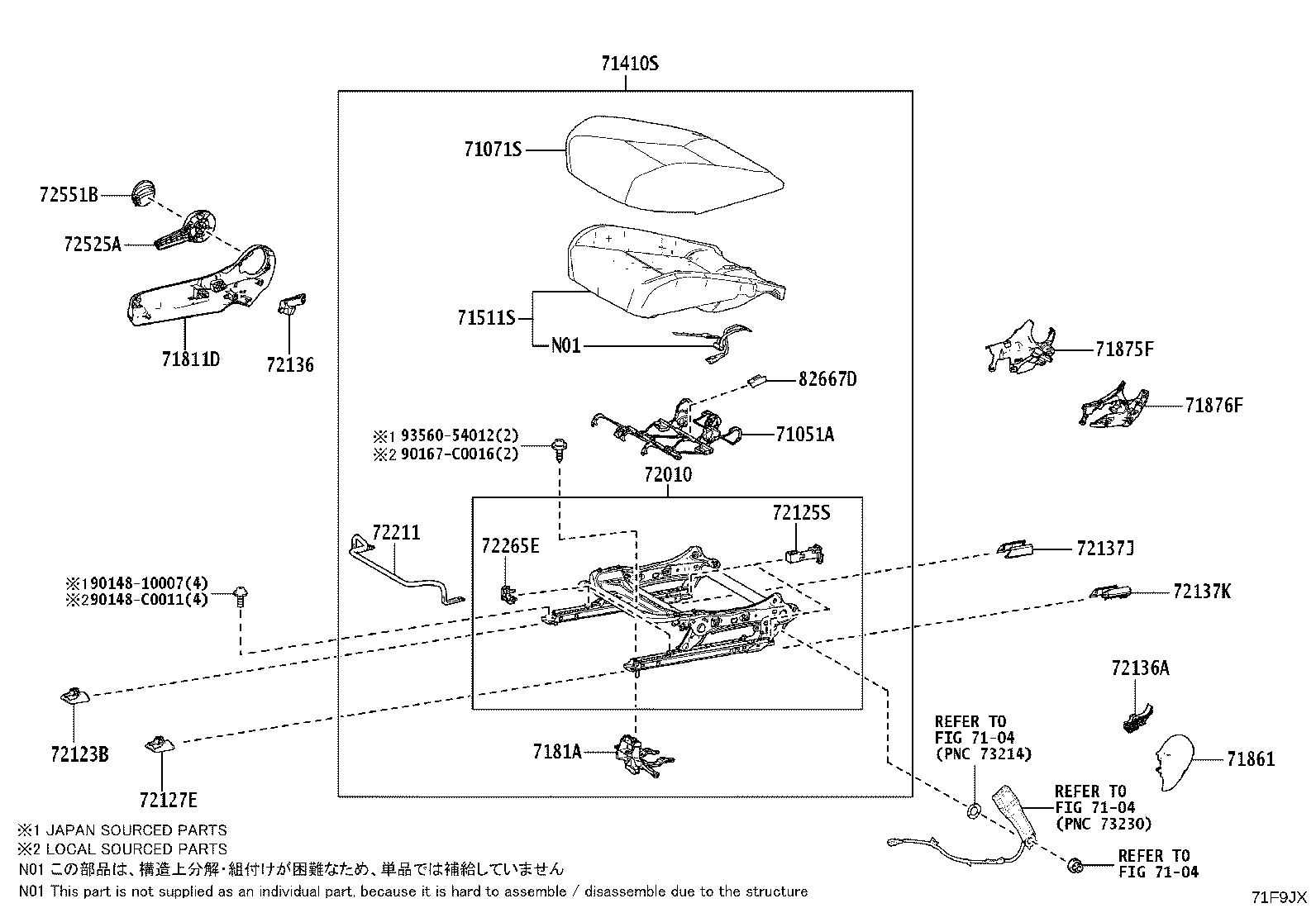

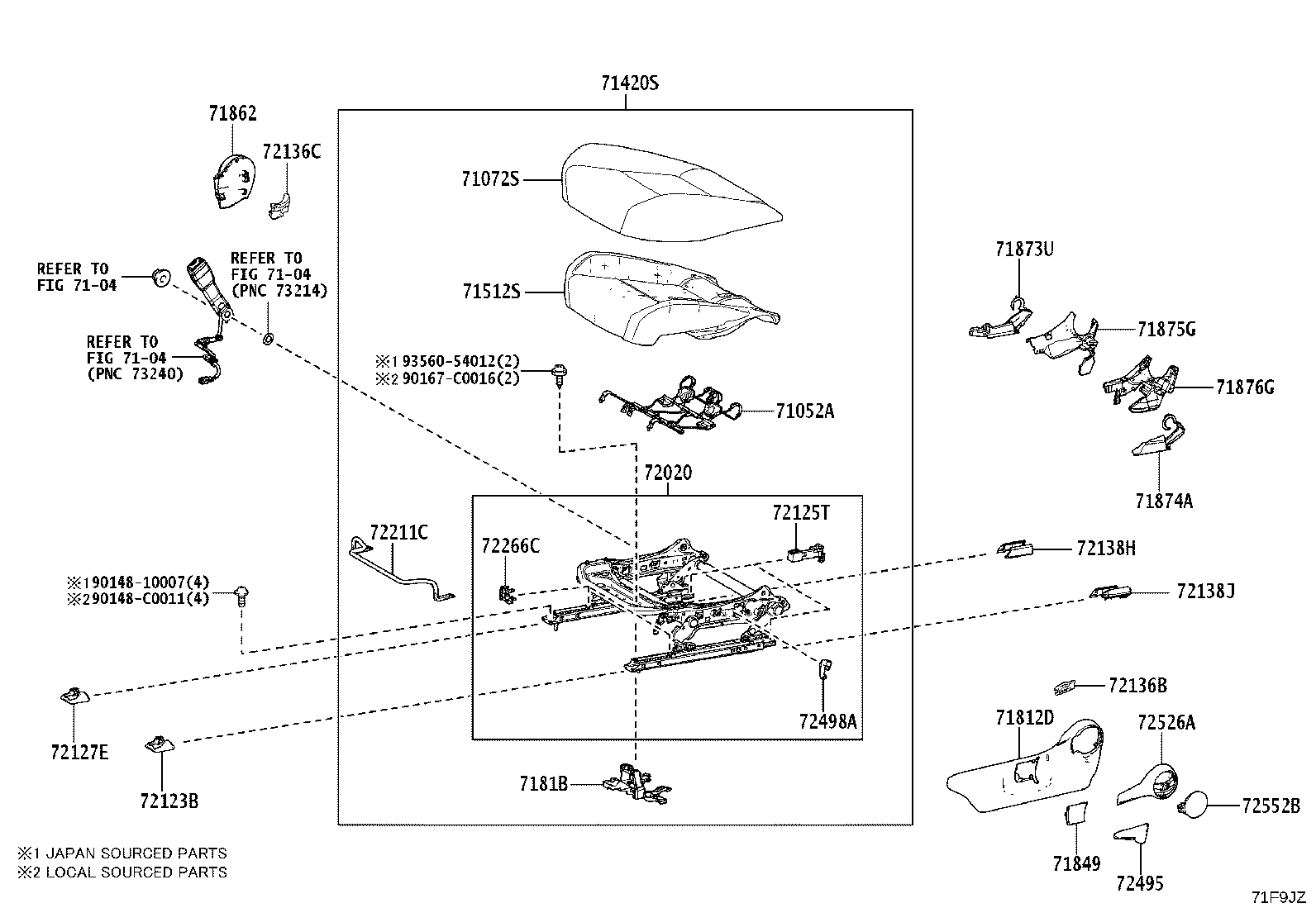

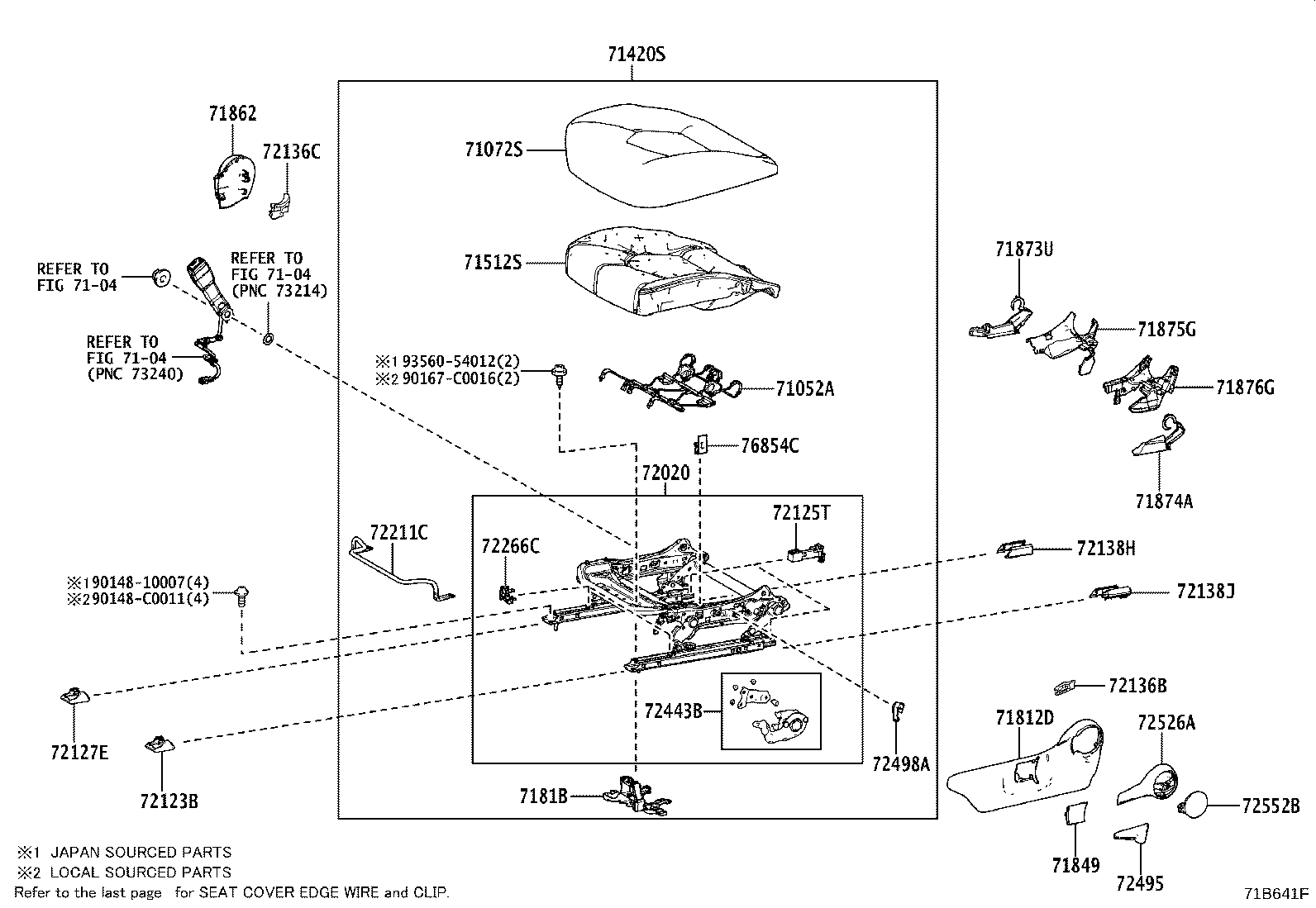

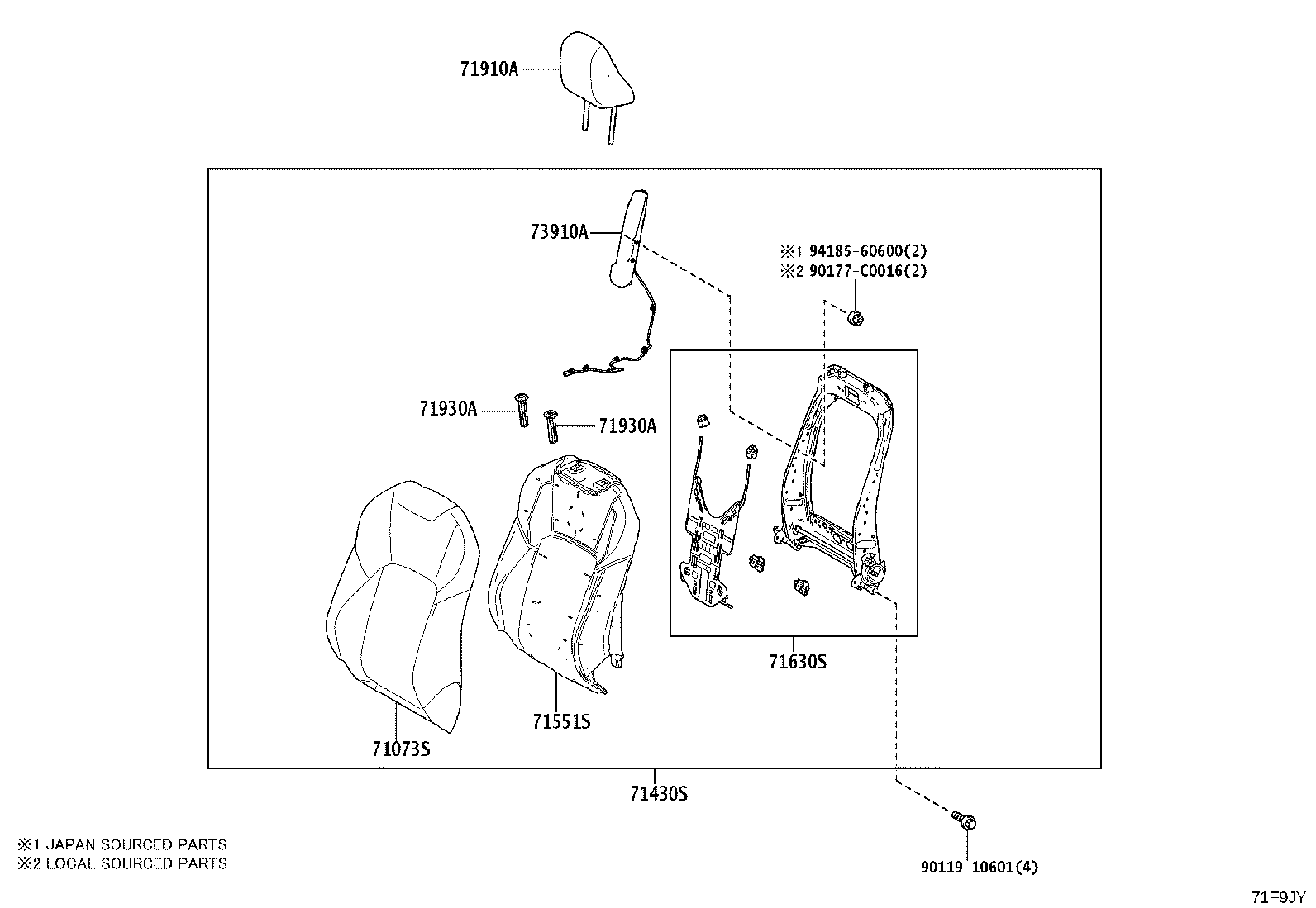

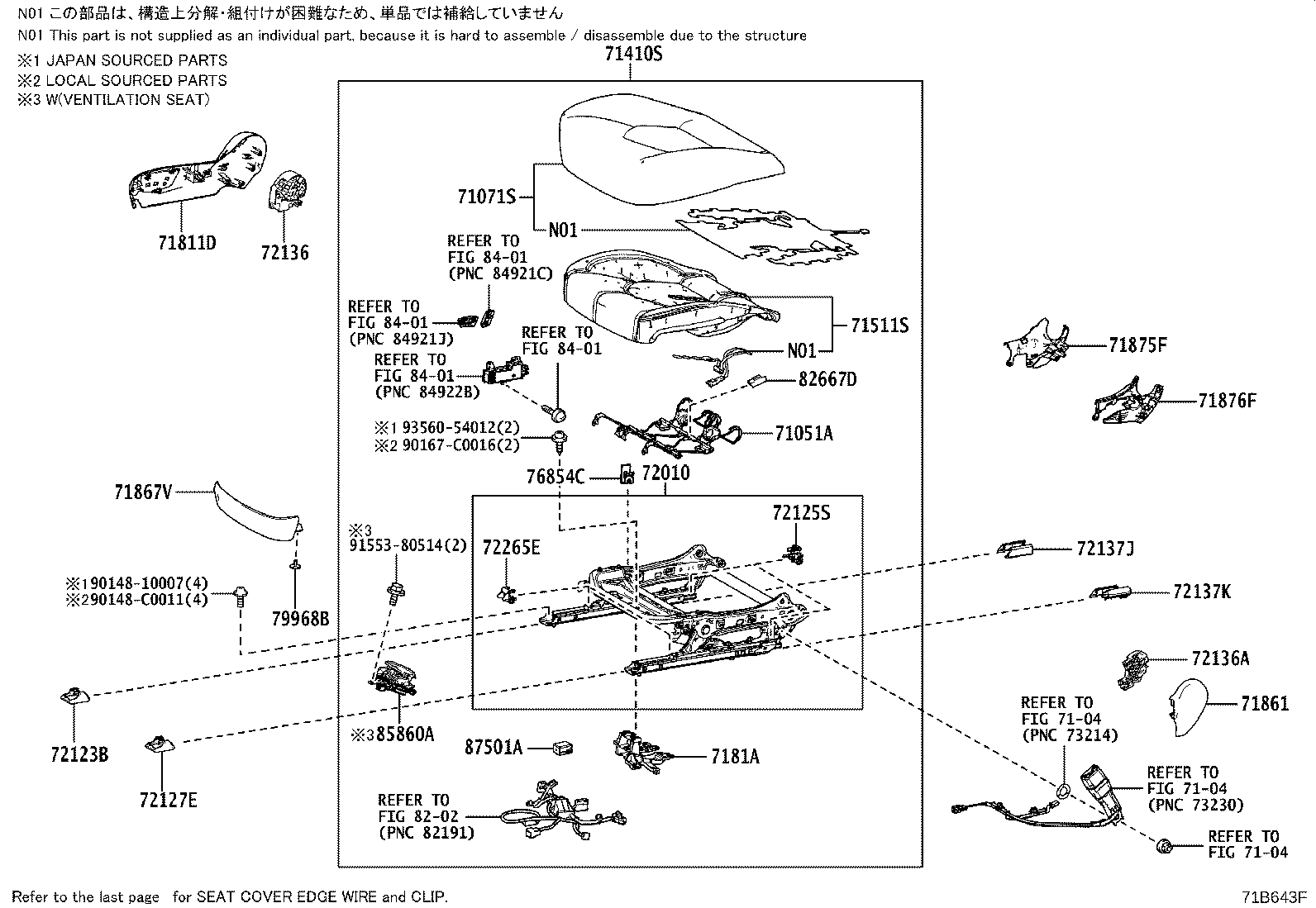

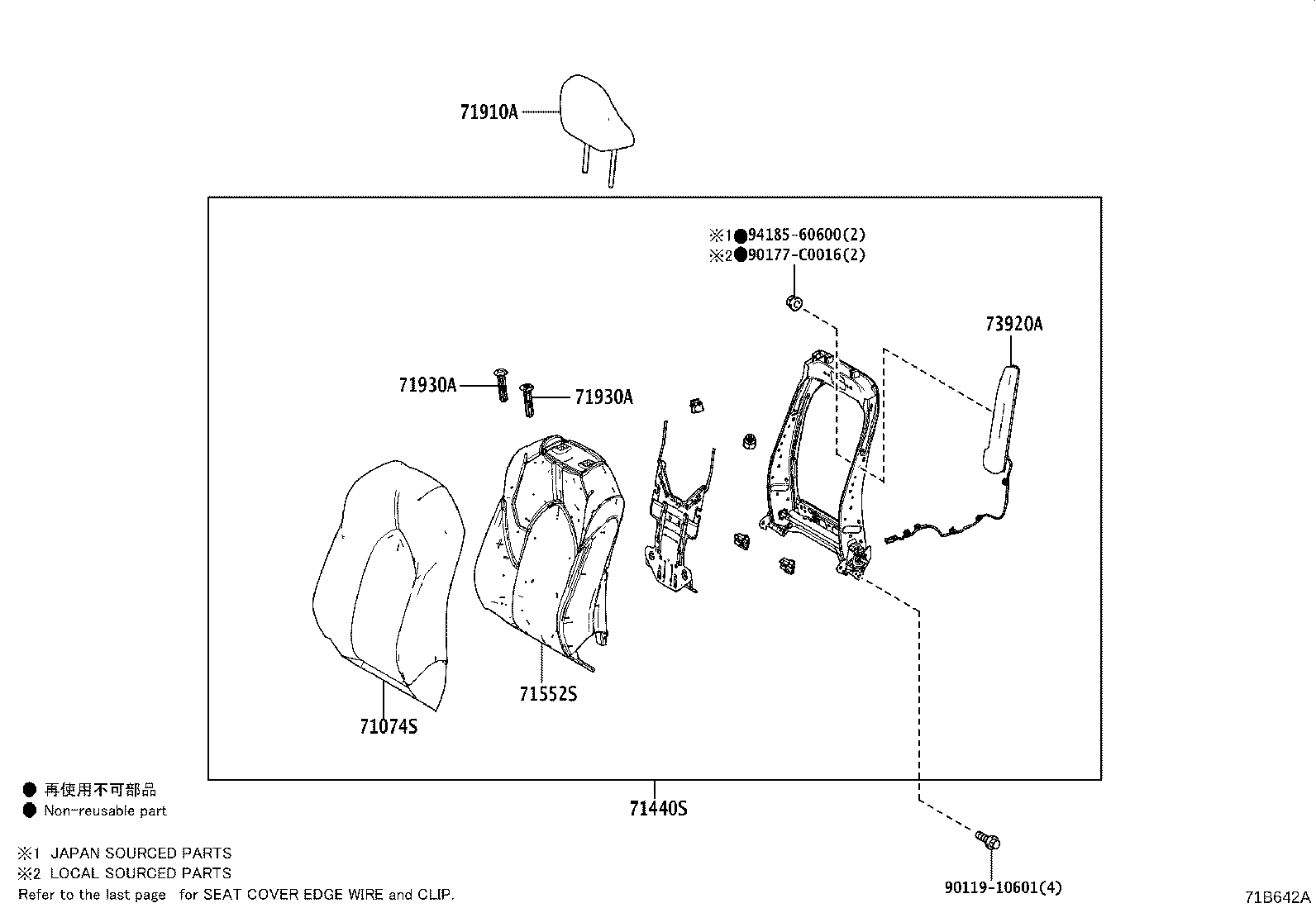

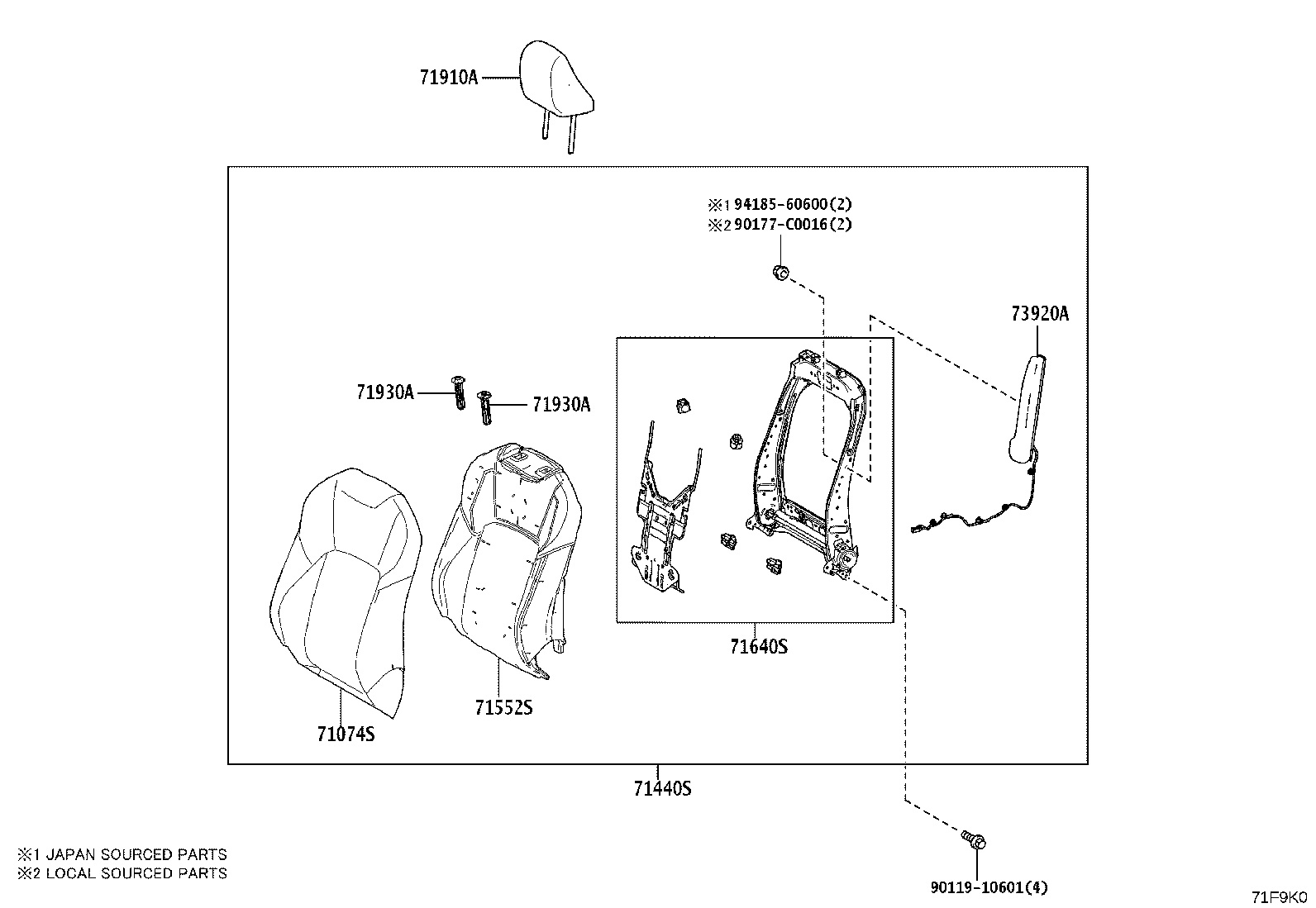

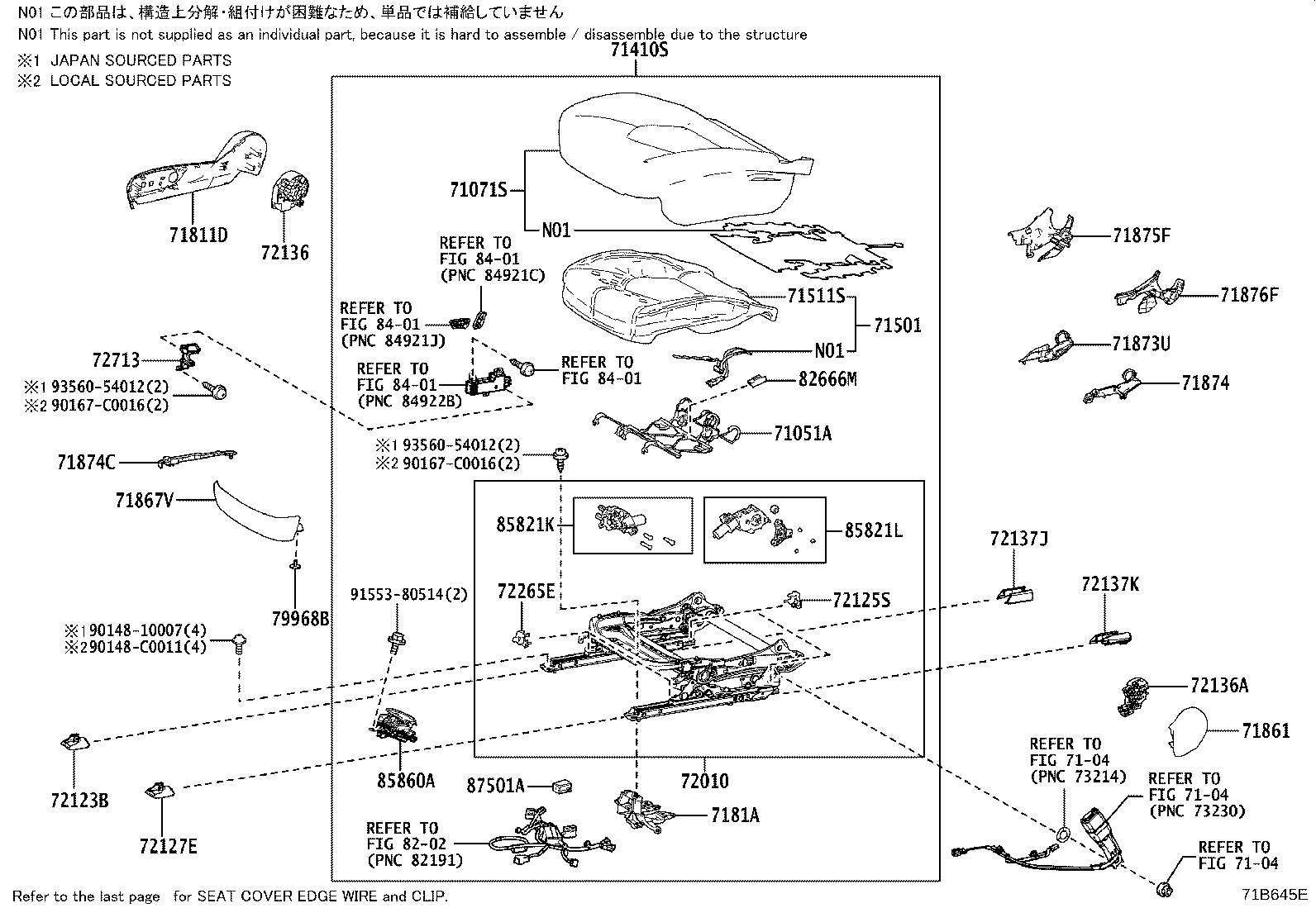

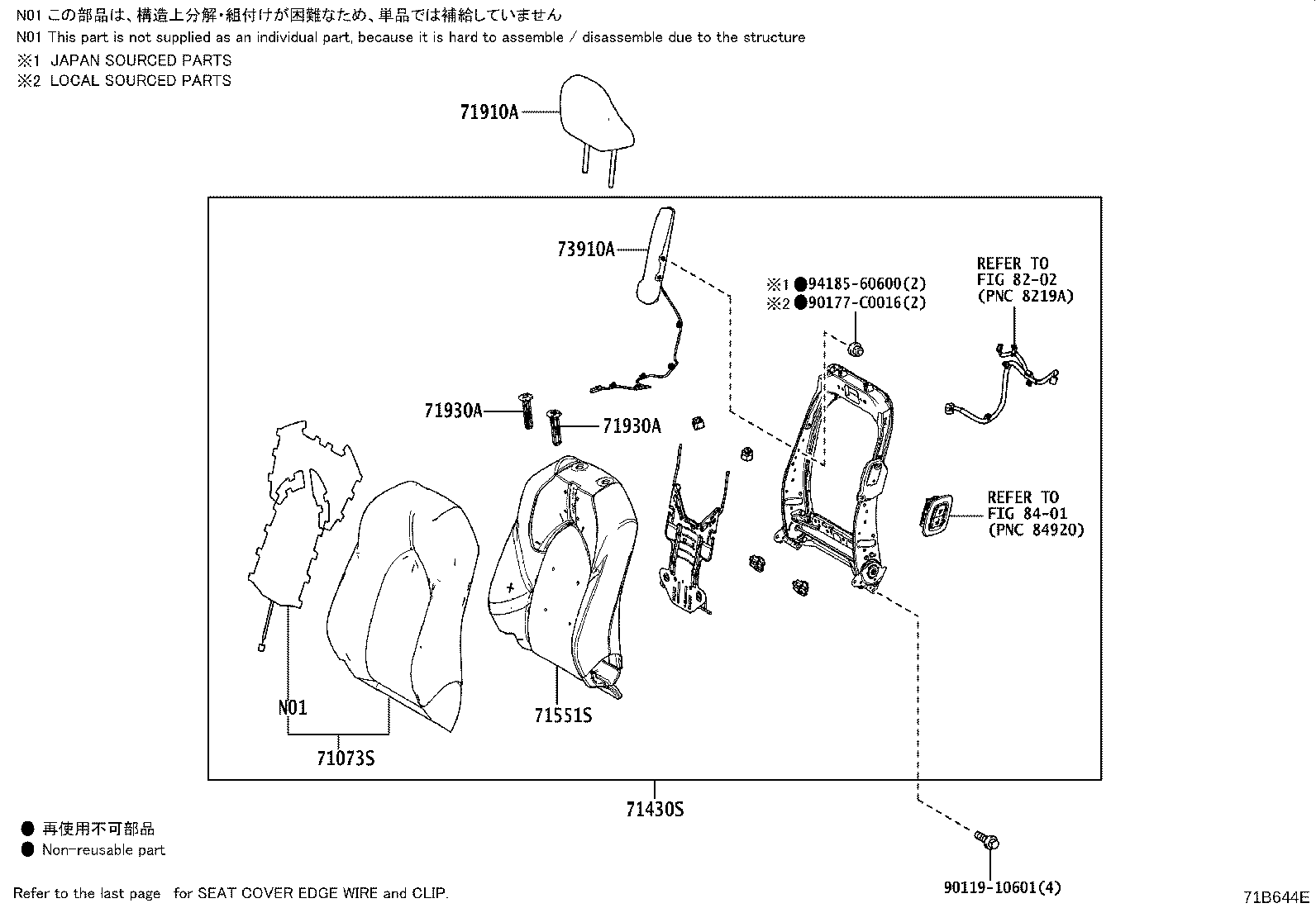

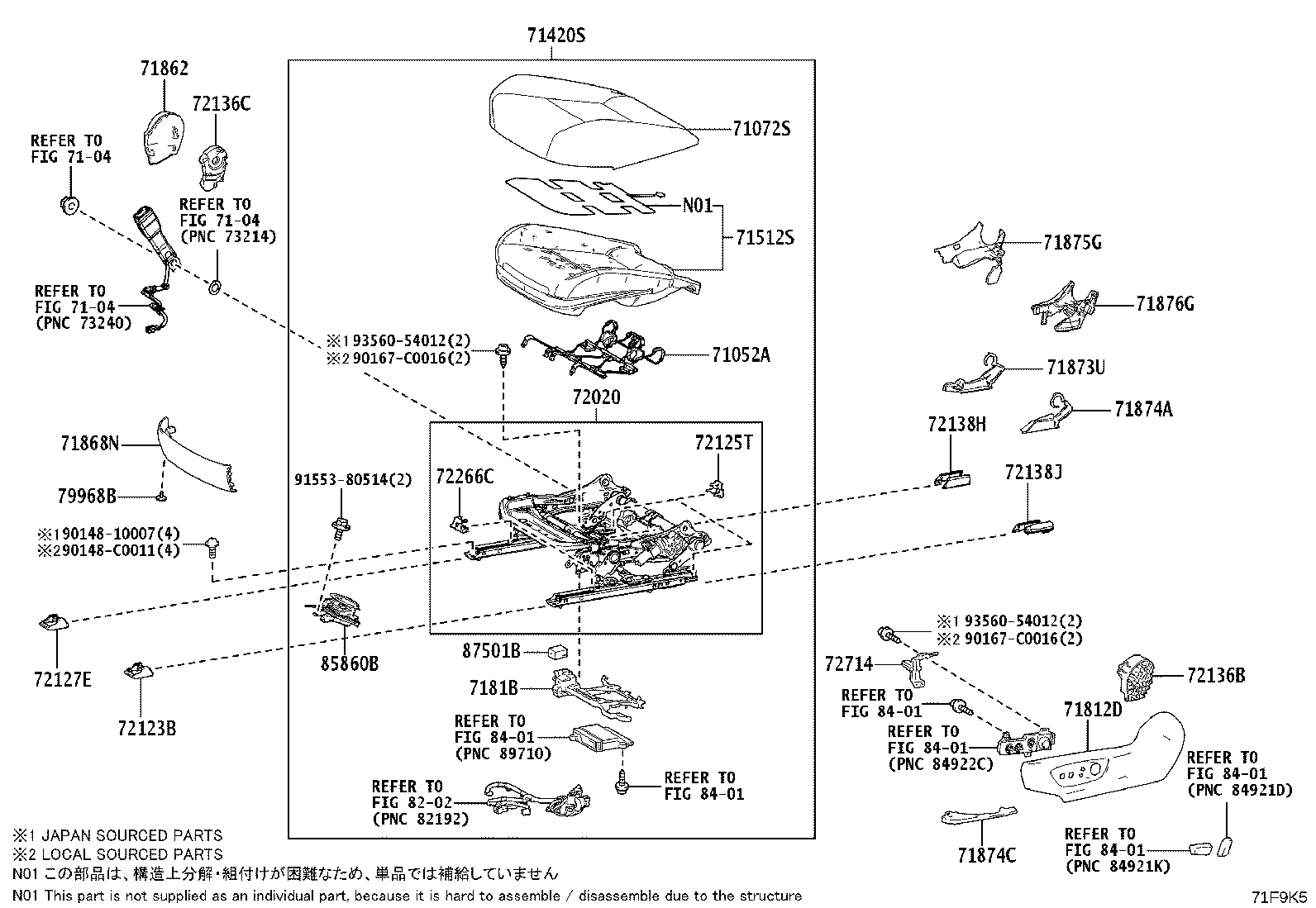

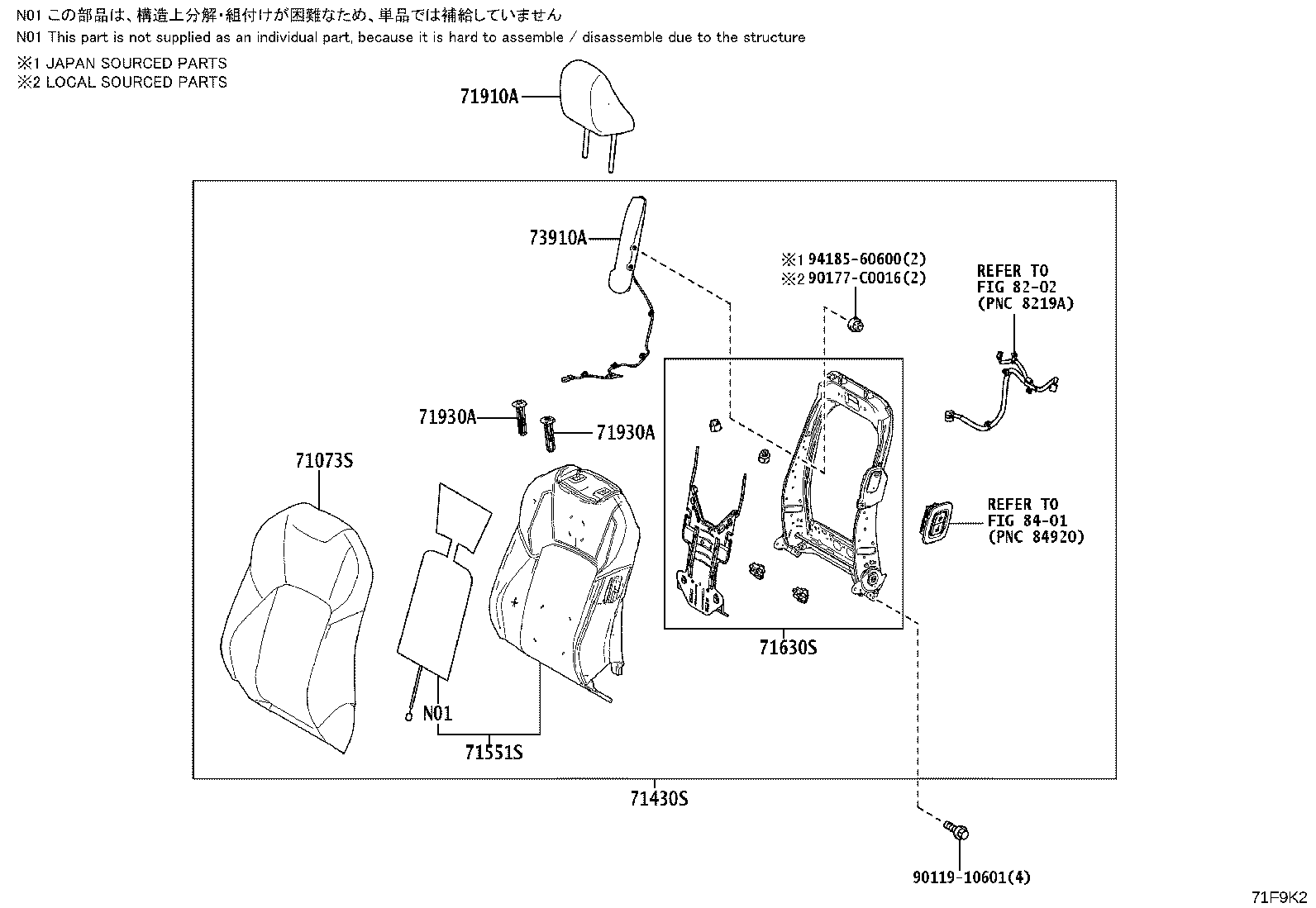

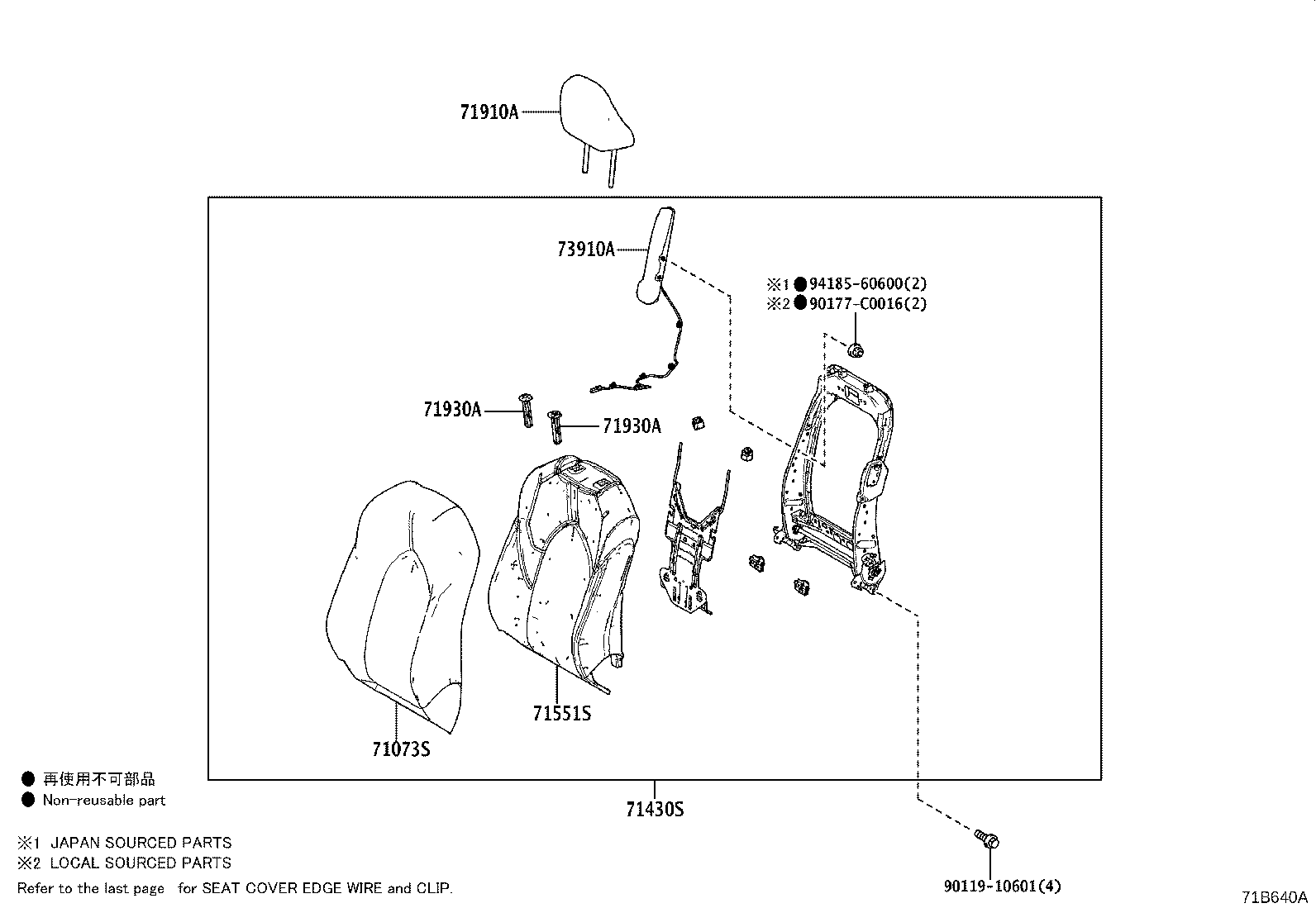

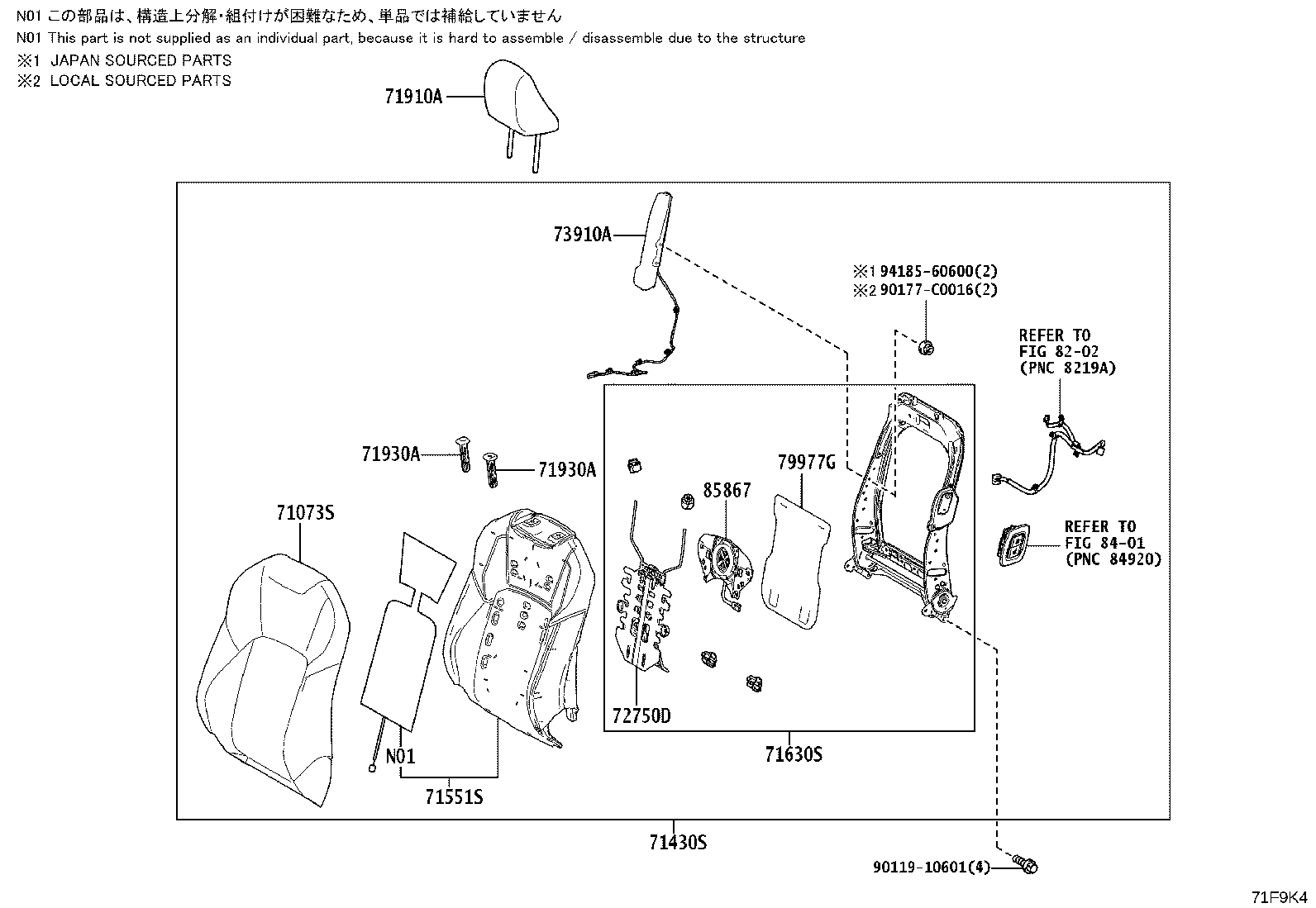

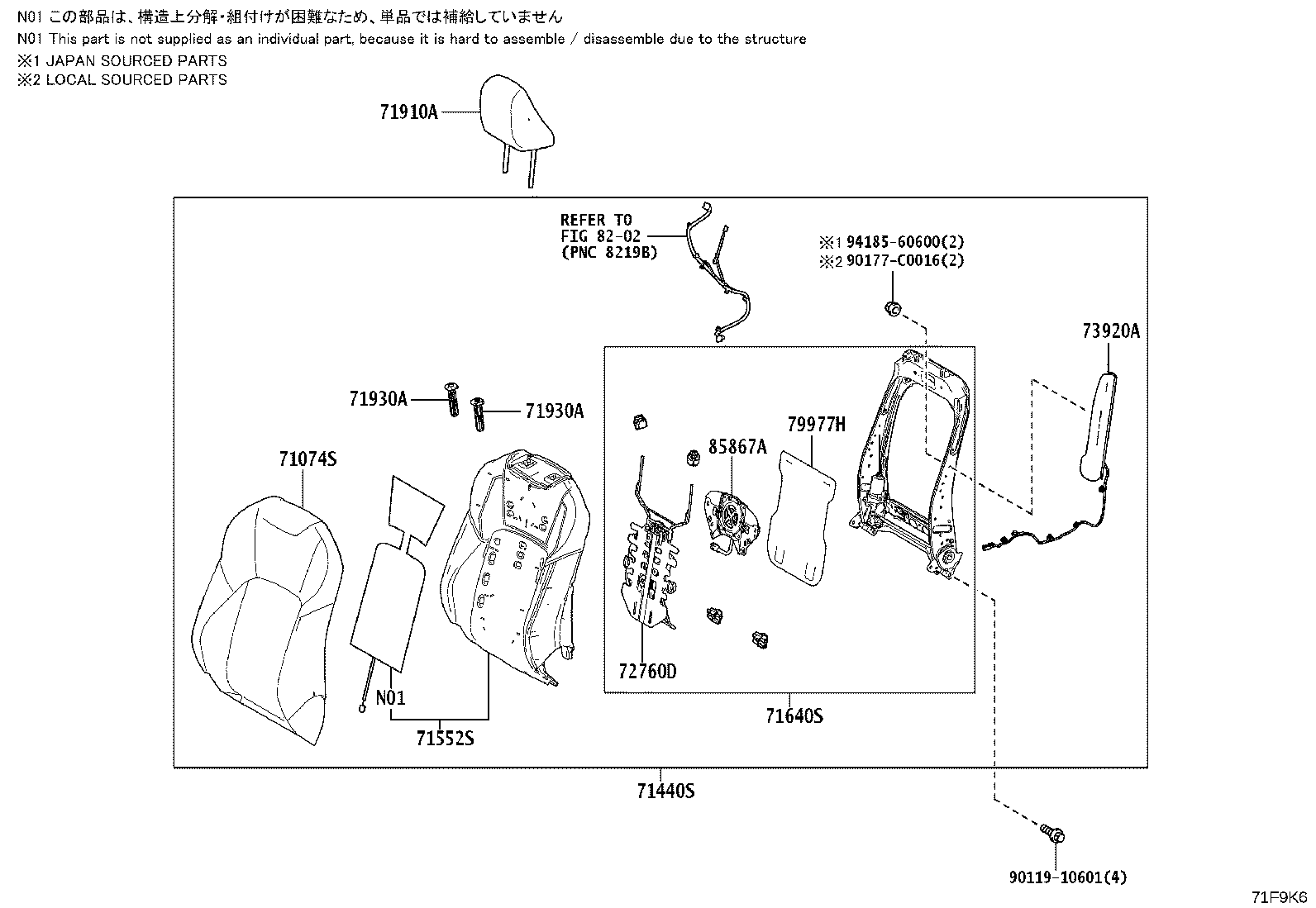

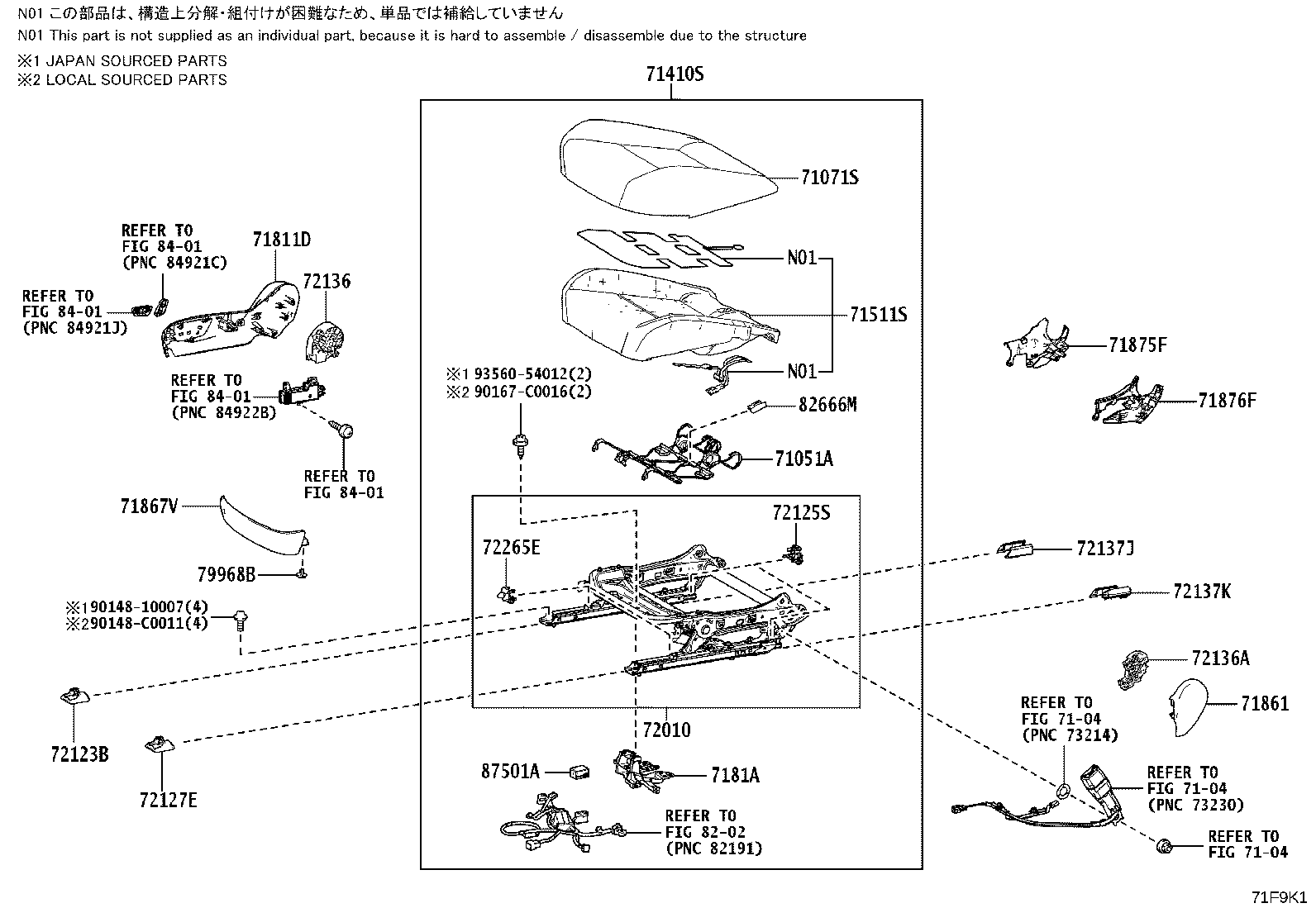

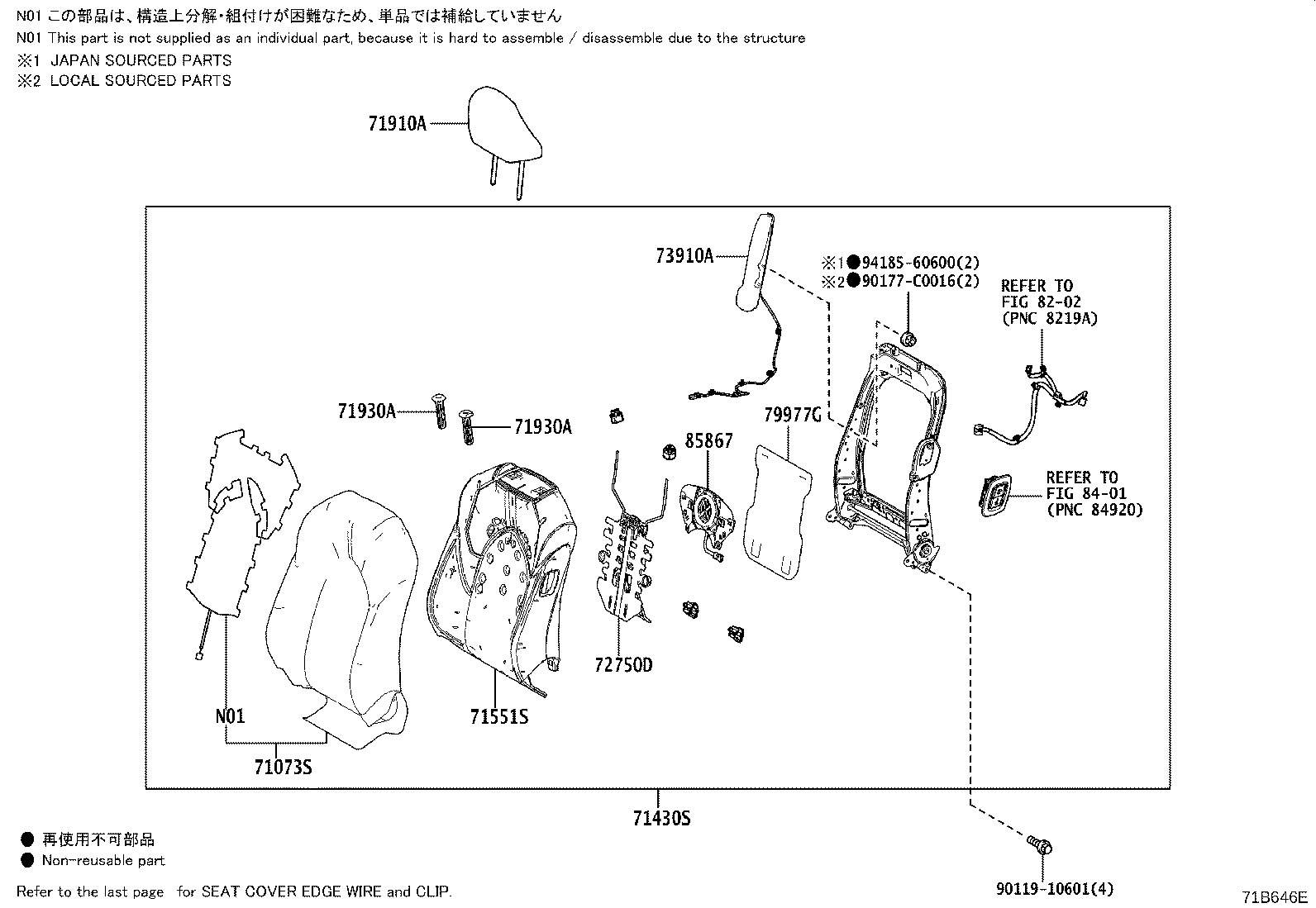

Figure 71B639E 71B639E 2019-03 → 2024-07 Figure 71B639E 71B639E 2024-07 → — Figure 71F9JX 71F9JX 2024-07 → — Figure 71B640A 71B640A 2019-03 → 2024-07 Figure 71B640A 71B640A 2024-07 → — Figure 71F9JY 71F9JY 2024-07 → — Figure 71B641F 71B641F 2019-03 → 2024-07 Figure 71B641F 71B641F 2024-07 → — Figure 71F9JZ 71F9JZ 2024-07 → — Figure 71B642A 71B642A 2019-03 → 2024-07 Figure 71B642A 71B642A 2024-07 → — Figure 71F9K0 71F9K0 2024-07 → — Figure 71B643F 71B643F 2019-03 → 2024-07 Figure 71B643F 71B643F 2024-07 → — Figure 71F9K1 71F9K1 2024-07 → — Figure 71B644E 71B644E 2019-03 → 2024-07 Figure 71B644E 71B644E 2024-07 → — Figure 71F9K2 71F9K2 2024-07 → — Figure 71B645E 71B645E 2019-03 → 2024-07 Figure 71B645E 71B645E 2024-07 → — Figure 71F9K3 71F9K3 2024-07 → — Figure 71B646E 71B646E 2019-03 → 2024-07 Figure 71B646E 71B646E 2024-07 → — Figure 71F9K4 71F9K4 2024-07 → — Figure 71B647F 71B647F 2019-03 → 2024-07 Figure 71B647F 71B647F 2024-07 → — Figure 71F9K5 71F9K5 2024-07 → — Figure 71B648E 71B648E 2019-03 → 2024-07 Figure 71B648E 71B648E 2024-07 → — Figure 71F9K6 71F9K6 2024-07 → — Figure 71A647H 71A647H 2019-03 → —

Part groups

PNCDescription
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71501 Pad Sub-assy, Front Seat Cushion, RH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123B Cover, Seat Track Bracket, Outer Front
72125S Cover, Front Seat Track, Upper Rear RH
72125T Cover, Front Seat Track, Upper Rear LH
72127E Cover, Seat Track Bracket, Inner Front
72136 Spacer, Seat Track, Lower NO.1
72136A Spacer, Seat Track, Lower NO.2
72136B Spacer, Seat Track, Lower NO.3
72136C Spacer, Seat Track, Lower NO.4
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265E Cover, Seat Track Upper Rail, RH
72266C Cover, Seat Track Upper Rail, LH
72443B Gear, Vertical Adjuster, LH
72495 Handle, Vertical Adjusting, LH
72498A Cover, Vertical Adjuster Bracket, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
76854C Retainer, Front Seat Cushion Cover
79968B Clip
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
82666M Holder, Connector
82667D Holder, Connector
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
