Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06
Seat Belt & Child Restraint Seat

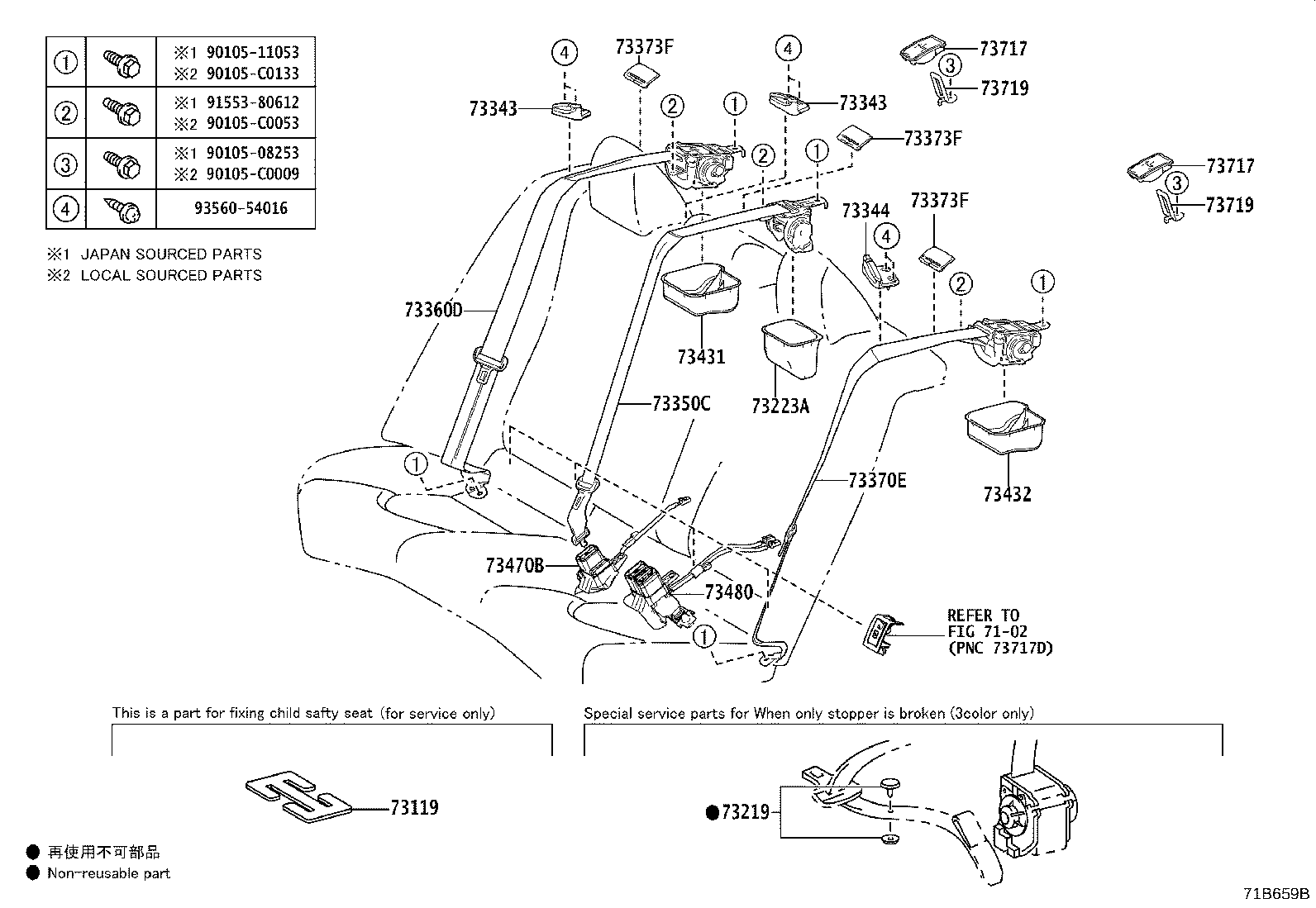

24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223A | Cover, Seat Belt Retractor |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360D | Belt Assy, Rear Seat, Outer RH |
| 73370E | Belt Assy, Rear Seat, Outer LH |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73431 | Cover, Rear Seat Belt Retractor, RH |
| 73432 | Cover, Rear Seat Belt Retractor, LH |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
| 73717 | Cover, Child Restraint Seat Tether Anchor |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
