Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06

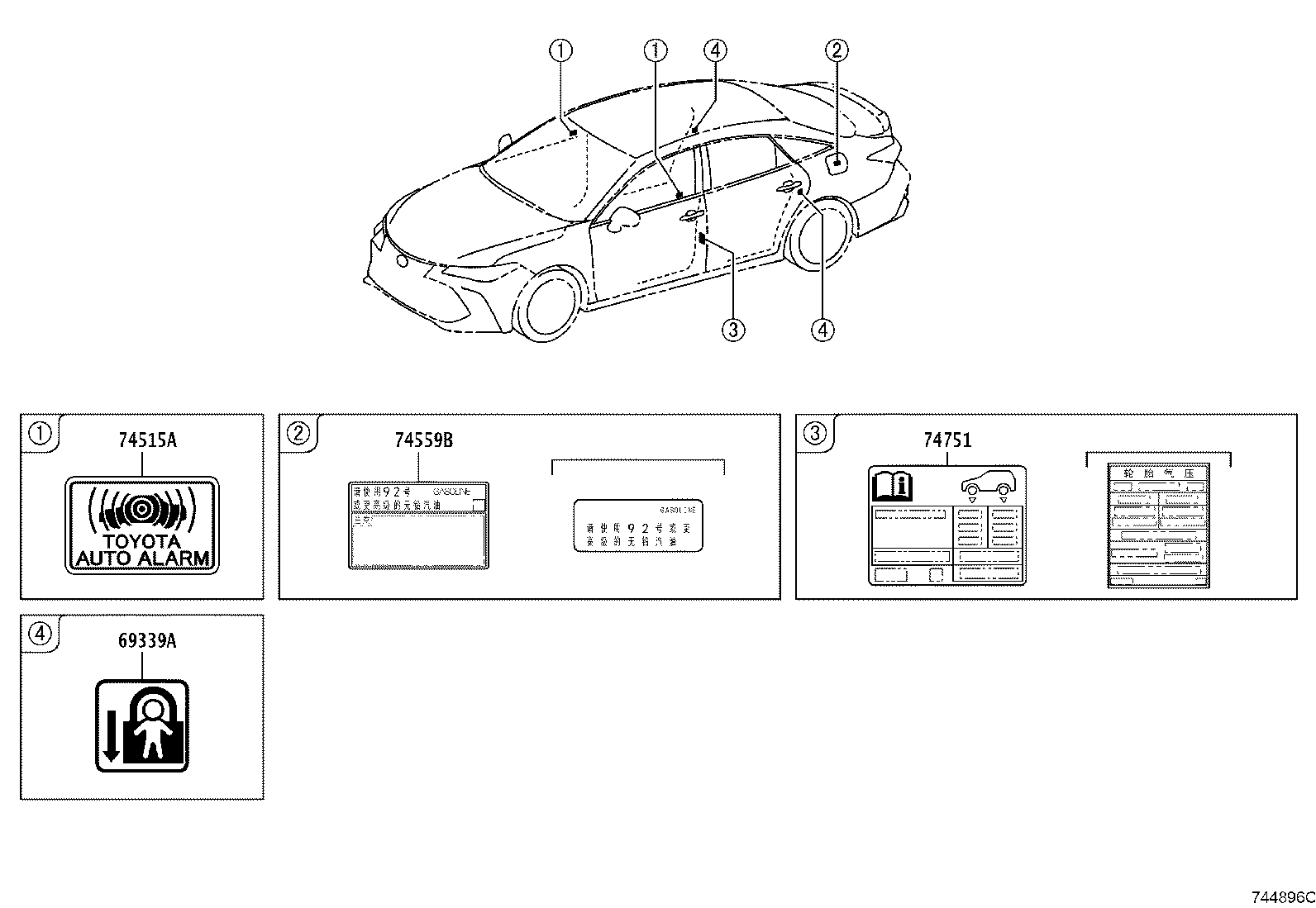

Caution Plate (EXTERIOR & INTERIOR)
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 16793E | Label, Cooling Fan Caution |
| 288A2 | Label, Battery Location |
| 42668 | Label, Compact Spare Tire Caution |
| 69339A | Plate, Child Protector Lock Caution |
| 74515A | Plate, Theft Warning |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G9285A | Label, HV Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
